BEJ9QK-W1000NSHome Monitoring System

LSP-W1000_EVNT_ENG Before connecting, operating or adjusting this product, please read this owner’s manual carefully and completely. Home Monitoring System Owner’s Manual MODEL: LSP-W1000 - LSP-W1000NS - LSP-W1000PS - LSP-W1000AC 2 This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulat- ed dangerous voltage within the product’s enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and main- tenance (servicing) instructions in the litera- ture accompanying the product. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifica- tions to this equipment may cause harmful interfer- ence unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. REGULATORY INFORMATION: FCC Part 15 This equipment has been tested and found to com- ply with the limits for a Class B digital device, pursu- ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guar- antee that interference will not occur in a particular installation. If this product does cause harmful inter- ference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the product and receiver. • Connect the product into an outlet on a circuit different from that to which the receiver is con- nected. • Consult the dealer or an experienced radio/TV technician for help. - Labelling information: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - RF Exposure Statement: The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any antenna or transmitter other than those contained in this device. FCC Regulations Part 15 Declaration of Conformity (DoC) LG Corporation declares that the equipment described in this document is within the require- ments of the Code of Federal Regulations listed below: Title 47 Part 15, Subpart B, Class B for a digital device. This declaration is based upon the compliance of the data transceiver to the above standards. LG has determined that the models listed have been shown to comply with the applicable technical standards if no unauthorized change is made in the equipment and if the equipment is properly maintained and operated. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/ EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facili- ties appointed by the government or the local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequenc- es for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 3 Canada Notice This Class B digital apparatus complies with Canadian ICES-003, Issue 2, and RSS-210, Issue 4 (Dec. 2000). “To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.” Cet appareil numérique de la classe B est conforme à la norme NMB-003, No. 2, et CNR-210, No. 4 (Dec. 2000). « Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afi n de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence. » Operation is subject to the following two conditions: this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the certifi cation/registration number only signifi es that the Industry Canada technical specifi cations were met. This device has been designed to operate with an antenna having a maximum gain of 2 dB. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. European Union (1999/5/EC) T…

Text truncated - open the document above for the full version.

DECLARATION OF RF channel Manufacturer Head Office Factory Office Type of product Model Name : LG Electronics Inc. : Twin Building, 20 Yoido-dong, Youngdungpo-Gu, Seoul 150-721, Korea : 19-1, Cheongho-ri, jinwi-Myeon, Pyungtaek-si, Gyeonggi-do, 451-713 Korea : Home monitoring System : LSP-W1000NS We hereby declare that the above model LSP-W1000NS is used in the 1-11channels. Sincerely Yours ---------------------------------- September 28th, 2007 H. S. Lee, General manager LG Electronics Inc. Digitalmedia Standards Group Tel : 82-31-610-5337 Fax : 82-31-610-5355 LG Electronics Inc. LG Electronics Inc.

Request for Confidentiality Date: Septermber . 20, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject: Confidentiality Request regarding Application for certification of FCC ID: BEJ9QK-W1000NS Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ‹ Functional Block Diagram ‹ Operational Description (theory of operation) ‹ Schematic Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________________________ Mr. Jong-Dae, Lee Research Engineer LG Electronics Inc.

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=1154b83f93a0721c&ww=1131&cvap=1&qt=&zx=8h6neymkm29p LG Electronics Inc., FCC ID: BEJ9QK-W1000NS, Assessment NO.: AN07T7216, Notice#1 Inbox Reply from "[email protected]" <[email protected]> hide details Sep 24 (4 days ago) to \"Jin-Mo Yang\" <[email protected]> cc [email protected] date Sep 24, 2007 10:41 PM subject LG Electronics Inc., FCC ID: BEJ9QK-W1000NS, Assessment NO.: AN07T7216, Notice#1 Dear Jin-Mo Yang, The review of this application is complete. All technical measurement requirements are met, but there are some administrative items that need to be resolved. Please reply to the following items. Q1: The block diagram does not include details of the AP Board and wireless section of the product. Please provide a block diagram for the AP Board and wireless section. Q2: The schematics do not appear to include the AP Board and wireless section of the product. Please provide a schematic diagram for the AP Board and wireless section. Q3: The operation description does not include information about the wireless capability of the product. Please add information about the wireless capability to the document. Q4: The internal photos do not include the AP Board and wireless section of the product. Please revise the internal photos document and provide internal photos of the AP Board and wireless section. Include views both with and without shields in place if applicable, and provide views of both sides of the board. Q5: Please provide internal photos showing the arrangement of the circuit boards inside the enclosure. Q6: Please provide detailed photos of the antenna and antenna connector. Q7: The test report indicates that the antenna is an "integrated PCB pattern antenna. The photos and user manual show an external antenna with antenna connector. Please revise the test report to be consistent with the other documents. Q8: The label document does not show the location of the label on the product. Please provide a revised label document. Q9: The user manual page 22 indicates the possibility for the user to configure the device for operation on channel 1-13. Only channels 1-11 are authorized for use in the US. Please provide an attestation letter stating that units marketed to the US will not provide user access to settings that would allow operation outside authorized US frequencies. Q10: The frequency range in the application form and listing on the grant will be revised to a single line showing 2412-2462 MHz 0.041 W. In this case, separate lines are not required for 802.11b and 802.11g since the frequency range is identical and power levels are similar. Q11: The current FCC test firms database shows one open area test site for Estech. The address of the open area test site is 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea. The test report page 1 shows the test location address 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea. Please confirm that the open site measurements were carried out on an FCC listed site and revise the test report if needed. Thank you for using CCS FCC TCB services. If you have questions about this notice, please ask. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...54b83f93a0721c&ww=1131&cvap=1&qt=&zx=8h6neymkm29p (1 of 2)9/28/2007 9:15:23 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=1154b83f93a0721c&ww=1131&cvap=1&qt=&zx=8h6neymkm29p Reply from <[email protected]> hide details 5:44 am (3 hours ago) to [email protected] date Sep 28, 2007 5:44 AM subject FW: LG Electronics Inc., FCC ID: BEJ9QK-W1000NS, Assessment NO.: AN07T7216, Notice#1 Dear Tim Dwyer, How are you, I send the revised files now. If here have problem,let me know. Thank you, Yang. - Show quoted text - 8 attachments — Download all attachments w1000 Operation Description_ldh_.ppt 699K View as HTML View as slideshow Download Letter_LSP-W1000NS.pdf 15K View as HTML Download LSP-W1000NS_schematic.pdf 1844K View as HTML Download test report.pdf 863K View as HTML Download block diagram.pdf 80K View as HTML Download EXTERNAL PHOTO.pdf 137K View as HTML Download Internal PHOTO.pdf 447K View as HTML Download LABEL.pdf 49K View as HTML Download http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...54b83f93a0721c&ww=1131&cvap=1&qt=&zx=8h6neymkm29p (2 of 2)9/28/2007 9:15:23 AM

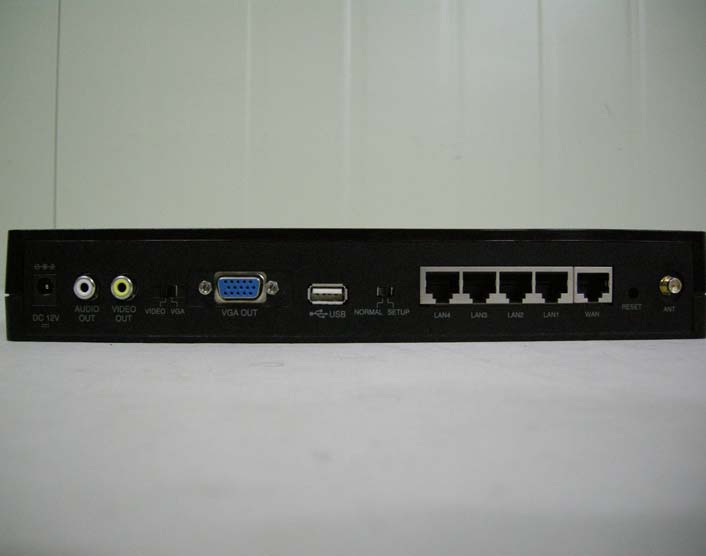

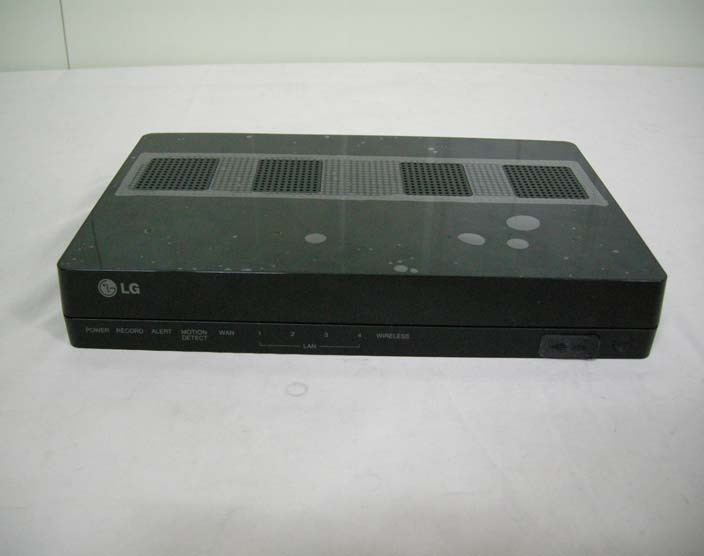

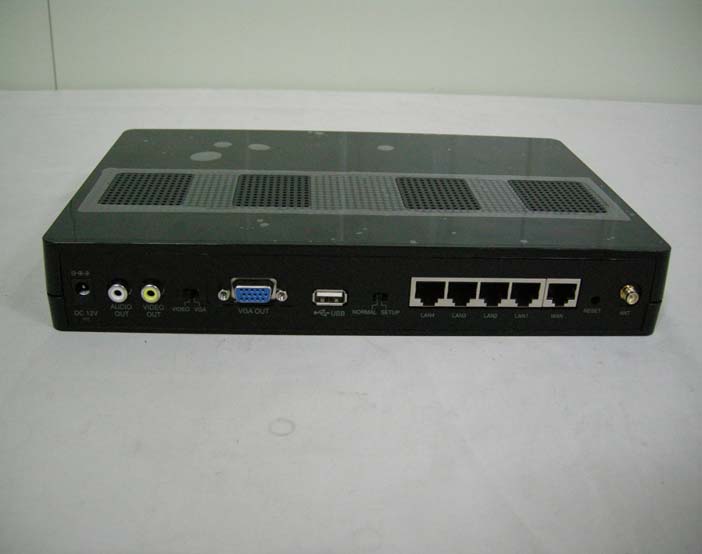

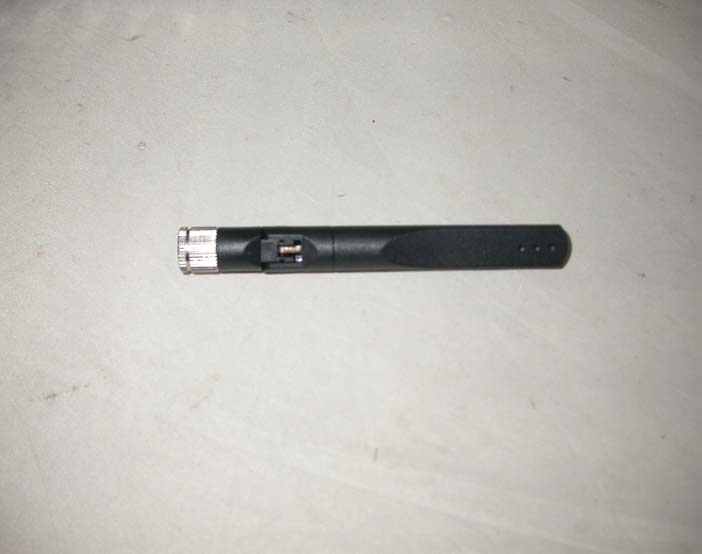

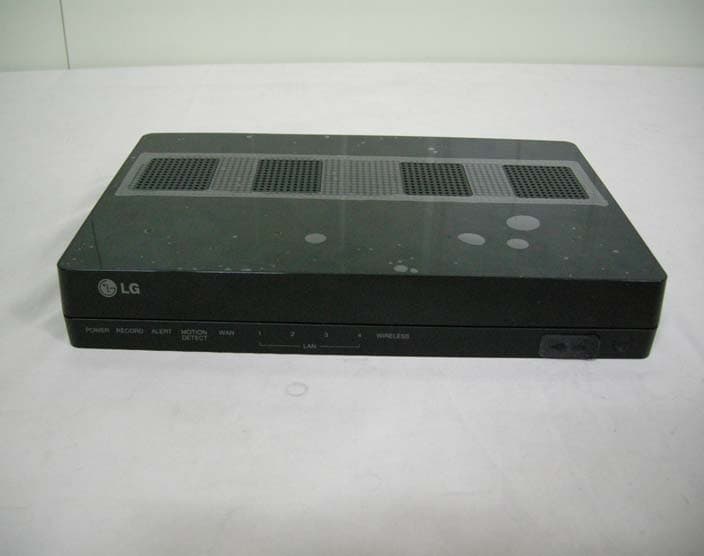

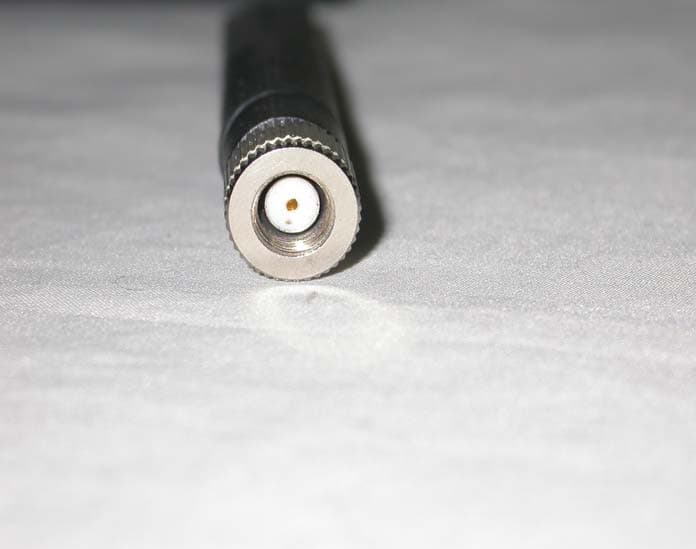

1. FRONT 2. REAR 3. PORT 1 4. Ant1 4. Ant2

INTERNAL PHOTO 1. MAIN 1.1 Front 1.2 Rear 2. LED 2.1 Front 2.2 Rear 3. USB 3.1 Front 3.2 Rear 4. Wireless 4.1 Front 4.2 Rear 4.3 tuner

RF Exposure Measurement (Mobile Device-Mini PCI Card) 1. Introduction The maximum Gain measured in Fully Anechoic Chamber is 1.00 dBi or 1.722 (numeric). 2. Classification MODE: CCK & OFDM 3. RF Exposure Limit Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 0.1631.06 F/3006 56 Magnetic Field Strength(A/m) Power Density (mW/cm 2 ) Average Time (minutes) 0.0730.230 F/150030 1.030 F = Frequency in MHz Electric Field Strength (V/m) 30 - 300 300 - 1500 1500 - 100,000 61.4 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) - Class B 2.4GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That's why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula Page 1 o The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user's manual. So, this product is classified as the Mobile Device. According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307 (b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) - Class A Frequency Range (MHz) 1500 - 100,000 27.5 Frequency Range (MHz) Electric Field Strength (V/m) 30 - 300 300 - 1500 4. Friis Formula Friis transmission formula : P d = (P out *G) / (4*π*r 2 ) The maximum Gain measured in Fully Anechoic Chamber is 1.00 dBi or 1.722 (numeric). P out = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 MODE: CCK & OFDM Page 2 The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Pd is the limit of MPE, 1mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.00 dBi or 1.722 (numeric). 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: MODE: CCK (802.11b) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241230.2000.006011.0 6243725.1190.005001.0 11246220.4170.004061.0 MODE: OFDM(802.11g) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241215.5000.003081.0 6243716.1000.003201.0 11246216.1000.003201.0 Page 3 o The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human beign under normal use condition.

4.2 EUT Operation. 4.3 Configuration and Peripherals * The EUT was in the following operation mode during all testing * The operational conditions of the EUT was determined by the manufacturer according to the typical use of the EUT with respect to the expected hightest level of emission * After setting bluetooth tester and EUT, tested under transmission/receiving condition continuously at specific channel frequency. * The supporting equipments used in the Part 15B testing were approved under DoC. Report Number : ESTF150709-007 , Web : www. estech. co. kr Page 8 of 41 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDF dBμV dBμV RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO PRN 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 LIMIT CHECK PASS EN55022A EN55022Q Comment: LSP-W1000NS RX HOT Date: 5.SEP.2007 16:38:50 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDF dBμV dBμV RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO PRN 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 LIMIT CHECK PASS EN55022A EN55022Q Comment: LSP-W1000NS RX NEUTRAL Date: 5.SEP.2007 16:42:44 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDF dBμV dBμV RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO PRN 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 LIMIT CHECK PASS EN55022A EN55022Q Comment: LSP-W1000NS 801.11/B HOT Date: 5.SEP.2007 16:05:38 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDF dBμV dBμV RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO PRN 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 LIMIT CHECK PASS EN55022A EN55022Q Comment: LSP-W1000NS 801.11/B NEUTRAL Date: 5.SEP.2007 16:09:06 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDF dBμV dBμV RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO PRN 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 LIMIT CHECK PASS EN55022A EN55022Q Comment: LSP-W1000NS 801.11/G HOT Date: 5.SEP.2007 16:16:02 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDF dBμV dBμV RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO PRN 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 LIMIT CHECK PASS EN55022A EN55022Q Comment: LSP-W1000NS 801.11/G NEUTRAL Date: 5.SEP.2007 16:12:31
