Date: 2011/10/20 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Modular Approval Request Letter Audixtech Corp. Oct. 18, 2011 Dear Application Examiner, The WLAN Adapter Card, model name is WN7111B, FCC ID: BEJ9QK-WN7111B , would like to have your authorization as a modular approval specific to the mobile device such as digital device emissions, The requirements of 15.212 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: Yes, the radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” Yes, the EUT has buffered data inputs. 3. “The modular transmitter must have its own power supply regulation.” Yes, the EUT has its’ own power supply regulation. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” Yes, the EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” Yes, the EUT was tested in a stand-alone configuration via an RS-232 cable. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes, this module has been labeled with its’ own FCC ID number. Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” Yes, the EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes, the EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Applicant : LG Electronics USA Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 United States Signature : _________________________________ Name and Job Title. : Christopher Johnson/Manager Tel. : 201-266-2420

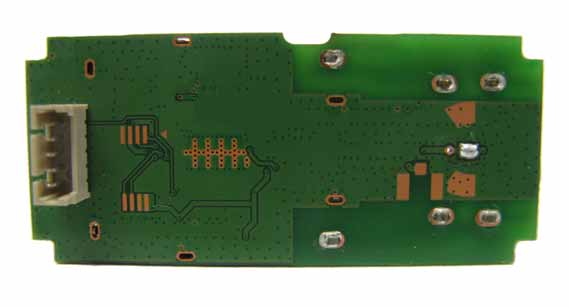

LG Electronics Inc. WLan Adapter Card FCC ID. : BEJ9QK-WN7111B EUT External Photos Figure 1 WLAN module (Front View) Figure 2 WLAN module (Back View)

LG Electronics Inc. WLan Adapter Card FCC ID. : BEJ9QK-WN7111B FCC ID Label Location z Label Placement Location z FCC Label Format FCC Label Placement Location

LG Electronics Inc. WLan Adapter Card FCC ID. : BEJ9QK-WN7111B EUT Internal Photos Figure 3 WLAN module (Front View)

Maximum Permissible Exposure FCC ID: BEJ9QKWN7111B IC: 2703H-WN7111B Product Name: WLan Adapter Card Model No: WN7111B Futaba Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain is 1.63dBi, and the power output is 74.82mW, the power density is 0.022mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 18.74dBm =74.82mW G = 1.63dBi = 1.45 Numerical r = 20cm S = 74.82*1.45 / 4** 20^2 = 0.022mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 1 of 126 AUDIX Technology Corporation Report No. EM-F1000873 APPLICATION FOR CERTIFICATION On Behalf of LG Electronics Inc. WLan Adapter Card Model No.: WN7111B FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Brand: LG Prepared for : LG Electronics Inc. 19-1, Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713 Korea Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number C1M1110086 Report Number EM-F1000873 Date of Test Oct. 11 ~ 14, 2011 Date of Report Oct. 18, 2011 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 2 of 126 AUDIX Technology Corporation Report No. EM-F1000873 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT)........................................................................................................... 5 1.2. Data Rate Relative to Output Power................................................................................................ 6 1.3. Test Configuration for Each Test Item ............................................................................................ 7 1.4. Tested Supporting System Details ................................................................................................... 7 1.5. Description of Test Facility ............................................................................................................. 8 1.6. Measurement Uncertainty................................................................................................................ 8 2. CONDUCTED EMISSION MEASUREMET........................................................................ 9 2.1. Test Equipment ................................................................................................................................ 9 2.2. Block Diagram of Test Setup........................................................................................................... 9 2.3. Conducted Emission Limits (§15.207, RSS-Gen §7.2.2/Table 2) ................................................... 9 2.4. Operating Condition of EUT ......................................................................................................... 10 2.5. Test Procedure ............................................................................................................................... 10 2.6. Conducted Emission Measurement Results................................................................................... 10 3. RADIATED EMISSION MEASUREMENT ....................................................................... 13 3.1. Test Equipment .............................................................................................................................. 13 3.2. Test Setup ...................................................................................................................................... 13 3.3. Radiated Emission Limits (§15.209, RSS-210 §2.7/Table 2)........................................................ 15 3.4. Operating Condition of EUT ......................................................................................................... 15 3.5. Test Procedure ............................................................................................................................... 16 3.6. Test Results.................................................................................................................................... 17 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 48 4.1. Test Equipment .............................................................................................................................. 48 4.2. Block Diagram of Test Setup......................................................................................................... 48 4.3. Specification Limits (§15.247(a)(2), RSS-210 A8.2 (a)) .............................................................. 48 4.4. Operating Condition of EUT ......................................................................................................... 48 4.5. Test Procedure ............................................................................................................................... 48 4.6. Test Results.................................................................................................................................... 49 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 56 5.1. Test Equipment .............................................................................................................................. 56 5.2. Block Diagram of Test Setup......................................................................................................... 56 5.3. Specification Limits (§15.247(b)-(3), RSS-210 A8.4 (4))............................................................. 56 5.4. Operating Condition of EUT ......................................................................................................... 56 5.5. Test Procedure ............................................................................................................................... 56 5.6. Test Results.................................................................................................................................... 57 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 64 6.1. Test Equipment .............................................................................................................................. 64 6.2.…

Text truncated - open the document above for the full version.

FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 41 of 126 AUDIX Technology Corporation Report No. EM-F1000873 Date of Test Oct. 11, 2011 Temperature26 EUT WLan Adapter Card Humidity51 Test Mode 802.11n-HT20, Transmit, Channel: 01, Frequency: 2412MHz Emission Antenna Cable Meter Reading Emission Level Frequency Factor Loss Vertical Vertical Limits Margin MHz dB/m dB dBμV dBμV/m dBμV/m dB ------------------------------------------------------------------------------------------------------------- Peak * 2389.680 28.10 6.34 31.94 66.38 74.00 7.62 Average * 2389.920 28.10 6.34 13.51 47.95 54.00 6.05 ------------------------------------------------------------------------------------------------------------- Remark 1. Emission Level = Antenna Factor + Cable Loss + Meter Reading. 2. Low frequency section (spurious in the restricted band 2310-2430MHz). 3. ‘*’ The field strength of emission appearing within Part 15.205(a) shall not exceed the limits shown in section 15.209. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 42 of 126 AUDIX Technology Corporation Report No. EM-F1000873 Date of Test Oct. 11, 2011 Temperature26 EUT WLan Adapter Card Humidity51 Test Mode 802.11n-HT20, Transmit, Channel: 11, Frequency: 2462MHz Emission Antenna Cable Meter Reading Emission Level Frequency Factor Loss Horizontal Horizontal Limits Margin MHz dB/m dB dBμV dBμV/m dBμV/m dB ------------------------------------------------------------------------------------------------------------- Peak * 2483.920 28.18 6.45 33.02 67.65 74.00 6.35 Average * 2483.600 28.18 6.45 14.01 48.64 54.00 5.36 ------------------------------------------------------------------------------------------------------------- Remark 1. Emission Level = Antenna Factor + Cable Loss + Meter Reading. 2. High frequency section (spurious in the restricted band 2450-2530MHz). 3. ‘*’ The field strength of emission appearing within Part 15.205(a) shall not exceed the limits shown in section 15.209. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 43 of 126 AUDIX Technology Corporation Report No. EM-F1000873 Date of Test Oct. 11, 2011 Temperature26 EUT WLan Adapter Card Humidity51 Test Mode 802.11n-HT20, Transmit, Channel: 11, Frequency: 2462MHz Emission Antenna Cable Meter Reading Emission Level Frequency Factor Loss Vertical Vertical Limits Margin MHz dB/m dB dBμV dBμV/m dBμV/m dB ------------------------------------------------------------------------------------------------------------- Peak * 2483.760 28.18 6.45 36.25 70.88 74.00 3.12 Average * 2483.600 28.18 6.45 16.04 50.67 54.00 3.33 ------------------------------------------------------------------------------------------------------------- Remark 1. Emission Level = Antenna Factor + Cable Loss + Meter Reading. 2. High frequency section (spurious in the restricted band 2450-2530MHz). 3. ‘*’ The field strength of emission appearing within Part 15.205(a) shall not exceed the limits shown in section 15.209. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 44 of 126 AUDIX Technology Corporation Report No. EM-F1000873 Date of Test Oct. 11, 2011 Temperature26 EUT WLan Adapter Card Humidity51 Test Mode 802.11n-HT40, Transmit, Channel: 03, Frequency: 2422MHz Emission Antenna Cable Meter Reading Emission Level Frequency Factor Loss Horizontal Horizontal Limits Margin MHz dB/m dB dBμV dBμV/m dBμV/m dB ------------------------------------------------------------------------------------------------------------- Peak * 2385.880 28.10 6.33 24.27 58.70 74.00 15.30 Average * 2389.940 28.10 6.34 11.61 46.05 54.00 7.95 ------------------------------------------------------------------------------------------------------------- Remark 1. Emission Level = Antenna Factor + Cable Loss + Meter Reading. 2. Low frequency section (spurious in the restricted band 2310-2450MHz). 3. ‘*’ The field strength of emission appearing within Part 15.205(a) shall not exceed the limits shown in section 15.209. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 45 of 126 AUDIX Technology Corporation Report No. EM-F1000873 Date of Test Oct. 11, 2011 Temperature26 EUT WLan Adapter Card Humidity51 Test Mode 802.11n-HT40, Transmit, Channel: 03, Frequency: 2422MHz Emission Antenna Cable Meter Reading Emission Level Frequency Factor Loss Vertical Vertical Limits Margin MHz dB/m dB dBμV dBμV/m dBμV/m dB ------------------------------------------------------------------------------------------------------------- Peak * 2385.880 28.10 6.33 26.91 61.34 74.00 12.66 Average * 2389.520 28.10 6.34 14.94 49.38 54.00 4.62 ------------------------------------------------------------------------------------------------------------- Remark 1. Emission Level = Antenna Factor + Cable Loss + Meter Reading. 2. Low frequency section (spurious in the restricted band 2310-2450MHz). 3. ‘*’ The field strength of emission appearing within Part 15.205(a) shall not exceed the limits shown in section 15.209. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 46 of 126 AUDIX Technology Corporation Report No. EM-F1000873 Date of Test Oct. 11, 2011 Temperature26 EUT WLan Adapter Card Humidity51 Test Mode 802.11n-HT40, Transmit, Channel: 09, Frequency: 2452MHz Emission Antenna Cable Meter Reading Emission Level Frequency Factor Loss Horizontal Horizontal Limits Margin MHz dB/m dB dBμV dBμV/m dBμV/m dB ------------------------------------------------------------------------------------------------------------- Peak * 2487.870 28.20 6.45 34.31 68.96 74.00 5.04 Average * 2483.580 28.18 6.45 13.78 48.41 54.00 5.59 ------------------------------------------------------------------------------------------------------------- Remark 1. Emission Level = Antenna Factor + Cable Loss + Meter Reading. 2. High frequency section (spurious in the restricted band 2420-2530MHz). 3. ‘*’ The field strength of emission appearing within Part 15.205(a) shall not exceed the limits shown in section 15.209. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 47 of 126 AUDIX Technology Corporation Report No. EM-F1000873 D…

Text truncated - open the document above for the full version.

FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 81 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 82 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 83 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT20, Frequency: 2412MHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 84 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 85 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 86 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT20, Frequency: 2437MHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 87 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 88 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 89 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT20, Frequency: 2462MHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 90 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 91 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 92 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT40, Frequency: 2422MHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 93 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 94 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 95 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT40, Frequency: 2437MHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 96 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 97 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 98 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT40, Frequency: 2452MHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 99 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 100 of 126 AUDIX Technology Corporation Report No. EM-F1000873 FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 101 of 126 AUDIX Technology Corporation Report No. EM-F1000873 7. BAND EDGES MEASUREMENT 7.1. Test Equipment The following test equipment was used during the band edges measurement: Item Type ManufacturerModel No.Serial No. Last Cal. Next Cal. 1. Spectrum Analyzer Agilent N9010A-507 MY49061167 Feb. 24, 11’ Feb. 23, 12’ 7.2. Block Diagram of Test Setup The same as section.4.2. 7.3. Specification Limits (§15.247(c), RSS-210 A8.5) The highest level should be at least 20 dB below that in the 100kHz bandwidth. 7.4. Operating Condition of EUT The test program “QA Tool” was used to enable the EUT to transmit data at different channel frequency individually. 7.5. Test Procedure The transmitter output was connected to the spectrum analyzer. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100kHz bandwidth from band edge. The measurement guideline was according to KDB 558074. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 102 of 126 AUDIX Technology Corporation Report No. EM-F1000873 7.6. Test Results PASSED. All the test results are attached in next pages. (Test Date: Oct. 11, 2011 Temperature : 26 Humidity : 53%) 802.11b Below Band edge: The highest emission level is -41.559dBm on 2.39990GHz Upper Band edge : The highest emission level is –48.636dBm on 2.48358GHz 802.11g Below Band edge: The highest emission level is –29.507dBm on 2.39990GHz Upper Band edge : The highest emission level is –35.322dBm on 2.48358GHz 802.11n-HT20 Below Band edge: The highest emission level is –31.123dBm on 2.39990GHz Upper Band edge : The highest emission level is –39.303dBm on 2.48358GHz 802.11n-HT40 Below Band edge: The highest emission level is –34.154dBm on 2.39990GHz Upper Band edge : The highest emission level is –48.737dBm on 2.48350GHz FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 103 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11b Below Band edge Upper Band edge FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 104 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11g Below Band edge Upper Band edge FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 105 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT20 Below Band edge Upper Band edge FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 106 of 126 AUDIX Technology Corporation Report No. EM-F1000873 802.11n-HT40 Below Band edge Upper Band edge FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 107 of 126 AUDIX Technology Corporation Report No. EM-F1000873 8. POWER SPECTRAL DENSITY MEASUREMENT 8.1. Test Equipment The following test equipment was used during the power spectral density measurement: Item Type ManufacturerModel No.Serial No. Last Cal. Next Cal. 1. Spectrum Analyzer Agilent N9010A-507 MY49061167 Feb. 24, 11’ Feb. 23, 12’ 8.2. Block Diagram of Test Setup The same as section.4.2. 8.3. Specification Limits (§15.247(d), RSS-210 A8.2 (b)) The peak power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8dBm in any 3kHz band. 8.4. Operating Condition of EUT The test program “QA Tool” was used to enable the EUT to transmit data at different channel frequency individually. 8.5. Test Procedure The transmitter output was connected to the spectrum analyzer. The bandwidth of the fundamental frequency was measured with the spectrum analyzer using 3kHz RBW and 30kHz VBW, set sweep time = span/3kHz. The measurement guideline was according to KDB 558074. FCC ID: BEJ9QK-WN7111B IC: 2703H-WN7111B Page 108 of 126 AUDIX Technology Corporation Report No. EM-F1000873 8.6. Test Results PASSED.…
