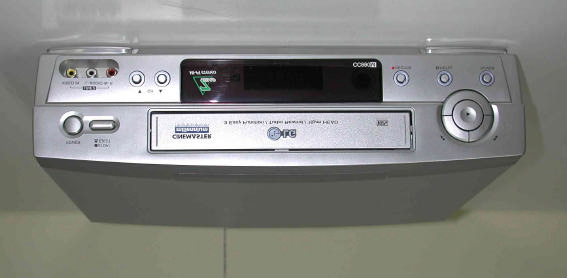

BEJ9QKE40110Video Cassette Recorder

Before connecting, operating, or adjusting this product, please read this instruction booklet carefully and completely. VCROWNER’S MANUALMODEL: CC990M Precautions Information 2 Note to CATV systeminstaller: This reminder is provided to call the CATVsystem installer’s attentionto Section 820-40 of theNEC which provides guidelines for propergrounding and, in particular, specifies thatthe cable ground shall beconnected to the grounding system of thebuilding, as close to thepoint of cable entry aspractical. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK); NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION : TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE PLUG CAN BE FULLY INSERTED WITHOUT EXPOSING ANY PARTS OF THE BLADES. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation! Thisequipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur ina particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more ofthe following measures: • Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This Class (B) digital apparatus meets all requirements of theCanadian Interference-Causing Equipment Regulations.Cet appareil numérique de la classe (B) respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. REGULATORY INFORMATION This lightning flash with arrowhead symbol within anequilateral triangle is intended to alert the user to thepresence of uninsulated dangerous voltage withinthe product’s enclosure that may be of sufficientmagnitude to constitute a risk of electric shock topersons.The exclamation point within an equilateral triangle isintended to alert the user to the presence of important operating and maintenance (servicing)instructions in the literature accompanying the product. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could losethe authority to operate this equipment if an unauthorized change or modification is made. Table of Contents Features 3 • MTS Hi-Fi Stereo• OPR (Optimum Picture Response) • Easy Graphic Menu• Video Doctor (Advanced Self-Diagnosis) • 181 Channel Frequency Synthesized Cable CompatibleTuner with AutochannelProgramming and MultichannelScan • 1 Year/7 Event Timer with DAILY and WEEKLY Function • Auto Power and Playback Functions • ITR (Instant Timer Recording)• Real-Time Tape Counter• Visual Search, Logic Search, CM Skip • Clean Still, Slow, Frame Advance• Auto Tracking Function/ Auto Head Cleaner • On-screen Display of Function• Trilingual On-screen Programming(English/Spanish/Portuguese) Features/Contents . . . . . . . . . . . . . .3Safety Tips . . . . . . . . . . . . . . . . . .4-5Remote Control . . . . . . . . . . . . . . . .6Your VCR’s Controls (Front & Rear) . . . . . . . . . . . . . . . . .7Connections . . . . . . . . . . . . . . . .8-9 VCR to TV & Antenna to VCR . .8CATV to VCR . . . . . . . . . . . . . . .9 Display Window . . . . . . . . . . . . . . .10On-screen Display (OSD) . . . . . . . .11Setting the On-screen Display . . . .12Setting the menu . . . . . . . . . . . . . .13 Language Select . . . . . . . . . . .13Function OSD On/Off . . . . . . . .13Setting the Clock . . . . . . . . . . .13 Tuning in TV Stations . . . . . . . . . . .14How to Play Back a Tape . . . . .15-17 Normal Playback . . . . . . . . . . .15Special Playback . . . . . . . . . . .16The Others’ Playback . . . . . . . .17 How to Record . . . . . . . . . . . . .18-22 Normal Recording . . . . . . . . . .18Instant Timer Recording . . . . . .19Timer Recording . . . . . . . . .20-21Dubbing and Editing . . . . . . . . .22 Hi-Fi Stereo System . . . . . . . . .23-24 MTS Broadcast . . . . . . . . . . . .23Audio Output Selection . . . . . . .23Broadcast type selection for recording . . . . . . . . . . . . . . .24SAP Recording . . . . . . . . . . . . .24 Real-Time Counter/Counter Memory . . . . . . . . . . . . . .25Other Functions . . . . . . . . . . . . . . .26 Video Doctor . . . . . . . . . . . . . .26Operating Hints . . . . . . . . . . . .26ez (easy) Operation . . . . . . . . .27 Troubleshooting . . . . . . . . . . . . . . .28Specifications . . . . . . . . . . . . . . . .29 Main features of this VCR The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain thisguide as a permanent record ofyour purchase.Model No. Serial No. SAFETY TIPS 4 1. Read Instructions All the safety and operating instructions should be read before theproduct is operated. 2. Follow Instructions All operating and use instructionsshould be followed. 3. Retain Instructions The safety and operating instructionsshould be retained for future reference. 4. Heed Warnings All warnings on the product and in theoperating instructions should beadhered to. 5. Cleaning Unplu…

Text truncated - open the document above for the full version.

Attn: Reviewing Engineer MET Laboratories, Inc. 914W. Patapsco Avenue, Baltimore, MD 21230-3453 RE: Confidentiality for CC990M ( FCC ID : BEJ9QKE40110 ) To Whom It May Concern: We, the undersigned, hereby desire that the Circuit Diagram for above model shall not be disclosed to third parties except for the FCC . Sincerely, -------------------------------------- Oct. 29th, 2000 T. K. Lee, General manager LG Electronics Inc. Digital-media Standards Team Tel : 031-610-5335 Fax : 031-610-5355 LG Electronics Inc. LG Electronics Inc.

29 Appendix D SAMPLE LABEL : According to Labeling Requirements per * 2.295 & * 15.19 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. The statement is molded on the bottom of the device. See the attached photograph The Label shown shall be affixed On the rear of the device. See the attached photograph.

52 24 41 109 MAIN LABEL ATTACHED MODEL NO.: CC990M AC 100-240V 50/60Hz 22W MADE IN KOREA FCC ID:BEJ9QKE40110 P/N 3850R-M0000 50.5mm,39.5mm 2000.10.17 CC990M

1) LGIT TUNER ; 2) SANYO TUNER ; 3) ALPS TUNER ;

Designs and specifications are subject to change without notice. Weight and dimensions shown are approximate. Specifications 29 GENERALHead System Four head helical scanazimuth system Power Source AC 100-240V, 50/60Hz Power Consumption Approx. 22 Watts Dimensions (WxHxD) 360 x 98 x 274 mm (14.2" x 3.9" x 10.8") Operating Temperature 5 ° C~35 ° C (41 ° F~95 ° F) Operating Humidity Less than 80% RH Timer 12-hour display type with AM, PM Weight Approx. 3.4 kg (7.5 lbs) Tape Speed 33.35 mm/sec (SP mode)16.67 mm/sec (LP mode)11.12 mm/sec (EP mode) Tape Width 12.7 mm Maximum Recording 2 HOURS (T-120, SP mode) Time 6 HOURS (T-120, EP mode)8 HOURS (T-160, EP mode) Rewind Time About 60 seconds (T-120) TUNERAntenna 75 ohms (UHF), 75 ohms (VHF) VHF Output Signal Channel 3 or 4 (Switchable) Channel Coverage VHF; 2-13 UHF; 14-69CATV; 4A, A~W, W+1~W+84, A-5~A-1 VIDEOVideo Signal System EIA Standard (525 lines, 60 fields)NTSC type color signal Input 1.0 Vp-p 75 ohms unbalanced Output 1.0 Vp-p 75 ohms unbalanced Signal to Noise Ratio More than 43 dB (SP mode) AUDIOFM audio Frequency Range 20Hz to 20kHz Dynamic Range More than 83 dB Channel Separation More than 55 dB Conventional audio Input -6.0 dBm more than 47 kohms (LINE) Output -6.0 dBm less than 1.5 kohms (LINE) S/N Ratio More than 43 dB (SP mode) Frequency Range 200 Hz to 10kHz (SP mode) Supplied AccessoriesCoaxial Cable (1)Audio Cable (1)Video Cable (1)Remote control (1)

CC990M Test Report Test Report No. : 4521-001028C 1/42 CERTIFICATE Issued date : October 30, 2000 EUT : Video Cassette Recorder Model No. : CC990M Serial No. : N / A FCC ID No. : BEJ9QKE40110 Manufacture : LG ELECTRONICS INC. Trade name : LG Applicant& : LG Electronics Inc Address 20 Yoido-Dong Youngdungpo-Gu, Seoul, 150-721 Korea Regulation : Subpart B of Part 15, 47 C.F.R; FCC Rules (Docket 87-389) Procedure : MP-3 ; ANSI C63.4 Test Location : LG Electronics Digital-media Research Lab. Measurement facility ( 3 & 10 m site ) I hereby certify that the measurements shown in Part II of this report were made in accordance with the procedures indicated and energy emitted by this equipment was found to be within the limits applicable. I further certify that on the basis of the measurements, the equipment tested is capable of operation in accordance with the requirements set forth in Part 15 of the FCC rules & Regulations under normal use and maintenance. LG Electronics Inc. hereby assumes responsibility for the certification of compliance to applicable FCC limits in every measurements. ISSUED BY REVIEWED BY Cheolwoo Park Taekwang LEE RESEARCH ENGINEER TEAM LEADER LG Electronics Inc. Pyungtaek Research Lab. Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-City, Kyunggi-Do, 451-713, KOREA Tel.:(031)610-5336, FAX: (031)610-5355, CC990M Test Report Test Report No. : 4521-001028C 2/42 REPORT FOR A TV INTERFACE DEVICE Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. RF MODULATOR Manufacturer 1 : LG Innotek Co., Ltd. Model No. : TADC-H202F Manufacturer 2 Sanyo Tuner Industries Co., Ltd. Model No. : 115-V-D025AN Manufacturer 3 : ALPS Electric Co., Ltd. Model No. : TMDH2XA33A LG Electronics Co., Ltd. Digital Media research Laboratory 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-Shi, Kyunggi-Do , 451-713 Korea Tel. : 031-610-5336 Fax : 031- 610-5355 CC990M Test Report Test Report No. : 4521-001028C 3/42 PART I INTRODUCTION 1. GENERAL INFORMATION 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 1.2 REGULATIONS APPLIED TO THE EUT 1.3 MEASUREMENT PROCEDURE 1.4 MEASUREMENT SITE 2. TEST CONDITIONS 7 2.1 OPERATING CONDITION OF EUT 2.2 STABILIZATION OF EUT OPERATING 2.3 TEMPERATURE 3. TEST SITE 7 3.1 OPEN AREA TEST SITE 3.2 A SHIELDED ENCLOSURE 4. MEASURING INSTRUMENTATIONS AND CALIBRATIONS 8 5. DESCRIPTION OF TEST CONDITION 8 5.1 POWER LINE CONDUCTED EMISSIONS 8 5.2 RADIATED EMISSIONS 9 5.3 OUTPUT SIGNAL MEASUREMENTS 10 5.3.1 OUTPUT SIGNAL LEVEL MEASUREMENTS 5.3.2 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 5.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 11 6. MEASURING INSTRUMENTS AND SET-UP 12 6.1 POWER LINE CONDUCTED EMISSIONS 12 6.2 RADIATED EMISSIONS 12 6.3 OUTPUT SIGNAL MEASUREMENTS 12 6.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 13 6.5 VITS SIGNAL GENERATOR ; COMMONLY USED. 13 CC990M Test Report Test Report No. : 4521-001028C 4/42 PART II TEST DATA 1. CONDUCTED EMISSIONS 15 2. RADIATED EMISSIONS 23 3. OUTPUT SIGNAL LEVEL MEASUREMENTS 25 4. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 27 5. TRANSFER SWITCH ISOLATION MEASUREMENTS 29 APPENDIX A PHOTOGRAPH OF TEST SET-UP 30 APPENDIX B LIST OF TEST EQUIPMENT 32 APPENDIX C LIST OF SUPPORT DEVICE & ACCESSORIES IN THE TEST 33 APPENDIX D LABELLING REQUIREMENTS 34 CC990M Test Report Test Report No. : 4521-001028C 5/42 PART I INTRODUCTION CC990M Test Report Test Report No. : 4521-001028C 6/42 1. GENERAL INFORMATION 1.1 DESCRIPTIONS OF EQUIPMENT UNDER TEST( EUT) 1.1.1 Manufacture LG ELECTRONICS INC.; 19-1, CHEONGHO-RI JINWUY-MYUN,PYUNGTAEK-SHI,KYUNGGI-DO 451-713, KOREA 1.1.2 Applicant LG ELECTRONICS INC.; 20, YOIDO-DONG YOUNGDUNGPO-GU, SEOUL, 150-721, KOREA 1.1.3 MODEL Name CC990M 1.1.4 SERIAL NO NOT ATTACHED 1.1.5 TRADE NAME LG 1.1.6 FCC ID NO BEJ9QKE40110 1.1.7 DESCRIPTIONS a) Product Type Video Cassette Recorder b) RF Output Channel Channel 3 and 4 c) RF IN/OUT Terminal Impedance 75 ohms (Unbalance F-type coaxial) d) Number of RF IN/OUT terminal 1EA at each e) Terminal for signal Video/Audio in/out with RCA-type jacks f) Power Supply AC 100 - 240V, 50/60Hz 1.1.8 Accessories connected to the EUT a) Video Coaxial cable for RF-OUT terminal provided by manufacture b) Video/Audio cables 1.2 Regulations applied to the EUT .. FCC Part 15.115 1.3 Measurement Procedure .....MP-3 : ANSI C 63.4 1.4 Measurement site description l Location of measurement facility LG Electronics Inc : Pyungtaek plant Digital-Media Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek - Shi, 451-713 Korea Note; The detailed description of measuring facility was found to be in compliance With Federal Communications Commission requirements of 2.948 according to ANSI C63.4 on June 29, 2000(Registration No. ; 90759) CC990M Test Report Test Report No. : 4521-001028C 7/42 2. GENERAL TEST CONDITIONS The test data contained in this report was obtained by use of the measurement method recommended in FCC Rules, 47 C.F.R. 15.31(a)(3), with equipment and at the test site filed by the Federal Communications Commission (FCC). The technical standard for a TV interface device are set forth in Subpart B of Part 15 of FCC Rules and regulation. The measurement for Radiated Emissions, Power line Conducted Emissions, Output signal levels, Output Terminal Conducted Spurious Emissions and Transfer Switch Isolation were performed in accordance with the procedures described in MP-3 and ANSI C63.4-1992. 2. 1 OPERATING CONDITIONS OF THE EUT According to the requirements in Subpart B of Part 15, the measurement is made at each function of the EUT being connected with appropriate cables and loads. The model, CC990M has either a video/audio output terminal in RCA-type plugs and antenna input terminal. Therefore, every measurement was investigated in the operation modes, 1)Playing VITS 1Vp-p recorded tape,…

Text truncated - open the document above for the full version.

CC990M Test Report Test Report No. : 4521-001028C 30/42 Appendix A Photograph of Test Set-up ( Power line conducted emissions)
