BEJ9QKE40340VCR/DVD Receiver/AmplifierCombination

© Copyright 2003, Zenith Electronics Corporation Installation and Operating Guide | Warranty Model Number | XBS344 | DVD/CD/VCR Receiver Home Theater System 2 Safety Precautions This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING:Do not install this equipment in a confined space such as a bookcase or similar unit. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. CAUTION: This DVD/CD/VCR Receiver employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location. Use of controls, adjustments, or the performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION:The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifi- cations are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. REGULATORY INFORMATION: FCC Part 15 This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the product and receiver. zConnect the product into an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. FCC COMPLIANCE: The responsible party for this product’s compliance is: Zenith Electronics Corporation, 2000 Millbrook Drive, Lincolnshire, IL 60069, USA Phone: 1-847-941-8000. NOTES ON COPYRIGHTS: It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection tech- nology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Model No. ___________________________________ Serial No. ___________________________________ CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION:POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. WARNING:TO REDUCE THE RISK OF FIRE OR ELEC- TRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. INTRODUCTION 3 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. - All these safety and oper- ating instructions should be read before the product is operated. 2. Keep these instructions. - The safety, operating and use instructions should be retained for future refer- ence. 3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. 4. Follow all instructions. - All operating and use instructions should be followed. 5. Do not use this product near water. – For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water. 6. Clean only with dry cloth. – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners. 7. Do not block any vent…

Text truncated - open the document above for the full version.

Attn. : Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR Receiver / DVD Player / Video Cassette Recorder FCC ID: BEJ9QKE40340 MODEL #: XBS344 Gentlemen This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, block diagrams required to be submitted with this application be withheld from public review. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Kyeom Soon Kim July 02, 2003 LG Electronics Inc./General Manager LG Electronics Inc.

Attn. : Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE : LETTER OF AGENT AUTHORIZATION Dear Sir : We, the undersigned, hereby authorize MET laboratories Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Kyeom Soon Kim July 02, 2003 LG Electronics Inc. /General Manager LG Electronics Inc.

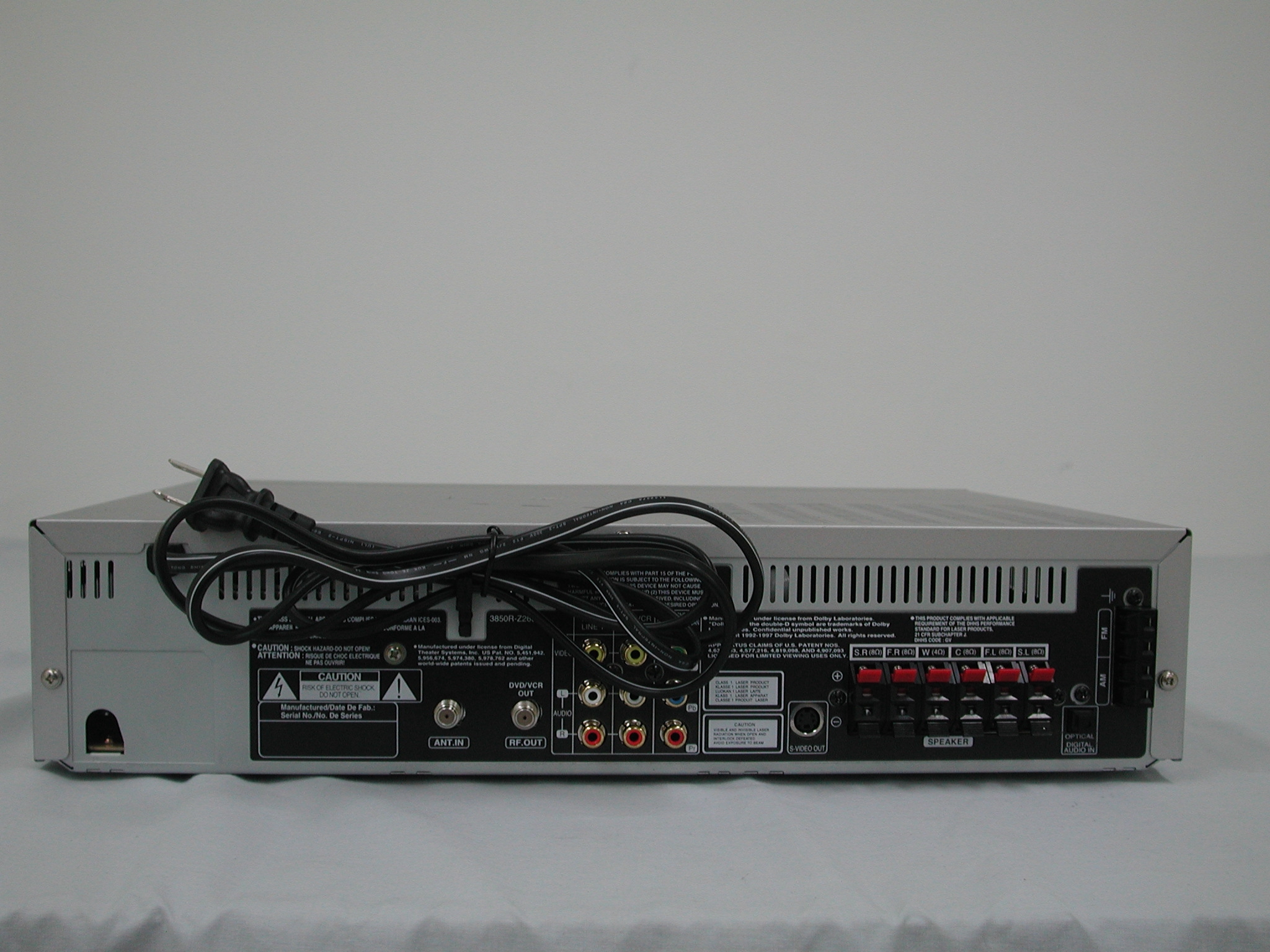

1.Front of EUT 2.Rear of EUT s–Šˆ›–•G– s–Šˆ›–•G–s–Šˆ›–•G– s–Šˆ›–•G– pkGsˆ‰Œ“ pkGsˆ‰Œ“pkGsˆ‰Œ“ pkGsˆ‰Œ“ 3.Bottom of EUT 4.Rear side of FCC requirement.

1.Inner of EUT 2.Main Board 3.Power Board 4.VCR Board 5.Tuner 6.Inner of Tuner

XBS344 Test Report Test Report No. : 4521-030523LS 1/31 CERTIFICATE Issued date : June 23. 2003 EUT : Amp Built in Type DVD Player / Video Cassette Recorder Combination Model No. : XBS344 (LG Model : DT-66550M) Serial No. : N / A FCC ID No. : BEJ9QKE40340 Manufacture : LG Electronics Inc. Trade name : Zenith Applicant & : LG Electronics Inc, Address 20 Yoido-Dong Youngdungpo-Gu, Seoul, 150-721 Korea Regulation : Subpart B of Part 15, 47 C.F.R; FCC Rules (Docket 87-389) Procedure : MP-3 ; ANSI C63.4 : 2001 Test Location : LG Electronics Digital-media Research Lab. Measurement facility (3 & 10 m site) I hereby certify that the measurements shown in Part II of this report were made in accordance with the procedures indicated and energy emitted by this equipment was found to be within the limits applicable. I further certify that on the basis of the measurements, the equipment tested is capable of operation in accordance with the requirements set forth in Part 15 of the FCC rules & Regulations under normal use and maintenance. LG Electronics Inc. hereby assumes responsibility for the certification of compliance to applicable FCC limits in every measurement. ISSUED BY REVIEWED BY Sang Hyun Lee Heung Soo LEE Research Engineer TEAM LEADER LG Electronics Inc. Pyungtaek Research Lab. Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-Shi, Kyunggi-Do, 451-713, KOREA Tel.: 82-31-610-5336, FAX: 82-31-610-5355 XBS344 Test Report Test Report No. : 4521-030523LS 2/31 REPORT FOR A TV INTERFACE DEVICE Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. RF MODULATOR Manufacturer : LG Innotek Co., Ltd. Model No. : TADM-H102F XBS344 Test Report Test Report No. : 4521-030523LS 3/31 PART I INTRODUCTION 1. GENERAL INFORMATION 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 1.2 REGULATIONS APPLIED TO THE EUT 1.3 MEASUREMENT PROCEDURE 1.4 MEASUREMENT SITE 2. TEST CONDITIONS 7 2.1 OPERATING CONDITION OF EUT 2.2 STABILIZATION OF EUT OPERATING 2.3 TEMPERATURE 3. TEST SITE 7 3.1 OPEN AREA TEST SITE 3.2 A SHIELDED ENCLOSURE 4. MEASURING INSTRUMENTATIONS AND CALIBRATIONS 8 5. DESCRIPTION OF TEST CONDITION 8 5.1 POWER LINE CONDUCTED EMISSIONS 8 5.2 RADIATED EMISSIONS 9 5.3 OUTPUT SIGNAL MEASUREMENTS 10 5.3.1 OUTPUT SIGNAL LEVEL MEASUREMENTS 5.3.2 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 5.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 11 6. MEASURING INSTRUMENTS AND SET-UP 12 6.1 POWER LINE CONDUCTED EMISSIONS 12 6.2 RADIATED EMISSIONS 12 6.3 OUTPUT SIGNAL MEASUREMENTS 12 6.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 13 6.5 VITS SIGNAL GENERATOR ; COMMONLY USED 13 XBS344 Test Report Test Report No. : 4521-030523LS 4/31 PART II TEST DATA 1. CONDUCTED EMISSIONS 15 2. RADIATED EMISSIONS 18 3. OUTPUT SIGNAL LEVEL MEASUREMENTS 19 4. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 20 5. TRANSFER SWITCH ISOLATION MEASUREMENTS 22 APPENDIX A PHOTOGRAPH OF TEST SET-UP 23 APPENDIX B LIST OF TEST EQUIPMENT 25 APPENDIX C LIST OF SUPPORT DEVICE & ACCESSORIES IN THE TEST 26 APPENDIX D LABELLING REQUIREMENTS 27 XBS344 Test Report Test Report No. : 4521-030523LS 5/31 PART I INTRODUCTION XBS344 Test Report Test Report No. : 4521-030523LS 6/31 1. GENERAL INFORMATION 1.1 DESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT) 1.1.1 Manufacture LG ELECTRONICS INC.; 19-1, CHEONGHO-RI JINWUY-MYUN, PYUNGTAEK-SHI, KYUNGGI-DO 451-713, KOREA 1.1.2 Applicant LG ELECTRONICS INC.; 20, YOIDO-DONG YOUNGDUNGPO-GU, SEOUL, 150-721, KOREA 1.1.3 MODEL Name XBS344 (LG Model : DT-66550M) 1.1.4 SERIAL NO NOT ATTACHED 1.1.5 TRADE NAME Zenith 1.1.6 FCC ID NO BEJ9QKE40340 1.1.7 DESCRIPTIONS a) Product Type Amp Built in Type DVD Player / Video Cassette Recorder Combination b) RF Output Channel Channel 3 and 4 c) RF IN/OUT Terminal Impedance 75 ohms (Unbalance F-type coaxial) d) Number of RF IN/OUT terminal 1EA at each e) Terminal for signal Video/Audio in/out with RCA-type jacks f) Power Supply AC 120V , 60Hz 1.1.8 Accessories connected to the EUT a) Video Coaxial cable for RF-OUT terminal provided by manufacture b) Video/Audio cables 1.2 Regulations applied to the EUT .. FCC Part 15.115 1.3 Measurement Procedure .....MP-3 : ANSI C 63.4 : 2001 1.4 Measurement site description
Location of measurement facility LG Electronics Inc : Pyungtaek plant Digital-Media Standards Team 19-1, Cheongho-Ri,Jinwuy-Myun,Pyungtak - Shi, 451-713 Korea Note; The detailed description of measuring facility was found to be in compliance With Federal Communications Commission requirements of 2.948 according to ANSI C63.4 on June 6, 2001. XBS344 Test Report Test Report No. : 4521-030523LS 7/31 2. GENERAL TEST CONDITIONS The test data contained in this report was obtained by use of the measurement method recommended in FCC Rules, 47 C.F.R. 15.31(a)(3), with equipment and at the test site filed by the Federal Communications Commission (FCC). The technical standard for a TV interface device are set forth in Subpart B of Part 15 of FCC Rules and regulation. The measurement for Radiated Emissions, Power line Conducted Emissions, Output signal levels, Output Terminal Conducted Spurious Emissions and Transfer Switch Isolation were performed in accordance with the procedures described in MP-3 and ANSI C63.4: 2001. 2. 1 OPERATING CONDITIONS OF THE EUT According to the requirements in Subpart B of Part 15, the measurement is made at each function of the EUT being connected with appropriate cables and loads. The model, DT-S587M has either a video/audio output terminal in RCA-type plugs and antenna input terminal. Therefore, every measurement was investigated in the operation modes, 1)Playing VITS 1Vp-p recorded tape, 2) Recording 1 &5 Vp-p VITS signal supplied through the video input terminal, 3) Recording NTSC TV signal supplied through the at antenna input terminal at each Ch. 3 or/and 4 for each …

Text truncated - open the document above for the full version.

XBS344 Test Report Test Report No. : 4521-030523LS 21/31 Appendix A Photograph of Test Set-up ( Power line conducted emissions) XBS344 Test Report Test Report No. : 4521-030523LS 22/31 Photographs of Test Set-up ( Radiated emissions)
