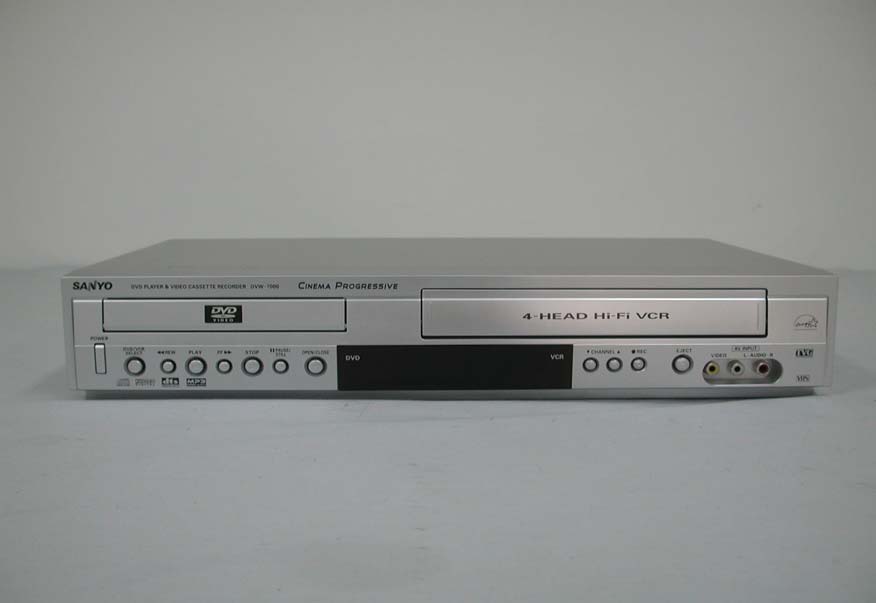

1.Front of EUT 2.Rear of EUT

3.Bottom of EUT 4.FCC requirement of rear side.

5.Inner of EUT 6.Main Board 7.Power Board 8. LGIT Tuner 9.Inner of LGIT Tuner 10. Samsung Tuner 11.Inner of Samsung Tuner

DVW-7000 Test Report Test Report No. : 4521-031211D 1/35 CERTIFICATE Issued date : December 11. 2002 EUT : DVD Player / Video Cassette Recorder Combination Model No. : DVW-7000 Serial No. : N / A FCC ID No. : BEJ9QKE40420 Manufacture : LG ELECTRONICS INC. Trade name : Sanyo Applicant& : LG Electronics Inc, Address 20 Yoido-Dong Youngdungpo-Gu, Seoul, 150-721 Korea Regulation : Subpart B of Part 15, 47 C.F.R; FCC Rules (Docket 87-389) Procedure : MP-3; ANSI C63.4 : 2001 Test Location : LG Electronics Digital-media Research Lab. Measurement facility ( 3 & 10 m site ) I hereby certify that the measurements shown in Part II of this report were made in accordance with the procedures indicated and energy emitted by this equipment was found to be within the limits applicable. I further certify that on the basis of the measurements, the equipment tested is capable of operation in accordance with the requirements set forth in Part 15 of the FCC rules & Regulations under normal use and maintenance. LG Electronics Inc. hereby assumes responsibility for the certification of compliance to applicable FCC limits in every measurements. ISSUED BY REVIEWED BY Daehwan Kim Heungsoo LEE RESEARCH ENGINEER TEAM LEADER LG Electronics Inc. Pyungtaek Research Lab. Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-Shi, Kyunggi-Do, 451-713, KOREA Tel.: 82-031-610-5336, FAX: 82-031-610-5355 DVW-7000 Test Report Test Report No. : 4521-031211D 2/35 REPORT FOR A TV INTERFACE DEVICE Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. RF MODULATOR Manufacturer 1 : LG Innotek Co., Ltd. Model No. : TADM-H202F Manufacturer 2 : Samsung Electric Co., Ltd. Model No. : TCMN0682PA20C4 DVW-7000 Test Report Test Report No. : 4521-031211D 3/35 PART I INTRODUCTION 1. GENERAL INFORMATION 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 1.2 REGULATIONS APPLIED TO THE EUT 1.3 MEASUREMENT PROCEDURE 1.4 MEASUREMENT SITE 2. TEST CONDITIONS 7 2.1 OPERATING CONDITION OF EUT 2.2 STABILIZATION OF EUT OPERATING 2.3 TEMPERATURE 3. TEST SITE 7 3.1 OPEN AREA TEST SITE 3.2 A SHIELDED ENCLOSURE 4. MEASURING INSTRUMENTATIONS AND CALIBRATIONS 8 5. DESCRIPTION OF TEST CONDITION 8 5.1 POWER LINE CONDUCTED EMISSIONS 8 5.2 RADIATED EMISSIONS 9 5.3 OUTPUT SIGNAL MEASUREMENTS 10 5.3.1 OUTPUT SIGNAL LEVEL MEASUREMENTS 5.3.2 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 5.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 11 6. MEASURING INSTRUMENTS AND SET-UP 12 6.1 POWER LINE CONDUCTED EMISSIONS 12 6.2 RADIATED EMISSIONS 12 6.3 OUTPUT SIGNAL MEASUREMENTS 12 6.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 13 6.5 VITS SIGNAL GENERATOR ; COMMONLY USED. 13 DVW-7000 Test Report Test Report No. : 4521-031211D 4/35 PART II TEST DATA 1. CONDUCTED EMISSIONS 15 2. RADIATED EMISSIONS 20 3. OUTPUT SIGNAL LEVEL MEASUREMENTS 21 4. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 22 5. TRANSFER SWITCH ISOLATION MEASUREMENTS 24 APPENDIX A PHOTOGRAPH OF TEST SET-UP 25 APPENDIX B LIST OF TEST EQUIPMENT 27 APPENDIX C LIST OF SUPPORT DEVICE & ACCESSORIES IN THE TEST 28 APPENDIX D LABELLING REQUIREMENTS 29 DVW-7000 Test Report Test Report No. : 4521-031211D 5/35 PART I INTRODUCTION DVW-7000 Test Report Test Report No. : 4521-031211D 6/35 1. GENERAL INFORMATION 1.1 DESCRIPTIONS OF EQUIPMENT UNDER TEST( EUT) 1.1.1 Manufacture LG ELECTRONICS INC.; Shanghai LG Electronics Co., Ltd. No. 600, Yun Qiao Road, Jin Qiao Export, Processing Zone Pu Dong, New Area, Shanghai, China. 1.1.2 Applicant LG ELECTRONICS INC.; 20, YOIDO-DONG YOUNGDUNGPO-GU, SEOUL, 150-721, KOREA 1.1.3 MODEL Name DVW-7000 1.1.4 SERIAL NO NOT ATTACHED 1.1.5 TRADE NAME Sanyo 1.1.6 FCC ID NO BEJ9QKE40420 1.1.7 DESCRIPTIONS a) Product Type DVD Player / Video Cassette Recorder Combination b) RF Output Channel Channel 3 and 4 c) RF IN/OUT Terminal Impedance 75 ohms (Unbalance F-type coaxial) d) Number of RF IN/OUT terminal 1EA at each e) Terminal for signal Video/Audio in/out with RCA-type jacks f) Power Supply AC120V , 60Hz 1.1.8 Accessories connected to the EUT a) Video Coaxial cable for RF-OUT terminal provided by manufacture b) Video/Audio cables 1.2 Regulations applied to the EUT .. FCC Part 15.115 1.3 Measurement Procedure ..... MP-3 : ANSI C63.4 : 2001 1.4 Measurement site description
Location of measurement facility LG Electronics Inc : Pyungtaek plant Digital-Media Standards Team 19-1, Cheongho-Ri,Jinwuy-Myun,Pyungtak - Shi, 451-713 Korea Note; The detailed description of measuring facility was found to be in compliance With Federal Communications Commission requirements of 2.948 according to ANSI C63.4 on June 27, 2003. DVW-7000 Test Report Test Report No. : 4521-031211D 7/35 2. GENERAL TEST CONDITIONS The test data contained in this report was obtained by use of the measurement method recommended in FCC Rules, 47 C.F.R. 15.31(a)(3), with equipment and at the test site filed by the Federal Communications Commission (FCC). The technical standard for a TV interface device are set forth in Subpart B of Part 15 of FCC Rules and regulation. The measurement for Radiated Emissions, Power line Conducted Emissions, Output signal levels, Output Terminal Conducted Spurious Emissions and Transfer Switch Isolation were performed in accordance with the procedures described in ANSI C63.4 : 2001. 2. 1 OPERATING CONDITIONS OF THE EUT According to the requirements in Subpart B of Part 15, the measurement is made at each function of the EUT being connected with appropriate cables and loads. The model, DVW-7000 has either a video/audio output terminal in RCA-type plugs and antenna input terminal. Therefore, every measurement was investigated in the operation modes, 1)Playing VITS 1Vp-p recorded tape, 2) Recording 1 &5 Vp-p VITS signal supplied through the video input terminal, 3) Recording NTSC TV signal supplied through the at ant…

Text truncated - open the document above for the full version.

DVW-7000 Test Report Test Report No. : 4521-031211D 25/35 Appendix A Photograph of Test Set-up ( Power line conducted emissions) DVW-7000 Test Report Test Report No. : 4521-031211D 26/35 Photographs of Test Set-up ( Radiated emissions)
