BEJ9QKE40460DVD Player & VCR

Before connecting, operating or adjusting this product, please read this owner’s manual carefully and completely. DVD Player & Video Cassette Recorder OWNER’S MANUAL MODEL : V9720CMZ 2 Warning: To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serv- iceable parts inside. Refer servicing to qualified service personnel. Warning: To reduce the risk of fire or electric shock, do not expose this prod- uct to dripping or splashing water, rain, or moisture. Do not place objects filled with water such as vases, on the prod- uct. Warning: This DVD+VCR employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation may be present when the enclosure in opened. Warning: Never stare directly into the laser beam. Caution: Do not install this product in a confined space such as a book case or similar unit. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifica- tions to this equipment may cause harmful interfer- ence unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. REGULATORY INFORMATION: FCC Part 15 This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guar- antee that interference will not occur in a particular installation. If this product does cause harmful inter- ference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: zReorient or relocate the receiving antenna. zIncrease the separation between the product and receiver. zConnect the product into an outlet on a circuit different from that to which the receiver is con- nected. zConsult the dealer or an experienced radio/TV technician for help. SERIAL NUMBER: You can find the serial number on the back of the unit. This number is unique to this unit and not avail- able to others. You should record requested informa- tion here and retain this guide as a permanent record of your purchase. Model No. ______________________________ Serial No. ______________________________ CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN 3 1. Read these instructions. - All these safety and operating instructions should be read before the product is operated. 2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. 4. Follow all instructions. - All operating and use instruc- tions should be followed. 5. Do not use this product near water. – For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water. 6. Clean only with dry cloth. – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners. 7. Do not block any ventilation openings. Install in accor- dance with the manufacturer’s instructions. - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over- heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ven- tilation is provided or the manufacturer’s instructions have been adhered to. 8. Do not install near any heat sources such as radia- tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. D o not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta- cles, and the point where they exit from the product. 11.Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with appara- tus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over. 13. Unplug this product during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate nor- mally, or has been dropped. IMPORTANT SAFETY INSTRUCTIONS CAUTION:PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANUAL. AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE. This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the follo…

Text truncated - open the document above for the full version.

Attn. : Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE : LETTER OF AGENT AUTHORIZATION Dear Sir : We, the undersigned, hereby authorize MET laboratories Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Kyeom Soon Kim December 24, 2004 LG Electronics Inc. /General Manager

Attn. : Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR DVD Player / Video Cassette Recorder Combination FCC ID: BEJ9QKE40460 MODEL #: TADM-H202F / TCMN0682PA20C4 Gentlemen This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, block diagrams required to be submitted with this application be withheld from public review. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Kyeom Soon Kim December 24, 2004 LG Electronics Inc./General Manager

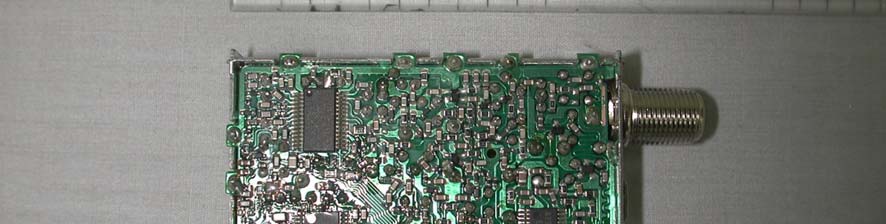

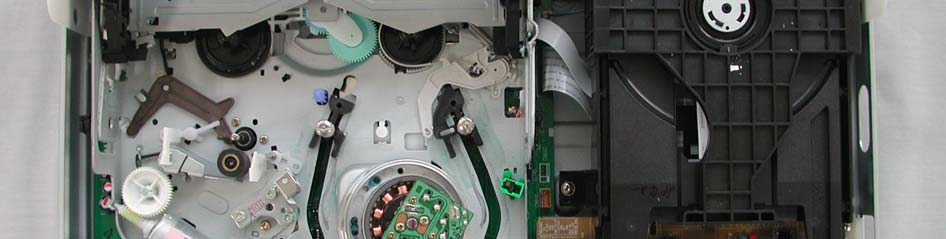

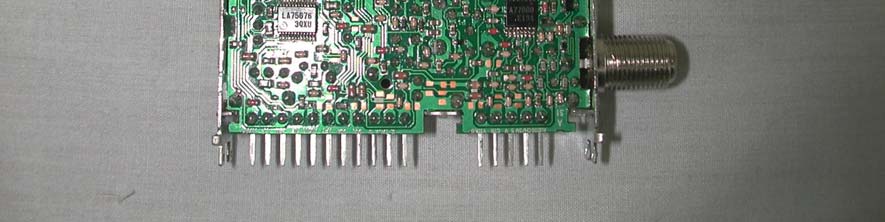

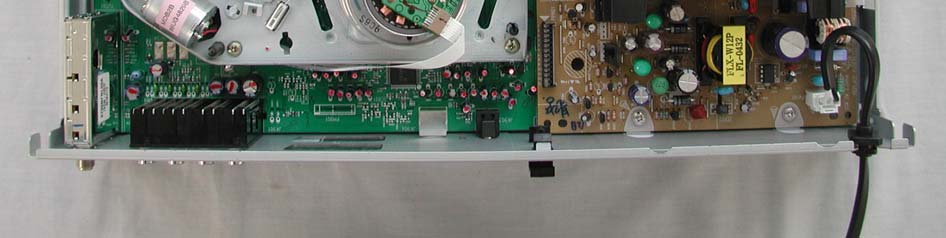

1.Front of EUT 2.Rear of EUT V9720CMZ(TADM-H202F / TCMN0682PA20C4) 3.Bottom of EUT 4.FCC requirement of rear side. 1.Inner of EUT V9720CMZ(TADM-H202F / TCMN0682PA20C4) 2.Main Board 3.Power Board 5. LGIT Tuner(HADM-H202F) 6.Inner of LGIT Tuner 7. Samsung Tuner(TCMN0682PA20C4) 8.Inner of Samsung Tuner

1.Front of EUT 2.Rear of EUT V9720CMZ(TADM-H202F / TCMN0682PA20C4) 3.Bottom of EUT 4.FCC requirement of rear side. 1.Inner of EUT V9720CMZ(TADM-H202F / TCMN0682PA20C4) 2.Main Board 3.Power Board 5. LGIT Tuner(HADM-H202F) 6.Inner of LGIT Tuner 7. Samsung Tuner(TCMN0682PA20C4) 8.Inner of Samsung Tuner

1.Front of EUT 2.Rear of EUT V9720CMZ(TADM-H202F / TCMN0682PA20C4) 3.Bottom of EUT 4.FCC requirement of rear side. 1.Inner of EUT V9720CMZ(TADM-H202F / TCMN0682PA20C4) 2.Main Board 3.Power Board 5. LGIT Tuner(HADM-H202F) 6.Inner of LGIT Tuner 7. Samsung Tuner(TCMN0682PA20C4) 8.Inner of Samsung Tuner

2003.08.21 G.S Park 2003.08.21 H.R Lee “” “” “” ² ² ’ ’ “” ² T O : LG DATE : 2003.11.07 SPECIFICATION TM BLOCK (RF-MOD. + TUNER + PIF) TCMN0682PA20C4 (NTSCM/USA) SAMSUNG ELECTRO-MECHANICS CO ., LTD. - 314, METAN 3 DONG,PALDAL KU SUWON, KYUNGKI-DO,KOREA TEL : (82)(31) 210-6026,6860 FAX : (82)(31) 210-6380,6385 - WELL GROW INDUSTRIAL ESTATES 93 MOO 5 T BANGSAMAK A. BANGPAKONG CHACHOENGSAO24180,THAILAND TEL : (66)(38) 570-191~6 (DIRECT 570-560,590) FAX : (66)(38) 570-258, 311 WRITTENCHECKEDAPPROVED SPECIFICATION PAGE TM-BLOCK1/21 SAMSUNG ELECTRO - MECHANICS CO.,LTD. INDEX Item NO.ITEMPage 1. General Specification Application Receiving channels Intermediate frequency Receiving system Output channel of modulation Operating conditions for guarantee Storage condition Testing ambient condition Terminal names and functions Semiconductor used Current consumption & supply voltage PLL data format 2 2 2 2 2 2 2 2 3 4 4 4~6 2.Electrical characteristics RF section (Video, Sound, Output, ANT.charateristic) Tuner section IF section 7~9 10~12 13~17 3.Environment test Heat load test Humidity load test Cold test Vibration test Operating life test Impact test Static electricity test 18 18 18 18 19 19 19 4.Mechanical Characteristics Outdrawing diagram20 5.Circuit viewCircuit diagram21 1. GENERAL SPECIFICATION 1) APPLICATION This specification is applied to the VCR receiving the US 181 channel system VHF and UHF bands. ( RF modulator output channel is 3 or 4 CH. ) 2) RECEIVING CHANNELS * M NTSC / USA * UHF : CH. W+12 - CH. 69 * VHF HIGH BAND : CH. C - CH. W+11 * VHF LOW BAND : CH. 2 - CH. B 3) INTERMEDIATE FREQUENCY * PIF : 45.75MHz * SIF : 41.25MHz 4) RECEIVING SYSTEM * UPPER HETERODYNE SYSTEM 5) OUTPUT CHANNEL OF MODULATION * 3 CH. : OPEN (61.25MHz) * 4 CH. : GND (67.25MHz) By controlled PIN NO.2 (CH) 6) OPERATING CONDITIONS FOR GUARANTEE * TEMPERATURE : -10 ~ 60°C, HUMIDITY 85% OR LESS 7) STORAGE CONDITION * TEMPERATURE : - 20 ~ 70°C, HUMIDITY 90% OR LESS 8) TESTING AMBIENT CONDITION * DEFINED AS TEMPERATURE OF 25 ± 5°C AND HUMIDITY OF 65 ± 10% RH 9) REGULATION * TCMN0682PA20C4 IS APPLIED FOR FCC REGULATION. SPECIFICATION PAGE TM-BLOCK2/ 21 SAMSUNG ELECTRO - MECHANICS CO.,LTD. 10) TERMINAL NAMES AND FUNCTIONS SAMSUNG ELECTRO - MECHANICS CO.,LTD. SPECIFICATION PAGE T M BLOCK3/21 ITEMPIN NO.TERMINALFUNCTIONREMARK RF SECTION RF INPUTRF SIGNAL INTPUT TERMINAL RF OUTPUTRF SIGNAL OUTPUT TERMINAL 1AIAUDIO INPUT 2CHCHANNEL CONTROL( OPEN:3CH,GND:4CH ) 3B+POWER SUPPLY TERMINAL 5V DC 4CONTROLVIDEO /TV CONTROL TERMINAL 5VIVIDEO SIGNAL INPUT TUNER / PIF SECTION 6N.C- 7N.C- 8SASADDRESS TERMINAL 9SCLPLL CLOCK SUPPLY TERMINAL 10SDAPLL DATA SUPPLY TERMINAL 11AFTAFT OUTPUT TERMINAL 12AOAUDIO OUTPUT TERMINAL 13SIFSIF OUTPUT TERMINAL 14BTTUNING VOLTAGE POWER SUPPLY TERMINAL33V DC 15IFIF TEST POINT 16VOVIDEO OUTPUT TERMINAL 11) SEMICONDUCTOR USED 12) CURRENT CONSUMPTION & SUPPLY VOLTAGE 13) PLL DATA FORMAT 13-1) Description of Tuner PLL Block The PLL on this IC supports the IIC bus control format. The control pins are as shown in the table below. ref) ADSW(Address selection), SCL(SCL input), SDA(SDA I/O) SPECIFICATION PAGE TM-BLOCK4/21 SAMSUNG ELECTRO - MECHANICS CO.,LTD. ITEMFUNCTIONQ'TYNAME OF SEMICONDUCTORREMARK RF SECTION IC1LA77000V S/W TRANSISTOR2BF799W S/W DIODE1KDS114E TUNER SECTION MOPLL IC1TDA6503ATS VVC DIODE11BB153,BB149 RF AMP VHF1TBB1002 UHF1BF909WR PIF SECTION IC1LA75676V VIDEO OUTPUT BUFFER1STC4081G FILTER SAW-FILTER1M1865D C - TRAP1TPS4.5MB, XT4.5MB C - FILTER1SFSH4.5MDB, LT4.5MH TERMINAL STANDARD SUPPLY VOLTAGE( V ) CURRENT CONSUMPTION( mA ) GURANTEE VOL.RATINS MIN.TYP.MAX. MOD. MB5±0.1V DC-50554.8 ~ 5.2 V CON.5±0.1V DC-0.0470.1734.8 ~ 5.2 V TUNER AND PIF BT33±0.1V DC-2.5530 ~ 34 V BP5V ± 0.1V DC1151401654.8 ~ 5.2 V SPECIFICATION PAGE TM-BLOCK5/21 13-2) INPUT SIGNAL LEVEL(SCL,SDA) HIGH -LEVEL INPUT VOLTAGE : 3.0V MIN. LOW -LEVEL INPUT VOLTAGE : 1.5V MAX. 13-3) X-TAL FREQUENCY : 4MHz STEP SIZE IS CHANGED BY REFERENCE DIVIDER. 13-4) Address Setting The response address can be changed according to the ADSW pin voltage, so that multiple PLL can exist within one system. ADSW pin voltage MA1MA0 0 to 0.1Vcc00 Open or 0.2Vcc to 0.3Vcc01 0.4Vcc to 0.6Vcc10 0.9Vcc to Vcc11 HEXA MODE = C2 13-5) Programming The VCO lock frequency is obtainedaccording to thefollowing formula. fosc=fref * 8 * ( 32M+S ) The variable frequency divisionrange of M and S are as follows, and are set as binary. SAMSUNG ELECTRO - MECHANICS CO.,LTD. 13-6) The TDA6503ATS control format is as follows 13-6-1) Write-mode Byte Write Data Byte Bits Remarks MSBLSB Address byteADB11000MA1MA00A Divider byte 1DB10N14N13N12N11N10N9N8A Divider byte 2DB2N7N6N5N4N3N2N1N0A Control byteCB1000*010A band SW byteBBXXXXPUHFXPVHFHPVHFLA 13-6-2) Read-mode : Slave Transmitter 13-6-3) Description of symbols used in table Modebit7bit6bit5bit4bit3bit2bit1bit0 Address byte11000MA1MA01A Status bytePORFLR11A2A1A0A SAMSUNG ELECTRO - MECHANICS CO.,LTD. SPECIFICATION PAGE TM-BLOCK6/21 SYMBOLDESCRIPTION AAcknowledge bit MA1,MA0programmable address bits ( MA1=0 ,MA0=1 ) ref: 13-4) N14 to N0programmable divider bits CP charge pump current bit( output current ) logic 0 : charge pump current is 60㎂ logic 1 : charge pump current is 280㎂(default) OS tuning amplifier control bits logic 0 : tuning voltage is 'on' (during normal operating) logic 1 : tuning voltage is 'off';high impedance output of pin VT(default) PVHFL,PVHFH,PUHF and FMST PMOS ports control bis: logic 0 : corresponding buffer is 'off'(default) logic 1 : corresponding buffer is 'on' Xdon't care : may be a logic 0 or a logic 1. RSA and RSB Reference Divider ratio select bits RSARSBDividerFREQUENCY STEP(KHz) X08050 01128(1024)31.25 116462.5 POR power-on reset flag: logic0:atpower off logic1:atpower on FL in-lock flag : logic 0 : loop is not locked logic 1 : loop is locked R ready flag: logic 0 : mode after power-on reset and the PLL is locked logic1:inother conditions A2,A1 and A0digital outputs of the 5-level ADC SPECIFICATIO…

Text truncated - open the document above for the full version.

TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 1/35 CERTIFICATE Issued date : December 15. 2004 EUT : DVD Player / Video Cassette Recorder Combination Model No. : TADM-H202F / TCMN0682PA20C4 Serial No. : N / A FCC ID No. : BEJ9QKE40460 Manufacture : LG Electronics Inc. Trade name : LG Applicant& : LG Electronics Inc, Address 20 Yoido-Dong Youngdungpo-Gu, Seoul, 150-721 Korea Regulation : Subpart B of Part 15, 47 C.F.R; FCC Rules (Docket 87-389) Procedure : MP-3; ANSI C63.4 : 2001 Test Location : LG Electronics Digital-media Research Lab. Measurement facility ( 3 & 10 m site ) I hereby certify that the measurements shown in Part II of this report were made in accordance with the procedures indicated and energy emitted by this equipment was found to be within the limits applicable. I further certify that on the basis of the measurements, the equipment tested is capable of operation in accordance with the requirements set forth in Part 15 of the FCC rules & Regulations under normal use and maintenance. LG Electronics Inc. hereby assumes responsibility for the certification of compliance to applicable FCC limits in every measurements. ISSUED BY REVIEWED BY Jong-Dae Lee Heung-soo LEE RESEARCH ENGINEER TEAM LEADER LG Electronics Inc. Pyungtaek Research Lab. Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-Shi, Kyunggi-Do, 451-713, KOREA Tel.: 82-031-610-5336, FAX: 82-031-610-5355 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 2/35 REPORT FOR A TV INTERFACE DEVICE Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. RF MODULATOR Manufacturer 1 : LG Innotek Co., Ltd. Model No. : TADM-H202F Manufacturer 2 : Samsung Electric Co., Ltd. Model No. : TCMN0682PA20C4 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 3/35 PART I INTRODUCTION 1. GENERAL INFORMATION 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 1.2 REGULATIONS APPLIED TO THE EUT 1.3 MEASUREMENT PROCEDURE 1.4 MEASUREMENT SITE 2. TEST CONDITIONS 7 2.1 OPERATING CONDITION OF EUT 2.2 STABILIZATION OF EUT OPERATING 2.3 TEMPERATURE 3. TEST SITE 7 3.1 OPEN AREA TEST SITE 3.2 A SHIELDED ENCLOSURE 4. MEASURING INSTRUMENTATIONS AND CALIBRATIONS 8 5. DESCRIPTION OF TEST CONDITION 8 5.1 POWER LINE CONDUCTED EMISSIONS 8 5.2 RADIATED EMISSIONS 9 5.3 OUTPUT SIGNAL MEASUREMENTS 10 5.3.1 OUTPUT SIGNAL LEVEL MEASUREMENTS 5.3.2 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 5.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 11 6. MEASURING INSTRUMENTS AND SET-UP 12 6.1 POWER LINE CONDUCTED EMISSIONS 12 6.2 RADIATED EMISSIONS 12 6.3 OUTPUT SIGNAL MEASUREMENTS 12 6.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 13 6.5 VITS SIGNAL GENERATOR ; COMMONLY USED. 13 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 4/35 PART II TEST DATA 1. CONDUCTED EMISSIONS 15 2. RADIATED EMISSIONS 20 3. OUTPUT SIGNAL LEVEL MEASUREMENTS 21 4. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 22 5. TRANSFER SWITCH ISOLATION MEASUREMENTS 24 APPENDIX A PHOTOGRAPH OF TEST SET-UP 25 APPENDIX B LIST OF TEST EQUIPMENT 27 APPENDIX C LIST OF SUPPORT DEVICE & ACCESSORIES IN THE TEST 28 APPENDIX D LABELLING REQUIREMENTS 29 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 5/35 PART I INTRODUCTION TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 6/35 1. GENERAL INFORMATION 1.1 DESCRIPTIONS OF EQUIPMENT UNDER TEST( EUT) 1.1.1 Manufacture LG Electronics Inc.; 19-1, CHEONGHO-RI, JINWUY-MYUN,PYUNGTAEK-SHI, KYUNGGI-DO 451-713, KOREA 1.1.2 Applicant LG Electronics Inc.; 20, YOIDO-DONG YOUNGDUNGPO-GU, SEOUL, 150-721, KOREA 1.1.3 MODEL Name TADM-H202F / TCMN0682PA20C4 1.1.4 SERIAL NO NOT ATTACHED 1.1.5 TRADE NAME LG 1.1.6 FCC ID NO BEJ9QKE40460 1.1.7 DESCRIPTIONS a) Product Type DVD Player / Video Cassette Recorder Combination b) RF Output Channel Channel 3 and 4 c) RF IN/OUT Terminal Impedance 75 ohms (Unbalance F-type coaxial) d) Number of RF IN/OUT terminal 1EA at each e) Terminal for signal Video/Audio in/out with RCA-type jacks f) Power Supply AC120V , 60Hz 1.1.8 Accessories connected to the EUT a) Video Coaxial cable for RF-OUT terminal provided by manufacture b) Video/Audio cables 1.2 Regulations applied to the EUT .. FCC Part 15.115 1.3 Measurement Procedure ..... MP-3 : ANSI C63.4 : 2001 1.4 Measurement site description z Location of measurement facility LG Electronics Inc : Pyungtaek plant Digital-Media Standards Team 19-1, Cheongho-Ri,Jinwuy-Myun,Pyungtak - Shi, 451-713 Korea Note; The detailed description of measuring facility was found to be in compliance With Federal Communications Commission requirements of 2.948 according to ANSI C63.4 on June 27, 2003. TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 7/35 2. GENERAL TEST CONDITIONS The test data contained in this report was obtained by use of the measurement method recommended in FCC Rules, 47 C.F.R. 15.31(a)(3), with equipment and at the test site filed by the Federal Communications Commission (FCC). The technical standard for a TV interface device are set forth in Subpart B of Part 15 of FCC Rules and regulation. The measurement for Radiated Emissions, Power line Conducted Emissions, Output signal levels, Output Terminal Conducted Spurious Emissions and Transfer Switch Isolation were performed in accordance with the procedures described in ANSI C63.4 : 2001. 2. 1 OPERATING CONDITIONS OF THE EUT According to the requirements in Subpart B of Part 15, the measurement is made at each function of the EUT being connected with appropriate cables and loads. The model, TADM-H202F / TCMN0682PA20C4 has either a video/audio output terminal in RCA-type plugs and antenna input terminal. Therefore, every measurement was investigated in the operation modes, 1)Playing VITS 1Vp-p recorded tape, 2)…

Text truncated - open the document above for the full version.

TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 1/35 CERTIFICATE Issued date : December 15. 2004 EUT : DVD Player / Video Cassette Recorder Combination Model No. : TADM-H202F / TCMN0682PA20C4 Serial No. : N / A FCC ID No. : BEJ9QKE40460 Manufacture : LG Electronics Inc. Trade name : LG Applicant& : LG Electronics Inc, Address 20 Yoido-Dong Youngdungpo-Gu, Seoul, 150-721 Korea Regulation : Subpart B of Part 15, 47 C.F.R; FCC Rules (Docket 87-389) Procedure : MP-3; ANSI C63.4 : 2001 Test Location : LG Electronics Digital-media Research Lab. Measurement facility ( 3 & 10 m site ) I hereby certify that the measurements shown in Part II of this report were made in accordance with the procedures indicated and energy emitted by this equipment was found to be within the limits applicable. I further certify that on the basis of the measurements, the equipment tested is capable of operation in accordance with the requirements set forth in Part 15 of the FCC rules & Regulations under normal use and maintenance. LG Electronics Inc. hereby assumes responsibility for the certification of compliance to applicable FCC limits in every measurements. ISSUED BY REVIEWED BY Jong-Dae Lee Heung-soo LEE RESEARCH ENGINEER TEAM LEADER LG Electronics Inc. Pyungtaek Research Lab. Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-Shi, Kyunggi-Do, 451-713, KOREA Tel.: 82-031-610-5336, FAX: 82-031-610-5355 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 2/35 REPORT FOR A TV INTERFACE DEVICE Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. RF MODULATOR Manufacturer 1 : LG Innotek Co., Ltd. Model No. : TADM-H202F Manufacturer 2 : Samsung Electric Co., Ltd. Model No. : TCMN0682PA20C4 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 3/35 PART I INTRODUCTION 1. GENERAL INFORMATION 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 1.2 REGULATIONS APPLIED TO THE EUT 1.3 MEASUREMENT PROCEDURE 1.4 MEASUREMENT SITE 2. TEST CONDITIONS 7 2.1 OPERATING CONDITION OF EUT 2.2 STABILIZATION OF EUT OPERATING 2.3 TEMPERATURE 3. TEST SITE 7 3.1 OPEN AREA TEST SITE 3.2 A SHIELDED ENCLOSURE 4. MEASURING INSTRUMENTATIONS AND CALIBRATIONS 8 5. DESCRIPTION OF TEST CONDITION 8 5.1 POWER LINE CONDUCTED EMISSIONS 8 5.2 RADIATED EMISSIONS 9 5.3 OUTPUT SIGNAL MEASUREMENTS 10 5.3.1 OUTPUT SIGNAL LEVEL MEASUREMENTS 5.3.2 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 5.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 11 6. MEASURING INSTRUMENTS AND SET-UP 12 6.1 POWER LINE CONDUCTED EMISSIONS 12 6.2 RADIATED EMISSIONS 12 6.3 OUTPUT SIGNAL MEASUREMENTS 12 6.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 13 6.5 VITS SIGNAL GENERATOR ; COMMONLY USED. 13 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 4/35 PART II TEST DATA 1. CONDUCTED EMISSIONS 15 2. RADIATED EMISSIONS 20 3. OUTPUT SIGNAL LEVEL MEASUREMENTS 21 4. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 22 5. TRANSFER SWITCH ISOLATION MEASUREMENTS 24 APPENDIX A PHOTOGRAPH OF TEST SET-UP 25 APPENDIX B LIST OF TEST EQUIPMENT 27 APPENDIX C LIST OF SUPPORT DEVICE & ACCESSORIES IN THE TEST 28 APPENDIX D LABELLING REQUIREMENTS 29 TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 5/35 PART I INTRODUCTION TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 6/35 1. GENERAL INFORMATION 1.1 DESCRIPTIONS OF EQUIPMENT UNDER TEST( EUT) 1.1.1 Manufacture LG Electronics Inc.; 19-1, CHEONGHO-RI, JINWUY-MYUN,PYUNGTAEK-SHI, KYUNGGI-DO 451-713, KOREA 1.1.2 Applicant LG Electronics Inc.; 20, YOIDO-DONG YOUNGDUNGPO-GU, SEOUL, 150-721, KOREA 1.1.3 MODEL Name TADM-H202F / TCMN0682PA20C4 1.1.4 SERIAL NO NOT ATTACHED 1.1.5 TRADE NAME LG 1.1.6 FCC ID NO BEJ9QKE40460 1.1.7 DESCRIPTIONS a) Product Type DVD Player / Video Cassette Recorder Combination b) RF Output Channel Channel 3 and 4 c) RF IN/OUT Terminal Impedance 75 ohms (Unbalance F-type coaxial) d) Number of RF IN/OUT terminal 1EA at each e) Terminal for signal Video/Audio in/out with RCA-type jacks f) Power Supply AC120V , 60Hz 1.1.8 Accessories connected to the EUT a) Video Coaxial cable for RF-OUT terminal provided by manufacture b) Video/Audio cables 1.2 Regulations applied to the EUT .. FCC Part 15.115 1.3 Measurement Procedure ..... MP-3 : ANSI C63.4 : 2001 1.4 Measurement site description z Location of measurement facility LG Electronics Inc : Pyungtaek plant Digital-Media Standards Team 19-1, Cheongho-Ri,Jinwuy-Myun,Pyungtak - Shi, 451-713 Korea Note; The detailed description of measuring facility was found to be in compliance With Federal Communications Commission requirements of 2.948 according to ANSI C63.4 on June 27, 2003. TADM-H202F / TCMN0682PA20C4 Test Report Test Report No. : 4521-041215L 7/35 2. GENERAL TEST CONDITIONS The test data contained in this report was obtained by use of the measurement method recommended in FCC Rules, 47 C.F.R. 15.31(a)(3), with equipment and at the test site filed by the Federal Communications Commission (FCC). The technical standard for a TV interface device are set forth in Subpart B of Part 15 of FCC Rules and regulation. The measurement for Radiated Emissions, Power line Conducted Emissions, Output signal levels, Output Terminal Conducted Spurious Emissions and Transfer Switch Isolation were performed in accordance with the procedures described in ANSI C63.4 : 2001. 2. 1 OPERATING CONDITIONS OF THE EUT According to the requirements in Subpart B of Part 15, the measurement is made at each function of the EUT being connected with appropriate cables and loads. The model, TADM-H202F / TCMN0682PA20C4 has either a video/audio output terminal in RCA-type plugs and antenna input terminal. Therefore, every measurement was investigated in the operation modes, 1)Playing VITS 1Vp-p recorded tape, 2)…
