DR7923CMC.HA1ULL_RD0063E Before connecting, operating or adjusting this product, please read this owner’s manual carefully and completely. DVD RECORDER OWNER’S MANUAL MODEL: LRA-516 Call us and we will guide you through your first recording, for free. 1-800-243-0000 2 This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral trian- gle is intended to alert the user to the presence of important operating and maintenance (servic- ing) instructions in the literature accompanying the product. WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit. CAUTION: This product employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center. Performing controls, adjustments, or carrying out proce- dures other than those specified herein may result in haz- ardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus. CAUTION: CLASS 2M VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. REGULATORY INFORMATION: FCC Part 15 This epuipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the product is operated in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or televi- sion reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the product and receiver. •Connect the product into an outlet on a circuit differ- ent from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV tech- nician for help. FCC COMPLIANCE:The responsible party for this prod- uct’s compliance is: LG Electronics U.S.A., Inc.,1000 Sylvan Avenue, Englewood Cliffs, NJ. Phone: 1-800-243-0000. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appli- ance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are danger- ous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. SERIAL NUMBER: You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Model No. ______________________________ Serial No. ______________________________ CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING:TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Dubbing 3 1. Read these instructions. - All these safety and operating instructions should be read before the product is operated. 2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference. 3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to. 4. Follow all instructions. - All operating and use instruc- tions should be followed. 5. Do not use this product near water. – For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water. 6. Clean only with dry cloth. – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners. 7. Do not block any ventilation openings. Install in accor- dance with the manufacturer’s instructions. - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over- heating. The openings should never be blocked by placing the product on…

Text truncated - open the document above for the full version.

19-1 Cheongho-ri, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-860, Korea attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all document s relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to t he denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Jonghoon Park/ Chief Engineer April 11, 2005 LG Electronics Inc. Digital Media Company [email protected] LG Electronics Inc.

Attn: Reviewing Engineer Federal Communications Commission. 7435 Oakland Mills Road Columbia, MD 21046 RE : CONFIDENTIALITY REQEST FOR DVD Player + DVD Recorder FCC ID : BEJ9QKE40540 MODEL # : TADS-H102F TCMN0682PA26C To Whom It May Concern: This letter served as an official request for confidentiality under FCC Rule section 0.459. We have requested that the schematic diagrams and block diagram required to be submitted with this application be withheld from public review. These documents contains detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these document would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Jonghoon Park/ Chief Engineer April 11, 2005 LG Electronics Inc. Digital Media Company [email protected] LG Electronics Inc.

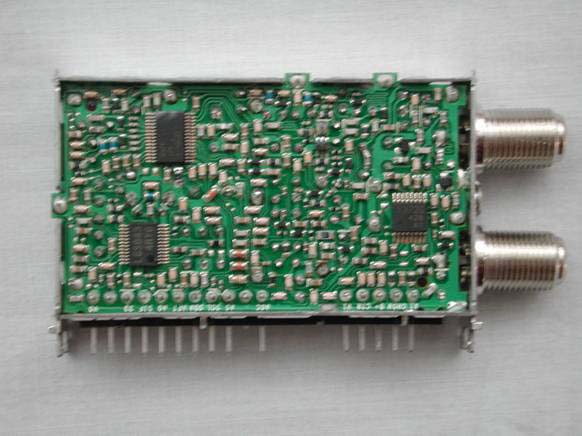

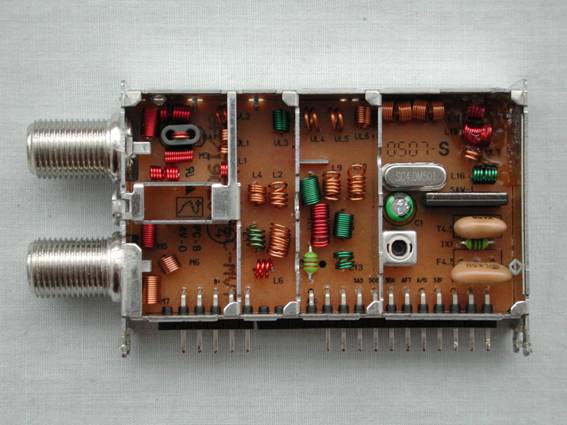

Internal of EUT Power Inverter Board Front Memory Slot PCB MPEG Board I/O Board Front Video/Audio In PCB Front Control Panel PCB Front Timer Panel PCB MD Board Samsung Tuner Samsung Tuner LGIT Tuner LGIT Tuner

Internal of EUT Power Inverter Board Front Memory Slot PCB MPEG Board I/O Board Front Video/Audio In PCB Front Control Panel PCB Front Timer Panel PCB MD Board Samsung Tuner Samsung Tuner LGIT Tuner LGIT Tuner

2005.02.23 Y.S RO 2005.02.23 H.D KIM 2005.02.23 H.R Lee 2005.02.23 Y.S RO 2005.02.23 H.D KIM 2005.02.23 H.R LEE 2005.02.23 H.D KIM 2005.02.23 H.R. Lee 2005.02.23 Y. S. Ro “” ... ... ’ ... “” ² ² ’ ’ ² “” ² ““ E E

ٛ VHF lowCH.2~CH.B55.25~127.25MHz VHF highCH.C~CH.W+11133.25~361.25MHz UHFCH.W+12~CH.69367.25~801.25MHz Picture Carrier45.75 Color Carrier42.17 Sound Carrier41.25 RF MOD F-CONRF Signal Intput Terminal75 1AIAUDIO INPUT 2CH CHANNEL CONTROL (OPEN:3CH, GND:4CH ) 3B+POWER SUPPLY TERMINAL 5V DC 4CONTROLVIDEO /TV CONTROL TERMINAL 5VIVIDEO SIGNAL INPUT TUNER / PIF SECTION 6RF AGCRF AGC Voltage out (TEST POINT)TP 7N.CNO CONNECTION 8SASPLL Address selection 9SCLPLL Clock Supply Terminal for Tuner 10SDAPLL Data Supply Terminal for Tuner 11AFTAFT Output Terminal 12AUDIOAUDIO Output Terminal 13SIFSIF OUT 14VTTuning Voltage33V 15IF OUTIF (TEST POINT)TP 16VIDEO OUTVideo Signal Output1Vp-p RF SECTION IC1TA1372FNG S/W TRANSISTOR2BF799W or EQUIVALENT DEVICE S/W DIODE1KDS114E TUNER SECTION MOPLL IC1SN761678 VVC DIODE11KDV214EA,KDV269E RF AMP1BG3130R PIF SECTION IC1LA75676VA FILTER SAW-FILTER1SF5232 C-TRAP1TPS4.5MB or XT4.5MB C - FILTER1SFSH4.5MDB or LT4.5MH MOD controlCON B+5V DC-0.0470.173 TUNER + IF B+5V DC-190220 VT33V DC-2.55 TUNER + IF B+4.85.05.2 VT323334 AGC--- AFT--- Testing Ambient Condition Temperature202530 Humidity556575% Operating Condition Temperature-10-60 Humidity--85% Storage Condition Temperature-20-70 Humidity--90% 0to0.1Vcc00 ALWAYS VALID01 0.4Vcc to 0.6Vcc10 0.9Vcc to Vcc11 Address byte11000MA1MA0R/W=1A status bytePORFL111A2A1A0A (0~0.15)*Vcc0000 (015~0.3)*Vcc0011 (0.3~0.45)*Vcc0102 (0.45~0.6)*Vcc0113 (0.6~1)*Vcc1004 AAcknowledge MA1,MA0Address setting bits XDon't care : May be a logic 0 or logic 1 PORPower - ON Reset FLLock detection signal Address byte11000MA1MA0R/W=0A Divider byte10N14N13N12N11N10N9N8A Divider byte2N7N6N5N4N3N2N1N0A Control byte1CPT2T1T0RSARSBOSA Band SW byteP8P7P6P5BS4BS3BS2BS1A AAcknowledge MA1,MA0Address set bits N14 to N0Programmable counter set bit CP Charge pump current set bit(output current) CP= 0 = 60 (Typ.) CP= 1 = 280 (Typ.) OS Tuning amplifier control bits OS=0 ; Normal operation ; Tuning voltage 'ON' OS=1 ; Tuning voltage is 'OFF'(High impedance) OS = 0 T2,T1,T0Test bits Normal mode : T2~T0 = 0Tn = 0 RSA, RSB Reference divider ratio selection bits 011024 11512 X0640 512 BS4 ~ BS1 Band switch ports control bits BSn=0:off,1=on Band selection by BS1,2,4 (x : don't care) VHF-LOW100 VHF-HIGH010 UHF001 XDon't care : May be a logic 0 or logic 1 P8...P5NPN OPEN COLLECTOR PORT CONTROL BITSPn=0 PORPower - ON Reset FLLock detection signal Power Gain UHF2834 dBVHF High2934 Low2933 IF Rejection UHF6090- dBVHF High6090- Low5580- Image Rejection UHF4560- dBVHF High5070- Low5075- CB Rejection 0.535MHz ~ 30MHz -7dBm MIN. dB Desire : CH2 ~ CH6 -66dBms/i = 40dB CH A-5 BEAT 50dB ANT INPUT Desired signal:60dBuV CH6 BEAT 50dB ANT INPUT Desired signal:60dBuV Undesired signal:54dBuV Margin Frequency VHF LOW High end+2-- MHz Low end+2-- VHF HIGH High end+1-- Low end+1-- UHF High end+1-- Low end+1-- 1% Cross Modulation Desire Input Level(dBuV) Undesire Signal Level(dBuV) AB 95 85 75 65 A : G.R= 0dB B : G.R=30dB UHF 65 84 VHF 65 84 Cross modulation value should be within hatched area. Tuner should be measured for 1% cross modulation with 2 channel undesired signal. Video Output Level0.81.01.2Vp-p Standard color bar : 87.5% Mod. Sync Ratio23.62833.6% Standard color bar : 87.5% mod. Video S/N4345dBrms Input level : 70dBuV HPF : 100KHz, LPF : 4.2MHz SC trap : ON 100% white signal 87.5% mod. Luminance Sensitivity 4550dBuV HPF : 100KHz, LPF : 4.2MHz SC trap : ON 100% white signal 87.5% mod. RFlevelatVideoS/N=30dB Chroma Distortion DP5+10Deg 10 stair step : 87.5% mod. DG5+10% Chroma S/N AM4952 dB 100% Chroma Signal (RED) HPF : 100Hz, LPF : 0.5MHz SC trap : OFF PM4851 Burst Level150250400mVp-pStandard color bar Y/C Delay-200-50+100nSec Input Sin 2T Pulse & Bar. Use VM700A(Tektronix) Video Frequency Response 1.0MHz 2.0MHz 3.0MHz 3.58MHz -3.0 -3.0 -4.0 -4.0 -1.0 -1.0 -1.0 -2.0 +2.0 +2.0 +2.5 +2.0 dB Multi-burst Signal : 87.5%mod. 0.5MHz standard AFT Alignment-500+50KHz Center voltage : 2.5V RF input level : 70dBuV P/S = -7dB Standard color bar : 87.5% mod. Testing channel : 11CH[199.25MHz] SIF output level7077-dBuV 1KHz without FM Modulation Standard color bar : 87.5% De-emphasis ON Heat Load Test OSC frequency UHF: 2.0MHz VHF: 2.5MHz *VIDEO S/N 6dB *VIDEO OUTPUT LEVEL 0.2Vp-p *NOISE LIMIT SENSITIVITY 6dB *AUDIO OUTPUT LEVEL 30% MAX 1.Initial value measure at standard test condition. 2.Leave samples in 70 2 for 96 5 hours, and in standard test condition for 30 minutes,then take measurements within 1 hour. 3.Supply voltage : Standard 10% 4.Supply voltage cycle : 1.5H ON,0.5H OFF Humidity Load Time 1.Leave samples in 40 5 for 24 2 hours,and in standard test condition for 30 minutes,then take measurements 2.Leave samples in 40 2 for 96 5% RH hours, for 96 5 hours, and in standard test condition for 30minutes then take measurement within 1 hour. 3.Supply voltage : Standard 10% 4.Supply voltage cycle : 1.5H ON, 0.5H OFF Cold Test 1.Initial value measure at standard test condition. 2.Leave samples in -20 2 for 96 5 hours,and in standard test condition for 2 hours,then take measurements within 1 hour. Vibration Test 1.Vibration test fixture is used to vibrate the tuner with a total amplitude of 1mm and frequency ranging from 10 to 55Hz,once per minute consecutively,for 40minutes in each of three directions X,Y and Z. Operating Life Test 1.Take measurements in standard test condition. 2.Leave samples for 1000 hours, then take measurements. 3.Supply voltage : Standard Impact Test 1.Impact acceleration : 50 m/s 2 2.Impact time : 11msec 3.Impact direction : 6 sides per each direction

TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ CERTIFICATE Issued date :April. 11. 2005 EUT :DVD Player(DVD Player + DVD +-RW Recorder) Model No. : TADS-H102F / TCMN0682PA26C Serial No. : N/A FCC ID No. : BEJ9QKE40540 Manufacture : LG ELECTRONICS INC. Trade Name : LG Applicant& : LG Electronics Inc. , Address 20, Yoido-Dong, Youngdungpo-Gu, Seoul, 150-721 Korea Regulation : Subpart B of Part 15, 47 C.F.R; FCC Rules (Docket 87-389) Procedure : ANSI C63.4 : 2003 Test Location : LG Electronics Digital-media Research Lab. Measurement facility (3 & 10 m site) I hereby certify that the measurements shown in Part II of this report were made in accordance with the procedures indicated and energy emitted by this equipment was found to be within the limits applicable. I further certify that on the basis of the measurements, the equipment tested is capable of operation in accordance with the requirements set forth in Part 15 of the FCC rules & Regulations under normal use and maintenance. LG Electronics Inc. hereby assumes responsibility for the certification of compliance to applicable FCC limits in every measurements. ISSUED BY REVIEWED BY Kim Woo Jin Heungsoo LEE RESEARCH ENGINEER TEAM LEADER LG Electronics Inc. Pyungtaek Research Lab. Standards Team 19-1, Cheongho-Ri, Jinwuy-Myun, Pyungtaek-Shi, Kyunggi-Do, 451-713, KOREA Tel.: 82-031-610-5336, FAX: 82-031-610-5355 1/37 TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ REPORT FOR A TV INTERFACE DEVICE Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. RF MODULATOR Manufacturer 1 : LG Innotek Co., Ltd. Model No. : TADS-H102F Manufacturer 2 : Samsung Electric Co., Ltd. Model No. : TCMN0682PA26C 2/37 TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ PART I INTRODUCTION 1. GENERAL INFORMATION 6 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 1.2 REGULATIONS APPLIED TO THE EUT 1.3 MEASUREMENT PROCEDURE 1.4 MEASUREMENT SITE 2. TEST CONDITIONS 7 2.1 OPERATING CONDITION OF EUT 2.2 STABILIZATION OF EUT OPERATING 2.3 TEMPERATURE 3. TEST SITE 7 3.1 OPEN AREA TEST SITE 3.2 A SHIELDED ENCLOSURE 4. MEASURING INSTRUMENTATIONS AND CALIBRATIONS 8 5. DESCRIPTION OF TEST CONDITION 8 5.1 POWER LINE CONDUCTED EMISSIONS 8 5.2 RADIATED EMISSIONS 9 5.3 OUTPUT SIGNAL MEASUREMENTS 10 5.3.1 OUTPUT SIGNAL LEVEL MEASUREMENTS 5.3.2 OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 5.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 11 6. MEASURING INSTRUMENTS AND SET-UP 12 6.1 POWER LINE CONDUCTED EMISSIONS 12 6.2 RADIATED EMISSIONS 12 6.3 OUTPUT SIGNAL MEASUREMENTS 12 6.4 TRANSFER SWITCH ISOLATION MEASUREMENTS 13 6.5 VITS SIGNAL GENERATOR ; COMMONLY USED. 13 3/37 TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ PART II TEST DATA 1. CONDUCTED EMISSIONS 15 2. RADIATED EMISSIONS 18 3. OUTPUT SIGNAL LEVEL MEASUREMENTS 19 4. OUTPUT TERMINAL CONDUCTED SPURIOUS EMISSION MEASUREMENTS 20 5. TRANSFER SWITCH ISOLATION MEASUREMENTS 21 APPENDIX A PHOTOGRAPH OF TEST SET-UP 22 APPENDIX B LIST OF TEST EQUIPMENT 24 APPENDIX C LIST OF SUPPORT DEVICE & ACCESSORIES IN THE TEST 25 APPENDIX D LABELLING REQUIREMENTS 26 4/37 TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ PART I INTRODUCTION 5/37 TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ 1. GENERAL INFORMATION 1.1 DESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT) 1.1.1 Manufacture LG ELECTRONICS INC. ; No.600, Yun Qiao Road, Jin Qiao Export Processing Zone, Pu Dong New Area, Shanghai, China, 201206 1.1.2 Applicant LG ELECTRONICS INC. ; 20, YOIDO-DONG, YOUNGDUNGPO-GU, SEOUL, 150-721, KOREA 1.1.3 MODEL Name TADS-H102F / TCMN0682PA26C 1.1.4 SERIAL NO NOT ATTACHED 1.1.5 TRADE NAME LG 1.1.6 FCC ID NO BEJ9QKE40540 1.1.7 DESCRIPTIONS a) Product Type DVD Player(DVD Plyaer + DVD+-RW Recorder) b) RF Output Channel Channel 3 and 4 c) RF IN/OUT Terminal Impedance 75 ohms (Unbalance F-type coaxial) d) Number of RF IN/OUT terminal 1EA at each e) Terminal for signal Video/Audio in/out with RCA-type jacks f) Power Supply AC120V , 60Hz 1.1.8 Accessories connected to the EUT a) Video Coaxial cable for RF-OUT terminal provided by manufacture b) Video/Audio cables 1.2 Regulations applied to the EUT .. FCC Part 15.115 1.3 Measurement Procedure ..... ANSI C63.4 : 2003 1.4 Measurement site description z Location of measurement facility LG Electronics Inc : Pyungtaek plant Digital-Media Standards Team 19-1, Cheongho-Ri,Jinwuy-Myun,Pyungtak - Shi, 451-713 Korea Note; The detailed description of measuring facility was found to be in compliance With Federal Communications Commission requirements of 2.948 according to ANSI C63.4 on June 27, 2003. 6/37 TADS-H102F / TCMN0682PA26C Test Report Test Report No. :4521-050411WJ 2. GENERAL TEST CONDITIONS The test data contained in this report was obtained by use of the measurement method recommended in FCC Rules, 47 C.F.R. 15.31(a)(3), with equipment and at the test site filed by the Federal Communications Commission (FCC). The technical standard for a TV interface device are set forth in Subpart B of Part 15 of FCC Rules and regulation. The measurement for Radiated Emissions, Power line Conducted Emissions, Output signal levels, Output Terminal Conducted Spurious Emissions and Transfer Switch Isolation were performed in accordance with the procedures described in ANSI C63.4 : 2003. 2.1 OPERATING CONDITIONS OF THE EUT According to the requirements in Subpart B of Part 15, the measurement is made at each function of the EUT being connected with appropriate cables and loads. The model, TADS-H102F / TCMN0682PA26C have either a video/audio output terminal in RCA-type plugs and antenna input terminal. Therefore, every measurement was investigated in the operation modes, 1)Playing Mode, 2) Recording Mode, 3) Recording NTSC TV s…
