BEJA7110Dual-Band GSM Phone

A7110 User Guide Unpacking8 For Your Safety 9 Your Phone 14 Phone Components14 Your Phone’s Features 15 Display Information 17 Getting Started19 Installing the SIM Card19 Charging the Battery 22 Turning Your Phone On and Off 24 Access Codes 25 Barring Password 25 General Functions26 Making a Call26 Making a Call by Send Key26 Making International Calls 26 Ending a Call 26 Making a Call From the Contact List 27 Adjusting the Volume 27 Answering a Call 27 Vibrate Mode (Quick) 28 Signal Strength 28 Entering Text 28 Selecting Functions and Options 33 Address Book 34 In-Call Menu 35 During a Call35 Making a Second Call 35 Swapping Between Two Calls 35 Answering an Incoming Call 35 Rejecting an Incoming Call 36 Muting the Microphone 36 Multiparty or Conference Calls 37 Making a Second Call 37 Setting Up a Conference Call 37 Activate the Conference Call on Hold 37 Adding Calls to the Conference Call 37 Private Call in a Conference Call 38 Ending a Conference Call 38 Menu Tree39 Recent Calls 42 Missed Calls42 Dialed Calls 42 4 Table of Contents 5 Received Calls43 Delete Recent Calls 43 Missed Calls 43 Received Calls 43 Dialed Calls 43 All Calls 43 Call Durations 43 Last Call 43 Received Calls 43 Dialed Calls 43 All Calls 44 Reset All 44 Data information 44 Data Call Duration 44 Data Volumes 44 Messaging45 Write Text Message45 Write Multimedia Message 47 Instant Messages 48 Inbox 57 Drafts 58 Outbox 58 Voicemail 59 Listen to Voice Mail 59 Voice Mailbox Bmber 59 Templates 60 Text 60 Multimedia60 Business Card 60 Setting 60 Text Message 60 Multimedia Messages 60 Download Messages 60 Memory Status 61 Games & Apps62 Shop Games62 Games & Apps 62 Favorites 63 View Information 64 Memory Status 64 Java Version 64 Media Mall65 Shop Ringtones65 Shop Games 65 Shop Graphics 65 Shop MMS 65 Shop Applications 65 Media Home 65 MEdia Net66 MEdia Home67 Favorites 67 Go To URL 68 Access Point 68 Cache Settings 69 6 Cookie Settings69 Security Certificates 70 Information 70 My Account71 Pay My Bill71 Check Bill Balance 71 View My Minute 71 Reset Voicemail 71 My MEdia72 Favorites72 Games & Apps 72 Ringtone / Audio 72 Graphics 73 Photo Gallary 73 Movie Gallary 73 Tool 75 Camera/Video 75 Alarm Clock 78 Calendar 79 Voice Recording 80 Calculator 80 Memo 81 World time 81 Unit Converter 81 IrDA 82 Address Book83 Contact List83 New Contact 84 Speed Dials 84 Caller Groups 85 Copy All 86 Delete All 86 Settings 86 Information 87 Settings88 Sounds88 Shop Ringtones 88 Ringtones 88 Volume 88 Ring Alert Type 88 Message Alert Tones 88 Key Tones 88 Slide Tones 89 Voice Recording 89 Display 89 My Wallpaper 89 Backlight 89 Languages 89 Menu Style 89 Greeting Note 89 7 Color Scheme89 Information Window 90 Date & Time 90 Set Date 90 Date Format 90 Set Time 90 Time Format 90 Auto Update 90 Call Settings 91 Call Forwarding 91 Answer Mode 92 Send My Number 92 Call Waiting 92 Minute Minder 93 Automatic Redial 93 Select Line 93 Send DTMF 93 Security 94 PIN Code Request 94 Phone Lock 94 Auto Key Lock 94 Call Barring Service 95 Fixed Dial Number 95 Connection 96 Network Selection 96 World Phone 97 GPRS Attach 97 Reset Setting 98 Q & A99 Accessories 102 Safety Guidelines 104 Glossary 118 Index 121 9 Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to, or misuse of, the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions WARNING!To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat.Never store your phone in settings that may expose it to temperatures less than 32°F or greater than 104°F, such as outside during a snowstorm or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices. RF emissions from your mobile phone may affect nearby inadequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearing aides to determine if they are susceptible to interference from your mobile phone. Turn off your phone in a medical facility or at a gas station. Never place your phone in a microwave oven as this will cause the battery to explode. IMPORTANT! Please read the TIA SAFETY INFORMATION on page 113before using your phone. For Your Safety 10 Safety Information Please read and observe the following information for the safe and proper use of your phone and to prevent any unanticipated damage. Also, keep the user’s manual in an accessible place at all times after reading it. ]Unplug the power cord and charger during a lightning storm to avoid electric shock or fire. ]Do not use your phone in high explosive areas as the phone may generate sparks. ]Do not put your phone in a place subject to excessive dust, and keep the minimum required distance between the power cord and heat sources. ]Do not damage the power cord by bending, twisting, pulling, or subjecting it to heat. Do not use the plug if it is loose as it may cause fire or electric shock. ]Hold the power cord plug firmly to plug and unplug the power cord. Ensure the plug is firmly connected. If it is not firmly connected, it may cause excessive heat or fire. ]Do not place a heavy item on the power cord. Do not allow the power cord to be crimped as it may cause fire or electric shock. ]Be careful not to let the battery contact metal conductors such as a necklace or coins. When shorted, it may cause an explosion. ]Do not disassemble or impact the battery as it may cause electric shock, short-circuit, and fire. Store the battery in a place out of reach of children. ]Using a damaged battery or placing a battery in your mouth may ca…

Text truncated - open the document above for the full version.

LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 Aug.12, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, The undersigned, Hereby authorize PCTEST Engineering Laboratory Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents Relating to the matters. Any and all acts carried out by PCTEST Engineering Laboratory Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is to a denial of benefits, Including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 8539a). Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 August 12, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos,internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would beof benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. In re: LG Electronics Inc. FCC ID: BEJA7110 Request for Short-Term Confidentiality

September 2, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJA7110 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 22/24 Certification of the Dual-Band GSM phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

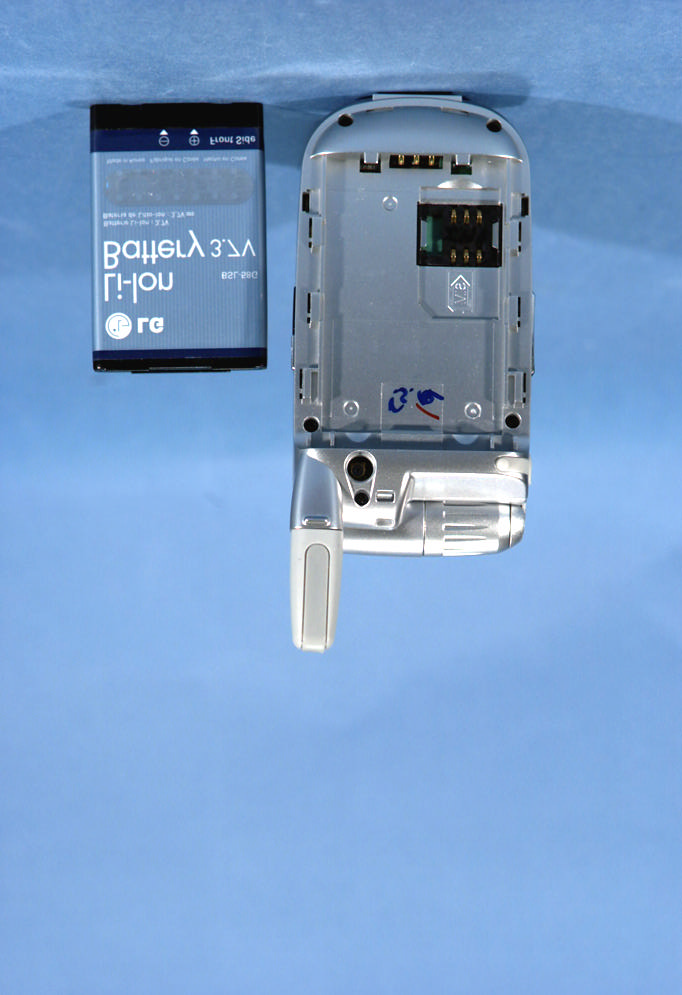

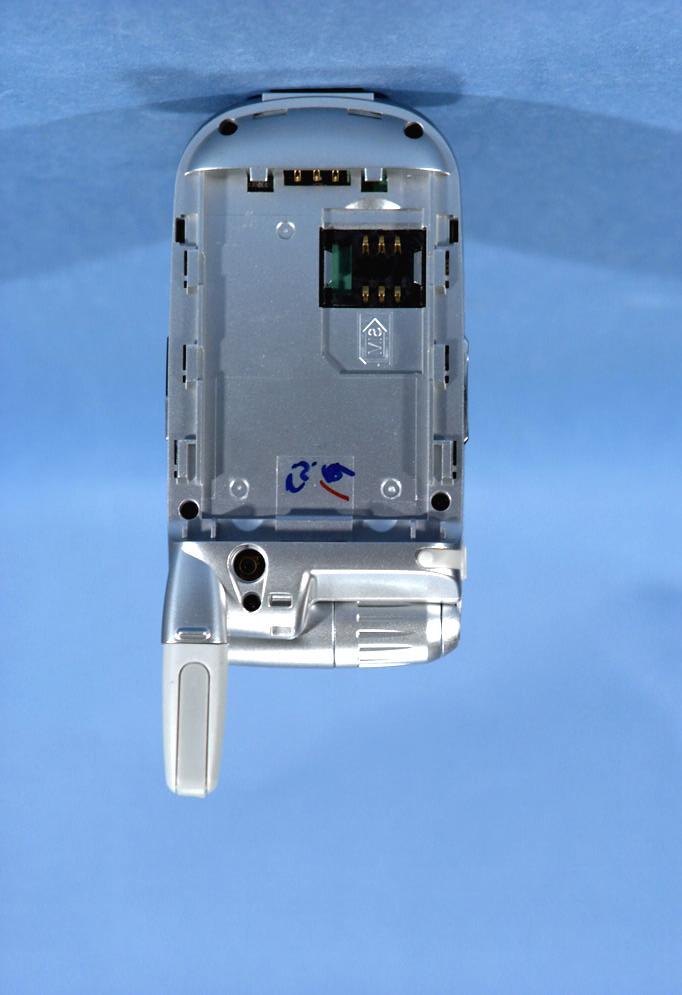

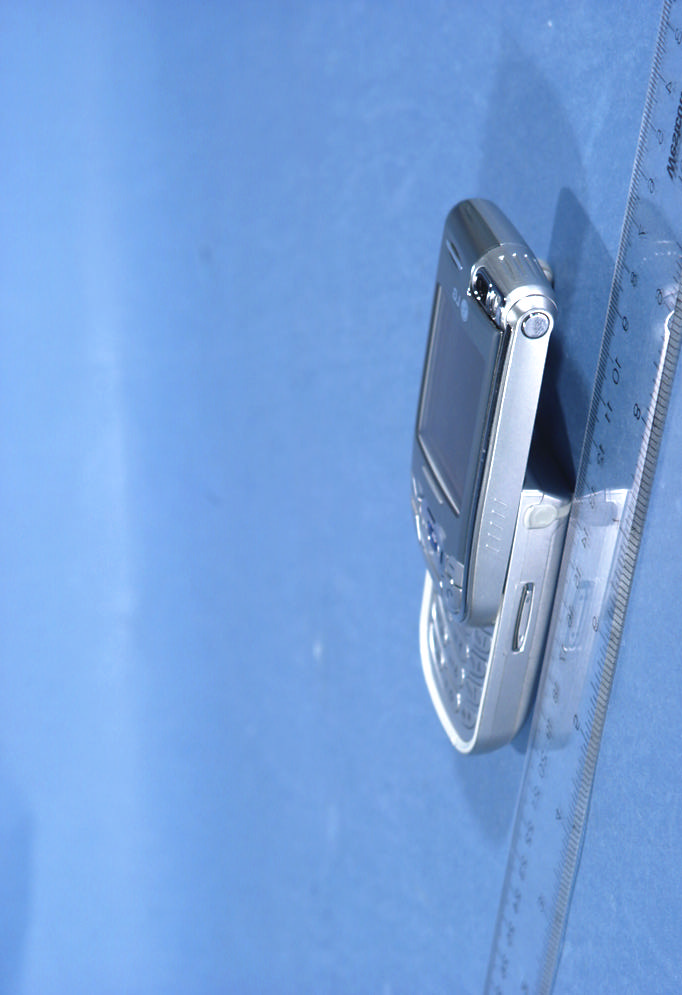

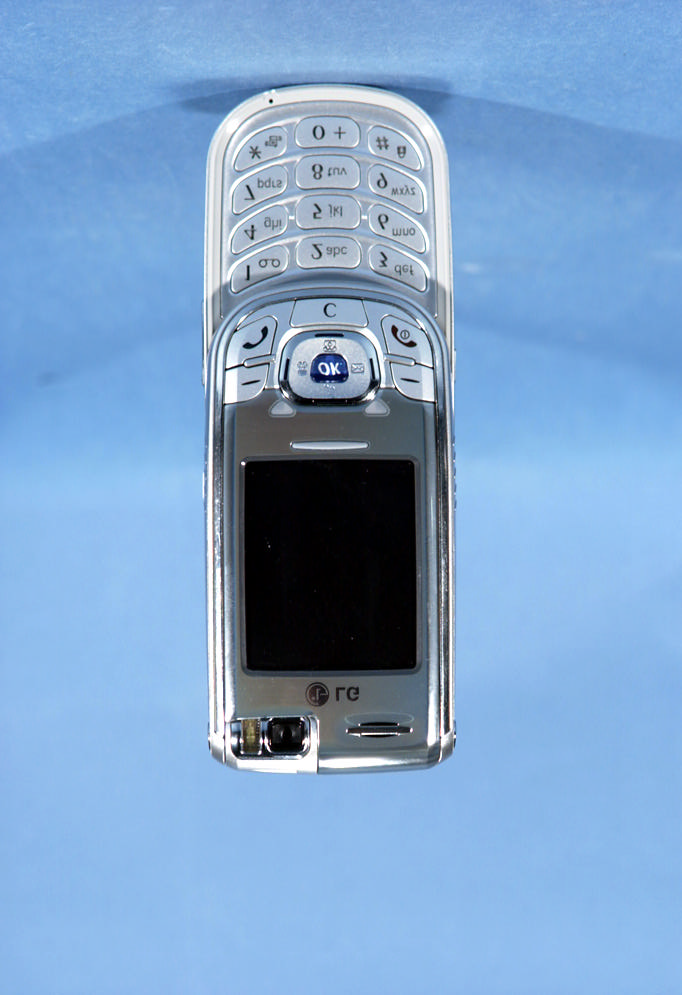

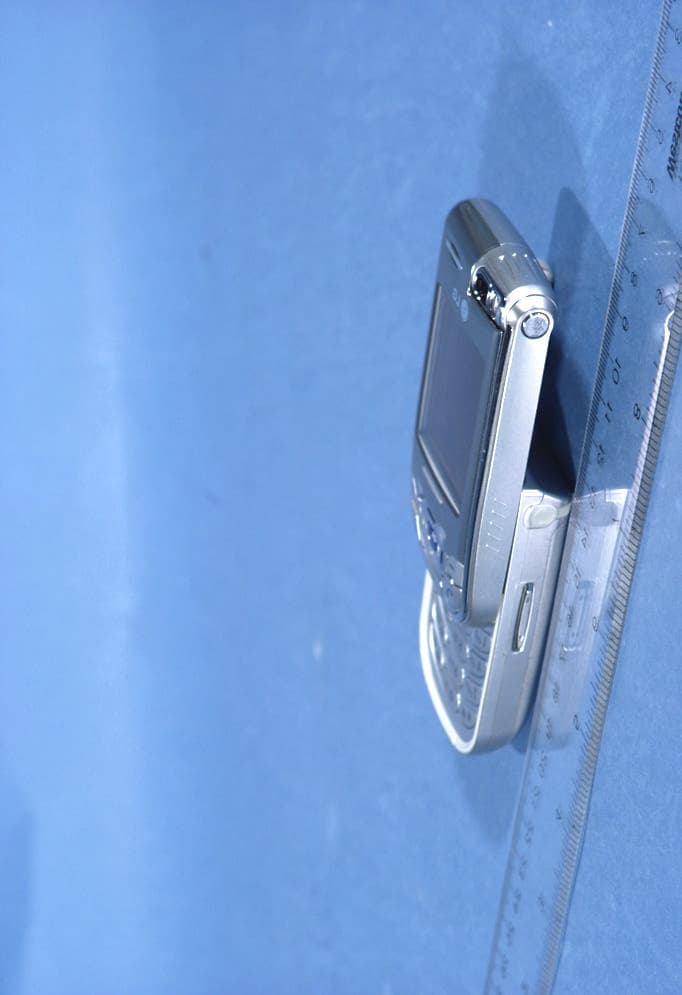

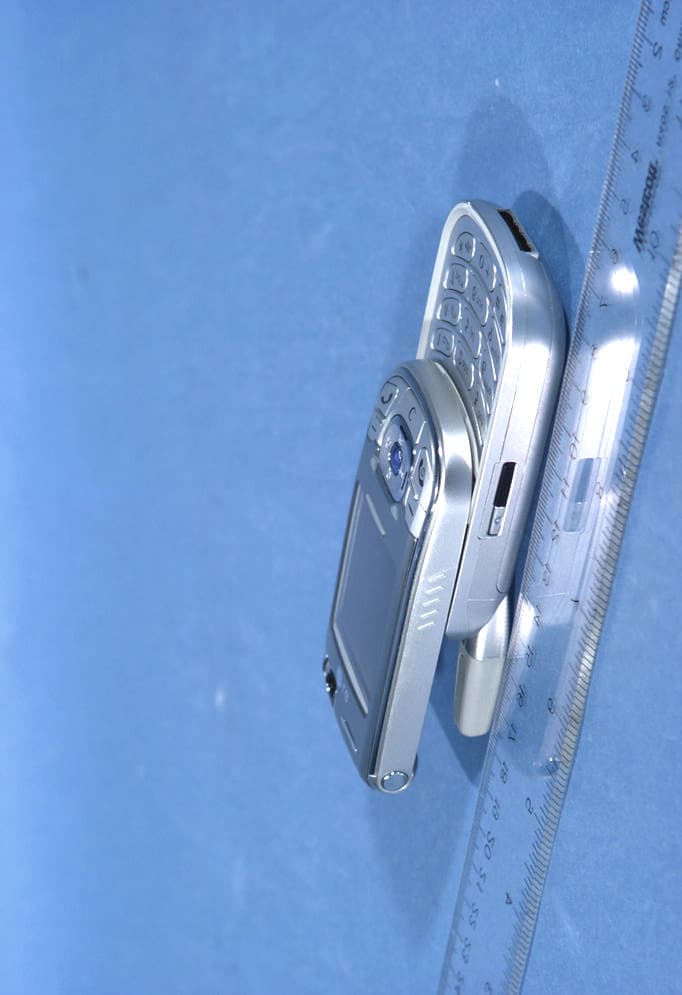

LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. Model : A7110 FCC ID : BEJA7110 IMEI S/N LG Electronics Inc. Model : A7110 FCC ID : BEJA7110 IMEI S/N LG Electronics Inc. Model : A7110 FCC ID : BEJA7110 IIMEI S/N

LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240813492.BEJ Test Dates: Aug. 31 - Sept. 1, 2004 Phone Type: Dual-Band GSM FCC ID: BEJA7110 Page 1 of 28 © 2004 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: Aug. 31 - Sept. 1, 2004 2000 Milbrook Drive Test Report S/N: SAR.240813492.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJA7110 APPLICANT NAME: LG ELECTRONICS, INC. EUT Type: Dual-Band GSM Phone 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.634 W ERP GSM850 (32.133 dBm) / 33.0 dBm Conducted 1.192 W EIRP GSM1900 (30.751 dBm) / 30.0 dBm Conducted Max. SAR Measurement: 0.45 W/kg GSM850 Head SAR; 1.40 W/kg GSM850 Body SAR; 0.23 W/kg GSM1900 Head SAR; 0.37 W/kg GSM1900 Body SAR Trade Name/Model(s): A7110 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 -2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240813492.BEJ Test Dates: Aug. 31 - Sept. 1, 2004 Phone Type: Dual-Band GSM FCC ID: BEJA7110 Page 2 of 28 © 2004 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM.................................................................................5 4. PROBE CALIBRATION PROCESS......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS.............................................................................10 9. TEST CONFIGURATION POSITION................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................12 11. MEASUREMENT UNCERTAINTIES..................................................................................13 12. SAR TEST DATA SUMMARY...........................................................................................14 13. SAR TEST EQUIPMENT..................................................................................................15 14. CONCLUSION..............................................................................................................16 15. REFERENCES.................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION......................................................................................18 EXHIBIT A. SAR DATA SUMMARY...................................................................................19-28 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.240813492.BEJ Test Dates: Aug. 31 - Sept. 1, 2004 Phone Type: Dual-Band GSM FCC ID: BEJA7110 Page 3 of 28 © 2004 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for gu…

Text truncated - open the document above for the full version.

SAR Data Report 04083105 Start : 31-Aug-04 11:43:56 am End : 31-Aug-04 11:50:14 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : A7110 Serial Number : 1 Frequency : 836.60 MHz Transmit Pwr : 2.000 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 41.340 Tissue Conductivity : 0.890 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.240 Calibrated Conductivity : 0.900 Calibrated Density : 1.300 Probe Offset : 2.400 mm Conversion Factor : 5.600 Probe Sensitivity : 2.809 3.327 3.274 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: GSM Mode CH-190 Cheek CF=8; Amb. Temp= 22.1 'C; Liq. Temp=20.1 'C Power Drop Test: Reading @ start = 0.542 Reading @ End = 0.537 Power at End = 99.1% Area Scan - Max Peak SAR Value at x=19.0 y=-4.0 = 0.35 W/kg Zoom Scan - Max Peak SAR Value at x=27.0 y=-12.0 z=0.0 = 0.58 W/kg Max 1g SAR at x=20.0 y=-4.0 z=0.0 = 0.39 W/kg Max 10g SAR at x=19.0 y=-4.0 z=0.0 = 0.27 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:27.0 y:-12.0 1g SAR Values 0.3861 0.3781 0.3701 0.3621 0.3541 0.3461 0.3381 0.3300 0.3220 0.3140 0.3060 SAR Data Report 04083109 Start : 31-Aug-04 12:14:26 pm End : 31-Aug-04 12:20:38 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : A7110 Serial Number : 1 Frequency : 836.60 MHz Transmit Pwr : 2.000 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 41.340 Tissue Conductivity : 0.890 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.240 Calibrated Conductivity : 0.900 Calibrated Density : 1.300 Probe Offset : 2.400 mm Conversion Factor : 5.600 Probe Sensitivity : 2.809 3.327 3.274 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: GSM Mode CH-190 Tilt CF=8; Amb. Temp= 22.1 'C; Liq. Temp=20.1 'C Power Drop Test: Reading @ start = 0.591 Reading @ End = 0.579 Power at End = 97.9% Area Scan - Max Peak SAR Value at x=7.0 y=1.0 = 0.34 W/kg Zoom Scan - Max Peak SAR Value at x=0.0 y=-2.0 z=0.0 = 0.55 W/kg Max 1g SAR at x=2.0 y=0.0 z=0.0 = 0.37 W/kg Max 10g SAR at x=8.0 y=2.0 z=0.0 = 0.26 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:0.0 y:-2.0 1g SAR Values 0.3740 0.3652 0.3565 0.3478 0.3391 0.3304 0.3217 0.3130 0.3043 0.2956 0.2869 SAR Data Report 04083112 Start : 31-Aug-04 12:47:10 pm End : 31-Aug-04 12:53:32 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : A7110 Serial Number : 1 Frequency : 836.60 MHz Transmit Pwr : 2.000 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 41.340 Tissue Conductivity : 0.890 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.240 Calibrated Conductivity : 0.900 Calibrated Density : 1.300 Probe Offset : 2.400 mm Conversion Factor : 5.600 Probe Sensitivity : 2.809 3.327 3.274 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: GSM Mode CH-190 Cheek CF=8; Amb. Temp= 22.1 'C; Liq. Temp=20.1 'C Power Drop Test: Reading @ start = 0.588 Reading @ End = 0.630 Power at End = 107.2% Area Scan - Max Peak SAR Value at x=20.0 y=3.0 = 0.39 W/kg Zoom Scan - Max Peak SAR Value at x=4.0 y=-5.0 z=0.0 = 0.72 W/kg Max 1g SAR at x=20.0 y=4.0 z=0.0 = 0.45 W/kg Max 10g SAR at x=15.0 y=6.0 z=0.0 = 0.32 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:4.0 y:-5.0 1g SAR Values 0.450 0.435 0.421 0.407 0.392 0.378 0.363 0.349 0.335 0.320 0.306 SAR Data Report 04083116 Start : 31-Aug-04 01:33:29 pm End : 31-Aug-04 01:39:46 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Model Number : A7110 Serial Number : 1 Frequency : 836.60 MHz Transmit Pwr : 2.000 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 41.340 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.240 Calibrated Conductivity : 0.890 Calibrated Density : 1.300 Probe Offset : 2.400 mm Conversion Factor : 5.600 Probe Sensitivity : 2.809 3.327 3.274 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: GSM Mode CH-190 Tilt CF=8; Amb. Temp= 22.1 'C; Liq. Temp=20.1 'C Power Drop Test: Reading @ start = 0.714 Reading @ End = 0.676 Power at End = 94.8% Area Scan - Max Peak SAR Value at x=0.0 y=11.0 = 0.42 W/kg Zoom Scan - Max Peak SAR Value at x=0.0 y=17.0 z=0.0 = 0.68 W/kg Max 1g SAR at x=3.0 y=10.0 z=0.0 = 0.46 W/kg Max 10g SAR at x=1.0 y=9.0 z=0.0 = 0.32 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:0.0 y:17.0 1g SAR Values 0.463 0.449 0.434 0.419 0.405 0.390 0.375 0.361 0.346 0.331 0.317 SAR Data Report 04090121 Start : 1-Sep-04 05:23:20 pm End : 1-Sep-04 05:29:27 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SGH-E715 Serial Number : 1 Frequency : 1850.20 MHz Transmit Pwr : 1.00 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-RIGHT Phantom…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110

LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110 LGE FCC ID: BEJA7110 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: A7110
