BEJC105Cellular/PCS GSM Phone with Bluetooth

Part 15.21 statement" Change or Modifications that ar e not expressly ap proved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B di gital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide re asonable protection against harmful interference in a residential installation. This equi pment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer ence will not occur in a particular installati on. if this equipment does cause harmful interference or television reception, which can be determined by turning the equi pment off and on, the user is encouraged to tr y to correct the interference by one or more of the fo llowing measures: - Reorient or relocate the receiving antenna. - Increase the separation betwee n the equipment and receiver. - Connect the equipment into an outlet on a circuit diffe rent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B ComplianceThis device and its accessories co mply with part15 of FCC rules. Operation is subject to th e following two conditions: (1) This device & its accessories may not cause harmful interference.(2) This device & its accessories must accept any interference received, including interference that ma y cause undesired operation. Body-worn OperationThis USB modem has bee n tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirem ents, a minimum separation distance of 0.79inches(2.05cm) must be ma intained from the user's body. The accessories must not contain any metallic components. Calls Making a call 1 Key in the number using the keypad. To delete a digit, press CLR. 2 Press to initiate the call. 3 To end the call, press . TIP! To enter + when making an international call, press and hold 0. Making a Call from Your Contacts 1 Select Names from the Standby screen. 2 Using the keypad, enter the fi rst letter of the contact you want to call. For example, for Offi ce, press “6” three times to select the fi rst character, “O”. 3 Select Call or press to initiate the call. Answering and Rejecting a Call When your phone rings, press to answer the call. You can control the volume by pressing the Up and Down Navigation keys. Press or select Reject to reject the incoming call. TIP! You can change the settings on your phone to answer your calls in diff erent ways. Press Menu, select Settings and choose Call. Select Answer mode and choose from Press send key, Slide up and Press any key. Speed Dialing You can assign a speed dial number to a contact you call frequently. Viewing your Call History You can only check the log of missed, received and dialed calls if the network supports Calling Line Identifi cation (CLI) within the service area. Changing the call settings You can set call-specifi c functions. Press Menu, select Settings and choose Call. • Call divert – Choose whether to divert your calls. • Call barring – Select when you would like calls to be barred. • Fixed dial numbers – Choose a list of numbers that can be called from your phone. You will need your PIN2 code from your operator. Only numbers included in the fi xed dial list can be called from your phone. • Call waiting – Be alerted when you have a call waiting. This depends on your network provider. • Call reject – Set the rejected call list. • Send my number – Choose whether your number will be displayed when you call someone. This depends on your network provider. • Auto redial – Choose On or Off . • Answer mode – Choose whether to answer the phone using Any key, Send key only or Slide up. • Free call timer – Choose whether or not to display the call time. • Minute minder – Select On to hear a tone every minute during a call. • BT answer mode – Set to Hands-free or Handset. • Save new number – Choose Yes or No. • Slide close setting – Choose End call or Continue call. Contacts Searching for a Contact 1 Select Names from the standby screen. 2 Using the keypad, enter the fi rst letter of the contact you want to call. 3 To scroll through the contacts, use the up and down arrows. Adding a New Contact 1 Press Menu, then select Contacts and choose Names. Then press Options - Add new contact. 2 Enter all the information you have in the fi elds provided and select Options-Done. Adding a Contact to a Group You can save your contacts in groups; for example, to keep your work colleagues and family separate. There are a number of groups including Family, Friends, Colleagues, School and VIP already set up on the phone. Messaging Your LG-C105 includes text messaging, multimedia messaging and E-mail functions, and can also receive network service messages. Sending a Message 1 Press Menu, select Messaging and choose Create message. 2 A new message editor will open. The message editor combines Text message and Multimedia messages into one intuitive and easy-to-switch-between editor. The default setting for the message editor is text messages. 3 Enter your message. 4 Choose Options - Insert to add an Image, Video clip, Sound clip, Schedule, Business card, Note, Text fi eld, To-do or Text template. 5 Press Options - Send. Setting up Your E-mail You can stay in touch on the move using email on your LG-C105. It’s quick and simple to set up a POP3 or IMAP4 email account. 1 Press Menu, select Messaging, and choose Message Settings. 2 Select E-mail then E-mail accounts. 3 Press Add then set the E-mail account. Sending an E-mail Using your New Account To send/receive an email, you should set up an email account. 1 Select Menu, select Messaging and choose Create message. 2 Choose E-mail and a new email will open. 3 Enter a subjec…

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: June 28, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJC105 Eq uipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

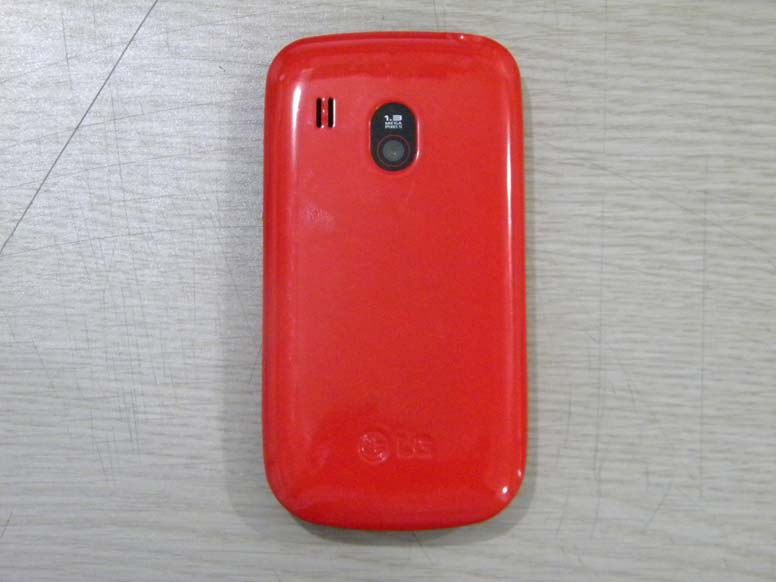

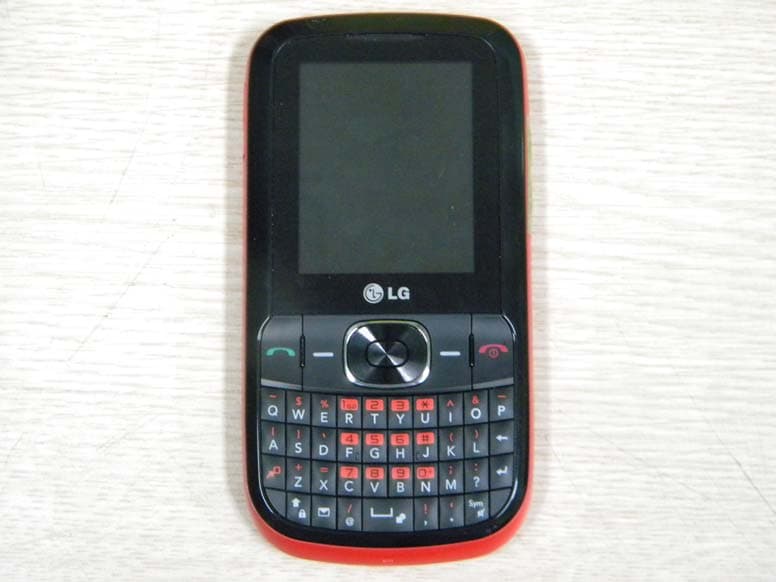

External photos of EUT Front view of EUT Rear view of EUT

Model No: LG-C105 FCC ID : BEJC105 S/N : Made in Korea LG Electronics Inc. LGE

Internal photos of EUT Internal view of EUT Cellular Antenna BT Antenna Top view of Main PCB Bottom view of Main PCB Top view of LCD module Bottom view of LCD module

APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 1 of 84 MCCL SAR TEST REPORT Specific Absorption Rate Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by H. S. Shim /Vice Technical Manager MCCL Prepared by H. S. Shim / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL Test Report No : MCCL-3-10-109 Product :Cellular/PCS GSM Phone with Bluetooth Model Name(s) :LG-C105, C105, LG-C100, C100 Manufacturer :LG Electronics, Inc. Applicant : Application Type : LG Electronics, Inc. Certification Device Category :Licensed Portable Transmitter Held to Ear (PCE) Standards : §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Date of Sample Receipt :May 31, 2010 Date of Issue : Test Device Serial No. : July 02, 2010 Pre-Production Sample [S/N: #1] Test Result :PASS SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI / IEEE C95.1(2005) and had been tested in accordance with the measurement procedures specified in FCC/OET bulletin 65 Supplement C (2001) , ANSI / IEEE 1528 – Dec. 2003 and in applicable Industry Canada Radio Standards specifications (RSS) ※ The test results in this test report apply only to sample(s) tested. APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 2 of 84 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ········································································································3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom···················································································································· 9 4.4 Brain & Muscle Simulating Mixture Characterization ···········································10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. ANSI/IEEE C95.1–2005 RF EXPOSURE LIMITS ····················································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ···································································································································· 23 12. RF CONDUCTED POWER ····················································································· 24 13. MEASUREMENT RESULTS ································································································· 25 14. TEST EQUIPMENT ············································································································ 27 15. REFERENCES············································································································ 28 APPENDIX A: Validation Test Data······································································ 29 APPENDIX B: SAR Test Data··············································································· 35 APPENDIX C: Calibration Certificates································································· 59 APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 3 of 84 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Ex…

Text truncated - open the document above for the full version.

APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 61 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 62 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 63 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 64 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 65 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 66 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 67 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 68 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 69 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 70 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 71 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 72 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 73 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 74 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 75 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 76 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 77 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 78 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 79 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 80 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 81 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 82 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 83 of 84 MCCL APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-109 Page 84 of 84 MCCL

Report Number: F690501/RF-RTL003971 Page: 2 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission -------------------------------- 7 3. Conducted Output Power ----------------------------------------------------------------------- 13 4. Occupied Bandwidth 99 % --------------------------------------------------------------------- 15 5. Spurious Emissions At Antenna Terminal--------------------------------------------------- 20 6. Band Edge ------------------------------------------------------------------------------------------ 24 7. Frequency Stability ------------------------------------------------------------------------------ 27 Report Number: F690501/RF-RTL003971 Page: 3 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :LG Electronics Inc. Address :60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Han, Bong Hyo Phone No. : +82 +2 2033 1108 1.3. Description of EUT Kind of Product Cellular/PCS GSM Phone with Bluetooth Model Name LG-C105, C105, LG-C100, C100 Serial Number N/A Power Supply DC 3.7 V (Li-poly Battery) Rated Power GSM850 : 33 ㏈m GSM1900 : 30 ㏈m Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Bluetooth : 2 402 ㎒ ~ 2480 ㎒ Number of Channels GSM850 : 125 GSM1900 : 300 Bluetooth : 79 Class of GPRS Class 12 Report Number: F690501/RF-RTL003971 Page: 4 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.4. Description of test mode Voice GPRS Data GPRS GPRS GPRS GPRS GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 824.2 32.55 32.58 31.00 28.95 26.93 836.6 32.71 32.75 31.15 29.06 27.05 GSM850 848.8 32.76 32.80 31.23 29.11 27.11 1 850.2 29.51 29.40 27.62 27.64 25.78 1 880.0 29.52 29.54 27.85 27.87 26.01 GSM1900 1 909.8 29.78 29.77 28.10 28.11 26.25 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM850 GPRS 1 TX Slot and GSM1900 GSM Voice (worst case) as a representative. Report Number: F690501/RF-RTL003971 Page: 5 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer R & S FSV30 Mar. 31, 2011 Mobile Test Unit Agilent E5515C Mar. 31, 2011 Directional Coupler Narda 4226-20 Jan. 07, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBS2C4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL003971 Page: 6 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(e) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(e) §24.238(a) Spurious Emission at Antenna Terminal Complied §2.1055 §22.355 §24.235 Frequency Stability Complied §22.917(e) §24.238(a) Band Edge Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL003971 Initial Report Number: F690501/RF-RTL003971 Page: 7 of 29 The results shown in this test report refer only to the sample(s) tested u…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test B. Photos of conducted power line test

APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 1 of 10 SAR Test Setup Photographs Figure 1 Right Head SAR Test Setup - Cheek Touch Position APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 2 of 10 Figure 2 Right Head SAR Test Setup - Ear Tilt Position APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 3 of 10 Figure 3 Left Head SAR Test Setup - Cheek Touch Position APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 4 of 10 Figure 4 Left Head SAR Test Setup - Ear Tilt Position APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 5 of 10 Figure 5 Body SAR Test Setup – w/o Holster APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1087, Fax:+82 2 2033 1222 Page 6 of 10 Figure 6 Body SAR Test Setup – w/o Holster APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 MCCL(Mobile Communication Certification Lab), 60-39, Kasan-dong, Kumchon-gu, S…
