BEJC1300Dual-Band GSM Phone

C1300 User Guide Unpacking8 For Your Safety 9 Your Phone 14 Phone Components14 Your Phone’s Features 15 Display Information 17 Getting Started18 Using the Battery, Charger and SIM Card 18 Installing and Removing the Battery 18 Installing the Battery 18 Removing the Battery 19 Charging the Battery 19 Disconnecting the Charger 20 Installing the SIM Card 21 Turning Your Phone On and Off22 Turning Your Phone On 22 Turning Your Phone Off 22 Access Codes 22 Security code 22 Barring Password 22 General Functions23 Making and Answering Calls 23 Making a Call23 Making a Call by Send Key 23 Making International Calls 23 Ending a Call 23 Making a Call From the Phonebook 24 Adjusting the Volume 24 Answering a Call 24 Manner Mode (Quick) 25 Signal Strength 25 Entering Text 25 Phonebook 29 In-Call Menu 30 During a Call 30 Making a Second Call 30 Swapping Between Two Calls 30 Answering an Incoming Call 30 Rejecting an Incoming Call 31 Muting the Microphone 31 Switching DTMF Tones on During a Call 31 Multiparty or Conference Calls 32 Making a Second Call 32 Setting up a Conference Call 33 Activate the Conference Call on Hold 32 5 4 Adding Calls to the Conference Call 33 Displaying Callers in a Conference Call 33 Private Call in a Conference Call 33 Ending a Conference Call 33 Menu Tree34 Selecting Functions and Options 37 Messages 38 Text Messages38 Write Message 38 Inbox 39 Outbox 40 Draft 40 Settings 41 Delete All 41 Multimedia Messages 42 Write 42 Inbox 43 Outbox 44 Draft 45 Settings 46 Instant Message 47 Login 47 History 47 Settings 48 Set parameter48 Voice Mall 49 Listen to Voice Messages 49 Voice Mailbox Number 49 Download messages 50 Inbox 50 Receive 50 Info Service 51 Receive 51 Inbox 51 Topics 51 Alert 51 Auto Display 51 Languages 52 Templates 52 Text 52 Multimedia 52 Name Card 53 Check Memory 53 Recent Calls56 Missed Calls56 Received Calls 56 Dialed Calls 57 Delete Recent Calls 57 Call Durations 57 Table of Contents 7 6 Last Call57 Received Calls 57 Dialed Calls 57 All Calls 57 Call Costs 58 Last Call’s Cost 58 All Calls’ Cost 58 Cost Settings 58 Call Cost’s Limit 58 Set Tariff 59 Auto Display 59 Data Information 59 WAP Information 59 External Device 59 Total Data 59 Sounds60 Shop Ringtones60 My Ringtones 60 Volume 60 Message Alert 60 Tones 61 Key tones 61 Games & Apps62 Shop Games62 My Games and Apps 62 Bookmark 62 View Information63 Memory status 63 Java version 63 Settings64 Display64 My Wallpaper 64 Backlight 64 Languages 64 LED indicator 64 Date & Time 65 Set date 65 Date format 65 Set time 65 Time format 65 Auto update 65 Call Settings 66 Call Divert 66 Answer Mode 67 Send My Number 67 Call Waiting 67 Minute Minder 67 Auto Redial 67 Closed User Group 68 TTY 68 Security Settings 69 PIN Code Request 69 Call Barring Service 69 Fixed Dial Number (FDN)70 Change Codes 70 Connection Settings 71 Network Selection 71 Access Point 71 Attach 71 External Device 71 Reset Settings 73 Web Access74 Home76 Bookmarks 76 Profiles 78 Go to URL 79 Cache Settings 79 Clear Cache 79 Cache Check 79 Security Certificates 79 WAP Information 79 Tools80 My Folder80 Picture 80 Animation 80 Sound 81 Alarm Clock 82 Calendar83 Calculator 84 Memo 85 World Time 86 Unit Converter 86 Phonebook87 Contact list87 Add New 88 Speed Dials 89 Caller Groups 89 Copy All 90 Delete All 90 Settings 91 Information 91 Q & A92 Accessories 95 Safety Guidelines 97 Glossary 111 Index 114 9 8 Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to, or misuse of, the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions WARNING!To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat.Never store your phone in settings that may expose it to temperatures less than 32°F or greater than 104°F, such as outside during a snowstorm or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices. RF emissions from your mobile phone may affect nearby inadequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearing aides to determine if they are susceptible to interference from your mobile phone. Turn off your phone in a medical facility or at a gas station. Never place your phone in a microwave oven as this will cause the battery to explode. IMPORTANT! Please read the TIA SAFETY INFORMATION on page 103 before using your phone. Check to make sure that you have all the parts shown below. UnpackingFor Your Safety HandsetStandard Battery User GuideTravel Adapter 11 10 Safety Information Please read and observe the following information for the safe and proper use of your phone and to prevent any unanticipated damage. Also, keep the user’s manual in an accessible place at all times after reading it. ] Unplug the power cord and charger during a lightning storm to avoid electric shock or fire. ] Do not use your phone in high explosive areas as the phone may generate sparks. ] Do not put your phone in a place subject to excessive dust, and keep the minimum required distance between the power cord and heat sources. ] Do not damage the power cord by bending, twisting, pulling, or subjecting it to heat. Do not use the plug if it is loose as it may cause fire or electric shock. ] Hold the power cord plug firmly to plug and unplug the power cord. Ensure the plug is firmly connected. If it is not firmly connected, it may cause excessive heat or fire. ] Do not place a heavy item on the power cord. Do not allow the power cord to be crimped as it may cause fire or electric shock. ] Be careful not to le…

Text truncated - open the document above for the full version.

LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 Feb19, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, The undersigned, Hereby authorize PCTEST Engineering Laboratory Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents Relating to the matters. Any and all acts carried out by PCTEST Engineering Laboratory Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is to a denial of benefits, Including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 8539a). Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. UMTS R&D Lab. Emerald BD, 1042 Hogye-Dong, Dongan-Gu, Anyang-City Kyoungki-Do, 431-080, Korea Tel. : +82-31-389-7143 Fax.: +82-31-389-7101 Subject : LG Electronics Inc. FCC ID :BEJC1300 User’s Manual RF Exposure Warning statement Gentleman: LG Electronics Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Engineering Laboratory Inc. Or me at(410)290-6652. Sincerely, Feb 19, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Kevin Lee Senior Approval Engineer UMTS R&D Lab. LG Electronics Inc.

February 25, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJC1300 Part 22/ 24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 22/ 24 Certification of the Dual-Band GSM1900 phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

LG Electronics Inc.

LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. Model : C1300 FCC ID : BEJC1300 IMEI S/N LG Electronics Inc. Model : C1300 FCC ID : BEJC1300 IMEI S/N LG Electronics Inc. Model : C1300 FCC ID : BEJC1300 IMEI S/N

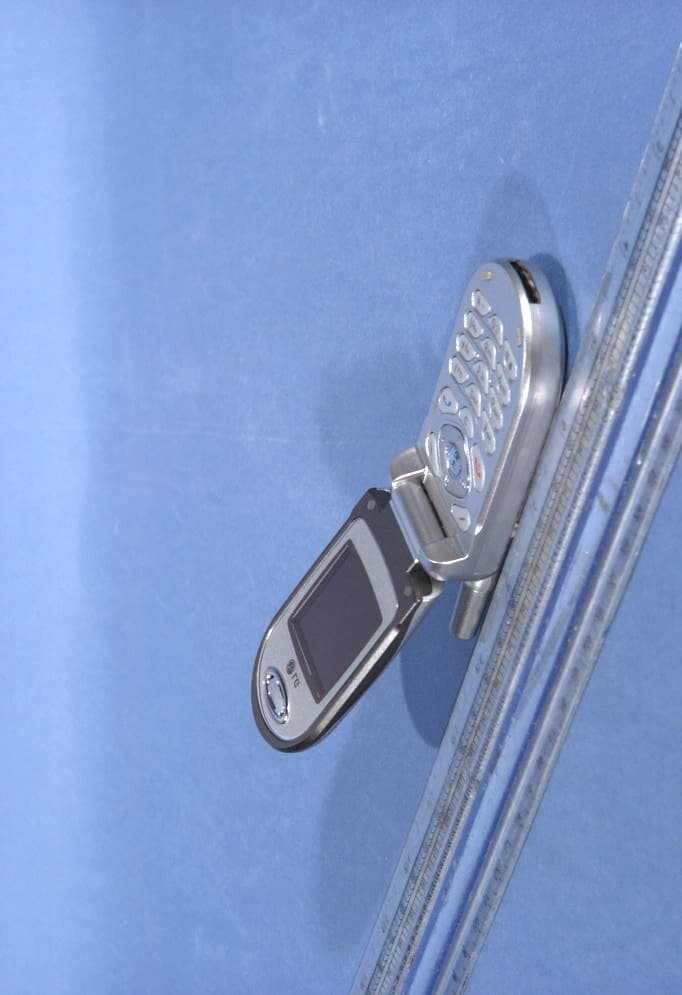

LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240203054.BEJ Test Dates: February 3-6, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300 Page 1 of 30 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: February 3-6, 2004 2000 Milbrook Drive Test Report S/N: SAR.240203054.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJC1300 APPLICANT: LG ELECTRONICS INC. EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80 MHz (GSM850) / 1850.20 – 1909.80 MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80 MHz (GSM850) / 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power: 1.21 W ERP GSM850 (30.823 dBm)/ 1.90 W EIRP GSM1900 (32.781 dBm) Max. SAR Measurement: 0.901 W/kg GSM850 Head SAR; 1.180 W/kg GSM850 Body SAR; 1.180 W/kg GSM1900 Head SAR; 0.523 W/kg GSM1900 Body SAR Trade Name/Model(s): C1300 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 401KCXZ009854-USA-P40] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240203054.BEJ Test Dates: February 3-6, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300 Page 2 of 30 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17 14. SAR DATA SUMMARY....................................................................................................18 15. SAR TEST EQUIPMENT...................................................................................................28 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240203054.BEJ Test Dates: February 3-6, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300 Page 3 of 30 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Poten…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240203053.BEJ Test Dates: February 2-5, 2004 Phone Type: Dual-Band GSM Phone FCC ID: BEJC1300 Page 1 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: February 2-5, 2004 2000 Milbrook Drive Test Report S/N: 22/24.240202051.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID BEJC1300 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Dual-Band GSM Phone Model: C1300 Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.21 W ERP GSM (30.823 dBm) / 1.90 W EIRP PCS GSM (32.781 dBm) Max. SAR Measurement: 0.901 W/kg GSM Head SAR; 1.180 W/kg GSM Body SAR; 1.180 W/kg PCS GSM Head SAR; 0.523 W/kg PCS GSMBody SAR Emission Designator(s): 300KGXW (GSM) Test Device Serial No. Identical Prototype [S/N: 401KCXZ009854-USA-P40] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220722380.A3L PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240203053.BEJ Test Dates: February 2-5, 2004 Phone Type: Dual-Band GSM Phone FCC ID: BEJC1300 Page 2 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240203053.BEJ Test Dates: February 2-5, 2004 Phone Type: Dual-Band GSM Phone FCC ID: BEJC1300 Page 3 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: 2000 Milbrook Drive Lincolnshire, IL 60069 • FCC ID: BEJC1300 • Quantity: Quantity production is planned • Emission Designators: 300KGXW (GSM) • Tx Freq. Range: 824.70 – 848.31 MHz (GSM) 1851.25 – 1908.75 MHz (PCS GSM) • Rx Freq. Range: 869.70 – 893.31 MHz (GSM) 1931.25 – 1988.75 MHz (PCS GSM) • Max. Power Rating: 1.21 W ERP GSM (30.823 dBm) 1.90 W EIRP PCS GSM (32.781 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: February 2-5, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.240202051.BEJ PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240203053.BEJ Test Dates: February 2-5, 2004 Phone Type: Dual-Band GSM Phone FCC ID: BEJC1300 Page 4 of 25 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measur…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300 LGE FCC ID: BEJC1300 EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300
