BEJC1300IDual-Band GSM Phone

C1300i User Guide Unpacking8 For Your Safety 9 Your Phone 14 Phone Components14 Your Phone’s Features 15 Display Information 17 Getting Started19 Installing the SIM Card19 Charging the Battery 22 Turning Your Phone On and Off 24 Access Codes 25 Barring Password 25 General Functions26 Making a Call26 Making a Call by Send Key26 Making International Calls 26 Ending a Call 26 Making a Call From the Contact List 27 Adjusting the Volume 27 Answering a Call 27 Vibrate Mode (Quick) 28 Signal Strength 28 Entering Text 28 Selecting Functions and Options 33 Address Book 34 In-Call Menu 35 During a Call35 Making a Second Call 35 Swapping Between Two Calls 35 Answering an Incoming Call 35 Rejecting an Incoming Call 36 Muting the Microphone 36 Multiparty or Conference Calls 37 Making a Second Call 37 Setting Up a Conference Call 37 Activate the Conference Call on Hold 37 Adding Calls to the Conference Call 37 Private Call in a Conference Call 38 Ending a Conference Call 38 Menu Tree39 Recent Calls 42 Missed Calls42 Dialed Calls 42 Received Calls 43 4 Table of Contents 5 Delete Recent Calls43 Call Durations 43 Last Call 43 Received Calls 43 Dialed Calls 43 All Calls 43 Call Costs 44 Last Call’s Cost 44 All Calls’ Cost 44 Cost Settings 44 Call Cost’s Limit 44 Set Tariff 45 Auto Display 45 Data Information 45 WAP Information 45 External Device 45 Total Data 45 Messaging46 Text Messages46 Write Message 46 Inbox 47 Outbox 48 Drafts 48 Settings 48 Delete All 49 Instant Messaging 50 Login (Sign On/Connect)50 Saved Conversations 50 Settings 51 IM Provider 51 Multimedia Messages 57 Write Message 57 Inbox 58 Outbox 59 Drafts 60 Settings 61 Voice Mail 62 Listen to Voice Mail 62 Voice Mailbox Number 62 Download Messages 63 Inbox 63 Receive 63 Info Service 64 Receive 64 Inbox 64 Topics 64 Alert 64 Auto Display 64 Languages 65 Templates 65 Text 65 Multimedia 65 6 Business Card66 Memory Status 66 Games & Apps67 Shop Games67 Games & Apps 67 Bookmarks 68 View Information 69 Memory Status 69 Java Version 69 MEdia Net70 MEdia Home71 Bookmarks 71 Go To URL 72 Access Point 73 Cache Settings 74 Clear Cache 74 Cache Check 74 Security Certificates 74 WAP Information 74 MEdia Mall75 Shop Ringtones75 Shop Games 75 Shop Graphics 75 Shop MMS 75 Shop Applications 75 MEdia Home 75 Sounds76 Shop Ringtones76 Ringtones 76 Volume 76 Message Alert Tones 76 Key Tones 76 My MEdia77 Bookmarks77 Games & Apps 77 Ringtone/Audio 77 Graphics 78 Multimedia Contents 78 Tools 79 Alarm Clock 79 Calendar 80 Calculator 81 Memo 82 World time 83 Unit Converter 83 Address Book84 Contact List84 New Contact 85 Speed Dials 85 Caller Groups 86 Copy All 87 SIM To Phone 87 Phone To SIM 87 Delete All 87 7 Settings87 Set Memory 87 Set View Detail 88 Information 88 Service Dial Number 88 Memory Status 88 Own Number 88 Settings89 Display89 My Wallpaper 89 Backlight 89 Contrast 90 Languages 90 LED Indicator 90 Date & Time 91 Set Date 91 Date Format 91 Set Time 91 Time Format 91 Auto Update 91 Call Settings 92 Call Forwarding 92 Answer Mode 93 Send My Number 93 Call Waiting 93 Minute Minder 93 Auto Redial 93 Closed User Group94 TTY 94 Send DTMF 94 Security 95 PIN Code Request 95 Call Barring Service 95 Fixed Dial Number (FDN) 96 Change Codes 96 Connection 97 Network Selection 97 GPRS Attach 98 Access Point 98 Reset Access Point 98 Reset Settings 98 Q & A99 Accessories 102 Safety Guidelines 104 Glossary 118 Index 121 8 Check to make sure that you have all the parts shown below. Unpacking HandsetStandard Battery User GuideTravel Adapter 9 Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions WARNING!To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat.Never store your phone in settings that may expose it to temperatures less than 32°F or greater than 104°F, such as outside during a snowstorm or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices. RF emissions from your mobile phone may affect nearby inadequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearing aides to determine if they are susceptible to interference from your mobile phone. Turn off your phone in a medical facility or at a gas station. Never place your phone in a microwave oven as this will cause the battery to explode. IMPORTANT! Please read the TIA SAFETY INFORMATION on page 104 before using your phone. For Your Safety 10 Safety Information Please read and observe the following information for the safe and proper use of your phone and to prevent any unanticipated damage. Also, keep the user’s manual in an accessible place at all times after reading it. ] Unplug the power cord and charger during a lightning storm to avoid electric shock or fire. ] Do not use your phone in high explosive areas as the phone may generate sparks. ] Do not put your phone in a place subject to excessive dust, and keep the minimum required distance between the power cord and heat sources. ] Do not damage the power cord by bending, twisting, pulling, or subjecting it to heat. Do not use the plug if it is loose as it may cause fire or electric shock. ] Hold the power cord plug firmly to plug and unplug the power cord. Ensure the plug is firmly connected. If it is not firmly connected, it may cause excessive heat or fire. ] Do not place a heavy item on the power cord. Do not allow the power cord to be crimped as it may cause fire or electric shock. ] Be careful not to…

Text truncated - open the document above for the full version.

LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 Nov. 12, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, The undersigned, Hereby authorize PCTEST Engineering Laboratory Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents Relating to the matters. Any and all acts carried out by PCTEST Engineering Laboratory Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is to a denial of benefits, Including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 8539a). Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. Nov.12, 2004 LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 November 12, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos,internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would beof benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. In re: LG Electronics Inc. FCC ID: BEJC1300I Request for Short-Term Confidentiality

November 19, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJC1300I Part 22/ 24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 22/ 24 Certification of the Dual-Band GSM phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

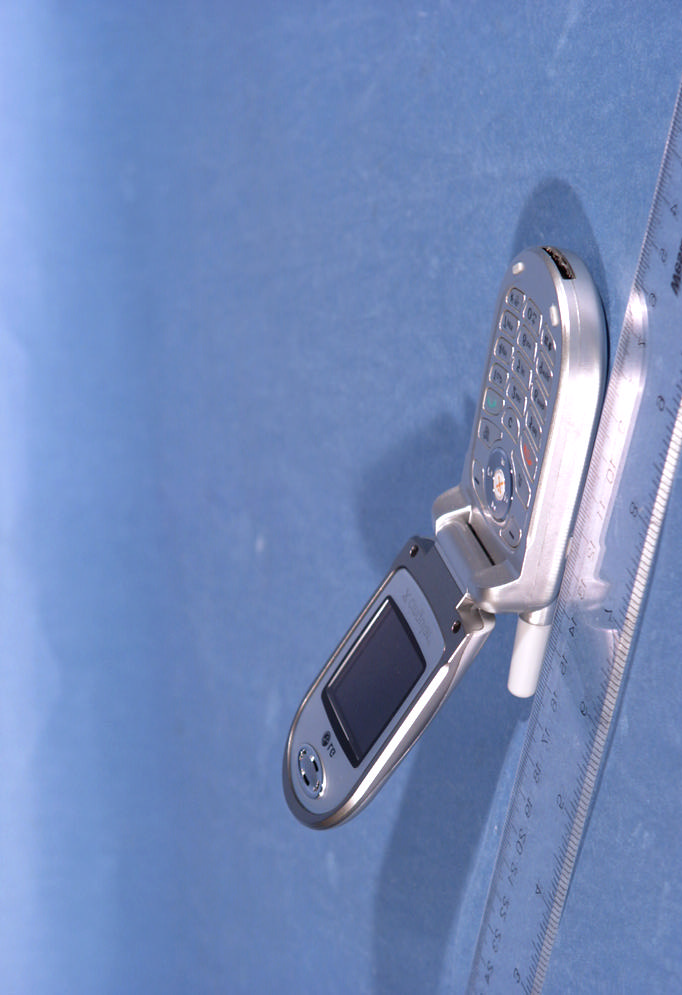

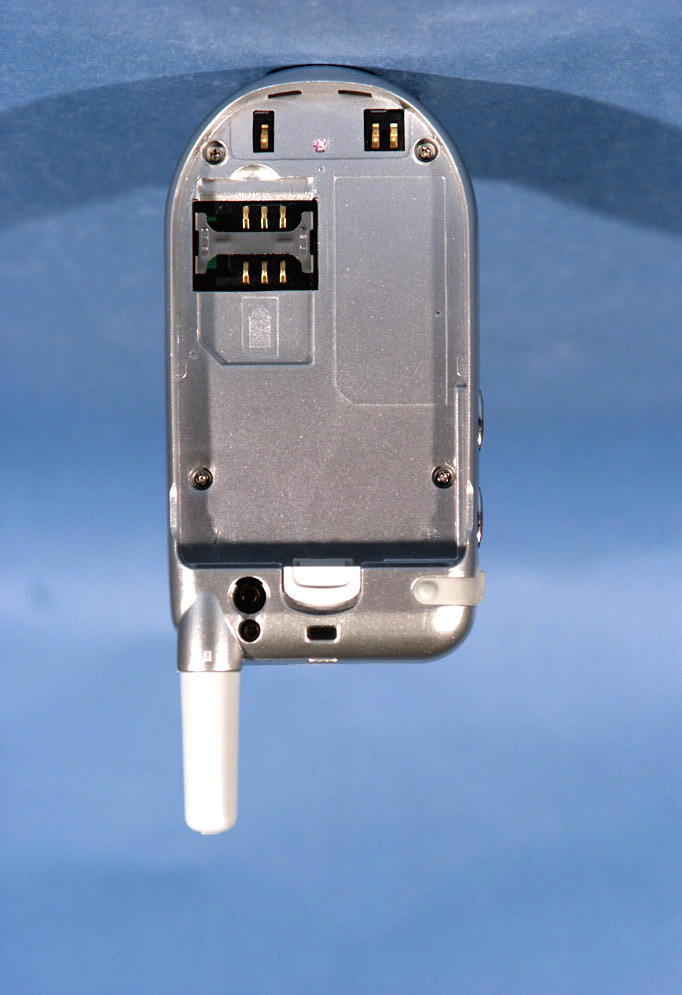

LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. Model : C1300i FCC ID : BEJC1300I IMEI S/N LG Electronics Inc. Model : C1300i FCC ID : BEJC1300I IMEI S/N LG Electronics Inc. Model : C1300i FCC ID : BEJC1300I IMEI S/N

LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-241108611.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 1 of 30 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: November 10, 2004 2000 Milbrook Drive Test Report S/N: SAR.241108611.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJC1300I APPLICANT: LG ELECTRONICS INC. EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80 MHz (GSM850) / 1850.20 – 1909.80 MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80 MHz (GSM850) / 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power: 1.51 W ERP GSM (31.783 dBm) 1.34 W EIRP PCS GSM (31.251 dBm) Max. SAR Measurement: 1.34 W/kg GSM Head SAR; 1.41 W/kg GSM Body SAR; 0.48 W/kg PCS GSM Head SAR; 0.38W/kg PCS GSM Body SAR Trade Name/Model(s): C1300i FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: FCC1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528-2003 Industry Canada RSS-102. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-241108611.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 2 of 30 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17 14. SAR DATA SUMMARY....................................................................................................18 15. SAR TEST EQUIPMENT...................................................................................................28 16. CONCLUSION...............................................................................................................29 17. REFERENCES..................................................................................................................30 PCTEST SAR REPORT FCC MEASUREMENT REPORT Reviewed by: Quality Manager SAR Filename: SAR-241108611.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 3 of 30 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i

PCTEST PT. 22/24 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.241108610.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 1 of 24 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: November 10, 2004 2000 Milbrook Drive Test Report S/N: 22/24.241108610.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID BEJC1300I APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22H; §2 EUT Type: Dual-Band GSM Phone Model: C1300i Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.51 W ERP GSM (31.783 dBm) / 1.34 W EIRP PCS GSM (31.251 dBm) Max. SAR Measurement: 1.34 W/kg GSM Head SAR; 1.41 W/kg GSM Body SAR; 0.48 W/kg PCS GSM Head SAR; 0.38 W/kg PCS GSM Body SAR Emission Designator(s): 300KGXW Test Device Serial No. Identical Prototype [S/N: #FCC1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.241108610.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 2 of 24 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 DESCRIPTION OF TESTS 5-7 4.1 FREQUENCY STABILITY/TEMPERATURE VARIATION 8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 10 7.1 RADIATED MEASUREMENTS 11-16 8.1 FREQUENCY STABILITY 17-20 9.1 PLOTS OF EMISSIONS 21 10.1 LIST OF TEST EQUIPMENT 22 11.1 SAMPLE CALCULATIONS 23 12.1 CONCLUSION 24 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.241108610.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 3 of 24 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: 2000 Milbrook Drive Lincolnshire, IL 60069 • FCC ID: BEJC1300I • Quantity: Quantity production is planned • Emission Designators: 250KGXW • Tx Freq. Range: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 1.51 W ERP GSM (31.783 dBm) 1.34 W EIRP PCS GSM (31.251 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22H • Dates of Tests: November 10, 2004 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22/24.241108610.BEJ • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC Measurement Report Reviewed By: Quality Manager Test Report S/N: 22/24.241108610.BEJ Test Dates: November 10, 2004 Phone Type: Dual-Band GSM FCC ID: BEJC1300I Page 4 of 24 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on Octob…

Text truncated - open the document above for the full version.

© 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I © 2004 PCTEST Lab LG FCC ID: BEJC1300I

LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i LGE FCC ID: BEJC1300I EUT Photographs © 2004 PCTEST Lab. Dual-Band GSM Phone Model: C1300i
