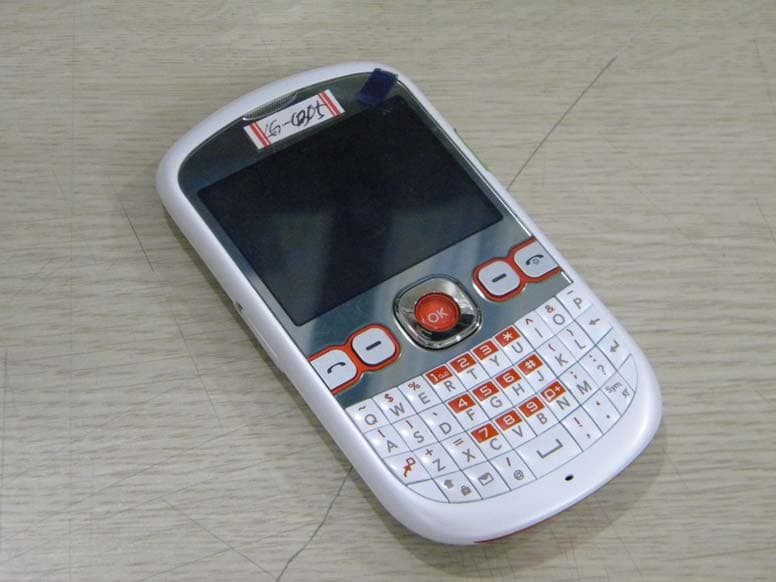

BEJC305Cellular/PCS GSM/EDGE Phone with Bluetooth & WLAN

LG-C300 User Guide - English Congratulations on your purchase of the advanced and compact LG-C300 phone by LG, designed to operate with the latest digital mobile communication technology. Some of contents in this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product, the product is subject to European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separa tely from the municipal waste stream at collection facilities designated by the government or local authorities. 3 The correct disposal of your old a ppliances will help prevent potential negative impacts on the environment and human health. 4 For more detailed information about disposal of your old appliances, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 11 Getting to know your phone Soft keys (Left soft key / Right soft key) • These keys perform the function Indicated in the bottom of the display. Confirm key / OK key • Selects menu options and confirms actions. End key • switch on/off (hold down) • End or reject a call. Navigation key • In standby mode: Briefly: Quick menu. Briefly: Contacts search. Briefly: Profiles. Briefly: Homescreen. • In menu: Scroll up & down. Earpiece Main LCD Send key • Dials a phone number and answers a call. • In standby mode: Shows the history of calls. Alpha numeric keys • In standby mode: Input numbers to dial Hold down – International calls – Connect voice mail centre to – Speed dials - Hold the key down to go Silent mode • In editing mode: Enter numbers & characters Multitasking key Go to Home screen or Menu directly. Clear / lock key • Clears a character with each press. Hold the key down to clear all input. • Hold the key down to lock when using menus. LG LG-C300 | User Guide1 Camera key Side keys • In standby mode: Controls the ring volume. • During a call: Earpiece volume adjustment • During playing MP3 music: Audio volume adjustment Micro SD memory card socket Battery pack Camera lens Battery cover SIM card holder Charger/USB cable connector TIP: Please ensure the phone is powered on, external memory card is inserted and in idle mode before connecting the USB cable for Mass Storage. Headset Getting to know your phone 13 Installing the SIM and battery 1 Remove the battery cover Press the battery cover release latch. 2 Remove the battery Lever the bottom edge of the battery and remove it carefully from the battery compartment. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. WARNING: Do not replace or remove the SIM card while your phone is being used or turned on, or data may be lost or the SIM card might be damaged. LG LG-C300 | User Guide1 4 Install the battery Insert the top of the battery first into the top edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place. 5 Replace the battery cover 6 Charging your phone Pull out the cover of the charger socket on the top of your LG- C300. Insert the charger and plug into a mains electricity socket. Your LG-C300 will need to be charged until a message reading “Battery full” appears on screen. Installing the SIM and battery 1 Memory card Installing a memory card You can expand the memory available on your phone using a memory card. Note: A memory card is an optional accessory. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards. Removing a memory card Carefully remove the memory card by gently pushing it in to the phone and quickly releasing it. Formatting the …

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

Date: May 28, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJC305 Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

External photos of EUT Front view of EUT Rear view of EUT

Model No: LG-C305 FCC ID : BEJC305 S/N : Made in Korea LG Electronics Inc. LGE

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of LCD module Bottom view of LCD module

Report Number: F690501/RF-RTL003906 Page: 2 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------7 3. 6 ㏈ bandwidth ------------------------------------------------------------------------------------------- 21 4. Maximum peak output power --------------------------------------------------------------------------26 5. Power Spectral Density --------------------------------------------------------------------------------- 31 6. Transmitter AC Power Line Conducted Emission-------------------------------------------------36 7. Antenna Requirement ----------------------------------------------------------------------------------- 41 Report Number: F690501/RF-RTL003906 Page: 3 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-dong, Korea - 705, Dongcheon-dong Suji-gu, Yongin-si, Gyeonggi-do, Korea www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : LG Electronics Inc. Address : 60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Han, Bong Hyo Phone No. : +82 +2 2033 1108 1.3. Description of EUT Kind of Product Cellular/PCS GSM Phone with Bluetooth and WLAN Model Name LG-C305, C305 Serial Number N / A Power Supply DC 3.7 V (Li-poly Battery) Frequency Range 2 412 ~ 2 462 ㎒ (802.11b/g) Modulation Technique DSSS, OFDM Number of Channels 11 Antenna Type Integral Type (Chip Antenna) Antenna Gain -0.74 ㏈i 1.4. Declaration by the manufacturer - N/A Report Number: F690501/RF-RTL003906 Page: 4 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator R & S SMR40 Sep. 25, 2010 Spectrum Analyzer R & S FSV30 Mar. 31, 2011 Attenuator Agilent 8494B Apr. 02, 2011 Preamplifier H.P 8447F Jul. 02, 2010 Preamplifier Agilent 8449B Mar. 31, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna R & S HF 906 Oct. 08, 2011 Anechoic Chamber SY Corporation L × W × H (9.6 m×6.4 m×6.6 m) Jan. 27, 2011 Two-Line V-Network R & S ENV216 Jan. 06, 2011 Test Receiver R & S ESHS10 Jul. 13, 2011 Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R Report Number: F690501/RF-RTL003906 Page: 5 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart B&C Standard section Test Item Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) 6 ㏈ Bandwidth Complied 15.247(b)(3) Maximum Peak Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 Transmitter AC Power Line Conducted Emission Complied Report Number: F690501/RF-RTL003906 Page: 6 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.7. Conclusion of worst-case The field strength of spurious emission was measured in three orthogonal EUT positions(X-axis, Y-axis and Z-axis). Worst case is z-axis. 1.8 Test report revision Revision Report number Description 0 F690501/RF-RTL003906 Initial Report Number: F690501/RF-RTL003906 Page: 7 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission 2.1. Test Setup 2.1.1. Transmitter Radiated Spurious Emissions The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 1 ㎓ to 24 ㎓ Emissions. Report Number: F690501/RF-RTL003906 Page: 8 of 41 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. T…
