BEJC320Cellular/PCS GSM/EDGE Phone with Bluetooth

LG-C320 User Guide — English This guide will help you understand your new mobile phone. It will provide you with useful explanations of features on your phone. Some of the content of this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4 For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 6 Getting to Know Your Phone Earpiece Send key • Dials a phone number and answers a call. • In standby mode: Shows the history of calls. Alpha numeric keys • In standby mode: Input numbers to dial Hold down - International calls - Connect voice mail centre to - Speed dials - Hold the key dow n to go Silent mode • In editing mode: Enter numbers & characters Soft keys (Left soft key / Right soft key) • These keys perform the function Indicated in the bottom of the display. Main LCD End key • Switch on/off (hold down) • End or reject a call. Confirm key / OK key • Selects menu options and confirms actions. Navigation key In standby mode: Briefly: Mp3 player Briefly: Camera Briefly: Toolbar when it was set. (Menu>Settings>Displa y>Homescreen>Display Items) • In menu: Scroll up & down. 7 Side keys • In standby mode: Controls the ring volume. • During a call: Earpiece volume adjustment • During playing MP3 music: Audio volume adjustment Charger/USB cable connector TIP: Please ensure the phone is powered on , external memory card is inserted and in idle mode before connecting the USB cable for Mass Storage. Battery pack Camera lens Battery cover SIM card holder Headset 8 1 Remove the battery cover Press the battery cover release latch. 2 Remove the battery Lever the bottom edge of the battery and remove it carefully from the battery compartment. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. 3 Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. WARNING: Do not replace or remove the SIM card while your phone is being used or turned on, or data may be lost or the SIM card might be damaged. 4 Install the battery Insert the top of the battery first into the top edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place. Installing the SIM and battery 9 5 Replace the battery cover 6 Charging your phone Pull open the cover of the charger socket on the top of your LG-C320. Insert the charger and plug into a mains electricity socket. Your LG-C320 will need to be charged until a message reading “Battery full” appears on screen. 10 Memory card Installing a memory card You can expand the memory available on your phone using a memory card. Note: A memory card is an optional accessory. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards. Removing a memory card Carefully remove the memory card by gently pushing it in to the phone and quickly releasing it. Formatting the memory card Your memory card may already be formatted. If your memory card isn’t formatted, you will need to format it before you can begin using it. 1 From the home screen press Menu then select Settings. 2 Choose Device and Memory info. and select External memory. 3 Press Format and enter the passwo…

Text truncated - open the document above for the full version.

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: July 15, 2010 Federal Communications Commission Autho rization and Evaluation Division 7435 Oakl and Mills Road, Columb ia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJ C320 Equipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursu an t to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Chris Harvey From: Jo, Jenny (Gunpo) [[email protected]] Sent: Tuesday, July 20, 2010 1:29 AM To: [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: RE: LG Electronics Inc., FCC ID: BEJC320, Assessment NO.: AN10T0625 & AN10T0627 & AN10T0628, Notice#1 Attachments: LG-C320_Test Report_BT_Rev.1.pdf Page 1 of 2 7/21/2010 Dear Chris Thank you for your email. As for your inquiry, please see the below answer in blue. Many thanks, Jenny Jo(Ms)/조찬화 GSM Lab/Wireless Division Assistant Section Chief -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, July 20, 2010 2:09 AM To: Jo, Jenny (Gunpo); Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: LG Electronics Inc., FCC ID: BEJC320, Assessment NO.: AN10T0625 & AN10T0627 & AN10T0628, Notice#1 Dear Jenny Jo and Feel Jeong, You are listed as the Technical Contacts for the above referenced TCB application. The following items need to be resolved before the review can be continued: 1. The Block Diagram and Schematics show circuitry for both Bluetooth and WiFi transmitters as a single module. The applications for this device only incorporate a Bluetooth transmitter, and no WiFi transmitter. The Schematic exhibit indicates that WiFi&BT&FM Module are only included in QCT & IFX Only, but there is no indication what this means or which version is being submitted in this application. Please confirm that a WiFi module is not installed in this device. ‐‐> It dose not support Wi‐Fi function. As you can see the EUT name, it is Cellular/PCS GSM/EDGE Phone with Bluetooth . 2. The internal Antenna Distance photo seems to show a Bluetooth PCB Trace antenna but the Bluetooth RF Test Report indicates that this device uses an internal - 5.82dBi Chip Type antenna. The Schematic exhibit seems to show a PCB trace type antenna. Please confirm the Bluetooth antenna used in this device, update any exhibits that need correcting and provide a Bluetooth Antenna Specification exhibit. Æ Radio test report’s revised accordingly. Please find attachment. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Page 2 of 2 7/21/2010

Chris Harvey From: Jo, Jenny (Gunpo) [[email protected]] Sent: Tuesday, July 20, 2010 1:30 AM To: [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: RE: LG Electronics Inc., FCC ID: BEJC320, Assessment NO.: AN10T0625, Notice#2 Page 1 of 2 7/21/2010 Dear Chris, Please see the below answer in blue for your inquiry. Many thanks, Jenny Jo(Ms)/조찬화 GSM Lab/Wireless Division Assistant Section Chief -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Tuesday, July 20, 2010 5:22 AM To: Jo, Jenny (Gunpo); Jeong, Feel (Gunpo) Cc: [email protected]; [email protected] Subject: LG Electronics Inc., FCC ID: BEJC320, Assessment NO.: AN10T0625, Notice#2 Dear Jenny Jo and Feel Jeong: Here is one additional item that needs to be addressed before the review can be continued: 1. The SAR test report data tables note 6 state: This model supports GPRS (Class 12) and EDGE. The power in GPRS mode is higher than in EDGE mode and all Tx (1Tx ~ 4Tx) cases were investigated. The worst- case (GPRS 1 Tx) results are reported. (Please refer to the conduction power table Page 15) Please provide the test data for the investigation of SAR in 2Tx, 3Tx and 4Tx. ‐> All Tx slot cases were investigated with conducted power that is reported on the report. As you see the conducted power table, this EUT has the highest power when it is operated in GPRS 1Tx slot mode. So I just tested in the mode during body SAR testing. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Page 2 of 2 7/21/2010

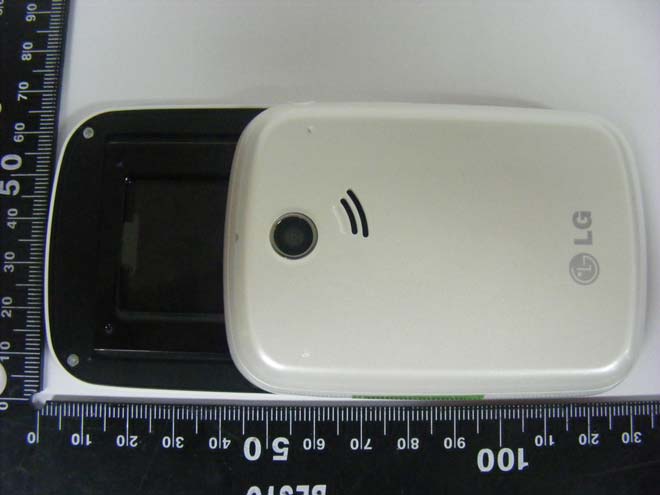

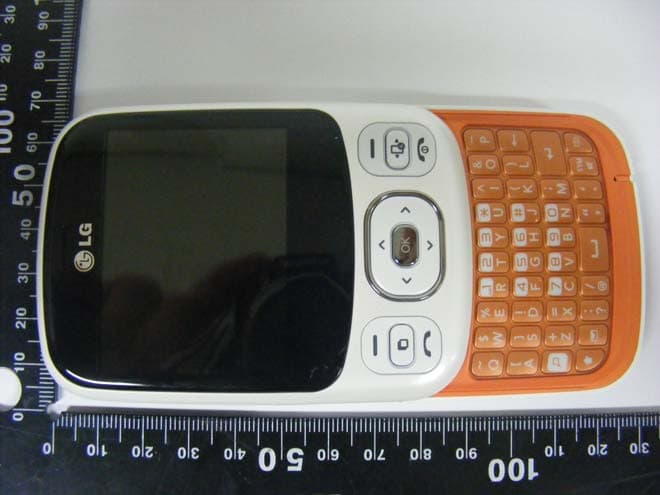

Model : C320 External photos of EUT Model : C320 Front view of EUT Rear view of EUT Model : C320 Side view of EUT

Model No: LG-C320 FCC ID : BEJC320 S/N : Made in Korea LG Electronics Inc. LGE

Model : C320 Internal photos of EUT Model : C320 Top view of main board Bottom view of main board Model : C320 Top view of LCD Panel Bottom view of LCD Panel Model : C320 Key pad Front Key pad Rear

APCPCWM_4828539:WP_0000001WP_0000001 APCPCWM_4828539:WP_0000001WP_0000001 LGE Internal Use Only C320 Antenna distance BT Ant. 42.22 mm Main Ant. Challenge 1213 The People Company

Report File No. : F690501/RF-SAR001877 Date of Issue : 2010-07-16 Page : 2 / 89 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 5 1.8 The SAR Measurement System............................................................................ 6 1.9 System Components.......................................................................................... 8 1.10 SAR System Verification.................................................................................... 9 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 11 1.12 Test Standards and Limits.................................................................................. 12 2. Instruments List.................................................................................... 14 3. Summary of Results................................................................................ 15 APPENDIX A. DASY4 SAR Report B. Uncertainty Analysis C. Calibration certificate Report File No. : F690501/RF-SAR001877 Date of Issue : 2010-07-16 Page : 3 / 89 1. General Information 1.1 Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : www.kr.sgs.com/ee 1.2 Details of Manufacturer Manufacturer : LG Electronics Inc. Address : 60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Hyeon Kyun Kim Phone No. : 82-2-2033-1113 1.3 Version of Report Version Number Date Revision 00 2010-07-16 Initial issue 1.4 Description of EUT(s) EUT Type : Cellular/PCS GSM/EDGE Phone with Bluetooth Model : C320 (Additional model name : LG-C320) Serial Number : 005KPXV0774266 Mode of Operation : GSM850, PCS1900 Duty Cycle : 8.3(GSM), 8.3(GPRS 1Tx Slot) Body worn Accessory : None Tx Frequency Range : 824.2 MHz ~ 848.8 MHz (GSM850), 1850.2 MHz ~ 1909.8 MHz (PCS1900) Conducted Max Power : 33.00 dBm(GSM850), 30.04 dBm(PCS1900) Battery Type : DC 3.7 V(Lithum-ion Battery) Report File No. : F690501/RF-SAR001877 Date of Issue : 2010-07-16 Page : 4 / 89 1.5 Test Environment Ambient temperature : 21 ° C ~ 23 ° C Tissue Simulating Liquid : 21 ° C ~ 23 ° C Relative Humidity : 40 % ~ 60 % 1.6 Operation Configuration The device in GSM mode was controlled by using a Communication tester (CMU 200). Communication between the device and the tester was established by air link. Measurements were performed at the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. Based on the RF Power and antenna separation distance, stand-alone BT SAR and simultaneous SAR evaluation are not required. Report File No. : F690501/RF-SAR001877 Date of Issue : 2010-07-16 Page : 5 / 89 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distance of probe sensors to surface is 4 mm. This distance cannot be smaller than the Distance of sensor calibration points to probe tip as defined in the probe properties (for example, 2.7 mm for an ET3DV6 probe type). - The entire evaluation of the spatial peak values is performed within the Post-processing engine (SEMCAD). The system always gives the maximum values for the 1 g and 10 g cubes. The algorithm to find the cube with highest averaged SAR is divided into the following stages: 1. The extraction of the measured data (grid and values) from the Zoom Scan. 2. The calculation of the SAR value at every measurement point based on all stored data (A/D values and measurement parameters) 3. The generation of a high-resolution mesh within the measured volume 4. The interpolation of all measured values from the measurement grid to the high-resolution grid 5. The extrapolation of the entire 3-D field distribution to the phantom surface over the distance from sensor to surface 6. The calculation of the averaged SAR within masses of 1 g and 10 g. The probe is calibrated at the center of the dipole sensors that is located 1 mm to 2.7 mm away from the probe tip. During measurements, the probe stops shortly above the phantom surface, depending on the probe and the surface detecting system. Both distances are included as parameters in the probe configuration file. The software always knows exactly how far away the measured point is from the surface. As the probe cannot directly measure at the surface, the values between the deepest measured point and the surface must be extrapolated. The angle between the probe axis and the surface normal line is less than 30 degree. In the Area Scan, the gradient of the interpolation function is evaluated to find all the extreme of the SAR distribution. The uncertainty on the locations of the extreme is less than 1/20 of the grid s…

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL004001 Page: 2 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission -------------------------------- 7 3. Conducted Output Power ----------------------------------------------------------------------- 13 4. Occupied Bandwidth 99 % --------------------------------------------------------------------- 15 5. Spurious Emissions At Antenna Terminal--------------------------------------------------- 21 6. Band Edge ------------------------------------------------------------------------------------------ 25 7. Frequency Stability ------------------------------------------------------------------------------ 30 Report Number: F690501/RF-RTL004001 Page: 3 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :LG Electronics Inc. Address :60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Han, Bong Hyo Phone No. : +82 +2 2033 1108 1.3. Description of EUT Kind of Product Cellular/PCS GSM/EDGE Phone with Bluetooth Model Name C320 (Additional model name: LG-C320) Serial Number N/A Power Supply DC 3.7 V (Li-poly Battery) Rated Power GSM850 : 33.00 ㏈m GSM1900 : 30.00㏈m Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Bluetooth : 2 402 ㎒ ~ 2480 ㎒ Number of Channels GSM850 : 125 GSM1900 : 300 Bluetooth : 79 Class of GPRS Class 12 Report Number: F690501/RF-RTL004001 Page: 4 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.4. Description of test mode GPRS Data GPRS GPRS GPRS GPRS Voice GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 824.2 32.95 33.00 31.38 28.53 28.38 836.6 32.87 32.93 31.30 29.44 28.30 GSM 850 848.8 32.72 32.76 31.16 29.25 28.17 1850.2 29.93 30.01 29.88 29.85 29.85 1880.0 29.96 30.04 29.95 29.90 29.88 GSM 1900 1909.8 29.85 29.93 29.83 29.78 29.75 EDGE Data EDGE EDGE EDGE EDGE 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) 824.2 27.45 27.41 27.39 27.34 836.6 27.38 27.35 27.30 27.27 EDGE 850 848.8 27.24 27.22 27.18 27.10 1850.2 26.44 26.38 26.33 26.30 1880.0 26.46 26.45 26.41 26.34 EDGE 1900 1909.8 26.38 26.33 26.27 26.25 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM (850 / 1900) GPRS 1 TX Slot (worst case) as a representative. Report Number: F690501/RF-RTL004001 Page: 5 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer Rohde & Schwarz FSV30 Mar. 31, 2011 Mobile Test Unit Agilent E5515C Mar. 31, 2011 Directional Coupler Narda 4226-20 Jan. 07, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2011 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBS2C4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL004001 Page: 6 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(e) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(e) §24.238(a) Spurious Emission at Ant…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated output power & Spurious Emission Test B. Photos of conducted power line test

Test Setup Photographs Right Ear Cheek_Slide Up Right Ear Tilt_Slide Up Left Ear Cheek_Slide Up Left Ear Tilt_Slide Up Right Ear Cheek_Slide Down Right Ear Tilt_Slide Down Left Ear Cheek_Slide Down Left Ear Tilt_Slide Down Body Front_Slide Up Body Back_Slide Up Body Front_Slide Down Body Back_Slide Down
