BEJC360Cellular/PCS GSM Phone with Bluetooth

Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device is not intended for sale in the USA.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: May 26, 2011 Fede ral Communica tions Commission Autho rization and Evaluation Division 7435 Oakland Mills Road, Columbia , MD 21046 RE: Request of Confiden tiality for FCC ID: BEJ C360 Eq uipment Class: P CE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Se ction s 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electro nics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

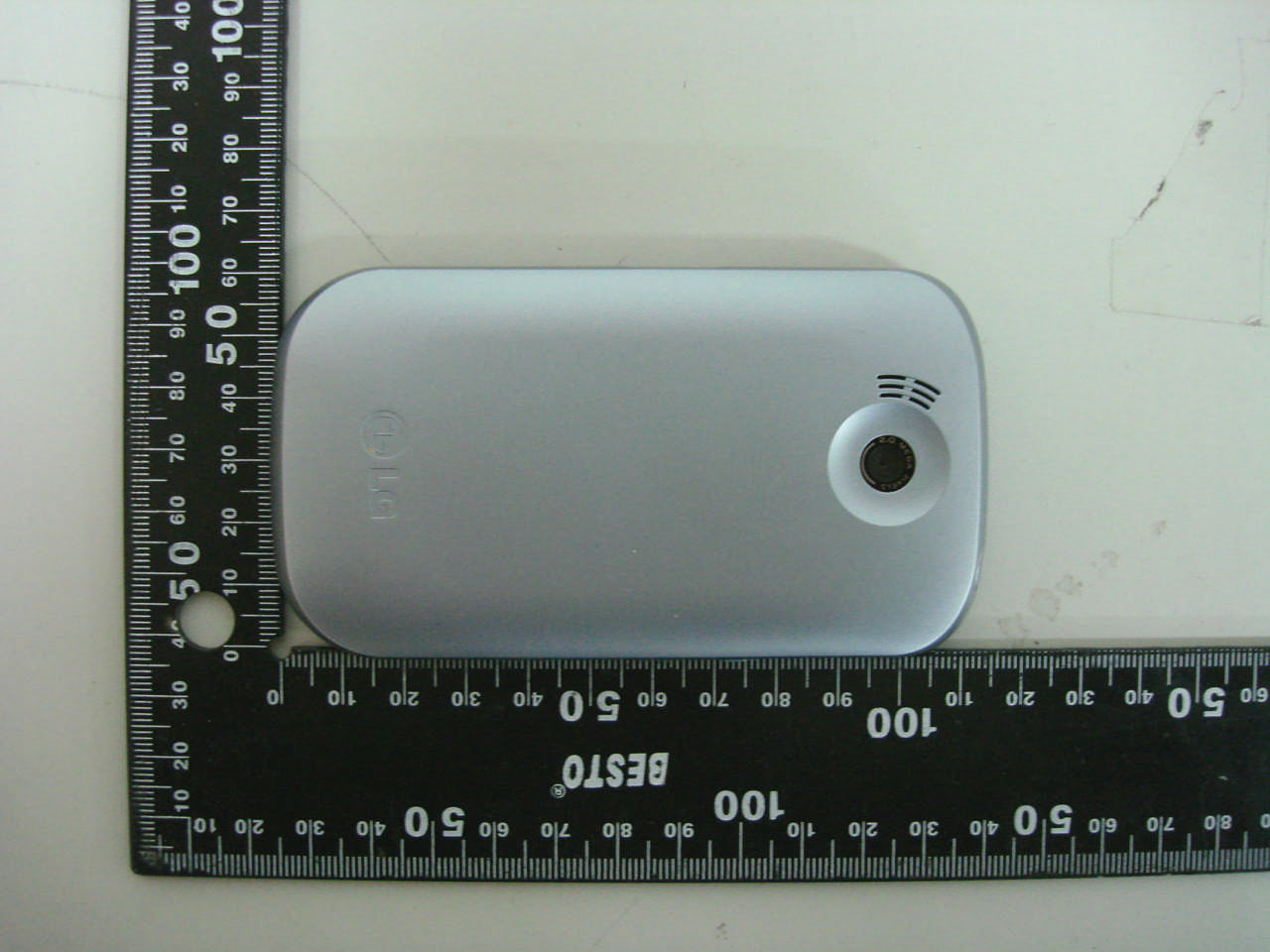

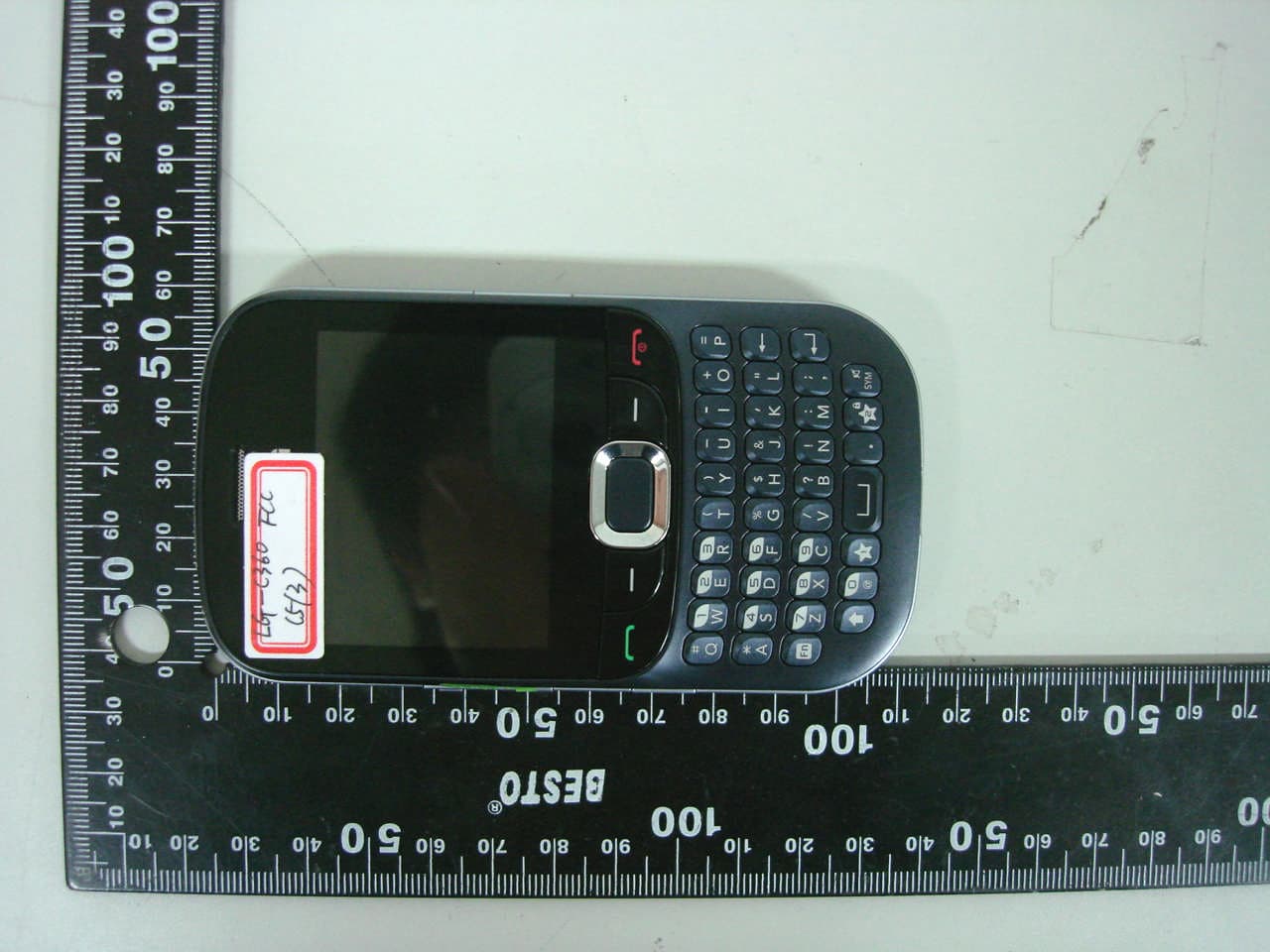

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Model No: LG-C360 FCC ID : BEJC360 S/N : Made in Korea LG Electronics Inc. LGE

Internal photos of EUT Inner view of EUT Top view of Main PCB Bottom view of Main PCB GSM Antenna BT Antenna BT ANTENNA GSM ANTENNA

Report File No. : F690501/RF-SAR001934 Date of Issue : 2011-05-31 Page : 2 / 91 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 5 1.8 The SAR Measurement System............................................................................ 6 1.9 System Components.......................................................................................... 8 1.10 SAR System Verification.................................................................................... 9 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 11 1.12 Test Standards and Limits.................................................................................. 12 2. Instruments List.................................................................................... 14 3. Summary of Results................................................................................ 15 APPENDIX A. DASY4 SAR Report B. Uncertainty Analysis C. Calibration certificate Report File No. : F690501/RF-SAR001934 Date of Issue : 2011-05-31 Page : 3 / 91 1. General Information 1.1 Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, 435-040, Korea Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : www.kr.sgs.com/ee 1.2 Details of Manufacturer Manufacturer : LG Electronics Inc. Address : 60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Hyeon Kyun Kim Phone No. : 82-2-2033-1113 1.3 Version of Report Version Number Date Revision 00 2011-05-31 Initial issue 1.4 Description of EUT(s) EUT Type : Cellular/PCS GSM/GPRS Phone with Bluetooth Model : LG-C360 (Additional model name : LGC360/C360 /LG-C370/LGC370/C370 ) Serial Number : 103KPQJ964636 Mode of Operation : GSM850, PCS1900, Bluetooth Duty Cycle : 8(GSM), 8(GPRS 1Tx Slot), 4(GPRS 2Tx Slot), 2.67(GPRS 3Tx Slot), 2(GPRS 4Tx Slot) Body worn Accessory : None Tx Frequency Range : 824.2 MHz ~ 848.8 MHz (GSM850) 1850.2 MHz ~ 1909.8 MHz (PCS1900) 2402 MHz ~ 2480 MHz (Bluetooth) Conducted Max Power : 33.30 dBm(GSM850), 30.70 dBm(PCS1900), -1.06 dBm(Bluetooth) Battery Type : 3.7 V d.c. (Lithum-ion Battery) Report File No. : F690501/RF-SAR001934 Date of Issue : 2011-05-31 Page : 4 / 91 1.5 Test Environment Ambient temperature : (22 2) ° C Tissue Simulating Liquid : (22 2) ° C Relative Humidity : (55 % R.H. 1.6 Operation Configuration The device in GSM was controlled by using a Communication tester (CMU 200). Communication between the device and the tester was established by air link. Measurements were performed at the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. Based on the RF Power and antenna separation distance, stand-alone BT SAR and simultaneous SAR evaluation are not required. Report File No. : F690501/RF-SAR001934 Date of Issue : 2011-05-31 Page : 5 / 91 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distance of probe sensors to surface is 4 mm. This distance cannot be smaller than the Distance of sensor calibration points to probe tip as defined in the probe properties (for example, 2.7 mm for an ET3DV6 probe type). - The entire evaluation of the spatial peak values is performed within the Post-processing engine (SEMCAD). The system always gives the maximum values for the 1 g and 10 g cubes. The algorithm to find the cube with highest averaged SAR is divided into the following stages: 1. The extraction of the measured data (grid and values) from the Zoom Scan. 2. The calculation of the SAR value at every measurement point based on all stored data (A/D values and measurement parameters) 3. The generation of a high-resolution mesh within the measured volume 4. The interpolation of all measured values from the measurement grid to the high-resolution grid 5. The extrapolation of the entire 3-D field distribution to the phantom surface over the distance from sensor to surface 6. The calculation of the averaged SAR within masses of 1 g and 10 g. The probe is calibrated at the center of the dipole sensors that is located 1 mm to 2.7 mm away from the probe tip. During measurements, the probe stops shortly above the phantom surface, depending on the probe and the surface detecting system. Both distances are included as parameters in the probe configuration file. The software always knows exactly how far away the measured point is from the surface. As the probe cannot directly measure at the surface, the values between the deepest measured point and the surface must be extrapolated. The angle between the probe axis and the surface normal line is less than 30 degree. In the Area Scan, the gradient of the interpolation function is evaluated to …

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL004710 Page: 2 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee INDEX TABLE OF CONTENTS Page 1. General Information ---------------------------------------------------------------------------------------3 2. RF radiated output power & spurious radiated emission ----------------------------------------7 3. Conducted Output Power ------------------------------------------------------------------------------- 13 4. Occupied Bandwidth 99 % ------------------------------------------------------------------------------15 5. Spurious Emissions At Antenna Terminal----------------------------------------------------------- 20 6. Band Edge --------------------------------------------------------------------------------------------------24 7. Frequency Stability --------------------------------------------------------------------------------------- 27 Report Number: F690501/RF-RTL004710 Page: 3 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd.(Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant : LG Electronics Inc. Address : 60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Kim hyeon kyun Phone No. : +82 +2 2033 1113 1.3. Description of EUT Kind of Product Cellular/PCS GSM/GPRS Phone with Bluetooth Model Name LG-C360,LGC360,C360,LG-C370,LGC370,C370 Serial Number N / A Power Supply DC 3.7 V (Li-Ion Battery) Rated Power GSM850 : 33.00 dBm GSM1900 : 30.50 dBm Frequency Range GSM850 : 824.2 ㎒ ~ 848.8 ㎒ GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Bluetooth : 2 402 ~ 2 480 ㎒ Class of GPRS Class 12, Class B Emission Designator 247KGXW (GSM850), 247KGXW (GSM1900) Report Number: F690501/RF-RTL004710 Page: 4 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.4. Description of test mode Band Frequency (MHz) Voice GSM GPRS Data GPRS GPRS GPRS GPRS 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot (dBm) (dBm) (dBm) (dBm) (dBm) GSM 850 824.2 33.2 33.2 32.7 31.4 30.4 836.6 33.3 33.2 32.9 31.8 30.9 848.8 33.2 33.2 32.9 32.0 31.1 GSM 1900 1 850.2 30.6 30.4 29.8 28.2 27.2 1 880.0 30.6 30.4 29.7 28.1 27.0 1 909.8 30.5 30.6 30.2 28.5 27.4 - GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM850 / GSM1900 Voice mode (worst case) as a representative. Report Number: F690501/RF-RTL004710 Page: 5 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2012 Signal Generator Rohde & Schwarz SMR40 Jul. 18, 2011 Spectrum Analyzer Rohde & Schwarz FSV30 Mar. 31, 2012 Mobile Test Unit Rohde & Schwarz CMU200 Sep. 29, 2011 Directional Coupler KRYTAR 152661 Jun. 01, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2011 Band Reject Filter Wainwright WRCG824/849-814/85 960/10SS Apr. 01, 2012 DC power Supply Agilent U8002A Jan. 05, 2012 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Rohde & Schwarz 8449B Mar. 31, 2012 Bilog Antenna SCHWARZBECK MESSELEKTRONIK 396 Jul. 22, 2011 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R. Turn Table Daeil EMC DI-1500 N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. Report Number: F690501/RF-RTL004710 Page: 6 of 29 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.kr.sgs.com/ee 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 22, 24 Section in FCC part Test Item Result §2.1046 §22.913(a) §24.232(b) RF Radiated Output Power Complied §2.1053 §22.917(a) §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §22.917(a) §24.238(a) Spurious Emission at Antenna Terminal Complied §22.917(a) §24.238(a) Band Edge Complied §2.1055 §22.355 §24.235 Frequency Stability Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL004710 Initial Report Number: F690501/RF-RTL004710 Page: 7 of 29 The results shown in this test report refer only to the sam…

Text truncated - open the document above for the full version.

Test Setup Photographs Right Ear Cheek Right Ear Tilt Left Ear Cheek Left Ear Tilt Body Front Body Back

Test setup photos of EUT A. Photo of Spurious Emission Test B. Photos of conducted power line test
