BEJC555Cellular/ PCS GSM/ EDGE/ WCDMA Phone with WLAN and Bluetooth

User Guide LG-C555 P/N : MFL00000000 (1.0) www.lg.com E N G L I S H • Some of the contents of this manual may not apply to your phone depending on your phone’s software or your service provider. • This handset is not recommended for the visually impaired because of its touch-screen keypad. • Copyright ©2011 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Google Mail™, YouTube™, Google Talk™ and Android Market™ are trademarks of Google, Inc. LG-C555 User Guide Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. For example, this device must be maintained from the user's body with an appropriatebelt-clip accessory.[More than 0.79inches(2.0cm)] Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. Conformité aux normes FCC Part 15 Class B Cet appareil et ses accessoires sont conformes aux normes FCC Part 15 Class B de la Federal Communications Commission et à la norme NMB-003 classe B d'Industrie Canada sur les appareils numériques. Son fonctionnement est sujet aux deux conditions suivantes :(1) Cet appareil et ses accessoires ne doivent pas provoquer de brouillage préjudiciable, et (2) cet appareil et ses accessoires doivent accepter toutes les interférences reçues, y compris celles pouvant causer un fonctionnement indésirable. Utilisation comme appareil portatif Ce téléphone a été testé en vue d'une utilisation type comme a ppareil portatif, avec une distance de 2 cm (0,79 po) entre l'arrière pp p ,(, p) de l'appareil et le corps de l'utilisateur. Pour satisfaire aux exigences de la FCC en matière d'exposition aux radiofréquences, on doit maintenir une distance d'au moins 2 cm (0,79 po) entre le corps de l'utilisateur et l'arrière du téléphone. Les pinces de ceinture, les étuis et autres accessoires semblables d'autres marques et contenant des composantes métalliques ne doivent pas être utilisés. Les accessoires pq p portatifs qui empêchent le maintien d'une distance de 2 cm (0,79 po) entr e le corps de l'utilisateur et l'arrière du téléphone et qui n'ont pas été testés en vue d'une utilisation type comme accessoires portatifs peuvent ne pas satisfaire aux limites d'exposition aux radiofréquences stipulées par la FCC et, par conséquent, ne doiv ent p a s être utilisés. 15 How to save music/video files to the phone Connect your phone to the PC using the USB cable. Touch and drag down the status bar on the home screen. Select USB connected > Turn on USB storage > Open folder to view files. If you didn't install LG Android Platform Driver on your PC, you need to set it manually. On the home screen, touch Applications tab and select Settings > SD card & phone storage > activate Mass storage only. For more information, refer to 'Transferring files using USB mass storage devices'. Save music or video files from the PC to the phone's removable storage. - You may copy or move files from the PC to the phone's removable storage using a card reader. - If there is a video file with a subtitle file (.smi or .srt file with the same name as the video file), place them in the same folder to display the subtitle automatically when playing the video file. - When downloading music or video files, copyright must be secured. Please note that a corrupted file or file with a wrong extension may cause damage to the phone. How to play music/video files to the phone Playing music files From home screen touch Application tab > Music. Locate the file you want to play from Artist, Albums, Songs, Playlists tabs. Playing video files From home screen touch Application tab > Video player, locate the file you want in the list and select it to play. Before using the mobile phone, please read first! 16 How to move the contacts from the old phone to the current phone Export your contacts as a CSV file from your old phone to the PC using a PC sync program. Download LG PC Suite IV at www.lg.com and install it in the PC. Run the program and connect your phone to the PC using the USB cable. Select the Contacts icon. Go to Menu > File…

Text truncated - open the document above for the full version.

Date: May 4, 2011 Fe deral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJC555 Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electroni cs USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

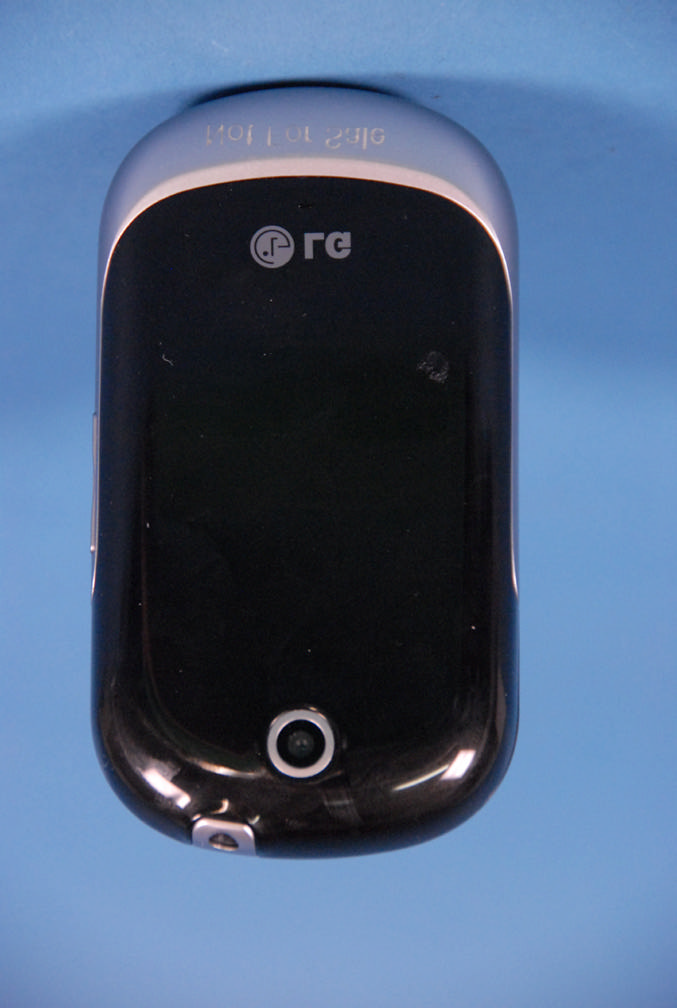

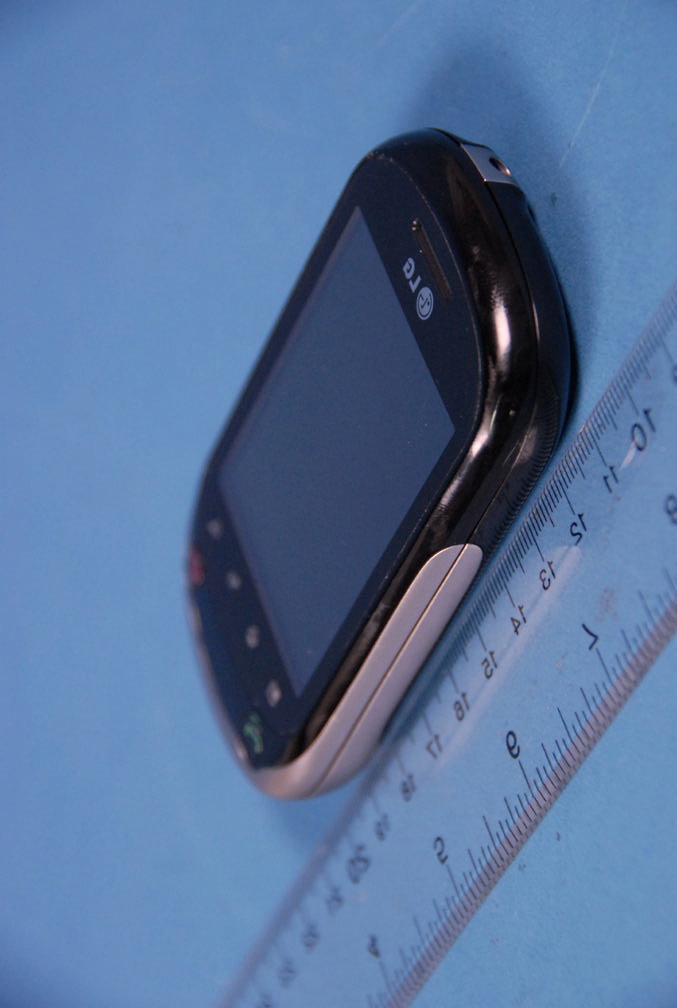

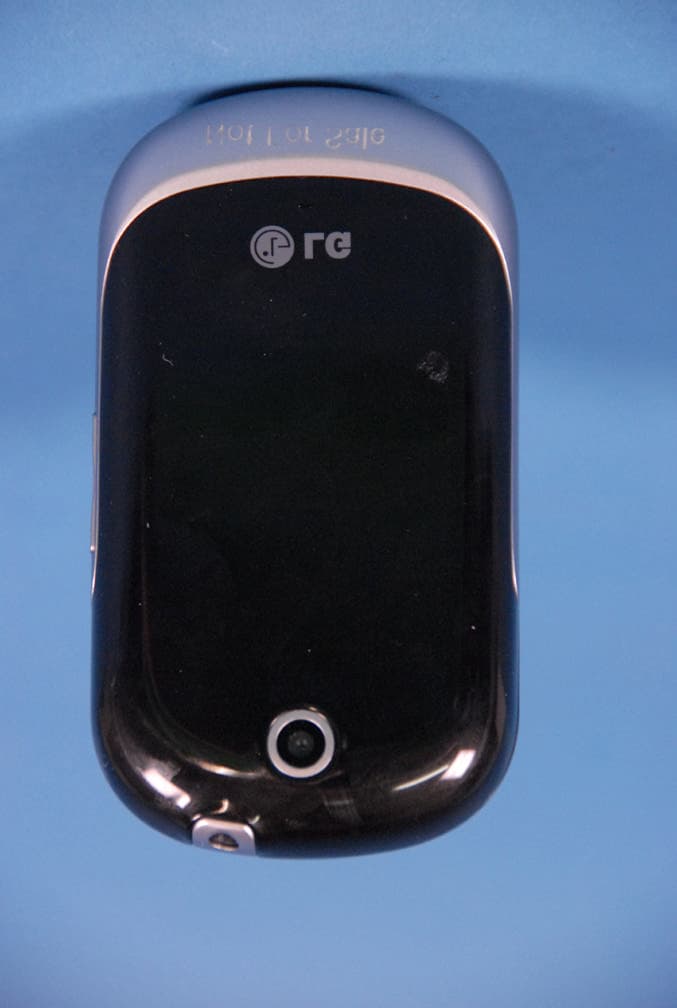

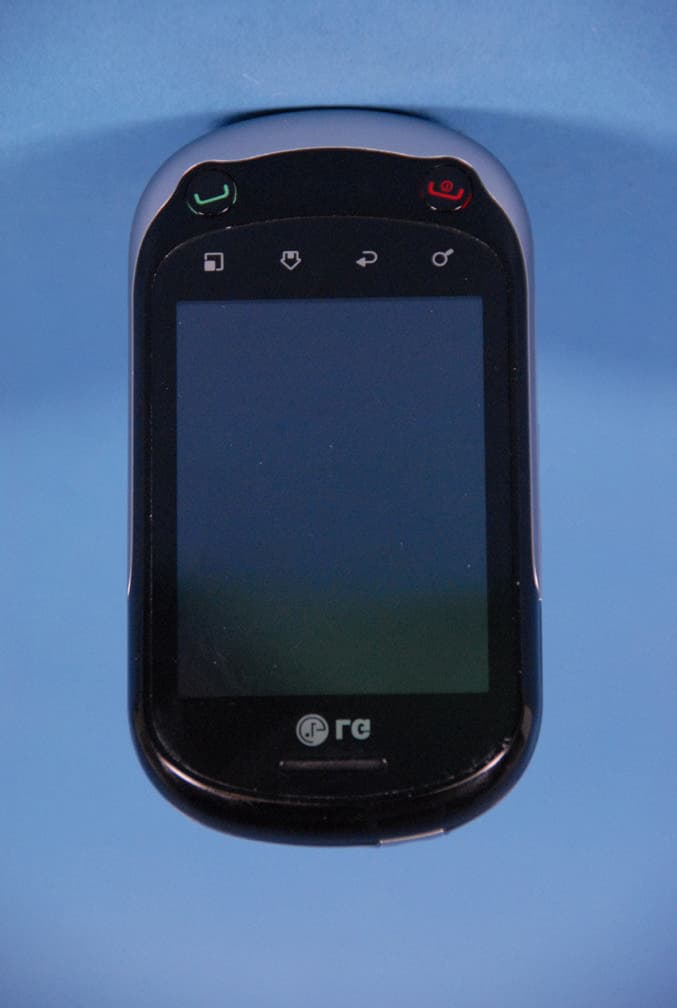

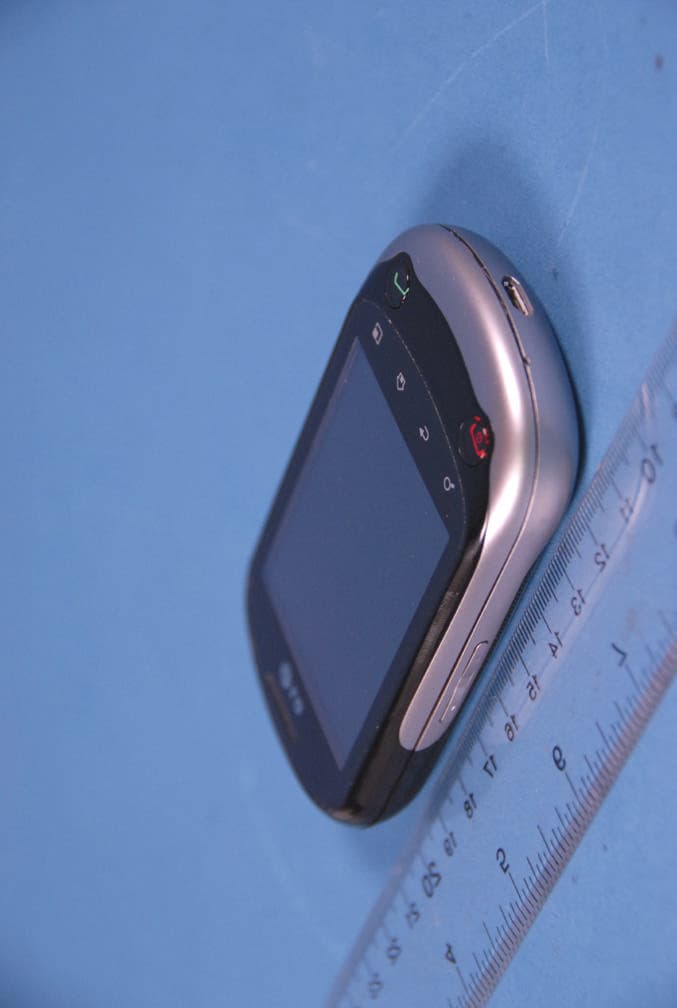

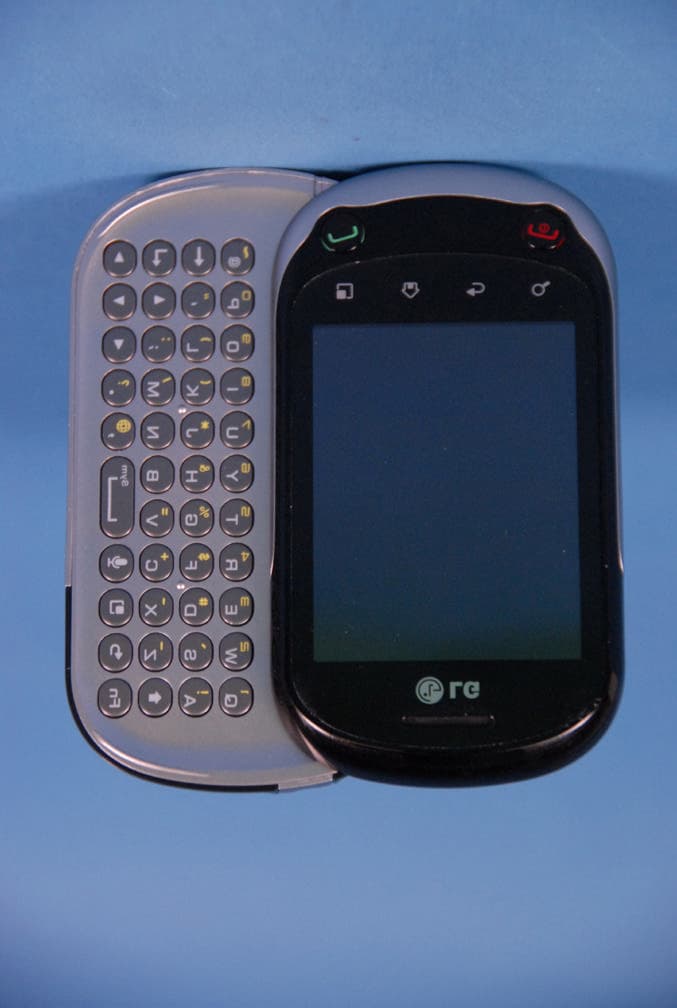

LG Electronics USA FCC ID: BEJC555 Model: C555 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 5 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJC555 Model: C555 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 3 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 4 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc.

Model No: C555 FCC ID : BEJC555 S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 15 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 3 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 4 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 5 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 6 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 7 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 8 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 9 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 10 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 11 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 12 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 13 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 14 of 15 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 15 of 15 © 2011 PCTEST Engineering Laboratory Inc.

APPENDIX C: PROBE CALIBRATION

FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 1 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Applicant Name: Date of Testing: LG Electronics USA 04/12/11 - 05/02/11 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test / Technical Report Serial No.: 0Y1104110679.BEJ F C C I D : I C C E R T I F I C AT I O N N O . : BE J C5 5 5 2 7 0 3 C- C5 5 5 AP P L I C AN T : LG E LE CT RO NI CS US A EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): IC Specification(s): Radio Equipment Type: Model(s): IC Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] RSS-102 Issue 4; Health Canada Safety Code 6 Cellular Communications Apparatus C555, LG-C555 C555, LG-C555 Tx Frequency: 824.20 - 848.80 MHz (GSM 850) / 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) / 1852.4 - 1907.6 MHz (UMTS II) 2412 - 2462 MHz (WLAN) Conducted Power: 32.17 dBm GSM 850 / 30.77 dBm GSM 1900 22.56 dBm UMTS V / 23.47 dBm UMTS II 15.01 dBm 2.4 GHz WLAN Max. SAR Measurement: 0. 35 W/kg GSM 850 Head SAR 0.93 W/kg GSM 850 Body Worn SAR / 0.93 W/kg GSM 850 Hotspot Body SAR 0.32 W/kg GSM 1900 Head SAR 0.47 W/kg GSM 1900 Body Worn SAR / 0.47 W/kg GSM 1900 Hotspot Body SAR 0.36 W/kg UMTS V Head SAR 0.71 W/kg UMTS V Body Worn SAR / 0.71 W/kg UMTS V Hotspot Body SAR 0.61 W/kg UMTS II Head SAR 0.83 W/kg UMTS II Body Worn SAR / 0.83 W/kg UMTS II Hotspot Body SAR 0.16 W/kg 2.4 GHz WLAN Head SAR 0.07 W/kg 2.4 GHz WLAN Body Worn S AR / 0.07 W/kg 2.4 GHz WLAN Hotspot Body SAR Test Device Serial No.: Pre-Production [S/N: SAR] All models are confirmed to be identical per the manufacturer. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA T el. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 2 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC AND HEALTH CANADA SAFETY CODE 6 RF EXPOSURE LIMITS .................................. 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 19 13 SINGLE TX SAR CONSIDERATIONS .......................................................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 23 15 SAR DATA SUMMARY ................................................................................................................. 26 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 34 17 EQUIPMENT LIST ......................................................................................................................... 36 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 37 19 CONCLUSION ....................................................................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJC555 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104110682.BEJ April 21-May 5, 2011 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 1 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 Applicant Name: Date of Testing: LG Electronics USA April 21-May 5, 2011 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1104110682.BEJ FCC ID: BEJC555 IC CERTIFICATION NO.: 2703C-C555 APPLICANT: LG Electronics USA Application Type: Certification Model(s): C555 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Max. RF Output Power: 31.7 mW (15.01 dBm) Conducted (b) 16.98 mW (12.3 dBm) Conducted (g) 13.93 mW (11.44 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: BEJC555 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1104110682.BEJ April 21-May 5, 2011 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN Page 2 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION...........................................................................................................................4 1.1 SCOPE.........................................................................................................................................................................4 1.2 PCTEST TEST LOCATION......................................................................................................................................4 2.0 PRODUCT INFORMATION............................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS...........................................................................................5 2.3 LABELING REQUIREMENTS..................................................................................................................................5 3.0 DESCRIPTION OF TEST...............................................................................................................6 3.1 EVALUATION PROCEDURE...................................................................................................................................6 3.2 CONDUCTED EMISSIONS......................................................................................................................................6 3.3 RADIATED EMISSIONS...........................................................................................................................................7 4.0 ANTENNA REQUIREMENTS.........................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA......................................................................................9 6.0 TEST RESULTS..........................................................................................................................10 6.1 SUMMARY................................................................................................................................................................10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N........................................................................................11 6.3 OUTPUT POWER MEASUREMENT – 802.11B................................................................................................17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N............................................................................................18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N)..................................................................................................19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE............................................................................................25 6.7 CONDUCTED SPURIOUS EMISSIONS..............................................................................................................29 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS...................................................................................33 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS..........................................................................37 6.10 LINE-CONDUCTED TEST DATA............................................................…

Text truncated - open the document above for the full version.

LG Electronics USA FCC ID: BEJC555 Model: C555 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG Electronics USA FCC ID: BEJC555 Model: C555 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJC555 Model: C555 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA Phone with BT and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 41 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 21 S A R T E S T S E T U P P H O T O G R A P H S FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 42 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 21-1 SAR Test Setup Photo 1 – Right Touch Figure 21-2 SAR Test Setup Photo 2 – Right Tilt FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 43 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 21-3 SAR Test Setup Photo 3 – Left Touch Figure 21-4 SAR Test Setup Photo 4 – Left Tilt FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 44 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 21-5 SAR Test Setup Photo 5 – Body Back Figure 21-6 SAR Test Setup Photo 6 – Body Front FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 45 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 21-7 SAR Test Setup Photo 7 – Body Right Figure 21-8 SAR Test Setup Photo 8 – Body Left FCC ID: BEJC555 IC Cert No.: 2703C-C555 SAR COMPLIANCE REPORT INDUSTRY CANADA TECHNICAL REPORT (RSS-102) Reviewed by: Quality Manager Filename / Technical report SN: Test Dates: EUT Type / Apparatus/Device: Page 46 of 46 0Y1104110679.BEJ 04/12/11 - 05/02/11 850/1900 GSM/GPRS/EDGE/WCDMA Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9.1M 04/07/2011 Figure 21-9 SAR Test Setup Photo 9 – Body Top Figure 21-10 SAR Test Setup Photo 10– Body Bottom
