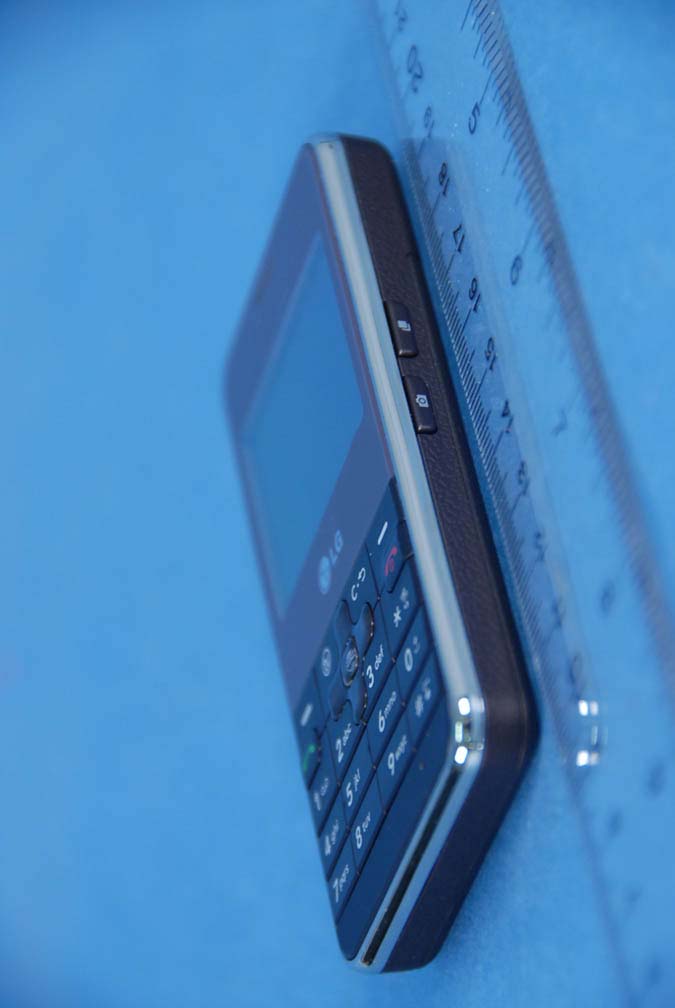

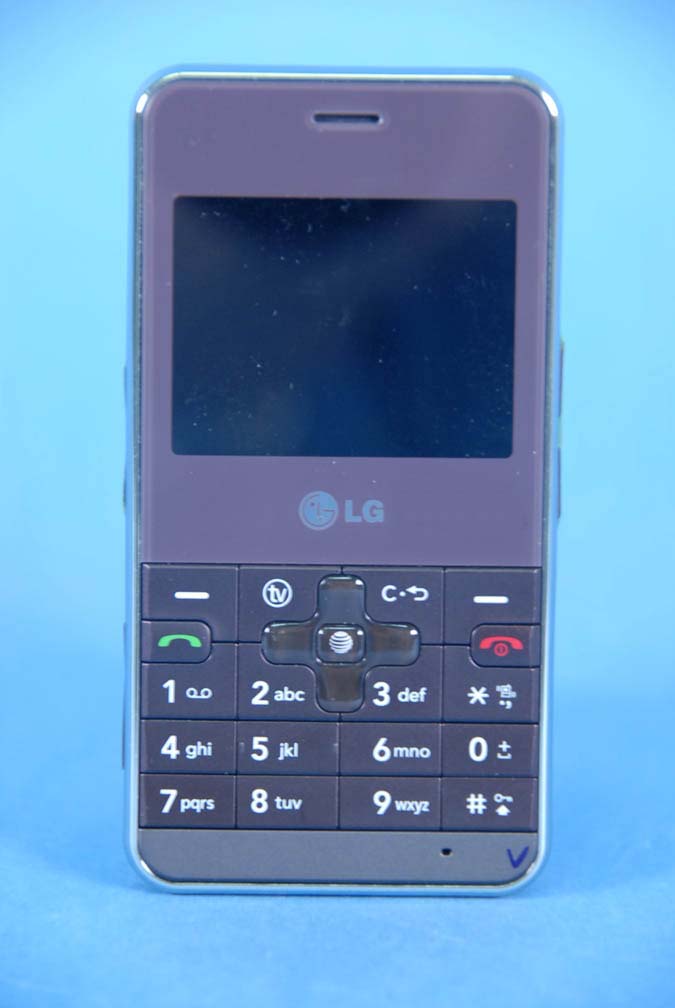

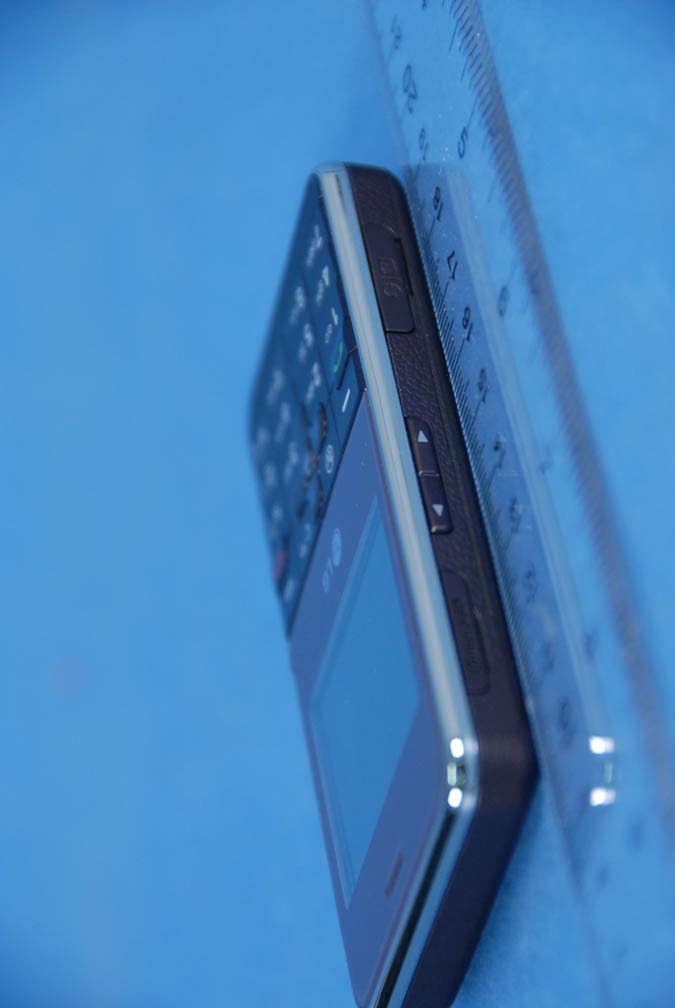

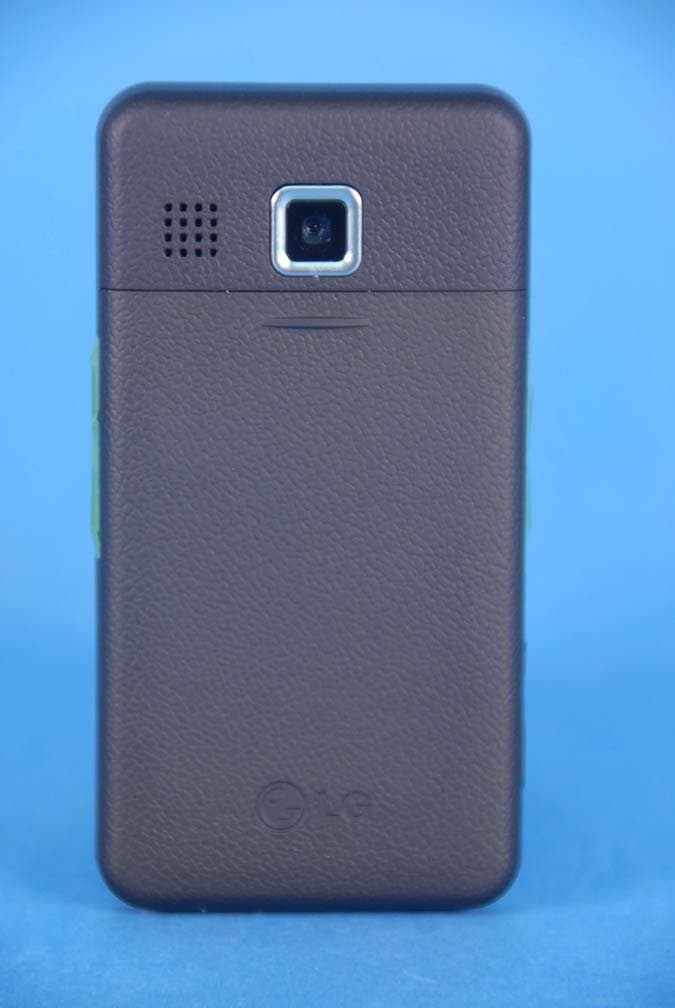

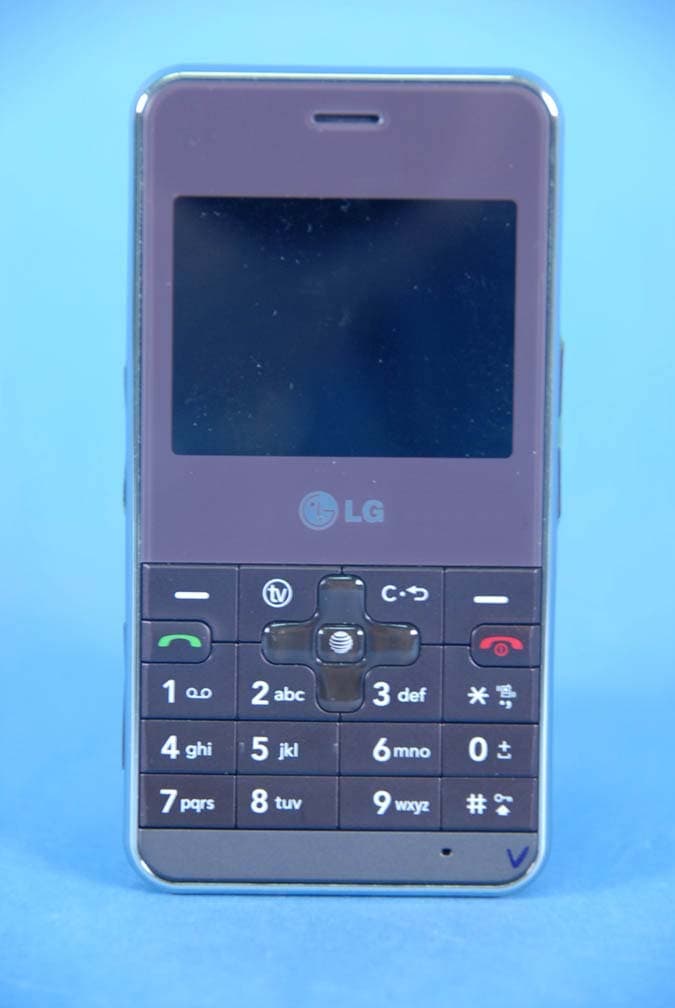

Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 1 of 4 EXTERNAL PHOTOGRAPHS Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 2 of 4 Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 3 of 4 Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 4 of 4

LG Electronics Inc. LGE Model No: CB630 FCC ID : BEJ CB630 S/N :Made in Korea Note: The FCC ID label shown will be r eadily visible at the time of purchase. ※ FCC ID label form

Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 1 of 5 INTERNAL PHOTOGRAPHS Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 2 of 5 Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 3 of 5 Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 4 of 5 Reviewed by: COMPANY NAME: LG Electronics USA Quality Manager Test Date(s): EUT Type: FCC ID: BEJCB630 March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 5 of 5

Reviewed by: FCC ID: BEJCB630 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803030244.BEJ 03/03/08-03/06/08, 03/13/08 850/1900 GSM/WCDMA Phone with Bluetooth Page 1 of 28 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0U 03/13/08 Applicant Name: Date of Testing: LG Electronics USA 03/03/08-03/06/08, 03/13/08 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0803030244.BEJ FCC ID: BEJCB630 APPLICANT: LG ELECTRONICS USA EUT Type: 850/1900 GSM/WCDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): CB630 Tx Frequency: 824.20 - 848.80 MHz (GSM850) 1850.20 - 1909.80 MHz (GSM1900) 826.40 - 846.60 MHz (WCDMA850) 1852.40 - 1907.60 MHz (WCDMA1900) 2402 - 2480 MHz (Bluetooth) Conducted Power: 32.15 dBm GSM850 / 29.36 dBm GSM1900 22.60 dBm WCDMA850 / 22.25 dBm WCDMA1900 1.80 dBm Bluetooth Max. SAR Measurement: 0.824 W/kg GSM850 Head / 0.807 W/kg GPRS850 Body 0.879 W/kg GSM1900 Head / 0.672 W/kg GSM1900 Body 0.672 W/kg WCDMA850 Head / 0.323 W/kg WCDMA850 Body 1.340 W/kg WCDMA1900 Head / 0.518 W/kg PCS WCDMA1900 Body 0.006 W/kg Bluetooth Body EUT Serial No.: Pre-Production [S/N: FCC2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: BEJCB630 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803030244.BEJ 03/03/08-03/06/08, 03/13/08 850/1900 GSM/WCDMA Phone with Bluetooth Page 2 of 28 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0U 03/13/08 TABLE OF CONTENTS 1 INTRODUCTION....................................................................................................................3 2 TEST SITE LOCATION...........................................................................................................4 3 SAR MEASUREMENT SETUP................................................................................................5 4 DASY E-FIELD PROBE SYSTEM............................................................................................7 5 PROBE CALIBRATION PROCESS..........................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS..............................................................10 8 DEFINITION OF REFERENCE POINTS................................................................................11 9 TEST CONFIGURATION POSITIONS...................................................................................12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS....................................................................15 11 MEASUREMENT UNCERTAINTIES......................................................................................16 12 SYSTEM VERIFICATION......................................................................................................17 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS.....................................................18 14 FCC 3G MEASUREMENT PROCEDURES............................................................................19 15 SAR DATA SUMMARY.........................................................................................................20 16 EQUIPMENT LIST................................................................................................................25 17 CONCLUSION.....................................................................................................................26 18 REFERENCES.....................................................................................................................27 Reviewed by: FCC ID: BEJCB630 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0803030244.BEJ 03/03/08-03/06/08, 03/13/08 850/1900 GSM/WCDMA Phone with Bluetooth Page 3 of 28 © 2008 PCTEST Engineering Laboratory, Inc. REV 5.0U 03/13/08 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.36, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-03-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Right Head, Touch, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.40 V/m Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.776 mW/g; SAR(10 g) = 0.558 mW/g 0 dB = 0.800mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.36, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-03-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Right Head, Tilt, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.0 V/m Peak SAR (extrapolated) = 0.454 W/kg SAR(1 g) = 0.354 mW/g; SAR(10 g) = 0.258 mW/g 0 dB = 0.400mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.36, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-03-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Left Head, Touch, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.02 V/m Peak SAR (extrapolated) = 1.04 W/kg SAR(1 g) = 0.824 mW/g; SAR(10 g) = 0.605 mW/g 0 dB = 0.900mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.36, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-03-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM850, Left Head, Tilt, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.8 V/m Peak SAR (extrapolated) = 0.427 W/kg SAR(1 g) = 0.333 mW/g; SAR(10 g) = 0.245 mW/g 0 dB = 0.400mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.37 mho/m, ε r = 39.60, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-05-2008; Ambient Temp: 22.8°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(6.71, 6.71, 6.71); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Touch, Low.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.98 V/m Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.879 mW/g; SAR(10 g) = 0.471 mW/g 0 dB = 0.900mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.37 mho/m, ε r = 39.60, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-05-2008; Ambient Temp: 22.8°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(6.71, 6.71, 6.71); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: GSM1900, Right Head, Tilt, Mid.ch Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.1 V/m Peak SAR (extrapolated) = 0.342 W/kg SAR(1 g) = 0.215 mW/g; SAR(10 g) = 0.125 mW/g 0 dB = 0.300mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: CB630; Type: 850/1900 GSM/WCDMA Phone with Bluetooth; Serial: FCC2 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: 1900 Brain (σ = 1.37 mho/m, ε r = 39.60, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-04-2008; Ambient Temp: 22.4°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(6.71, 6.71, 6.71); Calibrated: 8/30/2007 Sensor-S…

Text truncated - open the document above for the full version.

APPENDIX C: DIPOLE VALIDATION PCTEST ENGINEERING LABORATORY, INC. DUT: D835V2 - SN4d047; Type: 835MHz SAR Validation Dipole ; Serial: 4d047 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 03-03-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.57 mW/g Target SAR(1g) = 2.29 mW/g; Deviation = +4.80 % 0 dB = 3.00mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D835V2 - SN4d047; Type: 835MHz SAR Validation Dipole ; Serial: 4d047 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain (σ = 0.89 mho/m, ε r = 41.36, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 03-06-2008; Ambient Temp: 23.5°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3561; ConvF(8.38, 8.38, 8.38); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1114 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.54 mW/g Target SAR(1g) = 2.29 mW/g; Deviation = +2.62 % 0 dB = 3.00mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D1900V2 - SN5d080; Type: 1900MHz SAR Validation Dipole; Serial: 5d080 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.37 mho/m, ε r = 39.60, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-04-2008; Ambient Temp: 22.4°C; Tissue Temp: 21.2°C Probe: EX3DV4 - SN3561; ConvF(6.71, 6.71, 6.71); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.03 mW/g; SAR(10 g) = 2.08 mW/g Target SAR(1g) = 3.77 mW/g; Deviation = +6.90 % 0 dB = 5.00mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D1900V2 - SN5d080; Type: 1900MHz SAR Validation Dipole; Serial: 5d080 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain (σ = 1.37 mho/m, ε r = 39.60, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-05-2008; Ambient Temp: 22.8°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(6.71, 6.71, 6.71); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.94 mW/g; SAR(10 g) = 2.03 mW/g Target SAR(1g) = 3.77 mW/g; Deviation = +4.51 % 0 dB = 5.00mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: D2450V2 - SN:797; Type: 2450MHz SAR Validation Dipole; Serial: 797 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: 2450 Brain (σ = 1.76 mho/m, ε r = 40.57, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-13-2008; Ambient Temp: 23.2°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN3561; ConvF(6.26, 6.26, 6.26); Calibrated: 8/30/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 1/30/2008 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 2450MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 5.18 mW/g; SAR(10 g) = 2.41 mW/g Target SAR(1g) = 5.41 mW/g; Deviation = -4.25 % 0 dB = 6.00mW/g

APPENDIX D: PROBE CALIBRATION

Reviewed by: FCC ID: BEJCB630 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0803030243.BEJ March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 1 of 56 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.4GWC 02/19/2008 Applicant Name: Date of Testing: LG Electronics USA March 06, 2008 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0803030243.BEJ FCC ID: BEJCB630 APPLICANT: LG ELECTRONICS USA Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) EUT Type: 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Model(s): CB630 Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) Max. RF Output Power: 0.933 W ERP Cell. GSM (29.7 dBm) / 1.95 W EIRP PCS GSM (32.9 dBm) 0.135 W ERP Cell. WCDMA (21.3 dBm) 0.479 W EIRP PCS WCDMA (26.8 dBm) 0.427 W ERP EDGE850 (26.3 dBm) / 0.646 W EIRP EDGE1900 (28.1 dBm) Emission Designator(s): 244KGXW (Cellular GSM), 249KGXW (PCS GSM) 252KG7W (EDGE850), 248KG7W (EDGE1900) 4M18F9W (Cellular WCDMA), 4M18F9W (PCS WCDMA) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. This device also contains functions that are not operational in U.S. territories. This report is applicable only to U.S. operations. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Reviewed by: FCC ID: BEJCB630 FCC Pt. 22/24 GSM/EDGE/WCDMA MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0803030243.BEJ March 06, 2008 850/1900 GSM/WCDMA/EDGE Phone with Bluetooth Page 2 of 56 © 2008 PCTEST Engineering Laboratory, Inc. REV 3.4GWC 02/19/2008 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.....................................................…
