BEJCE500Dual-Band GSM Phone

1. WHAT THIS WARRANTY COVERS LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: 1. The limited warranty for the product extends for ONE (1) year beginning on the date of purchase of the product. The remaining warranty period for the unit being repaired or replaced shall be determined by presentation of the original sales receipt for the purchase of the unit. 2. The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. 3. This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories, and all Canadian Provinces. 4. The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms. 5. Upon request from LG, the consumer must provide acceptable information to prove the date of purchase. 6. The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER 1. Defects or damages resulting from use of the product in other than its normal and customary manner. 2. Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, and spills of food or liquid. 3. Breakage or damage to antennas unless caused directly by defects in material or workmanship. 4. The Customer Service Department at LG must be notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period for the warranty to apply. 5. Products which have had the serial number removed or made illegible. LIMITED WARRANTY STATEMENT 6. This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use. 7. Damage resulting from use of any non-LG approved accessory. Use of any non-LG approved accessory immediately voids this warranty and LG shall not be responsible for any incidental, consequential, special, or any other damage resulting from the use of any non- LG approved accessory. 8. All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. 9. Products operated outside published maximum ratings. 10. Products used or obtained in a rental program. 11. Consumables (such as fuses). Notes: 1. This limited warranty supersedes all other warranties, expressed or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. 2. Shipping damage is the sole responsibility of the shipping company. 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS MOBILECOMM U.S.A., INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some countries do not allow the exclusive of limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Electronics Service 201 James Record Road Huntsville, AL 35824 Tel : 1-8050-793-8896 Website : http://us.lgservice.com CE500 User Guide 2 Unpacking ....................................................... 7 For Your Safety ............................................... 8 Your Phone .................................................... 12 Phone Components ......................................................... 12 Your Phone’s Features .................................................... 13 Display Information ........................................................ 14 Getting Started ............................................. 16 Installing the SIM Card ................................ ................. 16 Charging the Battery ................................ ...................... 17 Turning Your Phone On and Off ............. ....................... 18 Access Codes .............................. .................................... 19 General Functions ...................................... 20 Making a Call ................................ .................................. 20 Making a Call by Send Key ............................................. 20 Making International Calls ............................................ 20 Ending a Call .................................................................... 20 Making a Call From the Contact List ............................ 20 Adjusting the Volume ..................................................... 21 Answering a Call ................................................…

Text truncated - open the document above for the full version.

LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 Apr 15, 2005 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, The undersigned, Hereby authorize PCTEST Engineering Laboratory Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents Relating to the matters. Any and all acts carried out by PCTEST Engineering Laboratory Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is to a denial of benefits, Including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 8539a). Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. Mobile_handset R&D Lab. 219-24, kang-dong,Kumchon-Gu, Seoul,153-801,Korea Tel. : +82-2-850-3825 Fax.: +82-2-850-3855 Subject : LG Electronics Inc. FCC ID :BEJCE500 User’s Manual RF Exposure Warning statement Gentleman: LG Electronics Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Engineering Laboratory Inc. Or me at(410)290-6652. Sincerely, Apr 15, 2005 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. KJ Kim Assistant Manager Mobile_Handset R&D Lab. LG Electronics Inc. LG Electronics Inc. Apr 15, 2005 KJ Kim Assistant Manager Mobile_Handset R&D Lab. LG Electronics Inc. Mobile_handset R&D Lab. 219-24, kang-dong,Kumchon-Gu, Seoul,153-801,Korea Tel. : +82-2-850-3825 Fax.: +82-2-850-3855

May 1, 2005 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: LG Electronics Inc. FCC ID: BEJCE500 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer LG Electronics Inc. LG Electronics Inc. LGE Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea

Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: LG Electronics Inc. FCC ID: BEJCE500 Short-Term Confidentiality Extension Request To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests a 45-days extension of the short-term confidentiality for an additional 45 days for the test setup photos, external photos, internal photos, and user’s manual of the application filing. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely,

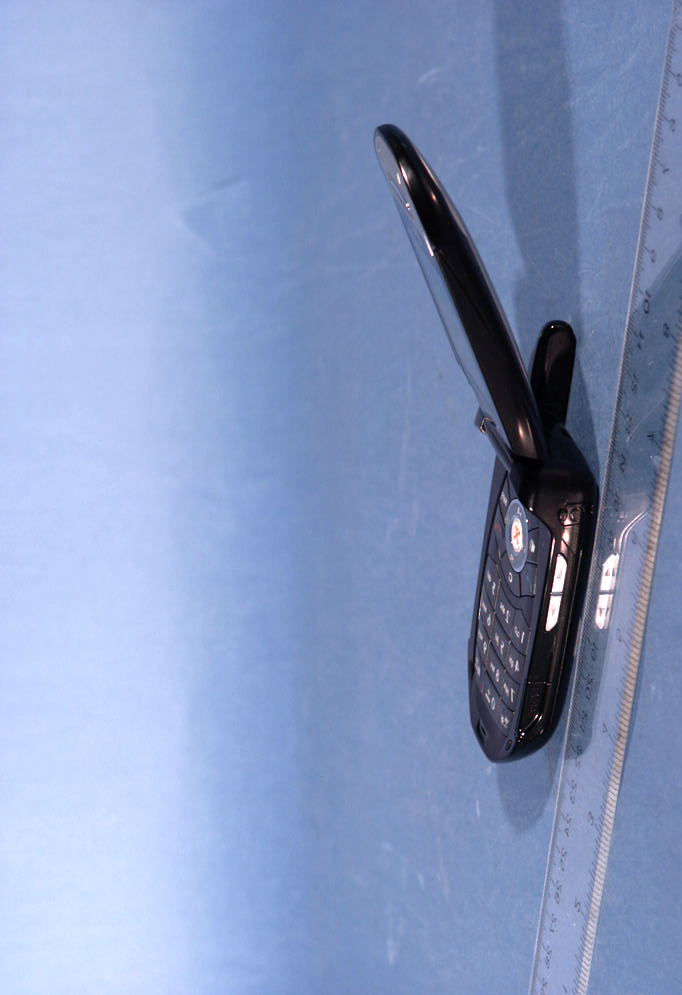

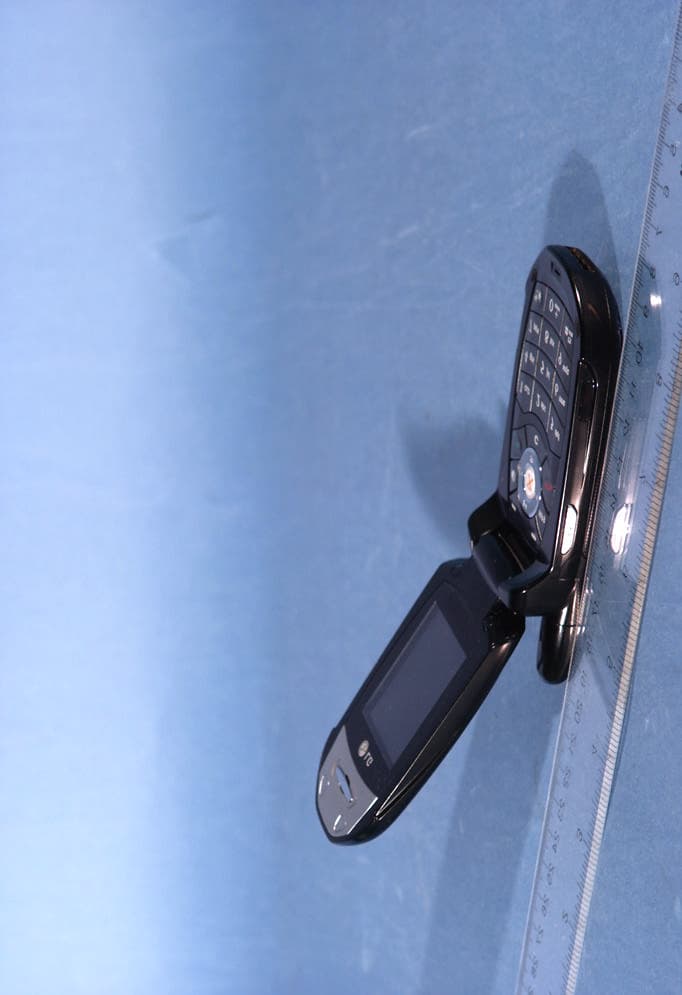

LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500

LG Electronics Inc. Model : CE500 FCC ID : BEJCE500 IMEI S/N LG Electronics Inc. Model : CE500 FCC ID : BEJCE500 IMEI S/N LG Electronics Inc. Model : CE500 FCC ID : BEJCE500 IMEI S/N

LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0503240225 Test Dates: 03/31 – 04/01, 2005 Phone Type: Dual-Band PCS GSM FCC ID: BEJCE500 Page 1 of 28 © 2005 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: March 31 & April 1, 2005 2000 Milbrook Drive Test Report S/N: 0503240225 Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJCE500 APPLICANT NAME: LG ELECTRONICS, INC. EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.391 W ERP GSM850 (31.433 dBm) / 33.0 dBm Conducted 1.641 W EIRP GSM1900 (32.151 dBm) / 30.0 dBm Conducted Max. SAR Measurement: 0.98 W/kg GSM850 Head SAR; 1.22 W/kg GSM850 Body SAR; 0.52 W/kg GSM1900 Head SAR; 0.80 W/kg GSM1900 Body SAR Trade Name/Model(s): CE500 FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical Prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 – 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0503240225 Test Dates: 03/31 – 04/01, 2005 Phone Type: Dual-Band PCS GSM FCC ID: BEJCE500 Page 2 of 28 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. ALIDX-500 E-FIELD PROBE SYSTEM..................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITION.................................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................12 11. MEASUREMENT UNCERTAINTIES...................................................................................13 12. SAR TEST DATA SUMMARY............................................................................................14 13. SAR TEST EQUIPMENT...................................................................................................15 14. CONCLUSION...............................................................................................................16 15. REFERENCES..................................................................................................................17 EXHIBIT A. SYSTEM VERIFICATION.......................................................................................18 EXHIBIT A. SAR DATA SUMMARY ........................................................................................ 19-28 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0503240225 Test Dates: 03/31 – 04/01, 2005 Phone Type: Dual-Band PCS GSM FCC ID: BEJCE500 Page 3 of 28 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is …

Text truncated - open the document above for the full version.

LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0503240224 Test Dates: April 2-4, 2005 Phone Type: Dual-Band GSM FCC ID: BEJCE500 Page 1 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS, INC. Dates of Tests: April 2-4, 2005 2000 Milbrook Drive Test Report S/N: 0503240224 Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID BEJCE500 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H); §2 EUT Type: Dual-Band GSM Phone Model: CE500 Tx Frequency Range: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency Range: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 1.391 W ERP GSM850 (31.433 dBm) / 1.641 W EIRP GSM1900 (32.151 dBm) Max. SAR Measurement: 0.98/kg GSM850 Head SAR; 1.22/kg GSM850 Body SAR; 0.52/kg GSM1900 Head SAR; 0.80/kg GSM1900 Body SAR Emission Designator(s): 250KGXW Test Device Serial No. Identical Prototype [S/N: #1] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0503240224 Test Dates: April 2-4, 2005 Phone Type: Dual-Band GSM FCC ID: BEJCE500 Page 2 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-8 5.1 EFFECTIVE RADIATED POWER OUTPUT 9-10 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 11 7.1 RADIATED MEASUREMENTS 12-17 8.1 FREQUENCY STABILITY 18-21 9.1 PLOTS OF EMISSIONS 22 10.1 LIST OF TEST EQUIPMENT 23 11.1 SAMPLE CALCULATIONS 24 12.1 CONCLUSION 25 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0503240224 Test Dates: April 2-4, 2005 Phone Type: Dual-Band GSM FCC ID: BEJCE500 Page 3 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS, INC. Address: 2000 Milbrook Drive Lincolnshire, IL 60069 • FCC ID: BEJCE500 • Quantity: Quantity production is planned • Emission Designators: 250KGXW • Tx Freq. Range: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Freq. Range: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Max. Power Rating: 1.391 W ERP GSM850 (31.433 dBm) 1.641 W EIRP GSM1900 (32.151 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Dual-Band GSM Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §22(H) • Dates of Tests: April 2-4, 2005 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 0503240224 • Deviation from measurement procedure - None PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 0503240224 Test Dates: April 2-4, 2005 Phone Type: Dual-Band GSM FCC ID: BEJCE500 Page 4 of 25 © 2005 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a …

Text truncated - open the document above for the full version.

LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500 LG FCC ID: BEJCE500 EUT Photographs © 2005 PCTEST Lab. Dual-Band GSM Phone Model: CE500
