BEJCU320Dual-Band GSM/ EDGE/ WCDMA Phone w/ Bluetooth

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Sep 28, 2005
Application Purpose: Original Equipment
Date of Application: Sep 28, 2005
Equipment Note: Dual-Band GSM/ EDGE/ WCDMA Phone w/ Bluetooth
Frequency Range: 1852.40000000 - 1907.60000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Copyright © 2004 LG Electronics, Inc. ALL RIGHTS RESERVED. All materials used herein, including but not limited to trademarks, service marks, and all other commercially valuable rights, properties and products are owned by and proprietary to LG Electronics, Inc. and may not be reproduced, republished, redistributed or disseminated, either in whole or in part, without the express written permission of LG Electronics, Inc. All other marks are proprietary to their respective owners. Features and specifications are subject to change without prior notice. LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: 1.The limited warranty for the product extends for ONE (1) year beginning on the date of purchase of the product. The remaining warranty period for the unit being repaired or replaced shall be determined by presentation of the original sales receipt for the purchase of the unit. 2.The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. 3.This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories, and all Canadian Provinces. 4.The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms. 5.Upon request from LG, the consumer must provide acceptable information to prove the date of purchase. 6.The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER 1.Defects or damages resulting from use of the product in other than its normal and customary manner. 2.Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, and spills of food or liquid. 3.Breakage or damage to antennas unless caused directly by defects in material or workmanship. 4.The Customer Service Department at LG must be notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period for the warranty to apply. 5.Products which have had the serial number removed or made illegible. 6.This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use. 7.Damage resulting from use of any non-LG approved accessory. Use of any non-LG approved accessory immediately voids this warranty and LG shall not be responsible for any incidental, consequential, special, or any other damage resulting from the use of any non- LG approved accessory. 8.All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. 9.Products operated outside published maximum ratings. 10.Products used or obtained in a rental program. 11.Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS MOBILECOMM U.S.A., INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some countries do not allow the exclusive of limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Electronics Service 201 James Record Road Huntsville, AL 35824 Tel : 1-800-793-8896 Website : http://us.lgservice.com CU320 User Guide Unpacking ..................................................... 10 For Your Safety ............................................. 11 Your Phone .................................................... 15 Phone Components ......................................................... 15 Your Phone’s Features .................................................... 16 Display Information ........................................................ 17 Getting Started ............................................. 19 Installing the SIM Card .................................................. 19 Charging the Battery ....................................................... 20 Turning Your Phone On and Off .................................... 21 Access Codes .................................................................. 22 Barring Password ........................................................... 22 General Functions ....................................... 23 Making a Call ................................................................... 23 Making a Call by Send Key ............................................ 23 Making International Calls .............................................23 Ending a Cal…

Text truncated - open the document above for the full version.

Attestation Statements

LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 July 15, 2005 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, The undersigned, Hereby authorize PCTEST Engineering Laboratory Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents Relating to the matters. Any and all acts carried out by PCTEST Engineering Laboratory Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is to a denial of benefits, Including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 8539a). Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. Mobile_handset R&D Lab. 219-24, kang-dong,Kumchon-Gu, Seoul,153-801,Korea Tel. : +82-2-850-3825 Fax.: +82-2-850-3855 Subject : LG Electronics Inc. FCC ID :BEJCU320 User’s Manual RF Exposure Warning statement Gentleman: LG Electronics Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Engineering Laboratory Inc. Or me at(410)290-6652. Sincerely, July 15, 2005 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. KJ Kim Assistant Manager Mobile_Handset R&D Lab. LG Electronics Inc. LG Electronics Inc. July 15, 2005 KJ Kim Assistant Manager Mobile_Handset R&D Lab. LG Electronics Inc. Mobile_handset R&D Lab. 219-24, kang-dong,Kumchon-Gu, Seoul,153-801,Korea Tel. : +82-2-850-3825 Fax.: +82-2-850-3855

Attestation Statements

July 20, 2005 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: LG Electronics Inc. FCC ID: BEJCU320 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, LG Electronics Inc. requests short-term confidentiality for the test setup photos, external photos, internal photos, and user’s manual of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, E.S.Park Chief Research Engineer LG Electronics Inc. LG Electronics Inc. LGE Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea

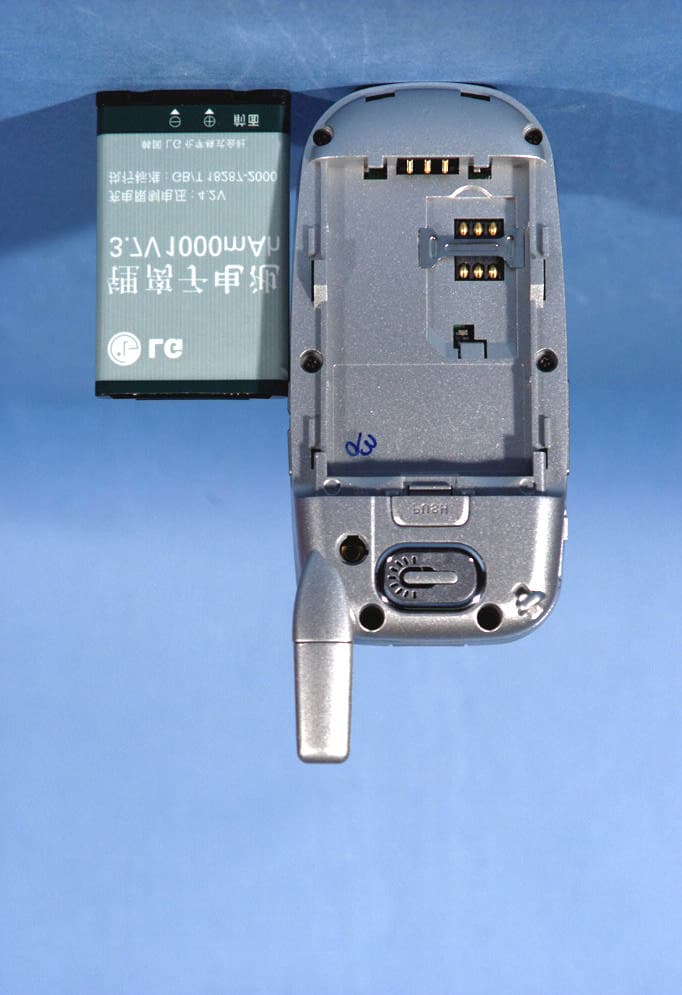

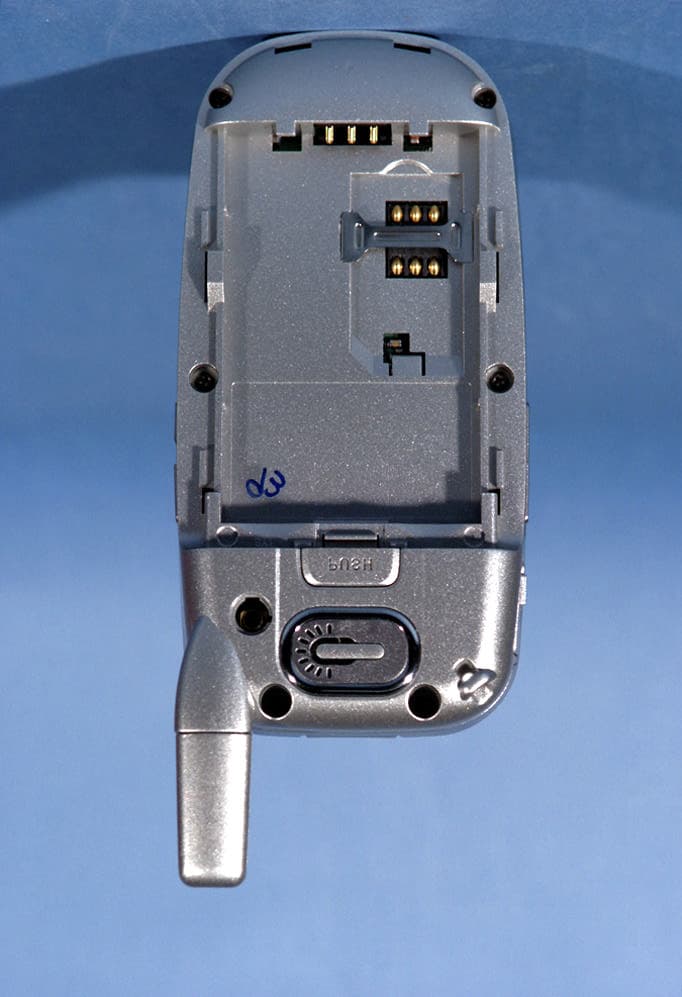

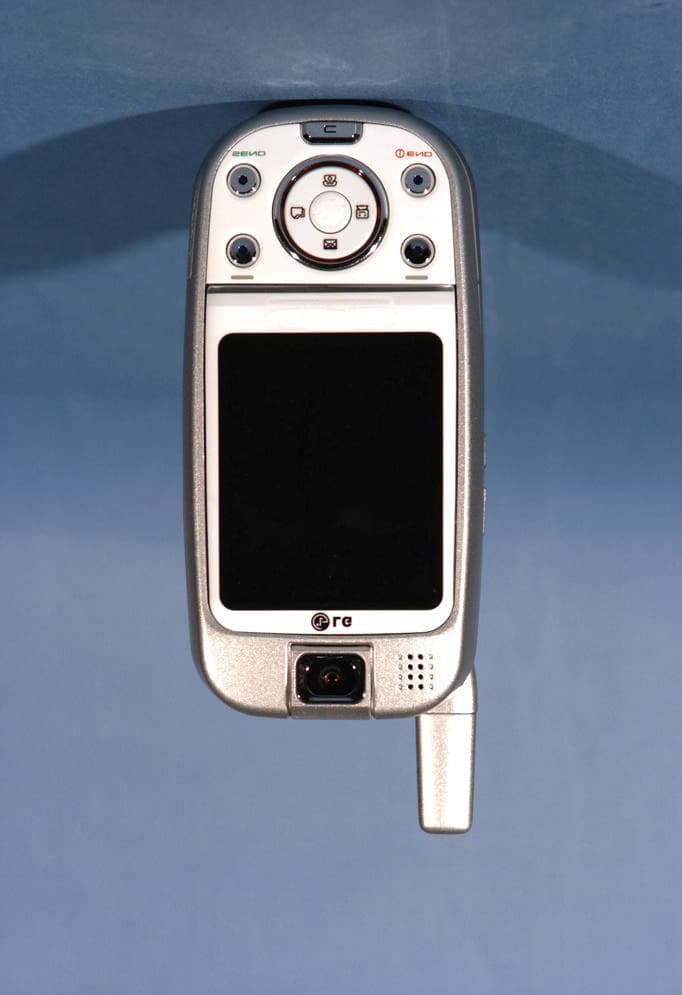

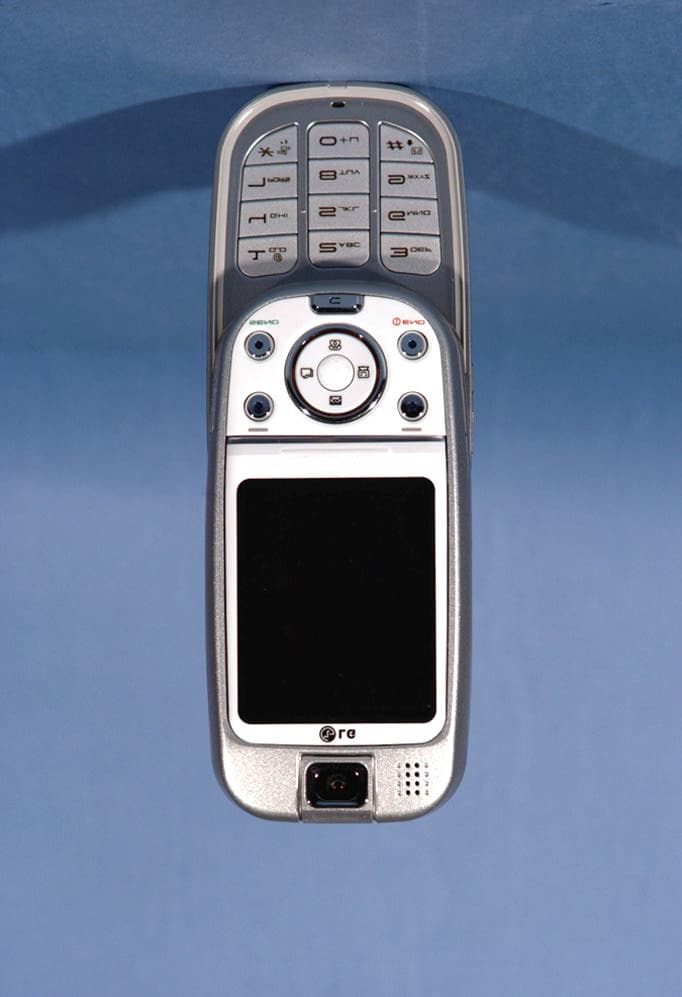

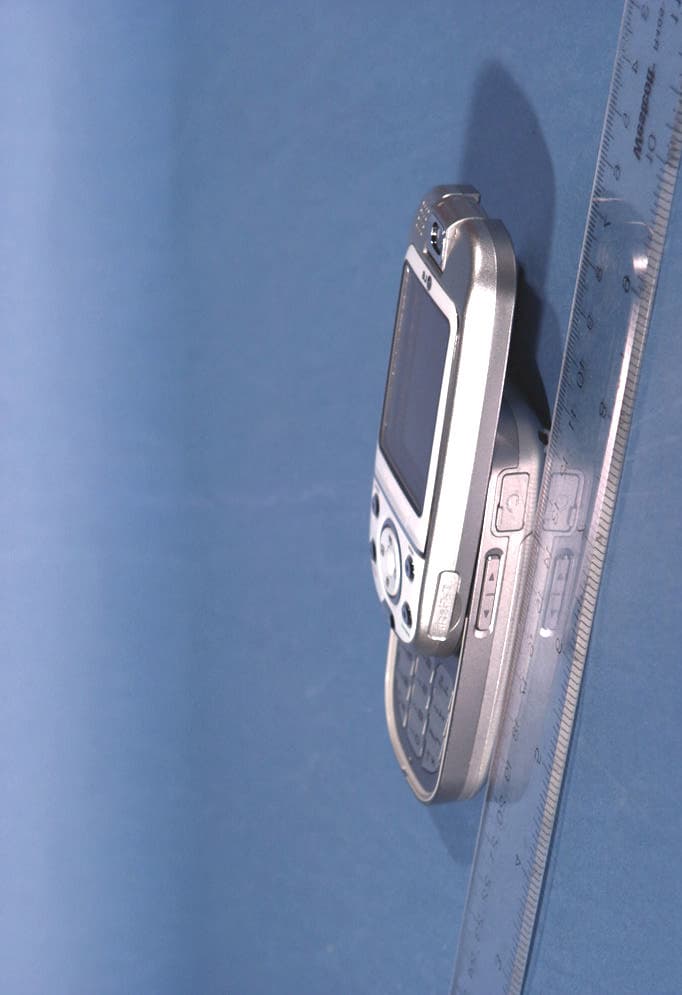

External Photos

ID Label/Location Info

© 2005 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) FCC ID Sample Label and Location

Internal Photos

LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320 LGE FCC ID: BEJCU320 EUT Photographs © 2005 PCTEST Lab. Dual-Band Dual-Mode GSM/ WCDMA Phone Model: CU320

RF Exposure Info

Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: 07/13/05 - 07/18/05 EUT Type: Dual-Band Dual-Mode FCC ID: 0506200462 & 07/21/05 - 07/25/05 GSM/ WCDMA Phone BEJCU320 Page 1 of 31 © 2005 PCTEST Engineering Laboratory, Inc. Applicant Name: Date of Testing: LG Electronics Inc. 07/13/2005 - 07/18/2005 & 2000 Milbrook Drive 07/21/2005 - 07/25/2005 Lincolnshire, IL 60069 Test Site/Location: PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0506200462 FCC ID: BEJCU320 APPLICANT: LG ELECTRONICS Application Type: Certification FCC Rule Part(s): § 2.1093; FCC/OET Bulletin 65 Supplement C (July2001) FCC Classification: Licensed Transmitter Held to Ear (PCE) EUT Type: Dual-Band Dual-Mode GSM/ WCDMA Phone w/ Bluetooth Model(s): CU320 Tx Frequency: 824.2MHz - 848.8MHz (Cellular GSM) / 1850.2MHz - 1909.8MHz (PCS GSM) 826.4MHz - 846.6MHz (Cellular WCDMA) / 1852.4MHz - 1907.6MHz (PCS WCDMA) RF Output Power: 1.490W ERP GSM (31.733 dBm); 1.334W ERP PCS GSM(31.251 dBm) 0.265 W ERP WCDMA (24.233 dBm); 0.327W ERP PCS WCDMA(25.151 dBm) 0.651 W ERP EDGE (28.133 dBm)/ 0.669 W EIRP PCS EDGE (28.251 dBm) Max. SAR Measurement: Cellular GSM: 0.84 W/kg Head SAR, 1.27 W/kg Body SAR PCS GSM: 0.57 W/kg Head SAR, 0.61 W/kg Body SAR Cellular WCDMA: 1.06 W/kg Head SAR, 1.19 W/kg Body SAR PCS WCDMA: 0.74 W/kg Head SAR, 0.62 W/kg Body SAR Test Device Serial No.: Pre-Production Sample [S/N: 24] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: 07/13/05 - 07/18/05 EUT Type: Dual-Band Dual-Mode FCC ID: 0506200462 & 07/21/05 - 07/25/05 GSM/ WCDMA Phone BEJCU320 Page 2 of 31 © 2005 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION....................................................................................................................3 2. TEST SITE LOCATION...........................................................................................................4 3. SAR MEASUREMENT SETUP................................................................................................5 4. ALIDX-500 E-FIELD PROBE SYSTEM....................................................................................6 5. PROBE CALIBRATION PROCESS..........................................................................................7 6. PHANTOM AND EQUIVALENT TISSUES.............................................................................8-9 7. TEST SYSTEM SPECIFICATIONS........................................................................................10 8. DOSIMETRIC ASSESSMENT AND PHANTOM SPECS.........................................................11 9. DEFINITION OF REFERENCE POINTS................................................................................12 10. TEST CONFIGURATION POSITION.....................................................................................13 11. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS..................................................................14 12. MEASUREMENT UNCERTAINTIES......................................................................................15 13. SAR TEST EQUIPMENT.......................................................................................................16 14. CONCLUSION.....................................................................................................................17 15. REFERENCES.....................................................................................................................18 EXHIBIT A.1 SYSTEM VERIFICATION..............................................................................................19 EXHIBIT B.1 SAR SETUP PROCEDURES........................................................................................20 EXHIBIT C.1 SAR DATA SUMMARY............................................................................................21-25 EXHIBIT A.2 SYSTEM VERIFICATION..............................................................................................26 EXHIBIT B.2 SAR SETUP PROCEDURES........................................................................................27 EXHIBIT C.2 SAR DATA SUMMARY....................................................................................28-32 Reviewed by: PCTEST SAR REPORT SAR SUMMARY REPORT Quality Manager SAR Filename: Test Dates: 07/13/05 - 07/18/05 EUT Type: Dual-Band Dual-Mode FCC ID: 0506200462 & 07/21/05 - 07/25/05 GSM/ WCDMA Phone BEJCU320 Page 3 of 31 © 2005 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION The FCC…

Text truncated - open the document above for the full version.

RF Exposure Info

APPENDIX A: SAR TEST DATA SAR Data Report 05071419 Start : 14-Jul-05 04:20:51 pm End : 14-Jul-05 04:26:12 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Dual-Band GSM+WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 824.2 MHz Transmit Pwr : 2 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 43.180 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular GSM Mode Ch. 128 Right Cheek (Slide In) CF=8; Amb. Temp= 23.4 'C; Liq. Temp=21.9 'C Power Drop Test: Reading @ start = 1.348 Reading @ End = 1.334 Power at End = 98.9% Area Scan - Max Peak SAR Value at x=8.0 y=0.0 = 0.86 W/kg Zoom Scan - Max Peak SAR Value at x=6.0 y=-1.0 z=0.0 = 1.19 W/kg Max 1g SAR at x=7.0 y=-1.0 z=0.0 = 0.84 W/kg Max 10g SAR at x=11.0 y=-3.0 z=0.0 = 0.59 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:6.0 y:-1.0 1g SAR Values 0.837 0.821 0.805 0.789 0.773 0.757 0.741 0.725 0.709 0.693 0.677 SAR Data Report 05071423 Start : 14-Jul-05 05:03:15 pm End : 14-Jul-05 05:08:34 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Dual-Band GSM+WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 824.2 MHz Transmit Pwr : 2 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 43.180 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular GSM Mode Ch. 128 Right Cheek (Slide Out) CF=8; Amb. Temp= 23.4 'C; Liq. Temp=21.9 'C Power Drop Test: Reading @ start = 0.072 Reading @ End = 0.072 Power at End = 100.3% Area Scan - Max Peak SAR Value at x=56.0 y=3.0 = 0.18 W/kg Zoom Scan - Max Peak SAR Value at x=49.0 y=4.0 z=0.0 = 0.25 W/kg Max 1g SAR at x=53.0 y=4.0 z=0.0 = 0.17 W/kg Max 10g SAR at x=55.0 y=4.0 z=0.0 = 0.11 W/kg 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 0.26 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:49.0 y:4.0 1g SAR Values 0.1711 0.1664 0.1616 0.1569 0.1522 0.1474 0.1427 0.1380 0.1332 0.1285 0.1238 SAR Data Report 05071428 Start : 14-Jul-05 05:41:55 pm End : 14-Jul-05 05:46:51 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Dual-Band GSM+WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 824.2 MHz Transmit Pwr : 2 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 43.180 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular GSM Mode Ch. 128 Right Tilt (Slide In) CF=8; Amb. Temp= 23.4 'C; Liq. Temp=21.9 'C Power Drop Test: Reading @ start = 1.399 Reading @ End = 1.339 Power at End = 95.7% Area Scan - Max Peak SAR Value at x=1.0 y=-2.0 = 0.85 W/kg Zoom Scan - Max Peak SAR Value at x=2.0 y=-2.0 z=0.0 = 1.23 W/kg Max 1g SAR at x=2.0 y=-3.0 z=0.0 = 0.84 W/kg Max 10g SAR at x=4.0 y=-5.0 z=0.0 = 0.57 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:2.0 y:-2.0 1g SAR Values 0.838 0.817 0.797 0.777 0.756 0.736 0.715 0.695 0.675 0.654 0.634 SAR Data Report 05071504 Start : 15-Jul-05 10:07:54 am End : 15-Jul-05 10:13:13 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE Dual-Band GSM+WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 824.2 MHz Transmit Pwr : 2 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-RIGHT Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 43.180 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular GSM Mode Ch. 128 Right Tilt (Slide Out) CF=8; Amb. Temp= 23.4 'C; Liq. Temp=21.9 'C Power Drop Test: Reading @ start = 0.098 Reading @ End = 0.102 Power at End = 103.9% Area Scan - Max Peak SAR Value at x=42.0 y=6.0 = 0.15 W/kg Zoom Scan - Max Peak SAR Value at x=43.0 y=6.0 z=0.0 = 0.24 W/kg Max 1g SAR at x=44.0 y=6.0 z=0.0 = 0.15 W/kg Max 10g SAR at x=45.0 y=5.0 z=0.0 = 0.10 W/kg 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:43.0 y:6.0 1g SAR Values 0.1518 0.1480 0.1442 0.1405 0.1367 0.1329 0.1291 0.1254 0.1216 0.1178 0.1…

Text truncated - open the document above for the full version.

RF Exposure Info

0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0.20 0.22 0.24 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:36.0 y:-4.0 1g SAR Values 0.1265 0.1229 0.1193 0.1157 0.1121 0.1085 0.1049 0.1013 0.0977 0.0941 0.0905 SAR Data Report 05072213 Start : 22-Jul-05 10:57:35 am End : 22-Jul-05 11:02:23 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 826.4 MHz Transmit Pwr : 0.199 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 42.150 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular WCDMA Mode Ch. 4132 Left Cheek (Slide In) CF=8; Amb. Temp= 22.2 'C; Liq. Temp=21.1 'C Power Drop Test: Reading @ start = 1.429 Reading @ End = 1.486 Power at End = 104.0% Area Scan - Max Peak SAR Value at x=29.0 y=-1.0 = 1.05 W/kg Zoom Scan - Max Peak SAR Value at x=30.0 y=7.0 z=0.0 = 1.56 W/kg Max 1g SAR at x=28.0 y=2.0 z=0.0 = 1.00 W/kg Max 10g SAR at x=26.0 y=-1.0 z=0.0 = 0.72 W/kg 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:30.0 y:7.0 1g SAR Values 0.998 0.978 0.958 0.939 0.919 0.899 0.879 0.860 0.840 0.820 0.801 SAR Data Report 05072218 Start : 22-Jul-05 11:35:17 am End : 22-Jul-05 11:40:23 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 826.4 MHz Transmit Pwr : 0.199 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 42.150 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular WCDMA Mode Ch. 4132 Left Cheek (Slide Out) CF=8; Amb. Temp= 22.2 'C; Liq. Temp=21.1 'C Power Drop Test: Reading @ start = 0.124 Reading @ End = 0.123 Power at End = 99.0% Area Scan - Max Peak SAR Value at x=41.0 y=8.0 = 0.27 W/kg Zoom Scan - Max Peak SAR Value at x=50.0 y=2.0 z=0.0 = 0.45 W/kg Max 1g SAR at x=50.0 y=4.0 z=0.0 = 0.25 W/kg Max 10g SAR at x=44.0 y=5.0 z=0.0 = 0.18 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:50.0 y:2.0 1g SAR Values 0.2525 0.2458 0.2392 0.2325 0.2258 0.2191 0.2125 0.2058 0.1991 0.1925 0.1858 SAR Data Report 05072222 Start : 22-Jul-05 12:05:08 pm End : 22-Jul-05 12:10:06 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : LGE WCDMA Phone Model Number : CU320 Serial Number : 24 Frequency : 826.4 MHz Transmit Pwr : 0.199 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM-LEFT Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 42.150 Tissue Conductivity : 0.900 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT005 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.810 Calibrated Conductivity : 0.870 Calibrated Density : 1.000 Probe Offset : 1.600 mm Conversion Factor : 5.500 Probe Sensitivity : 3.807 3.736 3.821 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: Cellular WCDMA Mode Ch. 4132 Left Tilt (Slide In) CF=8; Amb. T…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)

[email protected]201-470-2696Fax: 201-816-2003

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]4102906652Fax: 4102906654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	327.00 mW	4M19F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values for GSM are: Part 22 - Head: 0.84 W/kg, Body-worn: 1.27 W/kg;, Part 24 - Head: 0.57 W/kg, Body-worn: 0.61 W/kg. The highest reported SAR values for WCDMA are: Part 22 - Head: 1.06 W/kg, Body-worn: 1.19 W/kg;, Part 24 - Head: 0.74 W/kg, Body-worn: 0.62 W/kg. This device also contains 1800 MHz DCS and 2100 MHz UMTS functions that are not operational in U.S. Territories.
