BEJDB230Dual-Band Analog/PCS Phone

@ LG Electronics Inc.& Oct. 9, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, General Manager of New York Office LG Electronics Inc. LGE LG Electronics Inc.& 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] October 9, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: BEJDB230 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:BEJDB230, using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Electronics Inc. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJDB230) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE October 9, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJDB230 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, E.S. Park Research Engineer CDMA Handset Lab. LG Electronics Inc. 459-9 Kasan-dong Kumchun-gu Seoul 153-023 Korea Tel : 82-2-850-3861 Fax : 82-2-850-3856 E_mail : [email protected] LGE LG Electronics Inc.

September 28. 2001 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. FCC ID: BEJDB230 Dual-Band Cellular Phone (AMPS&PCS) Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

October 10, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJDB230 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 22/24 Certification of the following Dual Band Cellular Phone: FCC ID: BEJDB230 TRADE/MODEL(s): LGE LG-DB230 EUT TYPE: Dual-Band Analog/PCS Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) /1851.25 — 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.349 W ERP AMPS (25.433 dBm) / 0.272 W EIRP PCS CDMA (24.351 dBm) Max. SAR Measurement: 1.080 mW/g (1g) AMPS Head SAR; 1.280 mW/g (1g) PCS CDMA Head SAR 0.805 mW/g (1g) AMPS Body SAR; 0.425 mW/g (1g) PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGE

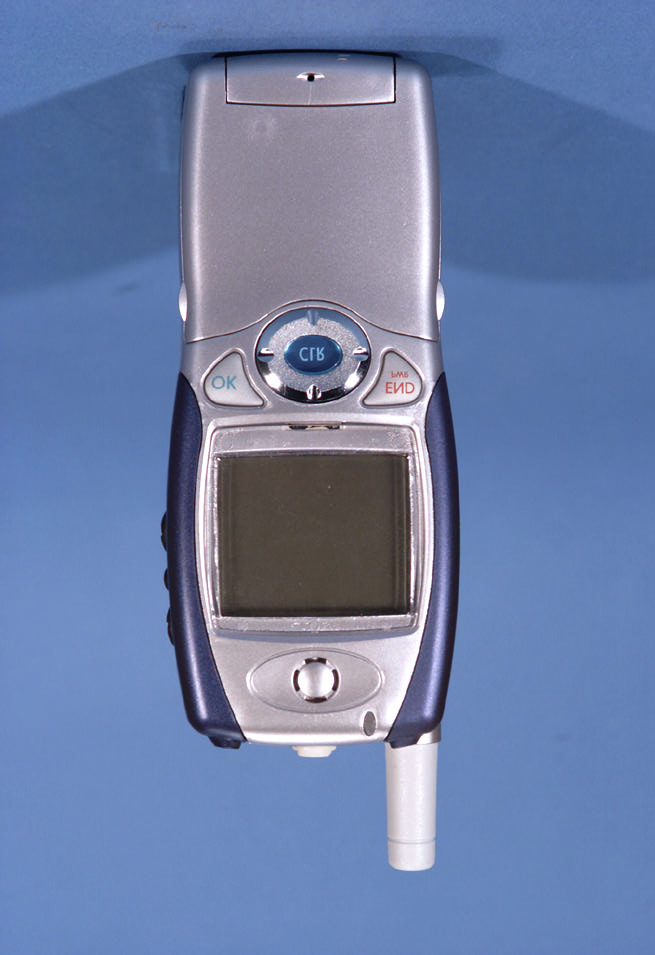

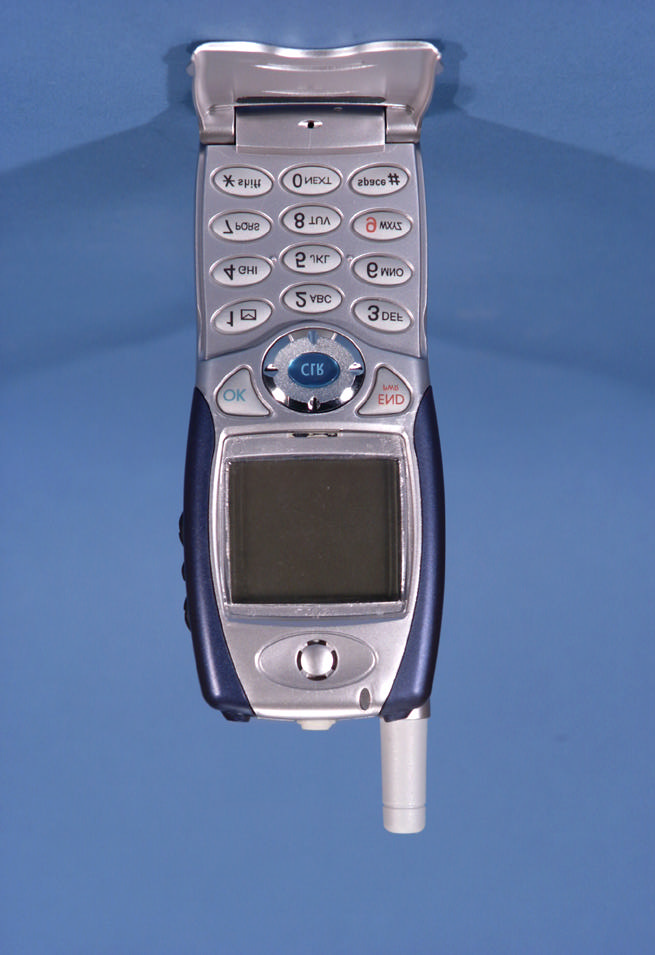

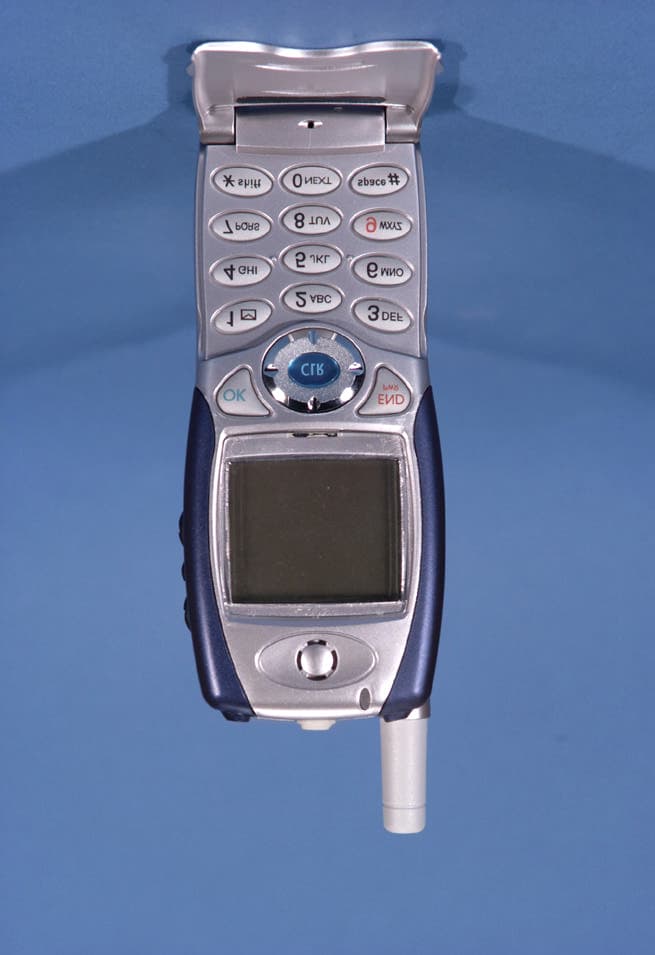

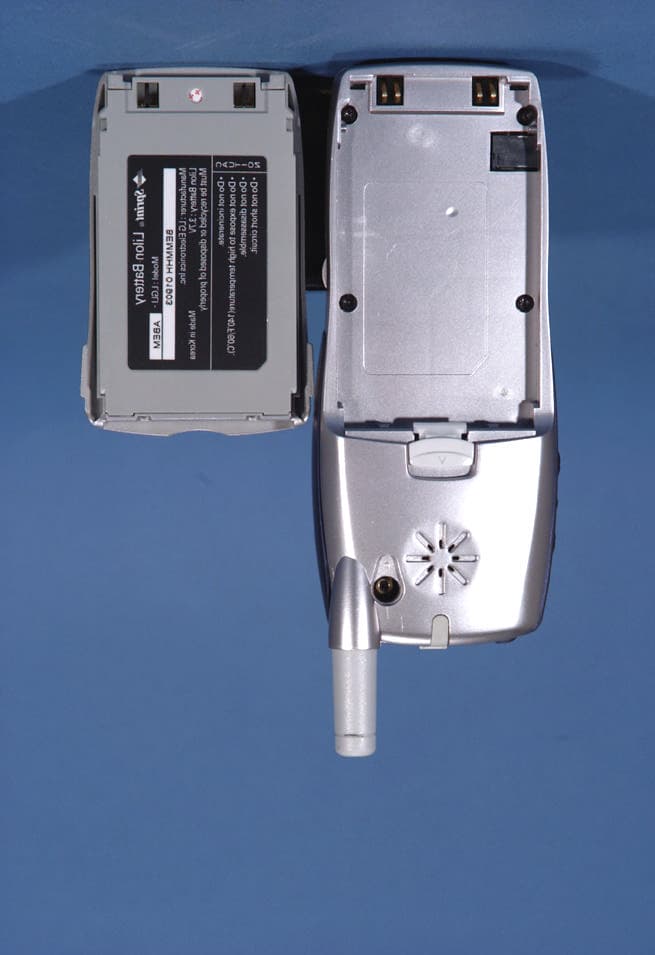

© 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone

© 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone

LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.587 mW/g, SAR (10g): 0.411 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Ace Antenna Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 10/02/2001 SAR Tot [mW/g] 4.77E-2 1.43E-1 2.39E-1 3.34E-1 4.29E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.902 mW/g, SAR (10g): 0.636 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0383 [836.49MHz]; Standard Battery; Ace Antenna Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 10/02/2001 SAR Tot [mW/g] 8.48E-2 2.54E-1 4.24E-1 5.94E-1 7.63E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.872 mW/g, SAR (10g): 0.612 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0799 [848.97MHz]; Standard Battery; Ace Antenna Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 10/02/2001 SAR Tot [mW/g] 7.89E-2 2.37E-1 3.95E-1 5.52E-1 7.10E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.08 mW/g, SAR (10g): 0.765 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Panasonic Antenna Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 10/02/2001 SAR Tot [mW/g] 1.05E-1 3.15E-1 5.25E-1 7.35E-1 9.45E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.859 mW/g, SAR (10g): 0.603 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0383 [836.49MHz]; Standard Battery; Panasonic Antenna Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 10/02/2001 SAR Tot [mW/g] 8.03E-2 2.41E-1 4.02E-1 5.62E-1 7.23E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.873 mW/g, SAR (10g): 0.612 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0799 [848.97MHz]; Standard Battery; Panasonic Antenna Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch Position Test Date -- 10/02/2001 SAR Tot [mW/g] 8.53E-2 2.56E-1 4.26E-1 5.97E-1 7.68E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.575 mW/g, SAR (10g): 0.371 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Ace Antenna Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 10/02/2001 SAR Tot [mW/g] 5.21E-2 1.56E-1 2.61E-1 3.65E-1 4.69E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.873 mW/g, SAR (10g): 0.565 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0383 [836.49MHz]; Standard Battery; Ace Antenna Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 10/02/2001 SAR Tot [mW/g] 7.45E-2 2.23E-1 3.73E-1 5.21E-1 6.70E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.887 mW/g, SAR (10g): 0.572 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0799 [848.97MHz]; Standard Battery; Ace Antenna Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 10/02/2001 SAR Tot [mW/g] 8.27E-2 2.48E-1 4.14E-1 5.79E-1 7.44E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.00 mW/g, SAR (10g): 0.650 mW/g LGE DualBand phone Model:LG-DB230 FM Mode, Ch.0991 [824.04MHz]; Standard Battery; Panasonic Antenna Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt Position Test Date -- 10/02/2001 SAR Tot [mW/g] 9.52E-2 2.86E-1 4.76E-1 6.66E-1 8.57E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDB230 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.784 mW/g, SAR (10g): 0.504 mW/g LGE DualBand phone Model:LG-DB230 FM …

Text truncated - open the document above for the full version.

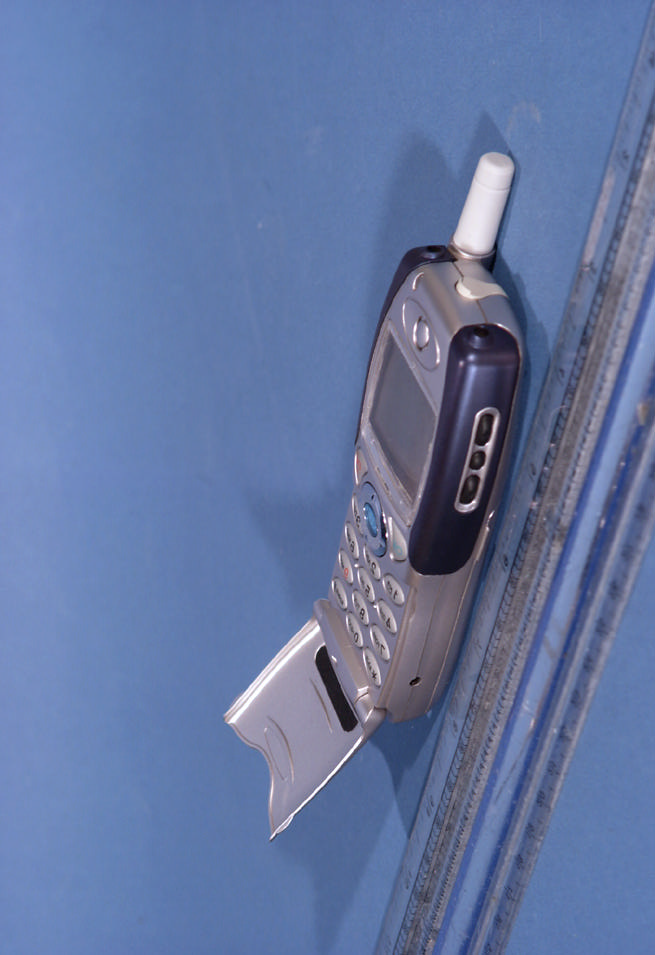

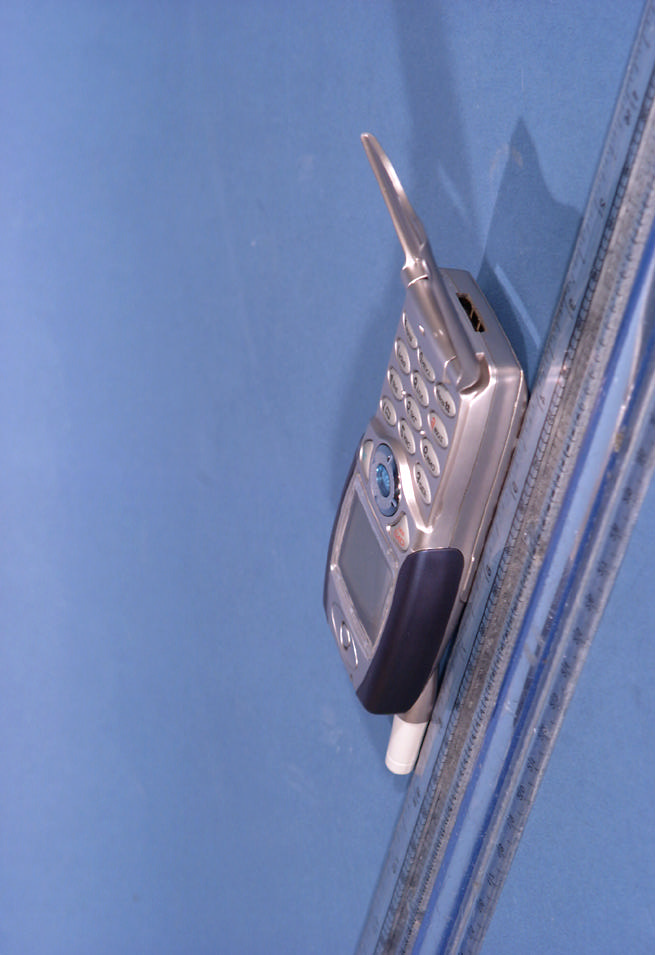

© 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone © 2001 PCTEST Lab FCC ID: BEJDB230 (Model: LG-DB230) NVLAP Lab Code: 100431-0 LGE Dual-Band Analog/PCS Phone

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: October 02-05, 2001 Communication Terminal Research Lab Test Report S/N: SAR.211002570.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Haris Ahn, Principal Engineer FCC ID BEJDB230 APPLICANT LG ELECTRONICS INC. EUT Type: Dual-Band Analog/CDMA Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.349 W ERP AMPS (25.433 dBm) / 0.272 W EIRP PCS CDMA (24.351 dBm) Max. SAR Measurement: 1.08mW/g AMPS Head SAR; 0.805mW/g AMPS Body SAR 1.28mW/g PCS CDMA Head SAR; 0.425mW/g PCS CDMA Body SAR Trade Name/Model(s): LG-DB230 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C [July 2001] Application Type: Certification Antenna Manufacturer: #2 PANASONIC Model No.: EWPACB005* [Length = 2.05 cm. / Helical] Battery Specifications: Standard Battery -- LG Model: LGLi-ABEM [BEMMHH 01903]; 3.7V Li-ion This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528 (Draft Aug.2000). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 211002570.BEJ SAR Measurement Report FCC Part 24/22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 HEAD SAR TEST POSITIONS OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-23 14.1 SAR TEST EQUIPMENT LIST 24 15.1 CONCLUSION 25 16.1 REFERENCES 26 Test Report S/N: SAR.211002570.BEJ SAR Measurement Report Test Date(s): October 02-05, 2001 FCC Part 22/24 Certification © 2001 PCTEST Lab LGE FCC ID: BEJDB230 (Model: LG-DB230) 1 Dual-Band Analog/CDMA Phone (AMPS/CDMA) SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Attention: Seoul 153-023, Korea Harris Ahn, Principal Engineer • EUT Type: Dual-Band Analog/PCS Phone • Trade Name / Model: LG-DB230 • FCC IDENTIFIER: BEJDB230 • Tx Frequency: 824.04 — 848.97 MHz (AMPS) 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 — 893.97 MHz (AMPS) 1931.25 — 1988.75 MHz (PCS CDMA) • Modulation(s): AMPS / CDMA • Max. RF Output Power: 0.349 W ERP - AMPS (25.433 dBm) 0.272 W EIRP — PCS CDMA (24.351 dBm) • Max SAR Measurement: 1.08mW/g AMPS Head SAR; 0.805mW/g AMPS Body SAR 1.28mW/g PCS Head SAR; 0.425mW/g PCS Body SAR • FCC Classification: Licensed Portable Tx Held to Ear (PCE) • Antenna Manufacturer: #2 PANASONIC Model No.: EWPACB005* [Length = 2.05 cm. / Helical] • Battery Specifications: Standard Battery -- LG Model: LGLi-ABEM [BEMMHH 01903]; 3.7V Li-ion • FCC Rule Part(s): §2.1093, OET Bulletin 65, Supplement C (July 2001) • Application Type: Certification • Dates of Tests: October 02-05, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.211002570.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211002570.BEJ SAR Measurement Report Test Date(s): October 02-05, 2001 FCC Part 22/24 Certification © 2001 PCTEST Lab LGE FCC ID: BEJDB230 (Model: LG-DB230) 2 Dual-Band Analog/CDMA Phone (AMPS/CDMA) 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in mea…

Text truncated - open the document above for the full version.

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.10 mW/g, SAR (10g): 1.40 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid - date 10/2/01 SAR Tot [mW/g] 2.10E-1 6.29E-1 1.05E+0 1.47E+0 1.89E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.07 mW/g, SAR (10g): 1.36 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid - date: 10/2/01 SAR Tot [mW/g] 2.38E-1 7.14E-1 1.19E+0 1.67E+0 2.14E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.57 mW/g, SAR (10g): 4.92 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid - date: 10/2/01 SAR Tot [mW/g] 0.94E+0 2.80E+0 4.67E+0 6.54E+0 8.42E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.85 mho/m ε r = 54.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.50 mW/g, SAR (10g): 4.92 mW/g 1900MHz Muscle Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid - date: 10/2/01 SAR Tot [mW/g] 0.92E+0 2.78E+0 4.64E+0 6.49E+0 8.35E+0 PCTEST Engineering Laboratory, Inc.

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22/24 Certification LG ELECTRONICS INC. Dates of Tests: Oct. 2-6, 2001 Communication Terminal Research Lab Test Report S/N: 22/24.211002571.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJDB230 APPLICANT LG ELECTRONICS INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2; EUT Type: Dual-Band Analog/PCS Phone Trade Name/Model: LGE LG-DB230 Tx Frequency Range: 824.04MHz — 848.97MHz (AMPS) /1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz — 893.97MHz (AMPS) / 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.349 W ERP AMPS (25.433 dBm) / 0.272 W EIRP PCS CDMA (24.351 dBm) Max. SAR Measurement: 1.08mW/g AMPS Head SAR; 0.805mW/g AMPS Body SAR; 1.28mW/g PCS Head SAR; 0.425mW/g PCS Body SAR; Emission Designator(s): 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in § 2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 21050912.BEJ FCC Parts 22/24 & 15.247 Certification © 2001 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C:…

Text truncated - open the document above for the full version.
