BEJDM120Dual-Mode Cellular Phone (AMPS/CDMA)

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant: May 07, 2001
Application Purpose: Original Equipment
Date of Application: Mar 14, 2001
Equipment Note: Dual-Mode Cellular Phone (AMPS/CDMA)
Frequency Range: 824.70000000 - 848.31000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

LG-DM120 USER GUIDE (LG-DM120) For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 2.0 cm. from the body. To maintain compliance with FCC RF exposure compliance requirements, use only belt-clips, holsters or similar accessories that maintain a 2.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure compliance requirements, and should be avoided. WARNING! Read this information before using your phone LG-DM120 CHAPTER 1. THE NAME AND FUNCTIONS Hold Icon R Signal Strength (RSSI) In Use No Service Digital Service is available Roaming Short Message (Voice) Battery Level Short Message (Text) Vibrator Enabled D LG CION BANNER Sep/09 [Fri] 12:30pm MENU BOOK Rm LG-DM120 CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1. Connect the terminal to the charged battery or the external power supply. 2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [OK] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [OK] key or 2. press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. 123-456-7890 OPT CLR 123-456-7890 Calling . . . LG-DM120 3. If you are not sure of the phone entry number, select the Soft Key(BOOK) with the Right Mouse Button. 4. Place the cursor on the Phone Book, and press the Soft Key(SEL) with the Left Mouse Button. 5. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key(BOOK) with the Right Mouse Button.. 2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key(SEL) with the Left Mouse Button. 3. If the “Outgoing”, “Incoming”, and “Missed” are indicated on the screen, select the menu requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on the menu requested, and press the Soft Key(SEL) with the Left Mouse Button. 4. The phone number list appears on the screen. Then, search and place the cursor on the phone number or name requested, and press the [OK] key. Correcting Dialing Mistakes 1. Press the Soft Key(CLR) with the Right Mouse Button of the screen to erase the number or character of the last entry. 2. Press the Soft Key(CLR) with the Right Mouse Button for one second, then all the number or LG CION BANNER Sep/09 12:30p m MENU BOOK Rm SEL BACK °„ °Â 1.Call History 2.Phone Book 3.Own Number EDIT FIND °„ °Â PHONEBOOK SRCH [???] ¢Œ 019-111-1111 Enter Number! LG CION BANNER Sep/09 12:30p m MENU BOOK Rm SEL BACK °„ °Â 1.Call History 2.Phone Book 3.Own Number VIEW BACK °„ °Â 01 : 1111111 02 : 2222222 03 : 3333333 04 : 4444444 SAVE BACK TIME Call to 1111111 LG-DM120 character requested will be erased. Receiving Calls 1. Press any key except for the [END/PWR] key to receive a call. Η Press the END Key to end the incoming call 2. When the call completes, press the [END/PWR] key. 3. Or close the flip. Mute 1. Press the Soft Key(MENU) with the Left Mouse Button during the call. Redialing Last Outgoing Number <Method 1> 1. Just press [SEND] key to redial the last outgoing number. Then, the call will be attempted. <Method 2> using the Call History 1. Press the Soft Key(BOOK) with the Right Mouse Button. 2. Place the cursor on the Call history menu on the screen, and press the Soft Key(SEL) with the Left Mouse Button. 3. Then, three menus will appear. - “Outgoing”: Ten last outgoing calls are stored in this menu. - “Incoming”: Ten last incoming calls are stored in this menu. 2. If a popup menu appears on the screen, place the cursor on the Mute menu and press the Soft Key(SEL) with the Left Mouse Button to select the Mute state. (The message”Mute” will be indicated on the screen.) 3. Press the Soft Key(MUNU) with the Left Mouse Button to clear the function. The popup menu will appear. Select the Unmute menu. (The message “Mute” will be disappear on the screen SEL BACK °„ °Â 1.Send Msg 2.Ear…

Text truncated - open the document above for the full version.

Cover Letter(s)

March 06, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJDM120 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 22 Certification of the following Dual-Mode Cellular Phone: FCC ID: BEJDM120 TRADE/MODEL(s): LGE LG-DM120 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) Max. RF Output Power: 0.459 W ERP AMPS (26.617 dBm) / 0.359 W ERP CDMA (25.544 dBm) Max. SAR Measurement: 1.250 mW/g (1g) AMPS Head SAR; 1.180 mW/g (1g) CDMA Head SAR 0.849 mW/g (1g) AMPS Body SAR; 0.770 mW/g (1g) CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGE

External Photos

ID Label/Location Info

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Internal Photos

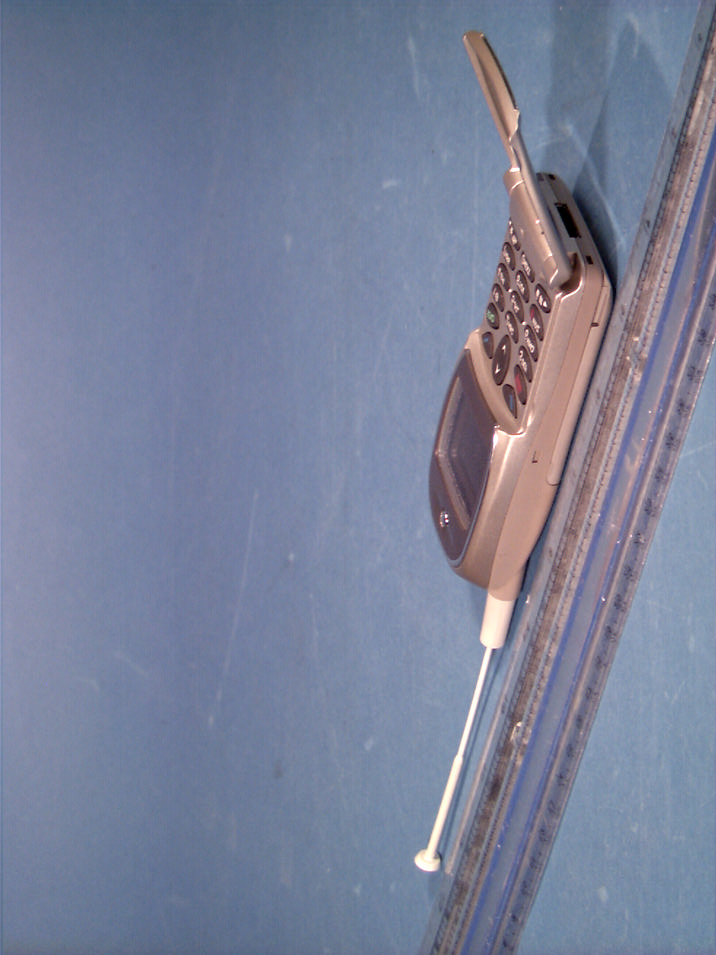

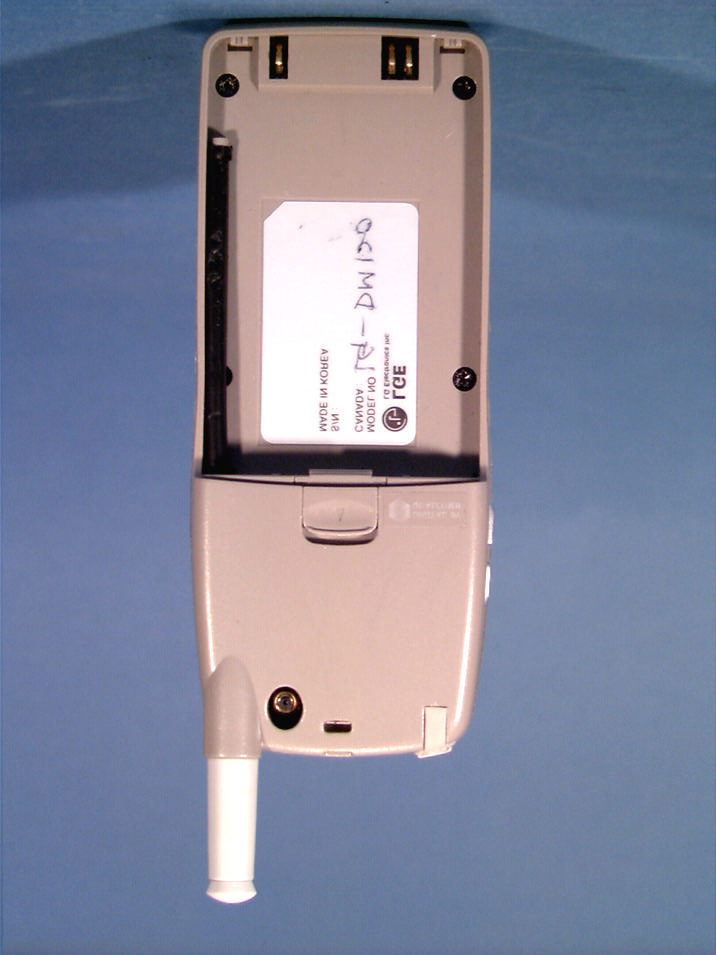

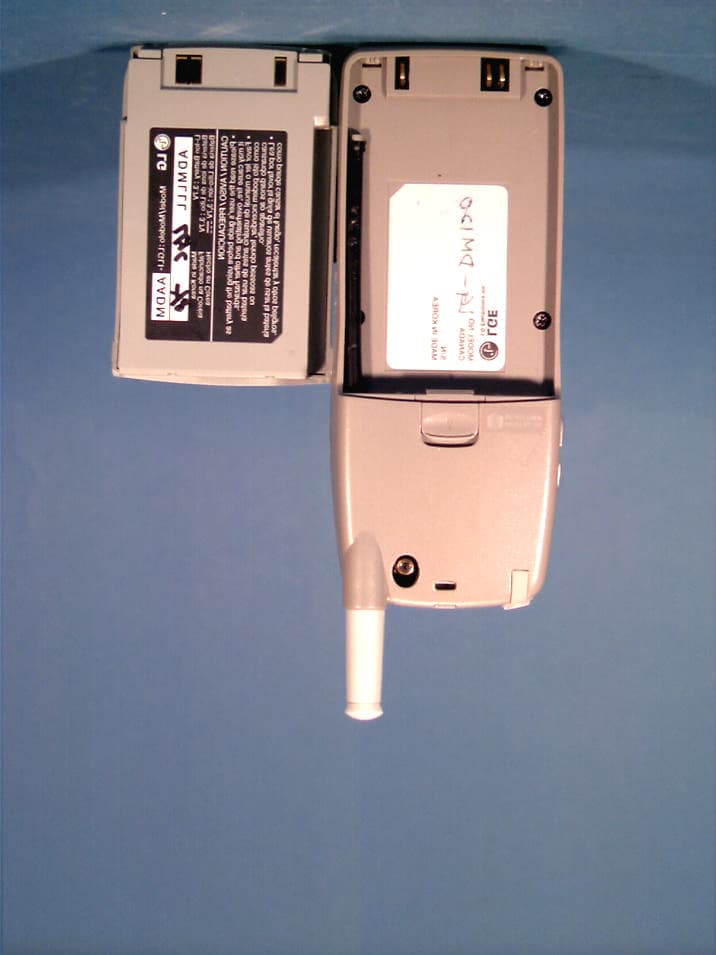

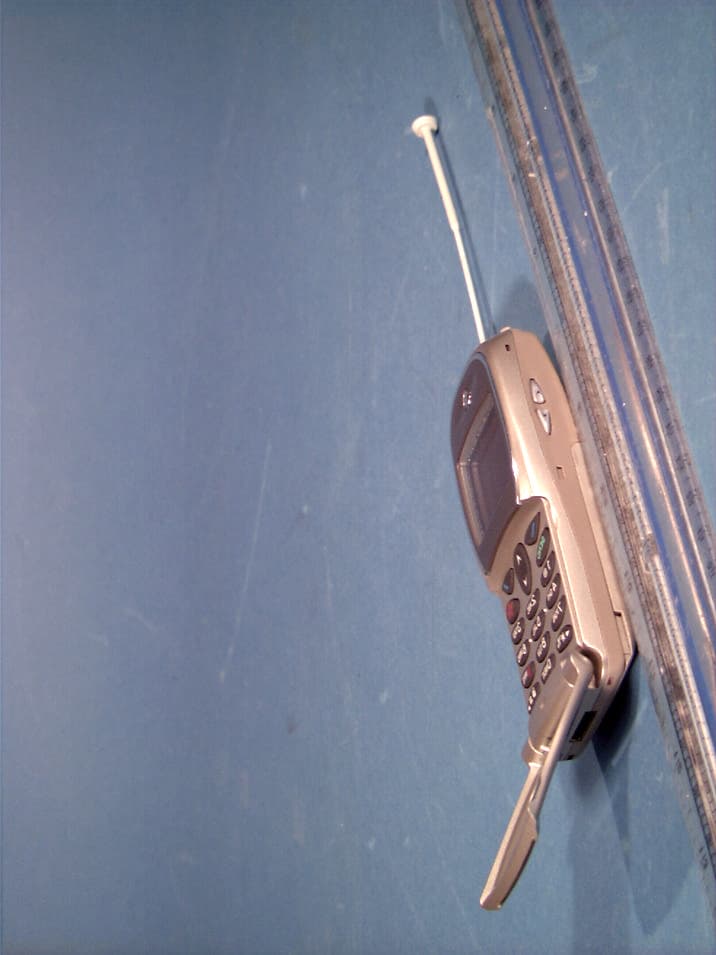

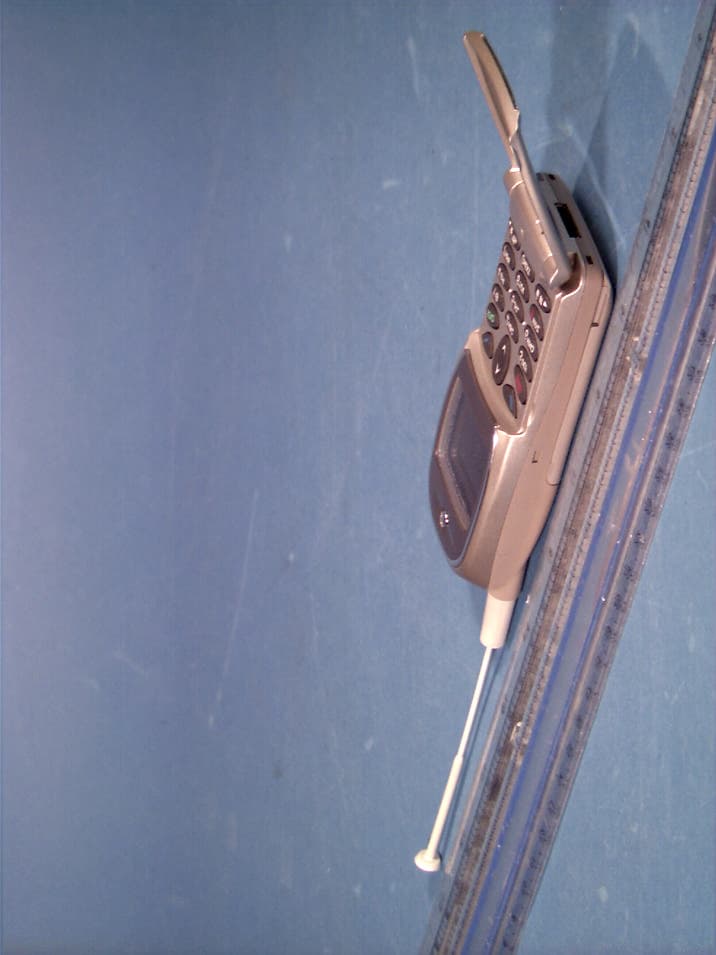

© 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM120 (Model: LG-DM120) NVLAP Lab Code: 100431-0 Dual-Mode Cellular Phone (AMPS/CDMA)

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: March 05-08, 2001 Communication Terminal Research Lab Test Report S/N: SAR.210305118.BEJ 459-9, Kasan-dong, Keumchun-ku Test Site: PCTEST Lab, Columbia MD U.S.A. Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJDM120 APPLICANT LG ELECTRONICS INC. EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. RF Output Power: 0.459W ERP AMPS (26.617 dBm) / 0.359W ERP CDMA (25.544 dBm) Max. SAR Measurement: 1.250 mW/g (1g) AMPS Head SAR; 1.180 mW/g (1g) CDMA Head SAR; 0.849 mW/g (1g) AMPS Body SAR; 0.770 mW/g (1g) CDMA Body SAR; Trade Name/Model(s): LGE LG-DM120 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification Serial Number: n/a (pre-production) FCC Rule Part(s): § 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200131044.FFM SAR Measurement Report FCC Part 22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5 5.3 DATA EXTRAPOLATION 6 6.1 PHANTOM, HOLDER & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN CONFIGURATION 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-17 14.1 SAR TEST EQUIPMENT LIST 18 15.1 CONCLUSION 19 16.1 REFERENCES 20 Test Report S/N: SAR.210305118.BEJ SAR Measurement Report Test Dates: March 05-08, 2001 FCC Part 22 Certification LGE FCC ID: BEJDM120 (Model: LG-DM120) © 2001 PCTEST Lab Dual-Mode Cellular Phone (AMPS/CDMA) 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: 459-9, Kasan-dong, Keumchun-ku Seoul 153-023, Korea Attention: Harris Ahn, Principal Engineer Communication Terminal Research Lab • EUT Type: Dual-Mode Cellular Phone (AMPS/CDMA) • Trade Name: LGE • FCC IDENTIFIER: BEJDM120 • Model: LG-DM120 • S/N: Pre-production • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 869.70 – 848.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Max. SAR Measurement: 1.250 mW/g (1g) AMPS Head SAR; 1.180 mW/g (1g) CDMA Head SAR; 0.849 mW/g (1g) AMPS Body SAR; 0.770 mW/g (1g) CDMA Body SAR • Max. RF Output Power: 0.459W ERP AMPS (26.617 dBm) 0.359W ERP CDMA (25.554 dBm) • Modulation: AMPS / CDMA • Antenna Type: Base Helical Retractable [GALTRONICS Part No.: 02-4128-46-950] • Antenna Dimensions: 10.83 cm. (Length) • Dates of Test(s): March 05-08, 2001 • Place of Test(s): PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210305118.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210305118.BEJ SAR Measurement Report Test Dates: March 05-08, 2001 FCC Part 22 Certification LGE FCC ID: BEJDM120 (Model: LG-DM120) © 2001 PCTEST Lab Dual-Mode Cellular Phone (AMPS/CDMA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by…

Text truncated - open the document above for the full version.

RF Exposure Info

LGE FCC ID: BEJDM120 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.547 mW/g, SAR (10g): 0.380 mW/g LGE Dual-Mode Model: LG-DM120 FM Mode, Ch.0991 (824.04MHz); Flip = open Conducted Power = 26.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 5.37E-2 1.61E-1 2.69E-1 3.76E-1 4.83E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.17 mW/g, SAR (10g): 0.791 mW/g LGE Dual-Mode Model: LG-DM120 FM Mode, Ch.0991 (824.04MHz); Flip = open Conducted Power = 26.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 1.04E-1 3.12E-1 5.20E-1 7.28E-1 9.36E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.748 mW/g, SAR (10g): 0.510 mW/g LGE Dual-Mode Model: LG-DM120 FM Mode, Ch.0383 (836.49MHz); Flip = open Conducted Power = 26.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 7.12E-2 2.14E-1 3.56E-1 4.98E-1 6.41E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.25 mW/g, SAR (10g): 0.861 mW/g LGE Dual-Mode Model: LG-DM120 FM Mode, Ch.0383 (836.49MHz); Flip = open Conducted Power = 26.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 1.23E-1 3.70E-1 6.17E-1 8.64E-1 1.11E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.699 mW/g, SAR (10g): 0.482 mW/g LGE Dual-Mode Model: LG-DM120 FM Mode, Ch.0799 (848.97MHz); Flip = open Conducted Power = 26.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 4.81E-2 1.44E-1 2.40E-1 3.37E-1 4.33E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- FM Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.24 mW/g, SAR (10g): 0.869 mW/g LGE Dual-Mode Model: LG-DM120 FM Mode, Ch.0799 (848.97MHz); Flip = open Conducted Power = 26.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 1.22E-1 3.66E-1 6.10E-1 8.53E-1 1.10E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.528 mW/g, SAR (10g): 0.363 mW/g LGE Dual-Mode Model: LG-DM120 Cellular CDMA Mode, Ch.1013 (824.70MHz); Flip = open Conducted Power = 25.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 5.42E-2 1.63E-1 2.71E-1 3.79E-1 4.88E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- Cellular CDMA Body SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.04 mW/g, SAR (10g): 0.709 mW/g LGE Dual-Mode Model: LG-DM120 Cellular CDMA Mode, Ch.1013 (824.70MHz); Flip = open Conducted Power = 25.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 1.04E-1 3.12E-1 5.20E-1 7.28E-1 9.36E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.741 mW/g, SAR (10g): 0.508 mW/g LGE Dual-Mode Model: LG-DM120 Cellular CDMA Mode, Ch.0363 (835.89MHz); Flip = open Conducted Power = 25.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 7.03E-2 2.11E-1 3.52E-1 4.92E-1 6.33E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.18 mW/g, SAR (10g): 0.836 mW/g LGE Dual-Mode Model: LG-DM120 Cellular CDMA Mode, Ch.0363 (835.89MHz); Flip = open Conducted Power = 25.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 1.04E-1 3.12E-1 5.20E-1 7.28E-1 9.36E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- In; Crest Factor 1.0 SAR (1g): 0.615 mW/g, SAR (10g): 0.436 mW/g LGE Dual-Mode Model: LG-DM120 Cellular CDMA Mode, Ch.0777 (848.31MHz); Flip = open Conducted Power = 25.0dBm Test Date -- 03/05/2001 SAR Tot [mW/g] 6.44E-2 1.93E-1 3.22E-1 4.51E-1 5.80E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID: BEJDM120 -- Cellular CDMA Head SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.08 mW/g, SAR (10g): 0.764 mW/g LGE Dual-Mode Model: LG-DM120 Cellular CDMA Mode, Ch.0777 (848.31MHz); Flip = open Conducted Power = 25.0dBm Test Date -- 03/05/…

Text truncated - open the document above for the full version.

RF Exposure Info

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

RF Exposure Info

835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Brain: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.13 mW/g, SAR (10g): 1.41 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.18E-1 6.53E-1 1.09E+0 1.52E+0 1.96E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 02/01 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.14 mW/g, SAR (10g): 1.41 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.18E-1 6.55E-1 1.09E+0 1.53E+0 1.97E+0 PCTEST Engineering Laboratory, Inc.

Test Report

Text truncated - open the document above for the full version.
