BEJDM160Dual-Mode Cellular Phone (AMPS/CDMA)

7. USER GUIDE CHAPTER 1. THE NAME AND FUNCTIONS Hold Icon LG CION BANNER Sep/09 [Fri] 12:30pm MENU BOOK Rm R Signal Strength (RSSI) In Use No Service Digital Service is available Roaming Short Message (Voice) Battery Level Short Message (Text) Vibrator Enabled D For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with of the phone kept 1.0 cm. from the body. To maintain compliance with FCC RF exposure guidelines, use only belt-clips, holsters or similar accessories that maintain a 1.0 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure guidelines, and should be avoided. WARNING! Read this information before using your phone CHAPTER 2. BASIC FUNCTIONS Turning the Phone On and Off <Turning the Terminal On> 1. Connect the terminal to the charged battery or the external power supply. 2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side of the terminal. < Turning the Terminal Off > 1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing the key. 2. If an antenna is stretched, push it in for safety. Making a Call <Method1> Entering the Entire Phone Number 1. If the terminal is turned off, turn it on. 2. Enter the phone number. (Enter the area code, if necessary.) 3. Press the [OK] key. - If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the call again. - If the call is not connected, “Call Failed” signal will be indicated on the LCD. 4. Press the [END] key. <Method2> Using Phone Book Entry 1. Enter the phone entry number, and press the [OK] key or 2. press the related phone entry number for some time. Then, the call will be attempted. e.g.) Press the [2] key for some time, then call will be connected to the phone number stored in the Entry #2. 123-456-7890 OPT CLR 123-456-7890 Calling . . . 3. If you are not sure of the phone entry number, select the Soft Key(BOOK) with the Right Mouse Button. 4. Place the cursor on the Phone Book, and press the Soft Key(SEL) with the Left Mouse Button. 5. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call to the phone number stored in it. <Method3> Using the Recent Call History 1. Select the Soft Key(BOOK) with the Right Mouse Button. 2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key(SEL) with the Left Mouse Button. 3. If the “Outgoing”, “Incoming”, and “Missed” are indicated on the screen, select the menu requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on the menu requested, and press the Soft Key(SEL) with the Left Mouse Button. 4. The phone number list appears on the screen. Then, search and place the cursor on the phone number or name requested, and press the [OK] key. Correcting Dialing Mistakes 1. Press the Soft Key(CLR) with the Right Mouse Button of the screen to erase the number or character of the last entry. 2. Press the Soft Key(CLR) with the Right Mouse Button for one second, then all the number or LG CION BANNER Sep/09 12:30p m MENUBOOK Rm SEL BACK °„ °Â 1.Call History 2.Phone Book 3.Alarm 4.Own Number Input Entry #: ___ ALL BACK °„ °Â LG CION BANNER Sep/09 12:30p m MENU BOOK Rm SEL BACK °„ °Â 1.Call History 2.Phone Book 3.Alarm 4.Own Number VIEW BACK °„ °Â 01 : 1111111 02 : 2222222 03 : 3333333 04 : 4444444 SAVE BACK TIME Call to 1111111 character requested will be erased. Receiving Calls 1. Press any key except for the [END/PWR] key to receive a call. Press the END Key to end the incoming call 2. When the call completes, press the [END/PWR] key. Mute 1. Press the Soft Key(MENU) with the Left Mouse Button during the call. Key Beep 1. Press the Soft Key(MENU) with the Left Mouse Button during the call. 2. If a popup menu appears on the screen, place the cursor Key Beep and press the Soft Key(SEL) with the Left Mouse Button to select the Key Beep State. 3. Set the tone length in two levels (Normal, Long) with the direction keys. 2. If a popup menu appears on the screen, place the cursor on the Mute menu and press the Soft Key(SEL) with the Left Mouse Button to select the Mute state. (The message”Mute” will be indicated on the screen.) 3. Press the Soft Key(MENU) with the Left Mouse Button to clear the function. The popup menu will appear. Select the Unmute menu. (The message “Mute” will be disappeared on the screen.) SEL BACK °„ °Â 1.Send Msg 2.Ear Volume 3.Mute 4.Memo MENU BOOK MUTE : 1 :20 SEL BACK °„ °Â 1.Send Msg 2.Ear Volume 3.Mute 4.Memo SEL BACK °„ °Â 4.Key Beep OK BACK °„ °Â Key Beep Long Normal ¢∫ Redialing Last Outgoing Number <Method 1> 1. Just press [SEND] key to redial the last outgoing number. Then, the call will be attempted. <Method 2> using the …

Text truncated - open the document above for the full version.

@ LG Electronics Inc.& September 10, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, General Manager of New York Office LG Electronics Inc. LGE LG Electronics Inc.& 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] Septmber 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: BEJDM160 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:BEJDM160, using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Electronics Inc. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJDM160) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE September 16, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJDM160 Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652. Sincerely, E.S. Park Research Engineer CDMA Handset Lab. LG Electronics Inc. 459-9 Kasan-dong Kumchun-gu Seoul 153-023 Korea Tel : 82-2-850-3861 Fax : 82-2-850-3856 E_mail : [email protected] LGE LG Electronics Inc.

September 12. 2001 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc. FCC ID: BEJDM160 Dual -Mode Cellular Phone (CDMA & AMPS) Part 22 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3855 http://[email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

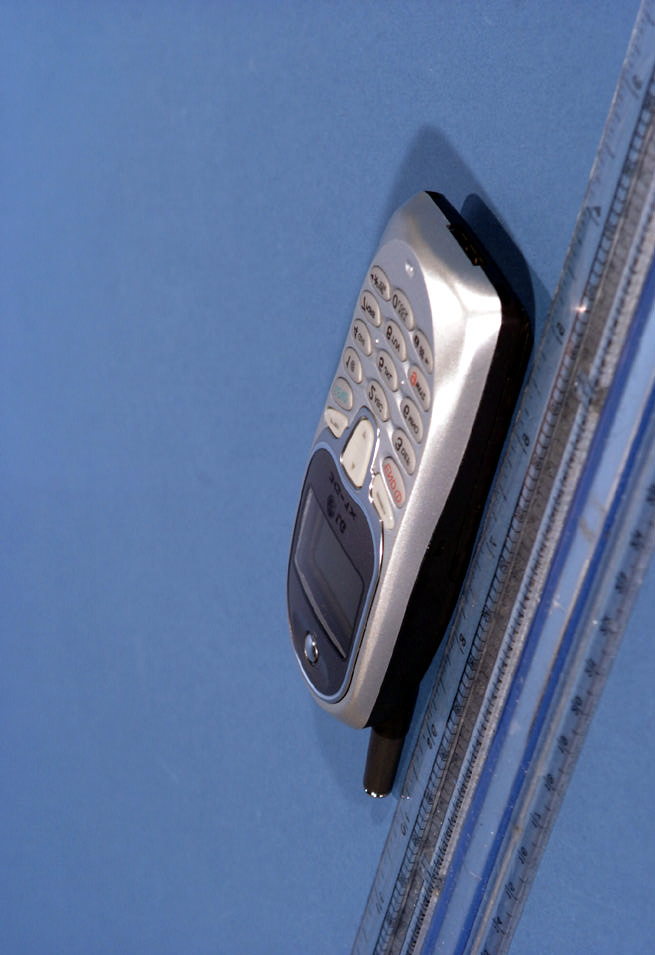

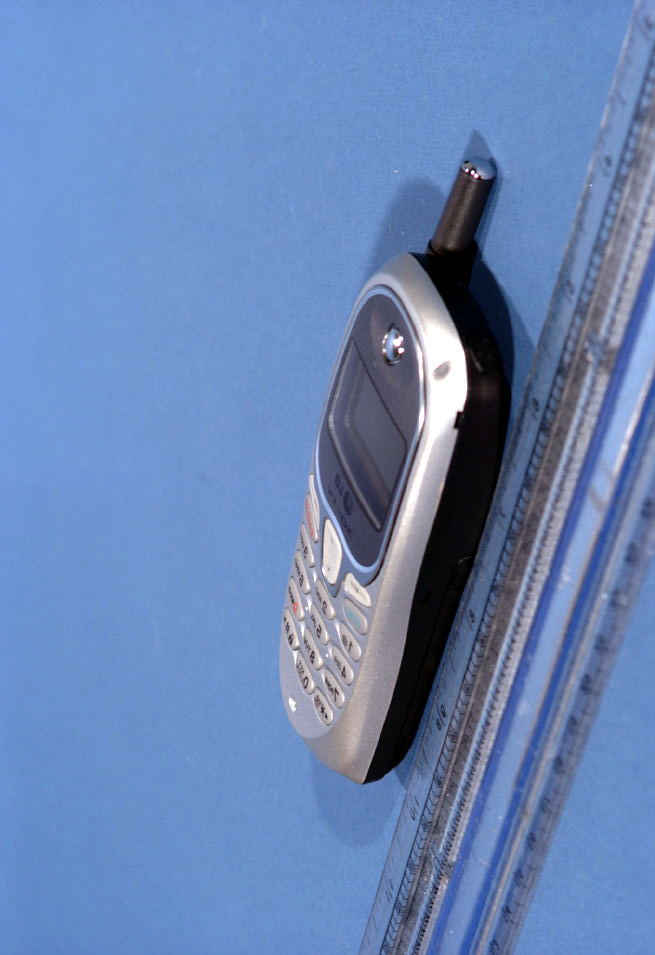

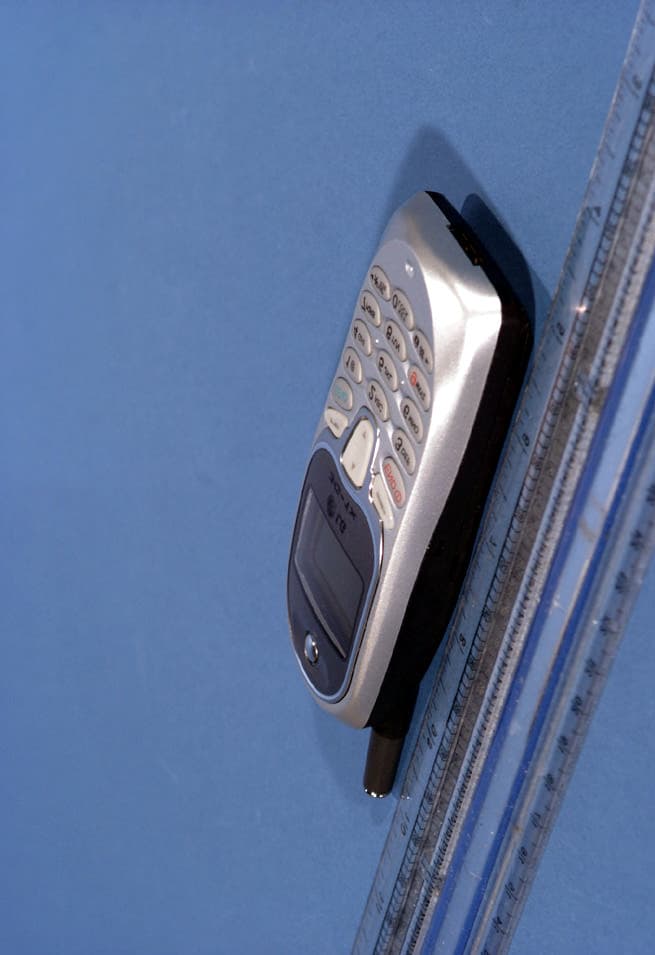

September 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJDM160 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 22 Certification of the following Dual-Mode Cellular Phone: FCC ID: BEJDM160 TRADE/MODEL(s): LGE LG-DM160 EUT TYPE: Dual-Mode Cellular Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) Max. RF Output Power: 0.467 W ERP AMPS (26.691 dBm) / 0.367 W ERP CDMA (25.636 dBm) Max. SAR Measurement: 1.260 mW/g (1g) AMPS Head SAR; 1.130 mW/g (1g) CDMA Head SAR 1.240 mW/g (1g) AMPS Body SAR; 0.843 mW/g (1g) CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer Communication Terminal Research Lab, LGE

© 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. LG Electronics Inc. LGE Model No. : LG-DM160 FCC ID : BEJDM160 S/N : Made in Korea

© 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA)

LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.09 mW/g, SAR (10g): 0.739 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0991 [824.04MHz]; Standard Battery Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 09/18/2001 SAR Tot [mW/g] 5.04E-2 1.51E-1 2.52E-1 3.53E-1 4.54E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.26 mW/g, SAR (10g): 0.881 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0383 [836.49MHz]; Standard Battery Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 09/18/2001 SAR Tot [mW/g] 1.14E-1 3.41E-1 5.69E-1 7.97E-1 1.02E+0 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.12 mW/g, SAR (10g): 0.778 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0799 [848.97MHz]; Standard Battery Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch position Test Date -- 09/18/2001 SAR Tot [mW/g] 9.78E-2 2.93E-1 4.89E-1 6.85E-1 8.80E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.13 mW/g, SAR (10g): 0.670 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0991 [824.04MHz]; Standard Battery Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt position Test Date -- 09/18/2001 SAR Tot [mW/g] 5.65E-2 1.70E-1 2.83E-1 3.96E-1 5.09E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.23 mW/g, SAR (10g): 0.727 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0383 [836.49MHz]; Standard Battery Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt position Test Date -- 09/18/2001 SAR Tot [mW/g] 9.02E-2 2.71E-1 4.51E-1 6.31E-1 8.12E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Left Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.19 mW/g, SAR (10g): 0.690 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0799 [848.97MHz]; Standard Battery Conducted Power = 26.0dBm; Left Head Phantom, Ear/15degree Tilt position Test Date -- 09/18/2001 SAR Tot [mW/g] 8.98E-2 2.69E-1 4.49E-1 6.29E-1 8.08E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.08 mW/g, SAR (10g): 0.753 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0991 [824.04MHz]; Standard Battery Conducted Power = 26.0dBm; Right Head Phantom, Cheek/Touch position Test Date -- 09/18/2001 SAR Tot [mW/g] 9.12E-2 2.74E-1 4.56E-1 6.38E-1 8.21E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.13 mW/g, SAR (10g): 0.785 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0383 [836.49MHz]; Standard Battery Conducted Power = 26.0dBm; Right Head Phantom, Cheek/Touch position Test Date -- 09/18/2001 SAR Tot [mW/g] 1.05E-1 3.14E-1 5.24E-1 7.34E-1 9.43E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.883 mW/g, SAR (10g): 0.592 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0799 [848.97MHz]; Standard Battery Conducted Power = 26.0dBm; Right Head Phantom, Cheek/Touch position Test Date -- 09/18/2001 SAR Tot [mW/g] 7.26E-2 2.18E-1 3.63E-1 5.08E-1 6.53E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.912 mW/g, SAR (10g): 0.579 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0991 [824.04MHz]; Standard Battery Conducted Power = 26.0dBm; Right Head Phantom, Ear/15degree Tilt position Test Date -- 09/18/2001 SAR Tot [mW/g] 9.25E-2 2.78E-1 4.63E-1 6.48E-1 8.33E-1 PCTEST Engineering Laboratory, Inc. LGE FCC ID:BEJDM160 -- FM HEAD SAR Generic Twin Phantom; Right Hand Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.911 mW/g, SAR (10g): 0.580 mW/g LGE DualMode Phone Model:LG-DM160 FM Mode, Ch.0383 [836.49MHz]; Standard Battery Conducted Power = 26.0dBm; Right Head Phantom, Ear/15degree Tilt position Test Date -- 09/18/2001 SAR Tot […

Text truncated - open the document above for the full version.

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: September 18-20, 2001 Communication Terminal Research Lab Test Report S/N: SAR.210918544.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Haris Ahn, Principal Engineer FCC ID BEJDM160 APPLICANT LG ELECTRONICS INC. EUT Type: Dual-Mode Analog/CDMA Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.467 W ERP AMPS (26.691 dBm) / 0.367 W ERP CDMA (25.636 dBm) Max. SAR Measurement: 1.260mW/g AMPS Head SAR; 1.240mW/g AMPS Body SAR 1.130mW/g CDMA Head SAR; 0.843mW/g CDMA Body SAR Trade Name/Model(s): LG-DM160 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C [July 2001] Application Type: Certification Antenna Manufacturer: E.M.W. Antenna Co., Ltd. Model No.: LG-DM160 Antenna Dimensions: Length = 2.3 cm. [Helical] Battery Specifications: Standard Battery -- LG Model: LGLi-AARM [ARMLLL 01618]; 3.7V Li-ion This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528 (Draft Aug.2000). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210918544.BEJ SAR Measurement Report FCC Part 24/22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 HEAD SAR TEST POSITIONS OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-20 14.1 SAR TEST EQUIPMENT LIST 21 15.1 CONCLUSION 22 16.1 REFERENCES 23 Test Report S/N: SAR.210918544.BEJ SAR Measurement Report Test Date(s): September 18-21, 2001 FCC Part 22 Certification © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) 1 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: LG ELECTRONICS INC. Address: Communication Terminal Research Lab 459-9, Kasan-dong, Keumchun-Ku Attention: Seoul 153-023, Korea Harris Ahn, Principal Engineer • EUT Type: Dual-Mode Analog/PCS Phone • Trade Name / Model: LG-DM160 • FCC IDENTIFIER: BEJDM160 • Tx Frequency: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) • Rx Frequency: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) • Modulation(s): AMPS / CDMA • Max. RF Output Power: 0.467 W ERP - AMPS (26.691 dBm) 0.367 W ERP - CDMA (25.636 dBm) • Max SAR Measurement: 1.260mW/g AMPS Head SAR; 1.240mW/g AMPS Body SAR 1.130mW/g CDMA Head SAR; 0.843mW/g CDMA Body SAR • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): §2.1093, OET Bulletin 65, Supplement C (July 2001) • Application Type: Certification • Dates of Tests: September 18-20, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210918544.BEJ 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210918544.BEJ SAR Measurement Report Test Date(s): September 18-21, 2001 FCC Part 22 Certification © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) 2 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protecti…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA) © 2001 PCTEST Lab LGE FCC ID: BEJDM160 (Model: LG-DM160) NVLAP Lab Code: 100431-0 Dual-Mode Analog/CDMA Phone (AMPS/CDMA)

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 …
