DWD-300 User Manual Rev 1.0 US English Español Français 1 ENG All rights reserved. LG Electronics inc., 2012 Note: For the best performance and to prevent any damage to, or misuse of the DWD-300, please read all of the information care- fully before use. WARNING : This product contains chemicals known to the State of Califor- nia to cause cancer and birth defects or reproductive harm. Wash hands after handling. 2 ENG LG DWD-300 HDMI CableTA Combo (Micro USB Cable + TA Head) User ManualWarranty Card Introduction The LG DWD-300 is a light weight wireless display Adap- tor that uses Wi-Fi technology. This product can be used as a wireless AV accessory for devices that support the Miracast protocol. Included in the Package DWD-300 U ser Manual Rev 1.0 US English Espa ñol F rançais 3 ENG Description of Parts LED Indicator Pairing Button Front Power Supply Port HDMI Port Back 4 ENG How to Use Installation Power Supply Port (Micro USB Cable (or Travel Adaptor)) HDMI Port USB Port TV or Monitor (or Travel Adator) • Attach the Micro USB cable to the power supply port on the DWD-300. • Attach the opposite end of the Micro USB cable to the supplied TA (Travel Adaptor) Head or a USB port on a laptop or PC. • Attach one end of the supplied HDMI cable to the HDMI port on the DWD-300 and the other end to a dis- play device (TV or monitor). 5 ENG Connection • When the DWD-300 has power, a white LED indicator will turn on. • While booting, the LG logo will appear on the screen of the TV or monitor. • DWD-300 must be connected to a WiFi Direct capable device in order to function. • Once initial booting is complete, “Ready to Connect” will appear on the screen of the TV or monitor indicat- ing DWD-300 has automatically entered into connect- able mode. NOTE: Once DWD-300 is in connectable mode, by pressing the Pairing Button, DWD-300 will exit the connectable mode and go to idle mode. While in idle mode, DWD-300 will re-enter into connectable mode for two(2) minutes by pressing the Pairing Button again. 6 ENG • Turn on WiFi Direct from the source device. (please note, this may disable all other WiFi settings) • Select ‘Miracast’ from the source device settings (consult your owner’s manual for instructions) • Press the Search soft key to begin a search of avail- able devices. • Select “LG DWD-300” from the list of devices to con- nect it with your source device. • “Connecting” animated picture will appear to show ongoing connection process. • Once the connection is successful, you will see the screen of the Miracast capable device on your TV or monitor. • If the connection is unsuccessful, the white LED indi- cator will flicker. 7 ENG Troubleshooting IssuePossible problemResolution DWD-300 does not turn on. Check whether the Micro USB cable is properly attached. Attach the Micro USB cable for power supply. Unable to connect the DWD-300 with the Miracast capable source device - Check and make sure the DWD- 300 is placed in connectable mode. - Check and make sure WiFi Direct is enabled on the source device. - With the power ON, press the Push Button two times (First one makes DWD-300 idle mode, and second one for making connectable mode) or try power cycling DWD-300. - Turn on WiFi Direct. An image does not appear or there is no vid- eo playback on the TV screen or monitor. Check whether the HDMI cable is at- tached correctly. Dettach and reat- tach the HDMI cable to the HDMI port on the DWD-300 and the display device 8 ENG Specification ItemDescription Wi-Fi specification802.11b/g/n (2.4GHz) Power SupplyDC 5V / 450mA Operation temperature 14°F ~ 140°F (-10°C ~ 60°C) Dimension / weight 54.6mm(W) X 62.1mm(L) X 11mm(H) / 29.3g Precautions • Do not drop the device. • Do not modify, repair, or disassemble. • Do not expose directly to water, alcohol, benzene, etc. for cleaning. • Do not expose directly to flammables. • Do not place or keep the device near flammables. • Keep the device away from humidity and dust. • Do not place heavy objects on the device. • Only use the headset with a qualified and standard microUSB cable and HDMI cable, otherwise it may be damaged. 9 ENG • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Confirmation FCC NOTICE TO USERS: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: To comply with the FCC RF exposure compliance require- ments, no change to the antenna or the device is permit- ted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. 10 ENG CE NOTICE TO USERS: Hereby, LG Electronics Inc. declares that the DWD-300 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. IC NOTICE TO USERS : DWD-300 complies with Industry Canada license-ex- empt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device. FCC ID : BEJDWD300 IC : 2703C-DWD300 12 ENG 3. Conditions • The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying the date of purchase and serial number, is presented with the product to be repaired or replaced. LG Electronics reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the product from the dealer. • If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) da…

Text truncated - open the document above for the full version.

205-11, Anyang7-Dong, Manan-Gu, Anyang, Gyeonggi-Do, KOREA TEL : 031)448-8172 / FAX : 031)448-4194 ANTENNA SPECIFICATIONS S I G N Drafting Check Approval DH.KIM CS.MON BH.JO SH.LEE 12/09/13 12/09/13 12/09/13 12/09/13 3D ANT.Size : 17.55 x 6.95 X 4.25 CUSTOMER BLUECOM MODEL NAME DWD-300 PART NAME B.T ANTENNA BLUECOM CODE - ARRO CODE IWD-0458 Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 1/12 - LIST - 1. Application LIST 2. Technical Properties 2.1 Electrical Properties 2.2 Mechanical Properties 3. TEST CONDITION 3.1 Examination Environmental Condition 3.2 Test equipment 4. Electrical requirements 4.1 VSWR (voltage standing wave ratio) 4.3 Radiation pattern 4.3 Antenna gain 5. Structural requirement pacts 5.1 Plating thickness test 6. Environmental requirement 6.1 Temperature Cycling 6.2 Temperature Impact Test 7. Other Documents 7.1 Packing Conditions 7.2 Mechanical Specifications 7.3 Electrical requirements data 7.3.1 VSWR &Smith chart 7.3.2 Radiation pattern & Antenna gain 7.4 Manufacture Process chart 7.5 Plating Specification by component 7.6 Model Partlist Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 2/12 1. Approval LIST Approval LIST NO DATE Before a change After a change Reason REV 1 12.09.12 New Revision 1.0 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 ※ ※ A change of REV can be changed about mass producing antennas after the approval. Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 3/12 2. Technical Properties 2.1 Electrical Properties FREQUENCY BW 2,400 ~ 2,484 MHz Min VSWR Less then 2.5 :1 Max gain(dBi) 2.53(3D test) Input IMPEDANCE 50Ω POLARIZATION VERTICAL RADIATION PATTERN OMNI-DIRECTIONAL 2.2 Mechanical Properties CONNECTOR TYPE N/A SIZE Reference Drawings(7.2 Reference) Operating temperature -20 °C ∼ +70 °C Weight 0.02g Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 4/12 3. TEST CONDITION 3.1 Examination Environmental Condition The antenna is placed at temperature 25°C ± 5°C and humidity 25%~80%(Under 55% RH) for executing all testes (Electrical, Mechanical and Environmental Tests). 3.2 TEST Equipments We need equipments for the antenna measurement Equipments Purpose Remarks Network analyzer Measurement for VSWR & IMPEDANCE Standard(Horn)antenna BT FreQuency spec Anechoic Chamber Measurement for antenna gain cable, connector Projector and Vernier calipers Measurement For Dimension Measurement tester for Plating thickness Measurement for Plating thickness Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 5/12 4. ELETRICAL PROPERTIES 4.1 V S W R Antenna must be satisfied with electrical specifications by indicated VSWR requirements. FREQUENCY BW 2,400 ~ 2,484 MHz MIN VSWR 2.5 :1 4.2 Radiation Pattern This radiation of antenna pattern must have Omni-directional Patterns Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 6/12 4.3 Antenna gain Measurement Method : As shown in fig , setting the horn antenna as standard antenna, measure the gain by [dBi]. FREQUENCY BW 2,400 ~ 2,484 MHz MAX gain(dBi) 2.53 (3D test) Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 7/12 5. Structural requirement pacts 5.1 Plating thickness test Shall meet the specified plating thickness. 6. . Environmental requirement 6.1 Temperature Cycling - The antenna is placed in a climate chamber. The temperature is cycled as follows: - The temperature is kept constant at -40C for 1 hour, kept constant at +25C for 1/2 hour, kept constant at +85C for 1 hour, kept at +25C for 1/2 hour. This procedure is repeated 5 times. The procedures are executed based on KSC-0222. Ni Min : 1 um Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 8/12 6.2 Temperature Impact Test - The antenna is placed in a climate chamber. The temperature is cycled as follows: - The temperature is kept constant at -40°C for 1/2 hour, kept constant at +85°C for 1/2 hour. 4 hour Leaving. - This procedure is repeated 30 times . The procedures are executed based on KSC-0222. - It not must be above in appearance and function. Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 9/12 7. Other Documents 7.1 Packing Conditions Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 10/12 7.2 Mechanical Specifications Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 11/12 7.3 Electrical characteristic data 7.3.1 VSWR & SMITH chart 7.3.2 Passive gain Antenna Specifications DATE 2012. 09. 13 REV. 1.0 MODEL DWD-300 TYPE INTENNA PAGE 12/12 7.4 Manufacture Process chart *. Factory : Anyang Factory(ARRO.co.Ltd) 7.5 Plating Specification by component Model name Name material Plating Remarks DWD-300 STEEL WIRE Phosphr BronzeNI : Min 1um - 7.6 PART_LIST DWD-300 PART LIST NO Part name Spec Maker Code Remarks 1 STEEL WIRE Phosphr Bronze Shinhwa IWD-0458 Ni Plating

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: September 26, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: September 26, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of Digital EMC Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEDWD300 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of Digital EMC Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA. Sincerely, Jacob Cho Director, Standards & Compliance

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: September 26, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJDWD300 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram Block Diagram_BEJDWD300.pdf 2 Schematics Schematic_BEJDWD300.pdf 3 Part Lists Part List_BEJDWD300.pdf 4 Operational Description Operational Description_BEJDWD300.pdf SHORT-TERM 4 External Photos Ext Photo_BEJDWD300.pdf 5 Internal Photos Int Photo_BEJDWD300.pdf 6 Test-Setup Photos Test Photo_BEJDWD300.pdf 7 User Manual User Manual _BEJDWD300.pdf Note: The pictures on the label location do not require any long term or short term confidentiality. The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jacob Cho Director, Standards & Compliance

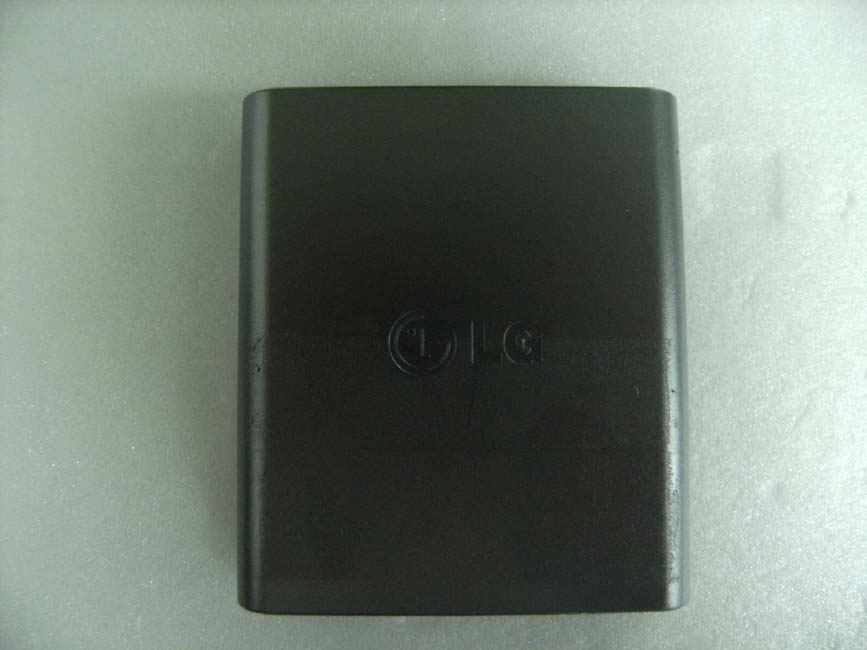

FCCID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. View 1 FCCID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. View 2 FCCID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. View 3

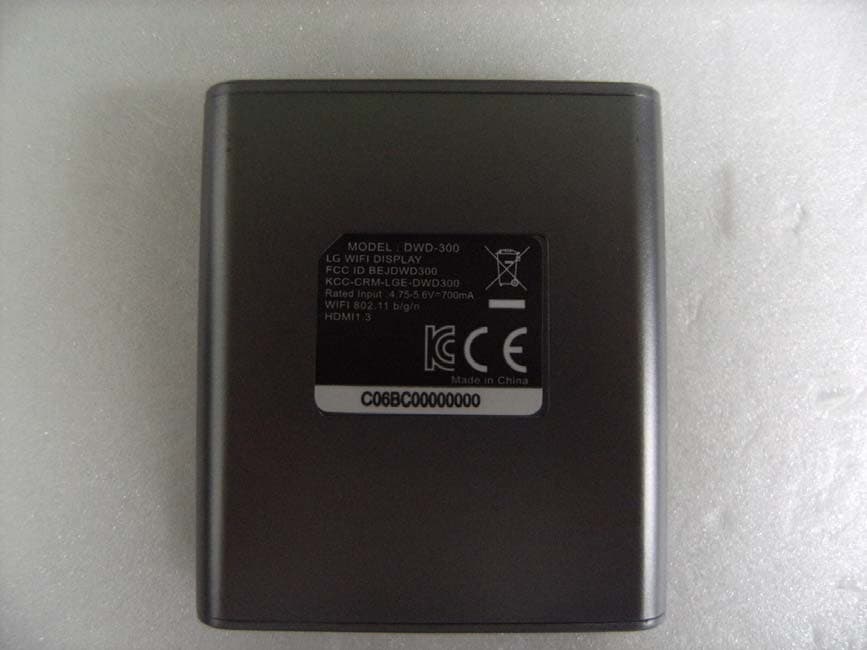

FCC ID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. Page1 / 3 View 1 FCCID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. Page2 / 3 View 2 FCCID: BEJDWD300 Copyright Ⓒ 2012, Digital EMC Co., Ltd. Page3 / 3 View 3

-~ - - The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: ▪=+- =+ = - ▪S=- =X = The power desity at 20cm does not exceed the 1.0mW/cm 2 . G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 89.13 2.113 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) 0.03747 mW/cm 2 P = Power input to the antenna(mW) P = Power input to the antenna(dBm) 22.75dBmG = Power gain of the antenna(dBi) Power density at the specific separation P G / ( 4 R 2 π ) Note The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 19.50dBm3.25dBi Maximum RF output power :19.5dBm Maximum antenna peak gain :3.25dBi - FCCID: BEJDWD300 MPE Calculations(WLAN: 802.11b) Frequency range :2412MHz2462MHz TRF-RF-206(00)100216 -~ - - The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: ▪=+- =+ = - ▪S=- =X = The power desity at 20cm does not exceed the 1.0mW/cm 2 . G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 39.08 2.113 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) 0.01643 mW/cm 2 P = Power input to the antenna(mW) P = Power input to the antenna(dBm) 19.17dBmG = Power gain of the antenna(dBi) Power density at the specific separation P G / ( 4 R 2 π ) Note The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 15.92dBm3.25dBi Maximum RF output power :15.92dBm Maximum antenna peak gain :3.25dBi - FCCID: BEJDWD300 MPE Calculations(WLAN: 802.11g) Frequency range :2412MHz2462MHz TRF-RF-206(00)100216 -~ - - The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: ▪=+- =+ = - ▪S=- =X = The power desity at 20cm does not exceed the 1.0mW/cm 2 . G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 21.93 2.113 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) 0.00922 mW/cm 2 P = Power input to the antenna(mW) P = Power input to the antenna(dBm) 16.66dBmG = Power gain of the antenna(dBi) Power density at the specific separation P G / ( 4 R 2 π ) Note The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. EIRPPGNote 13.41dBm3.25dBi Maximum RF output power :13.41dBm Maximum antenna peak gain :3.25dBi - FCCID: BEJDWD300 MPE Calculations(WLAN: 802.11n HT20) Frequency range :2412MHz2462MHz TRF-RF-206(00)100216

DEMC1209-01823 FCCID: BEJDWD300 DEMC1208-01489 Report No.: DRTFCC1209-0547 TRF-RF-213(01)120309 Page 2 / 64 Copyright ○ C 2012, Digital EMC Co., Ltd. Table of Contents 1. GENERAL INFORMATION...................................................................................................... 3 2. EUT DESCRIPTION ................................................................................................................ 3 3. SUMMARY OF TESTS ............................................................................................................ 4 4. TEST METHODOLOGY .......................................................................................................... 5 4.1 EUT CONFIGURATION ..................................................................................................... 5 4.2 EUT EXERCISE ................................................................................................................. 5 4.3 GENERAL TEST PROCEDURES ..................................................................................... 5 4.4 DESCRIPTION OF TEST MODES .................................................................................... 5 5. INSTRUMENT CALIBRATION ................................................................................................ 6 6. FACILITIES AND ACCREDITATIONS .................................................................................... 6 6.1 FACILITIES ........................................................................................................................ 6 6.2 EQUIPMENT ...................................................................................................................... 6 7. ANTENNA REQUIREMENTS .................................................................................................. 6 8. TEST RESULT ......................................................................................................................... 7 8.1 6dB Bandwidth ................................................................................................................. 7 8.2 Maximum Peak Conducted Output Power ................................................................... 14 8.3 Maximum Power Spectral Density ................................................................................ 22 8.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions ........... 29 8.5 Radiated Spurious Emissions ....................................................................................... 45 8.6 Power-line Conducted Emissions ................................................................................ 50 8.7 Occupied Bandwidth ...................................................................................................... 57 9. LIST OF TEST EQUIPMENT ................................................................................................. 64 DEMC1209-01823 FCCID: BEJDWD300 DEMC1208-01489 Report No.: DRTFCC1209-0547 TRF-RF-213(01)120309 Page 3 / 64 Copyright ○ C 2012, Digital EMC Co., Ltd. 1. GENERAL INFORMATION Applicant : LG Electronics USA. Address : 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States FCC ID : BEJDWD300 EUT : LG Miracast Dongle Model : DWD-300 Additional Model(s) : N/A Data of Test : 2012-09-17 ~ 2012-09-21 Contact person : Jacob Cho 2. EUT DESCRIPTION Product LG Miracast Dongle Model Name DWD-300 Power Supply DC 5 V Frequency Range 2.4GHz Band ▪ 802.11b/g/n(20MHz): 2412 ~ 2462 MHz Max. RF Output Power 2.4GHz Band ▪ 802.11b: 19.50 dBm ▪ 802.11g: 15.92 dBm ▪ 802.11n (HT20): 13.41 dBm Modulation Type 802.11b: DSSS/CCK 802.11g/n: OFDM Antenna Specification Internal Antenna (1TX 1RX) ▪ 2.4GHz Band Max. peak gain : 3.25 dBi DEMC1209-01823 FCCID: BEJDWD300 DEMC1208-01489 Report No.: DRTFCC1209-0547 TRF-RF-213(01)120309 Page 4 / 64 Copyright ○ C 2012, Digital EMC Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(c) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(d) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen Issue 3 Occupied Bandwidth (99%) RSS-Gen(4.6.1) C 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) < FCC 15.209 limits Radiated C N ote2 15.207 RSS-Gen [7.2.4] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 RSS-Gen [7.1.2] Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. DEMC1209-01823 FCCID: BEJDWD300 DEMC1208-01489 Report No.: DRTFCC1209-0547 TRF-RF-213(01)120309 Page 5 / 64 Copyright ○ C 2012, Digital EMC Co., Ltd. 4. TEST METHODOLOGY The measurement procedure described in the American National Standard for Methods of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz(ANSI C63.4- 2003) and KDB558074 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4. (Version :2003) Conducted emissions from the EUT measured in the frequency…
