BEJE1951TZLCD Monitor

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Dec 26, 2011
Application Purpose: Original Equipment
Date of Application: Dec 25, 2011
Equipment Note: LCD Monitor
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

E1951TZ Block Diagram LED PANEL (18.5”) F/B 19V From Adapter LVDS V_LED 24C02 From Adapter LED B/LLED B/L NT68652U DVIDVI- -D D DVI IIC 1919- -to to- -5V 5V DC/DCDC/DC TT- -Con 5V Con 5V LED driver NT68652U (Novatek) Embedded LED Driver RGBRGB R/G/B/H/V RGB IIC 1Ch. LDO1Ch. LDO Core 1.2VCore 1.2V SPI Data/ LED System 3.3VSystem 3.3V SERIALSERIAL FlashFlash Data/ CLK Key1/Key2 (Blue) 6 K eys : P o w e r / MEN U/ D U AL CrystalCrystal 14.318MHz 6eys oe/ U/U /AUTO/INPUT/EXIT

Cover Letter(s)

AHTHORIZATION LETTER LG Electronics USA FCC ID: BEJE1951TZ Date: Dec 22, 2011 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Yours Sincerely, Christopher/ Sr. Manager LG Electronics USA

Cover Letter(s)

LG Electronics USA Date: Dec 22, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: BEJE1951TZ Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Christopher/ Sr. Manager LG Electronics USA

External Photos

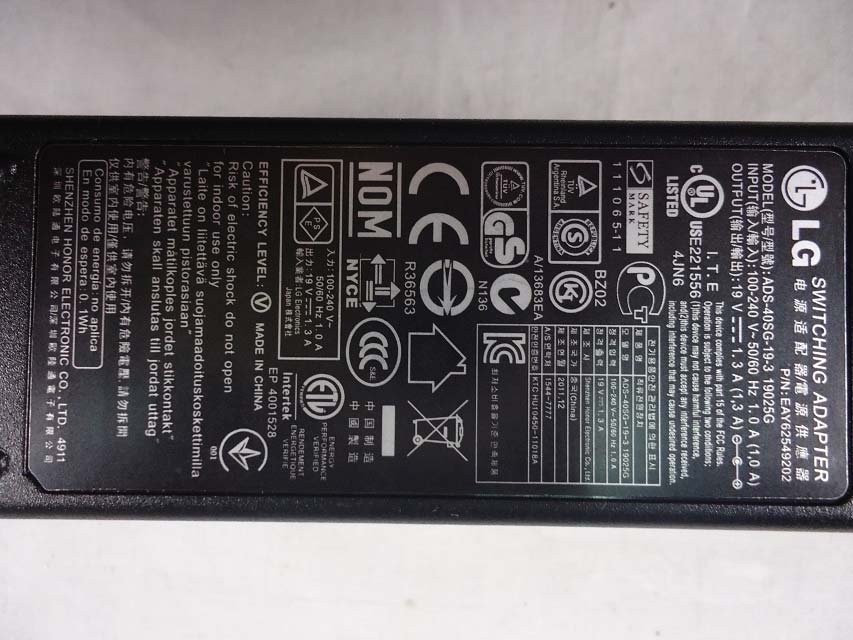

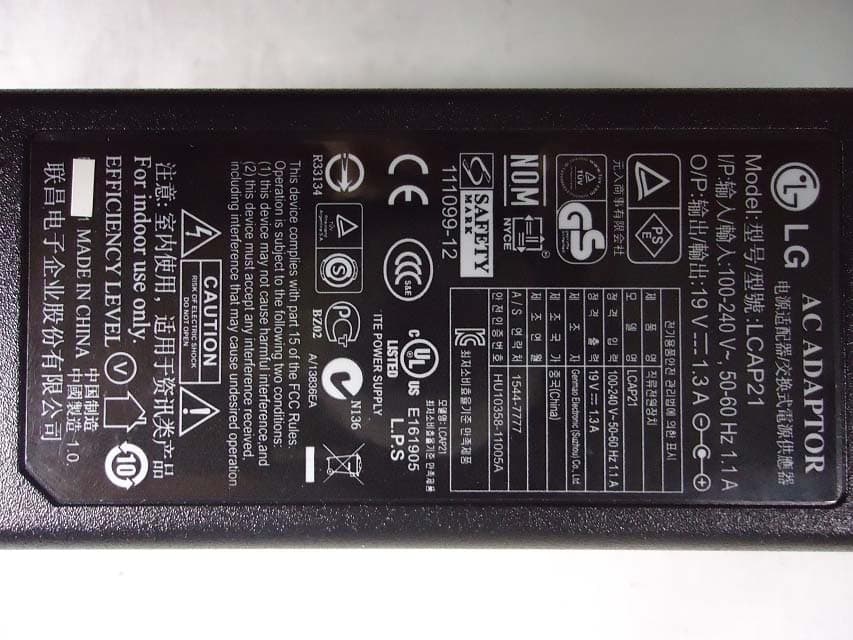

LCD Monitor (Model name: E1951TZ) Exterior Photograph: Adapter #1 Adapter #2 Adapter #3 Adapter #4

ID Label/Location Info

LCD Monitor (Model name: E1951TZ) FCC ID Position: FCC ID

Internal Photos

LCD Monitor (Model name: E1951TZ) Inside photo:

Test Report

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112072 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 21, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 1 of 20 FCC TEST REPORT According to 47 CFR, Part 2, Part 15 and CISPR PUB. 22 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs New Jersey United States Equipment : LCD Monitor Model No. : E1951TZ FCC ID : BEJE1951TZ The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112072 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 21, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 2 of 20 Contents 1. Summary of Test Procedure and Test Result ........................................................................................... 5 2. Test Configuration of Equipment under Test ............................................................................................ 6 2.1. Manufacturer ....................................................................................................................................6 2.2. Feature of Equipment under Test .....................................................................................................6 2.3. Test Manner ......................................................................................................................................7 2.4. Description of Support Unit ..............................................................................................................8 2.5. General Information of Test ..............................................................................................................9 2.6. Measurement Uncertainty ................................................................................................................9 3. Test of Conducted Emission .................................................................................................................... 10 3.1. Test Limit ........................................................................................................................................10 3.2. Test Procedures ..............................................................................................................................10 3.3. Typical test Setup ........................................................................................................................... 11 3.4. Measurement equipment ................................................................................................................ 11 3.5. Test Result and Data ......................................................................................................................12 4. Test of Radiated Emission ........................................................................................................................ 14 4.1. Test Limit ........................................................................................................................................14 4.2. Test Procedures ..............................................................................................................................15 4.3. Typical test Setup ...........................................................................................................................15 4.4. Measurement equipment ................................................................................................................16 4.5. Test Result and Data (30MHz ~ 1000MHz) ....................................................................................17 4.6. Test Result and Data (1000MHz ~ 18000MHz) ..............................................................................19 CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112072 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 21, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 3 of 20 History of this test report ORIGINAL. Additional attachment as following record: Attachment No. Date Description CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112072 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 21, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 4 of 20 FCC TEST REPORT According to 47 CFR, Part 2, Part 15 and CISPR PUB. 22 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs New Jersey United States Equipment : LCD Monitor Model No. : E1951TZ FCC ID : BEJE1951TZ I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4 – 2003 and the energy emitted by this equipment was passed CISPR PUB. 22 and FCC Part 15 in both radiated and conducted emission class B limits. Testing was carried out on Dec 20, 2011 at Cerpass Technology Corp. Signature Miro Chueh/ Technical director CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112072 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 21, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 5 of 20 1. Summary of Test Procedure and Test Result Test Item Normative References Test Result Conducted Emission ANSI C63.4-2003 FCC Part 15 Subpart B PASS Radiated Emission ANSI C63.4-2003 FCC Part 15 Subpart B PASS CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112072 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 21, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 6 of 20 2. Test Configuration of Equipment under Test 2.1. Manufacturer LG Electronics Nanjing Display Co., Ltd. No.346,Yaoxin Road Economic & Technical Development Zone Nanjing China 2.2. Feature of Equipment under Test LCD Monitor Model No: E1951TZ Adapter #1 Manufacturer: Lien Chang Elect…

Text truncated - open the document above for the full version.

Test Setup Photos

LCD Monitor (Model name: E1951TZ) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test (30MHz ~ 1000MHz) Back View of Radiated Emission Test (30MHz ~ 1000MHz) Front View of Radiated Emission Test (1000MHz ~ 18000MHz) Back View of Radiated Emission Test (1000MHz ~ 18000MHz)
