BEJE2051TZLCD Monitor

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Dec 12, 2011
Application Purpose: Original Equipment
Date of Application: Dec 11, 2011
Equipment Note: LCD Monitor
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

www.lg.com OWNER’S MANUAL LED LCD MONITOR Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODELS ENGLISH E1951T E2051T E2251T E2351T E1951S E2051S E2251S E2251VR E2351VR E2251VQ E2351VQ Important Precautions NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY NOTE This epuipment has been tested and found to comply with the limits for a class B digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates,uses and can radiate radio frequency cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and the receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. energy and,if not installed and used in accordance with the instructions,may equipment does cause harmful interference to radio or television reception, TO OPERATE THE EQUIPMENT. -Consult the dealer or an experienced radio/TV technician for help. A3 2 ENG ENGLISH TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPAR- ING 3 Unpacking 4 Parts and buttons 6 Setting up the Monitor set 6 - Attaching the Stand Base 6 - Detaching the Stand Base 6 - Detaching the Stand Body (Using the Wall mount) 7 - Mounting on a table 8 - Mounting on a wall 10 USING THE MONITOR SET 10 Connecting to a PC 10 - D-SUB connection 11 - DVI-D connection 12 - HDMI connection 13 CUSTOMIZING SETTINGS 13 Accessing The Main Menus 14 Customizing Settings 14 - Menu Settings 15 - SUPER ENERGY SAVING Settings 16 - SUPER+ RESOLUTION Settings 16 - Volume Settings (Only supported in HDMI) 17 - DUAL MONITOR Settings 17 - DUAL WEB Settings 18 TROUBLESHOOTING 20 SPECIFICATIONS 25 Preset Modes (Resolution) 25 - D-SUB / DVI Timing 26 - HDMI Timing 26 Indicator 27 PROPER POSTURE 27 Proper posture for using the Monitor set. 28 LICENSES 3 ENG ENGLISH ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories. Do not use any unapproved accessories to ensure the safety and product life span. Any damages or injuries by using unapproved accessories are not covered by the warranty. The accessories supplied with your product may vary depending on the model. Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. User should use shielded signal interface cables (RGB cable / DVI-D cable) with ferrite cores (core in the connector) to maintain standard compliance for the product. CAUTION NOTE Stand Base CD(Owner's Manual) / Card D-SUB Cable (This signal cable may be attached to this product before shipping out.) DVI-D Cable (This cable is not included in all countries.) Power CordAC-DC Adapter 4 ENG ENGLISH ASSEMBLING AND PREPARING HDMI D-SUBDVI-D DC-IN / 䏳㵎幑‣ D-SUBDVI-D DC-IN / 䏳㵎幑‣ D-SUB DC-IN / 䏳㵎幑‣ Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off Connection panel (See p.10) Button ("CUSTOMIZING SETTINGS" on page 13) (Power Button) E2251VQ E2351VQ E2251VR E2351VR E2251T E1951T E2351T E2051T E1951SE2051SE2251S 5 ENG ENGLISH ASSEMBLING AND PREPARING ButtonDescription MENU Accesses the main menus.(See p.14) Left First ButtonOSD LOCKED/ UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the Left First Button for several seconds. The message "OSD LOCKED" should appear. You can unlock the OSD controls at any time by pushing the Left First Button for several seconds. The message "OSD UNLOCKED" should appear. SUPER+ RESOLUTIONUse this button to enter the SUPER+ RESOLUTION menu. For more information.(See p.16) DUALUse this button to enter the DUAL menu. For more information.(See p.17) AUTOWhen adjusting your display settings, first press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode) The best display mode E1951S / E1951T1366 x 768 E2051S / E2051T1600 x 900 E2251S / E2251T E2251VR / E2251VQ E2351T / E2351VR E2351VQ 1920 x 1080 VOLUME (Only HDMI mode)E2251VR / E2351VR / E2251VQ / E2351VQ Adjust the volume of the Monitor set.(See p.16) INPUT You can choose the input signal. When two input signals are at least are connected, you can select the input signal (D-SUB/DVI/HDMI) you want. When only one signal is connected, it is automatically detected. The default setting is D-SUB. EXITExit the OSD(On Screen Display). (Power Button) Turns the power on or off. Power IndicatorThe power indicator stays blue if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks blue. 6 ENG ENGLISH ASSEMBLING AND PREPARING Detaching the stand base 1 Place the monitor's screen face down. To protect the screen from scratches, cover the surface with a soft cloth. Setting Up the Monitor set Attaching the Stand Base 1 Place the monitor's screen face down. To protect the screen from scratches, cover the surface with a soft cloth. 3 Using a coin, turn the screw clockwise to se- cure the stand base. 2 Check the position (at the front and rear) of the stand body, then mount the stand base on the stand body as shown in the figure. 2 Using a coin, turn the screw in the stand base counterclockwise. Detach the stand b…

Text truncated - open the document above for the full version.

Block Diagram

E2051TZ Block Diagram Cr y stal y 14.318MHz

Cover Letter(s)

AHTHORIZATION LETTER LG Electronics USA FCC ID: BEJE2051TZ Date: Dec 09, 2011 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Yours Sincerely, Christopher/ Sr. Manager LG Electronics USA

Cover Letter(s)

LG Electronics USA Date: Dec 09, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: BEJE2051TZ Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Christopher/ Sr. Manager LG Electronics USA

External Photos

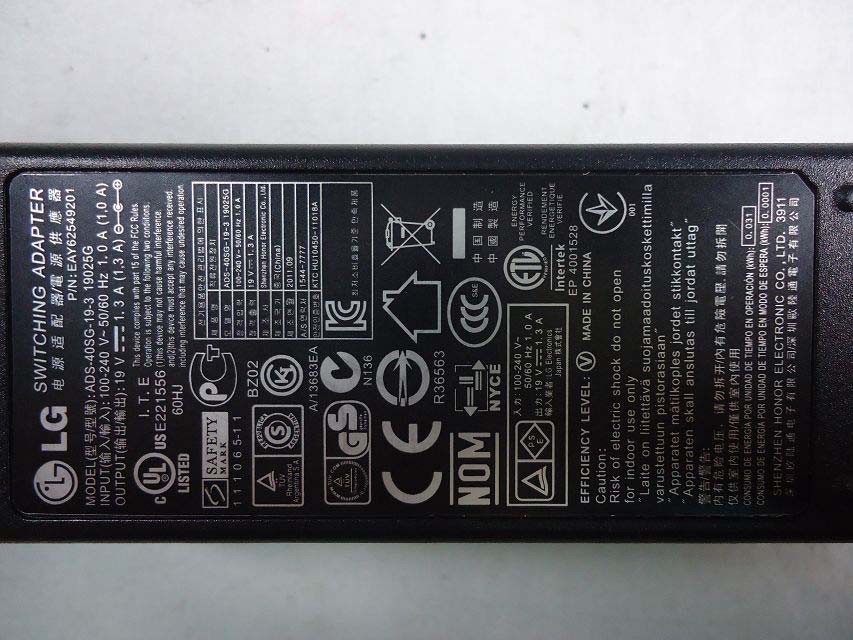

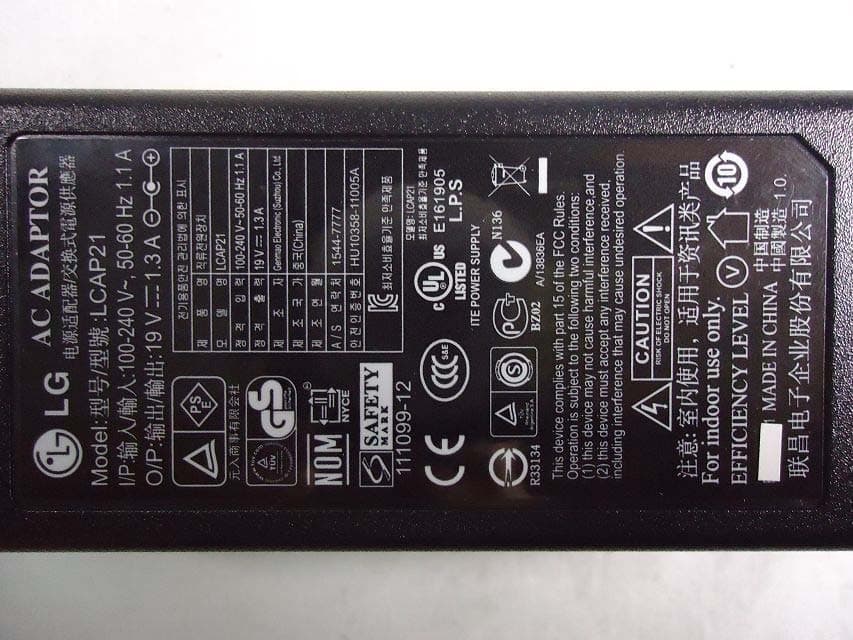

LCD Monitor (Model name: E2051TZ) Exterior Photograph: Adapter #1 Adapter #2 Adapter #3 Adapter #4

ID Label/Location Info

LCD Monitor (Model name: E2051TZ) FCC ID Position: FCC ID

Internal Photos

LCD Monitor (Model name: E2051TZ) Inside photo:

Test Report

CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112006 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 07, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 1 of 20 FCC TEST REPORT According to 47 CFR, Part 2, Part 15 and CISPR PUB. 22 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs New Jersey United States Equipment : LCD Monitor Model No. : E2051TZ FCC ID : BEJE2051TZ The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112006 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 07, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 2 of 20 Contents 1. Summary of Test Procedure and Test Result ........................................................................................... 5 2. Test Configuration of Equipment under Test ............................................................................................ 6 2.1. Manufacturer ................................................................................................................................... 6 2.2. Feature of Equipment under Test .................................................................................................... 6 2.3. Test Manner ..................................................................................................................................... 7 2.4. Description of Support Unit ............................................................................................................. 8 2.5. General Information of Test ............................................................................................................. 9 2.6. Measurement Uncertainty ............................................................................................................... 9 3. Test of Conducted Emission .................................................................................................................... 10 3.1. Test Limit ....................................................................................................................................... 10 3.2. Test Procedures ............................................................................................................................. 10 3.3. Typical test Setup ........................................................................................................................... 11 3.4. Measurement equipment ................................................................................................................ 11 3.5. Test Result and Data ..................................................................................................................... 12 4. Test of Radiated Emission ........................................................................................................................ 14 4.1. Test Limit ....................................................................................................................................... 14 4.2. Test Procedures ............................................................................................................................. 15 4.3. Typical test Setup .......................................................................................................................... 15 4.4. Measurement equipment ............................................................................................................... 16 4.5. Test Result and Data (30MHz ~ 1000MHz) ................................................................................... 17 4.6. Test Result and Data (1000MHz ~ 18000MHz) ............................................................................. 19 CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112006 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 07, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 3 of 20 History of this test report ORIGINAL. Additional attachment as following record: Attachment No. Date Description CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112006 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 07, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 4 of 20 FCC TEST REPORT According to 47 CFR, Part 2, Part 15 and CISPR PUB. 22 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs New Jersey United States Equipment : LCD Monitor Model No. : E2051TZ FCC ID : BEJE2051TZ I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4 – 2003 and the energy emitted by this equipment was passed CISPR PUB. 22 and FCC Part 15 in both radiated and conducted emission class B limits. Testing was carried out on Dec 05, 2011 at Cerpass Technology Corp. Signature Miro Chueh/ Technical director CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112006 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 07, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 5 of 20 1. Summary of Test Procedure and Test Result Test Item Normative References Test Result Conducted Emission ANSI C63.4-2003 FCC Part 15 Subpart B PASS Radiated Emission ANSI C63.4-2003 FCC Part 15 Subpart B PASS CERPASS TECHNOLOGY (SUZHOU)CO., LTD Report No.: SEFD1112006 Cerpass Technology (Suzhou) Co., Ltd Issued Date : Dec 07, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 6 of 20 2. Test Configuration of Equipment under Test 2.1. Manufacturer LG Electronics Nanjing Display Co., Ltd. No.346,Yaoxin Road Economic & Technical Development Zone Nanjing China 2.2. Feature of Equipment under Test LCD Monitor Model No: E2051TZ Adapter #1 Manufacturer: Lien Chang Elect…

Text truncated - open the document above for the full version.

Test Setup Photos

LCD Monitor (Model name: E2051TZ) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test (30MHz ~ 1000MHz) Back View of Radiated Emission Test (30MHz ~ 1000MHz) Front View of Radiated Emission Test (1000MHz ~ 18000MHz) Back View of Radiated Emission Test (1000MHz ~ 18000MHz)
