BEJE2442VAPart15 Subpart B-LCD Monitor

www.lg.com OWNER’S MANUAL LED LCD MONITOR E2342V E2442V E2742V Please read this manual carefully before operating your set and retain it for future reference. LED LCD MONITOR MODEL ENGLISH 2 ENG ENGLISH TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPAR- ING 3 Unpacking 4 Parts and buttons 6 Setting up the Monitor set 6 - Attaching the Stand 6 - Detaching the Stand 7 - Mounting on a table 8 - Mounting on a wall 10 USING THE MONITOR SET 10 Connecting to a PC 10 - D-SUB connection 10 - DVI-D connection 10 - HDMI connection 12 CUSTOMIZING SETTINGS 12 Accessing The Main Menus 13 Customizing Settings 13 - Menu Settings 14 - PICTURE 15 - COLOR 16 - DISPLAY 16 - VOLUME 17 - OTHERS 18 SUPER ENERGY SAVING 19 MODE Setting 20 TROUBLESHOOTING 22 SPECIFICATIONS 22 E2342V 23 E2442V 25 Preset Modes (Resolution) 25 Indicator 24 E2742V ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories. y Do not use any unapproved accessories to ensure the safety and product life span. y Any damages or injuries by using unapproved accessories are not covered by the warranty. y The accessories supplied with your product may vary depending on the model. y Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. CAUTION NOTE 3 ENG ENGLISH ASSEMBLING AND PREPARING CD(Owner's Manual) / Card D-SUB Cable DVI-D Cable (This cable is not included in all countries.) Power CordAC-DC Adapter Stand Base Stand Body Stand Body AC-DC adapter (Depending on the country) or (Depending on the country) ( E2342V /E2442V ) ( E2742V ) 4 ENG ENGLISH ASSEMBLING AND PREPARING Parts and buttons Power Indicator y Lighting On: Turned on y Lighting Off: Turned off Button (See p.12) (Power Button) Connection panel (See p.10) MENU / / INPUT / EXIT MODE / AUTO / MENU / / INPUT / EXIT MODE / AUTO / DC-IN / Setting up the Monitor set Attaching the Stand 1 Place the Monitor set with the screen side down on a flat and cushioned surface. Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. CAUTION 2 Attach the Stand body and then attach the Stand Base,then tighten the screw to the right with a Coin. 5 ENG ENGLISH ASSEMBLING AND PREPARING E2742V Use two screw to assemble the Stand Body and back cover, attach the stand base and then tighten the screw to the right with a Coin. Stand Base 3 2 Stand Base 2 3 Stand Body Stand Body E2342V/E2442V CAUTION y This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. y Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot. E2742V Stand Base 1 2 3 Stand Body Turn the screw to the left with a Coin, and then pull out the Stand Base from the Stand Body. Remove 2 screws and pull out the Stand Body from the Monitor set. Detaching the Stand 1 Place the Monitor set with the screen side down on a flat and cushioned surface. 2 Turn the screw to the left with a Coin, and then pull out the Stand Base from the Stand Body, then pull out the Stand Body from the Monitor set . Stand Base 2 3 Stand Body 6 ENG ENGLISH ASSEMBLING AND PREPARING E2342V/E2442V Mounting on a table 1 Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm (minimum) space from the wall for proper ventilation. 2 Connect the AC-DC adapter and Power Cord to wall outlet 3 Press (Power) button on the bottom switch panel to turn the power on. CAUTION Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur. 10 cm 10 cm 10 cm 10 cm ENG ENGLISH ASSEMBLING AND PREPARING7 Using the cable holder Cable holder 电源输入/ DC-IN / or Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view. NOTE FrontRear Using the Kensington security system The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the Monitor set and a table. The Kensington security system is optional. You can obtain it from most electronics stores. NOTE 20- 5 8 ENG ENGLISH ASSEMBLING AND PREPARING ENGLISH When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers. Do not touch or press the screen when adjusting the angle of the monitor. WARNING Do not hold this set like below picture. Monitor screen can detach from stand base and injure your body. y Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur. y If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury. y Use only an authorized LG wall mount and contact the local dealer or qualified personnel. y Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty. y Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. y Use the screws that are listed on the VESA standard screw specifications. y The wall mount kit will include an installation manual and necessary parts. y The wall mount bracket is optional. You can obtain additional accessories from your local dealer. y The length of screws may differ depending on the wall mount. Be sure to use the proper length. y For more information, refer to the instructions supplied with the wall mount. CAUTION NOTE Model E2342V VESA (A x B)75 x 75 Standard screw M4 Number of screws 4 100 x 100 E2442V E2742V Mounting on a wall For prop…

Text truncated - open the document above for the full version.

Picture Each option is explained below. NEXT MENU PICTURE MENU EXIT 1 / 2 5 BLACK LEVEL SHARPNESS HIGN B A OVERSCAN OFF 1 / 2 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the " " button to enter the more option settings. 4 5 Enter to PICTURE by pressing the ▼ button. Set the options by pressing the ◄ or ► or ▼ buttons. Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. 3 MENU--NEXT MENU--PICTURE Description SHARPNESS To adjust the clearness of the screen. BLACK LEVEL OVERSCAN To select the range of output image for DTV timing in HDMI input. (only for HDMI input) Recommend overscan function to turn on You can set the offset level. If you select 'HIGH', the screen will be bright and if you select ‘LOW’, the screen will be dark. Offset: As the criteria for video signal, it is the darkest screen the monitor can show. when connect AV equipment. 14 ENG ENGLISH CUSTOMIZING SETTINGS NEXT MENU COLOR Each option is explained below. 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the " " button to enter the more option settings. 3 Select COLOR by pressing the ► button. 4 Enter to COLOR by pressing the ▼ button. 5 Set the options by pressing the ◄ or ► or ▼ buttons. 6 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. 15 ENG ENGLISH CUSTOMIZING SETTINGS NEXT MENU Description GAMMA Set your own gamma value. GAMMA 0,GAMMA1,GAMMA2 On the monitor, COLOR TEMP high gamma values display whitish images and low gamma values display MENU--NEXT MENU--COLOR • RED:Set your own red color levels. • GREEN: Set your own green color levels. • BLUE:Set your own blue color levels. blackish images. CUSTOM Select the screen color. WARM: Set the screen to warm color temperature (more red). MEDIUM: Set the screen to medium color temperature. COOL: Set the screen to cool color temperature (More blue). NEXT MENU COLOR MENU EXIT 1 / 4 2 / 3 5 0 5 0 5 0 COLOR TEMP GAMMA GAMMA 1 WARM RED GREEN BLUE DISPLAY Each option is explained below. VOLUME Each option is explained below. NEXT MENU DISPLAY MENU EXIT 2 5 5 2 5 2 5 CLOCK PHASE VERTICAL HORIZONTAL NEXT MENU VOLUME MENU EXIT 5 0 1 2 3 4 to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Select VOLUME by pressing the ► button. Set the options by pressing the ◄ or ► buttons. Enter to VOLUME by pressing the ▼ button. 5 6 Select EXIT 1 Press MENU button on the bottom of the Monitor set to display the MENU OSD. 2 Select the " " button to enter the more option settings. 3 Select DISPLAY by pressing the ► button. 4 Enter to DISPLAY by pressing the ▼ button. 5 6 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Set the options by pressing the ◄ or ► or ▼ buttons. Select the " " button to enter the more option settings. Press MENU button on the bottom of the Monitor set to display the MENU OSD. 16 ENG ENGLISH CUSTOMIZING SETTINGS NEXT MENU NEXT MENU MENU-- NEXT MENU-- DISPLAY Description HORIZONTALTo move image left and right. VERTICAL To move image up and down. CLOCK To minimize any vertical bars or stripes visible on the screen background. The horizontal screen size will also change. PHASETo adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters. MENU-- NEXT MENU-- VOLUME Description VOLUMETo adjust the volume of headphone/Earphone.(Only for HDMI input) OTHERS Each option is explained below. NEXT MENU OTHERS MENU EXIT 1 / 2 1 / 15 1 / 2 WHITE BALANCE POWER INDICATOR LANGUAGE A W ON NO ENGLISH D-SUB 1920 X 1080 60HZ 1 2 Select OTHERS by pressing the ► button. 4 Enter to OTHERS by pressing the ▼ button. 5 6 3 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow ( ) button. Select the " " button to enter the more option settings. Press MENU button on the bottom of the Monitor set to display the MENU OSD. Set the options by pressing the ◄ or ► or ▼ buttons. 17 ENG ENGLISH CUSTOMIZING SETTINGS MENU-- NEXT MENU-- OTHERS Description LANGUAGETo choose the language in which the control names are displayed. POWER INDICATOR Use this function to set the power indicator on the bottom side of the monitor to ON or OFF.If you set OFF, it will go off. If you set ON at any time, the power indicator will automatically be turned on. WHITE BALANCE If the output of the video card is different the required specifications,the color level may deteriorate due to video signal distortion. Using this function, the signal level output level of the video card in order to provide white and black colors are present in is adjusted to fit into the standard the optimal image.Activate this function when the screen. NEXT MENU SUPER ENERGY SAVING Settings 1 2 MenuDescription ON Enables SUPER ENERGY SAVING you can save energy with this energy-efficient function. OFFDisables SUPER ENERGY SAVING. RESETResets the values of total energy consumption reduction and CO2 emission reduction estimates. yy TOTAL POWER REDUCTION : How much power is saved while using the monitor. yy TOTAL CO2 REDUCTION : Change the TOTAL POWER REDUCTION to CO2. yy SAVING DATA(W/h) yy Saving Data depends on the Panel. So,those values should be different from each panel and panel vendor. yy LG calculated these values by using “broadcast video signal”. yy LED Saving refers to how much power can be saved using a WLED Panel instead of CCFL panel. yy SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING function. NOTE ENG.indd 15 EXIT ON OFF RESET SUPER ENERGY SAVING SUPER ENERGY SAVING IS ACTIVE YOU SAVED 12.34 TREES POWER REDUCTION:123W CO2 DECREMENT:123G Press ( SUPER ENERGY SAVING ) button on the bottom of the Monitor set to display the SUPER ENERGY SAVING OSD. 3 Select EXIT to…

Text truncated - open the document above for the full version.

Regulatory Information cont. FCC Compliance Statement This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by using one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's (or your) authority to operate the equipment. Only peripherals (digital input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this monitor. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Only shielded signal cables may be used with this System. Canadian DOC Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. TCO Displays 5.0 Congratulations, Your display is designed for both you and the planet! This display carries the TCO Certified label. This ensures that the display is designed for minimal impact on the climate and natural environment, while offering all the performance expected from top of the line electronic products. TCO Certified is a third party verified program, where every product model is tested by an accredited independent test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide. Some of the Usability features of the TCO Displays 5.0 requirements: Visual Ergonomics Good visual ergonomics in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are: • Light levels without color tint, Uniform color and luminance, Wide color gamut • Calibrated color temperature and gamma curve • Wide luminance level, Dark black levels, Low motion blur Electrical Safety • Product fulfills rigorous safety standards 1 NOTICE The regulations are applied only to the products with the ID LABEL indicating specific requirements. NOTICE The regulations are applied only to the products with the ID LABEL indicating specific requirements. NOTICE The following information is for the models certified by TCO. If you want to know the specification of the purchased product, see the label attached on the back of the product. Regulatory Information cont. 2 Emissions • Low alternating electric and magnetic fields emissions • Low acoustic noise emissions Some of the environmental features of the TCO Displays 5.0 requirements: • The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO 14001) • Very low energy consumption both in on-and standby mode • Restrictions on chlorinated and brominated flame retardants, plasticizers and polymers • Restrictions on heavy metals such as cadmium, mercury and lead (RoHS compliance) • Both product and product packaging is prepared for recycling • The brand owner offers take-back options The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit: www.tcodevelopment.com Information for Environmental Preservation LGE. announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the concept of environment-friendly. We minimize the hazardous materials contained in our products. For example, there is no cadmium to be found in our monitors. Information for recycling This monitor may contain parts which could be hazardous to the environment. It is important that this monitor be recycled after use. LGE. handles all waste monitors through an environmentally acceptable recycling method. There are several take-back and recycling systems currently in operation worldwide. Many parts will be reused and recycled, while harmful substances and heavy metals are treated by an environmentally friendly method. If you want to find out more information about our recycling program, please contact your local LG vendor or a corporate representative of LG. We set our vision and policies on a cleaner world by selecting the issue of the global environment as a task for corporate improvement. Please visit our website for more information about our ‘green’ policies. http://www.lg.com/global/sustainability/environment/take-back- recycling.jsp English Informationen zur Erhaltung der…

Text truncated - open the document above for the full version.

E2442V Block Diagram LED PANEL 24 ” FL HD 24 FL . HD 19V From Adapter LED B/LLED B/L LVDS 24C02 DVI IIC LED driver 1919- -to to- -5V 5V DC/DCDC/DC TT- -Con 5V Con 5V NT68752 (Novatek) 24C02 RGB IIC DVIDVI- -D D DVI_TMDS Ready 22Ch. LDO Ch. LDO RGBRGB R/G/B/H/V SERIALSERIAL SystemSystem IIC Data /CLK Data /CLK 24C02 RGB IIC HP L / R out Key1/Key2 LED (Blue) 3.3V3.3V/1.2V /1.2V SERIALSERIAL FlashFlash System System EEPROMEEPROM HDMIHDMI HDMI_TMDS H/PH/P / Only for HDMI 6 Keys : Power/MENU/DUAL /AUTO/INPUT/EXIT Crystal 14.318MHz

Statement FCC ID: BEJE2442VA Data: Feb 28, 2012 We LG Electronics U.S.A., Inc. declare under our own responsibility that the product LCD Monitor to which this declaration refers conforms with all electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marked. 2012.02.28 [Data] [Name and Signature of person responsible]

Power of Attorney Federal Communication Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 We, Company: LG Electronics U.S.A., Inc. Address: 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Would like to inform you that we nominated Audix Technology (Shanghai) Co., Ltd, Mr. Byron Kwo to act on behalf of our LG Electronics Inc. to apply FCC ID for the LCD Monitors with LG brand. Kind Regards, Place, date Signature 2012-02-28 Christopher Johnson ________________ ________________

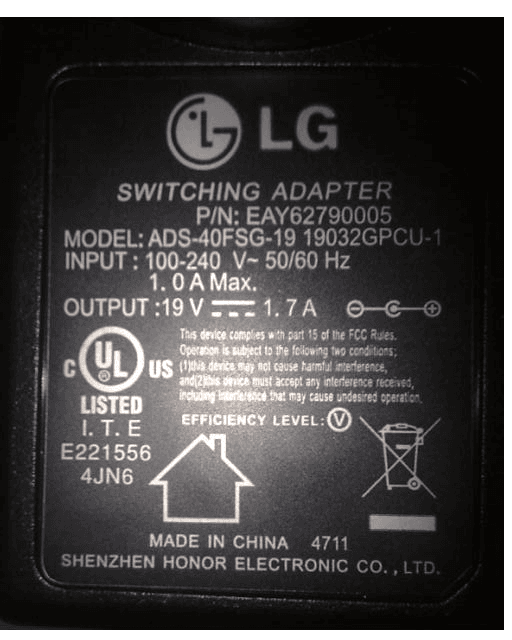

FIGURE 1 LCD MONITOR (M/N: E2442VA) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 LCD MONITOR (M/N: E2442VA) GENERAL APPEARANCE (BACK VIEW) FIGURE 3 LCD MONITOR (M/N: E2442VA) PORTS F IGURE 4 LCD MONITOR (M/N: E2442VA) D-SUB CABLE FIGURE 5 LCD MONITOR (M/N: E2442VA) DVI CABLE F IGURE 6 LCD MONITOR (M/N: E2442VA) ADAPTER #1 (GENERAL APPEARANCE) FIGURE 7 LCD MONITOR (M/N: E2442VA) A DAPTER #1 (GENERAL APPEARANCE – AC PORT) FIGURE 8 LCD MONITOR (M/N: E2442VA) ADAPTER #1 (GENERAL APPEARANCE – LABEL) FIGURE 9 LCD MONITOR (M/N: E2442VA) ADAPTER #2 (GENERAL APPEARANCE) FIGURE 10 LCD MONITOR (M/N: E2442VA) ADAPTER #2 (GENERAL APPEARANCE – LABEL) FIGURE 11 LCD MONITOR (M/N: E2442VA) ADAPTER #3 (GENERAL APPEARANCE) F IGURE 12 LCD MONITOR (M/N: E2442VA) ADAPTER #3 (GENERAL APPEARANCE – AC PORT) FIGURE 13 LCD MONITOR (M/N: E2442VA) ADAPTER #3 (GENERAL APPEARANCE – LABEL) FIGURE 14 LCD MONITOR (M/N: E2442VA) ADAPTER #4 (GENERAL APPEARANCE) FIGURE 15 LCD MONITOR (M/N: E2442VA) ADAPTER #4 (GENERAL APPEARANCE – LABEL)

Label Location Information Refer to the below red arrow: (For example)

FIGURE 1 LCD MONITOR (M/N: E2442VA) COVER REMOVED FIGURE 2 LCD MONITOR (M/N: E2442VA) LABEL ON PANEL FIGURE 3 LCD MONITOR (M/N: E2442VA) MAIN BOARD (COMPONENT SIDE) F IGURE 4 LCD MONITOR (M/N: E2442VA) MAIN BOARD (SOLDERED SIDE) FIGURE 5 LCD MONITOR (M/N: E2442VA) CHIP & CRYSTAL ON MAIN BOARD FIGURE 6 LCD MONITOR (M/N: E2442VA) KEY BOARD (COMPONENT SIDE) F IGURE 7 LCD MONITOR (M/N: E2442VA) KEY BOARD (SOLDERED SIDE) FIGURE 8 LCD MONITOR (M/N: E2442VA) LCD PANEL BOARD (COMPONENT SIDE) F IGURE 9 LCD MONITOR (M/N: E2442VA) LCD PANEL BOARD (SOLDERED SIDE)

PDF created with pdfFactory Pro trial version www.pdffactory.com PDF created with pdfFactory Pro trial version www.pdffactory.com

LG Electronics U.S.A., Inc. FCC ID: BEJE2442VA Page 1 of 42 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12026 Prepared For : LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, United States Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F and 4F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F12026 Date of Test : Feb 17 – 22, 2012 Date of Report : Feb 24, 2012 Application for FCC Certificate On Behalf of LG Electronics U.S.A., Inc. LCD Monitor Model No.: E2442VA Serial No.: E1202154-01/01 FCC ID : BEJE2442VA LG Electronics U.S.A., Inc. FCC ID: BEJE2442VA Page 2 of 42 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12026 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Peripherals .................................................................................................................................. 6 2.3 Description of Test Facility ........................................................................................................ 8 2.4 Measurement Uncertainty .......................................................................................................... 8 3 CONDUCTED EMISSION TEST .................................................................................................. 9 3.1 Test Equipment ........................................................................................................................... 9 3.2 Block Diagram of Test Setup ..................................................................................................... 9 3.3 Conducted Emission Limit [FCC Part 15 Subpart B 15.107(a)] .............................................. 10 3.4 Test Configuration .................................................................................................................... 10 3.5 Operating Condition of EUT .................................................................................................... 11 3.6 Test Procedures ........................................................................................................................ 12 3.7 Test Results .............................................................................................................................. 12 4 RADIATED EMISSION TEST ..................................................................................................... 23 4.1 Test Equipment ......................................................................................................................... 23 4.2 Block Diagram of Test Setup ................................................................................................... 23 4.3 Radiated Emission Limit [FCC Part 15 Subpart B 15.109(a)] ................................................. 25 4.4 Test Configuration .................................................................................................................... 25 4.5 Operating Condition of EUT .................................................................................................... 25 4.6 Test Procedures ........................................................................................................................ 26 4.7 Test Results .............................................................................................................................. 27 5 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 42 LG Electronics U.S.A., Inc. FCC ID: BEJE2442VA Page 3 of 42 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12026 TEST REPORT FOR FCC CERTIFICATE Applicant : LG Electronics U.S.A., Inc. Manufacturer : LG Electronics Nanjing Display Co., Ltd. EUT Description : LCD Monitor (A) Model No. : E2442VA (B) Serial No. : E1202154-01/01 (C) Power Supply : 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART B CLASS B OCTOBER 2010 AND ANSI C63.4-2003 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B (Class B) and ICES-003, Issue 4 February 2004 (CISPR 22:2002) limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: E2442VA; S/N: E1202154-01/01) which was tested in 3m anechoic chamber Feb 17 – 22, 2012 is technically compliance with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Feb 17 – 22, 2012 Date of Report : Feb 24, 2012 Producer : YENNY YU / Assistant Review : DIO YANG / Assistant Manager Signatory : SAMMY CHEN / Deputy Manager LG Electronics U.S.A., Inc. FCC ID: BEJE2442VA Page 4 of 42 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12026 1 SUMMARY OF STANDARDS AND RESULTS 1.1 Description of Standards and Results The EUT have been tested according to the applicable standards …

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test F RONT VIEW B ACK VIEW 2. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) B ACK VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) F RONT VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ) B ACK VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ) S ETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (TEST MODE: HDMI 1920*1080@60HZ Adapter #1) SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (T EST MODE: HDMI 1920*1080@60HZ Adapter #1)
