BEJF156XJMicrowave Oven

Microwave Oven Owner's Manual Microwave Oven Keep instructions for future reference. Be sure manual stays with oven. Contents Important Safety Instructions................................................................2-4 Installation................................................................................................5 Other Helpful Information......................................................................6-7 Cooking Utensils ......................................................................................8 Set up.......................................................................................................9 Specification...........................................................................................10 Feature Diagram.....................................................................................11 Turntable Installation ..............................................................................11 Control Panel .........................................................................................12 Operating Instructions.......................................................................13-19 Fresh Vegetable Chart...........................................................................20 Care and Cleaning.................................................................................21 Troubleshooting......................................................................................22 Warranty.................................................................................................24 A/02/03 © 2003 Maytag Appliance Sales Co.Part No. / Installer:Please leave this manual with this appliance. Consumer:Please read and keep this manual for future reference. Keep sales receipt and/or cancelled check as proof of purchase. If you have questions, write us (include your model number and phone number) or call: Maytag Appliances Sales Company Attn: CAIR ® Center P.O. Box 2370 Cleveland, TN 37320-2370 1-800-688-1100 U.S.A. and Canada (Mon.-Fri., 8 am-8 pm Eastern Time) Internet: http://www.jennair.com In our continuing effort to im- prove the quality and perfor- mance of our appliances, it may be necessary to make changes to the appliance with- out revising this guide. Model Number Serial Number Date of Purchase 3828W5A2901 2 IMPORTANT SAFETY INSTRUCTIONS What You Need to Know About Safety Instructions War ningandImpor tantSafetyIn- structionsappearinginthismanual arenotmeanttocoverallpossible conditionsandsituationsthatmay occur.Commonsense,caution,and caremustbeexercisedwhen installing,maintaining,oroperating microwave. Alwayscontactyourdealer,distribu- tor,ser viceagent,ormanufacturer aboutproblemsorconditionsyoudo notunderstand. Recognize Safety Symbols, Words, Labels DANGER DANGER—Immediatehazardswhich WILLresultinseverepersonalinjuryor death. WARNING WARNING—HazardsorunsafepracticeswhichCOULDresultinsevereper- sonalinjur yordeath. CAUTION CAUTION—HazardsorunsafepracticeswhichCOULDresultinminorper- sonalinjur y. SAVE THESE INSTRUCTIONS FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ( U.S.A. ONLY) ThisequipmentgeneratesandusesISMfrequencyenergyandifnotinstalledandusedproperly,thatisinstrict accordancewiththemanufacturer'sinstructions,maycauseinterferencetoradioandtelevisionreception.Ithas beentypetestedandfoundtocomplywithlimitsforISMEquipmentpursuanttopart18ofFCCRules,whichare designedtoprovidereasonableprotectionagainstsuchinterferenceinaresidentialinstallation. However,thereisnoguaranteethatinterferencewillnotoccurinapar ticularinstallation.Ifthisequipmentdoes causeinterferencetoradioortelevisionreception,whichcanbedeterminedbytur ningtheequipmentoffandon, theuserisencouragedtotr ytocorrecttheinterferencebyoneormoreofthefollowing: ¥Reorientthereceivingantennaoftheradioortelevision. ¥Relocatethemicrowaveovenwithrespecttothereceiver. ¥Movethemicrowaveovenawayfromthereceiver. ¥Plugthemicrowaveovenintoadifferentoutletsothatthemicrowaveovenandthereceiverareondifferent branchcircuits. The manufacturerisnotresponsibleforanyradioorTVinterferencecausedbyunauthorized modificationto thismicrowaveoven.Itistheresponsibilityoftheusertocorrectsuchinterference. 3 IMPORTANT SAFETY INSTRUCTIONS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A.DO NOTattempttooperatethisovenwiththedooropensinceopendooroperationcanresultinharmfulexpo- suretomicrowaveenergy.Itisimpor tantnottodefeatortamperwiththesafetyinterlocks. B.DO NOTplaceanyobjectbetweentheovenfrontfaceandthedoortoallowsoilorcleanerresiduetoaccu- mulateonsealingsurfaces. C.DO NOToperatetheovenifitisdamaged.Itispar ticularlyimpor tantthatovendoorcloseproperlyandthat thereisnodamageto: 1.door(bent), 2.hingesandlatches(brokenorloosened), 3.doorsealsandsealingsurfaces. D.Ovenshouldnotbeadjustedorrepairedbyanyoneexceptproperlyqualifiedser vicepersonnel. SAVE THESE INSTRUCTIONS 1.READallinstructionsbeforeusingoven. 2.READANDFOLLOWthespecificÒPRECAUTIONS TOAVOIDPOSSIBLEEXPOSURETOEXCES- SIVEMICROWAVEENERGYÓonthispage. 3.ThisovenMUSTBEGROUNDED.Connectonly toproperlyGROUNDEDoutlet.Seeinstallation instructions. 4.InstallorlocatethisovenONLYinaccordance withtheinstallationinstructionsinthismanual. 5.Someproductssuchaswholeeggsandsealed containersÑforexample,closedglassjarsÑare abletoexplodeandSHOULD NOTbeHEATED inthisoven. 6.UsethisovenONLYforitsintendeduseas describedinthismanual.Donotusecorrosive chemicalsorvaporsinthisoven. Thistypeofoven isspecificallydesignedtoheat,cook,ordryfood. Itisnotdesignedforindustrialorlaborator yuse. 7.Aswithanyappliance,CLOSE SUPERVISIONis necessar ywhenusedbyCHILDRENorINFIRM PERSONS. 8.SeedoorcleaninginstructionsintheCareand Cleaningsectionofmanualonpage21. 9.Babyfoodjarsshallbeopenwhenheatedand contentsstirredorshakenbeforeconsumption,in ordertoavoidbur ns. 11.DO NOTheatbabybottlesinoven. 12.DO NOToperatethisovenifithasadamaged cordorplug,ifitisnotworkingproperly,orifithas beendamagedordropped. 13.Thisoven,includingpowerc…

Text truncated - open the document above for the full version.

Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ APPENDIX C. Block Diagram / Schematics Model No.:MF-1561JLS FCC ID:BEJF156XJ

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSIONRef. No.: 02-LAE-M221 Authorization and Standards BranchDate: December 12, 2002 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJF156XJ Gentleman, We, LG Electronics Inc., hereby submit this application letter to apply for FCC grant of new model as follows. 1. FCC ID: BEJF156XJ 2. Model no.: MF-1561JLS (RF Power Output – IEC705: 1,000 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MF-1561JLS with Magnetron type 2M246 (LG Electronics Inc.) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Peter Byun at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research EngineerP. H. Byun, General Manager Digital Appliance Company, EMC CenterEngineering Department LG Electronics Inc.LG Electronics Chicago Office LG Electronics Inc.

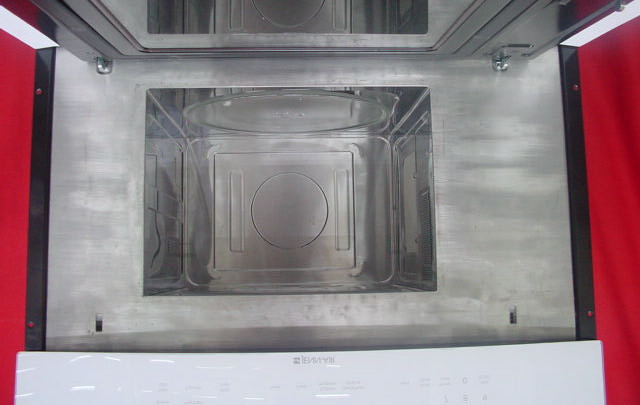

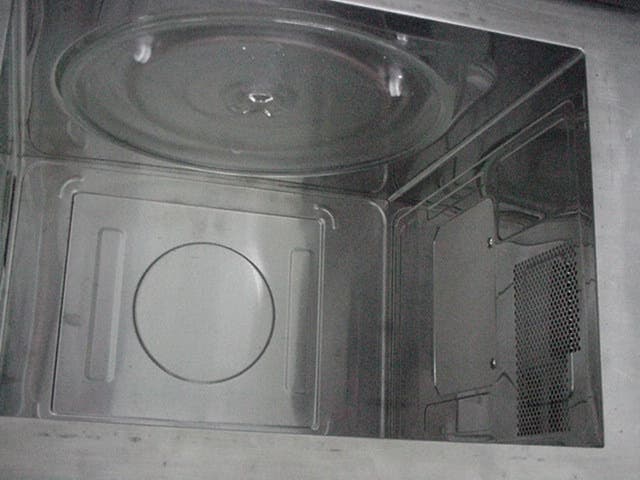

Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ APPENDIX E. EUT Photos Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ

Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> GoldStar INPUT 120V 10.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJF156XJ MADE IN KOREA LISTED 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MF-1561JLS CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG ELECTRONICS Inc. * Alternate location: The nameplate may be alternatively affixed on the rear surface of oven cavity, internal surface of oven cavity

Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ

Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ APPENDIX C. Block Diagram / Schematics Model No.:MF-1561JLS FCC ID:BEJF156XJ

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue : December 12, 2002Test Report No: 02-LAE-M221 Test Site: LG Electronics Changwon EMC Center Applicant:LG Electronics Inc. Regulation:FCC Part 18 – ISM Consumer Device Test Procedure:MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type:Microwave oven Magnetron Type:2M246 (LG Electronics Inc.) Brand Name(s):Goldstar or LG Model No.:MF-1561JLS FCC ID:BEJF156XJ This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification 1 / 24 LG Electronics Inc.FCC ID: BEJF156XJ REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. EUT Type: Microwave oven Model No.: MF-1561JLS FCC ID:BEJF156XJ Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: November 13, 2002 - November 20, 2002 Date of Issue : December 12, 2002 Test Result:Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Dong H. Kim / Research EngineerKwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC CenterDigital Appliance Company, EMC Center LG Electronics Inc.LG Electronics Inc. Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification 2 / 24 LG Electronics Inc.FCC ID: BEJF156XJ CONTENTS Page 1. CLIENT INFORMATION......................................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)......................................................................................................................................3 3. TEST SITE...............................................................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENT.......................................................................................................4 5. DESCRIPTION OF TEST CONDITION............................................................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENT........................................................................................................................4 6. MEASURING INSTRUMENT...............................................................................................................................................8 7. TEST DATA.............................................................................................................................................................................9 7.1 INPUT POWER...................................................................................................................................................................9 7.2 RF POWER OUTPUT MEASUREMENT...........................................................................................................................9 7-3. FREQUENCY MEASUREMENTS....................................................................................................................................10 7-4. POWER DENSITY SAFETY CHECK..............................................................................................................................11 7-5. RADIATED EMISSIONS (SECTION 18.305)..................................................................................................................12 APPENDIX A. TEST PLOT...................................................................................................................................................13 APPENDIX B. LABELING REQUIREMENTS....................................................................................................................16 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS.......................................................................................................17 APPENDIX D. TEST PHOTOS.............................................................................................................................................18 APPENDIX E. EUT PHOTOS................................................................................................................................................20 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION.......................................................24 Test Report No.: 02-LAE-M221F…

Text truncated - open the document above for the full version.

Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 02-LAE-M221FCC Part 18 (ISM) Test Date: November 22, 2002Certification LG Electronics Inc.FCC ID: BEJF156XJ
