BEJF156XJAMicrowave Oven

Microwave Oven Owner's Manual Electric Microwave Keep instructions for future reference. Be sure manual stays with oven. Contents Important Safety Instructions ................................................................2-4 Installation and Operation .....................................................................5-6 Cooking Utensils ......................................................................................7 Features ................................................................................................8-9 Control Panel..........................................................................................10 Operating Instructions .......................................................................11-15 Fresh Vegetable Chart............................................................................16 Care and Cleaning .................................................................................17 Troubleshooting ......................................................................................18 Warranty .................................................................................................20 Guide de l’utilisateur...............................................................................21 Guía del Usuario ....................................................................................41 A/01/03 © 2003 Maytag Appliances Sales Company Part No.8112P218-60 MCS P/N 53001181 3828W5A2905 Installer:Please leave this manual with this appliance. Consumer:Please read and keep this manual for future reference. Keep sales receipt and/or cancelled check as proof of purchase. In our continuing effort to im- prove the quality and perfor- mance of our appliances, it may be necessary to make changes to the appliance with- out revising this guide. Model Number Serial Number Date of Purchase If you have questions, write us (include your model number and phone number) or call: Maytag Services SM Attn: CAIR ® Center P. O.Box 2370 Cleveland, TN 37320-2370 1-800-JENNAIR (1-800-536-6247) U.S.A. and Canada (Mon.-Fri., 8 am-8 pm Eastern Time) Internet: http://www.jennair.com JMC8127DD/JMC8130DD 2 IMPORTANT SAFETY INSTRUCTIONS What You Need to Know About Safety Instructions Warning and Important Safety In- structions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating a microwave. Always contact your dealer, distribu- tor, service agent, or manufacturer about problems or conditions you do not understand. Recognize Safety Symbols, Words, Labels DANGER DANGER—Immediate hazards which WILL result in severe personal injury or death. WARNING WARNING—Hazards or unsafe practices which COULD result in severe per- sonal injury or death. CAUTION CAUTION—Hazards or unsafe practices which COULD result in minor per- sonal injury. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT ( U.S.A. ONLY) This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following: •Reorient the receiving antenna of the radio or television. •Relocate the microwave oven with respect to the receiver. •Move the microwave oven away from the receiver. •Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits. The manufactureris not responsible for any radio or TV interference caused by unauthorized modificationto this microwave oven. It is the responsibility of the user to correct such interference. Grounding Instructions Oven MUST be grounded. Grounding reduces risk of electric shock To avoid risk of electrical shock or death, this oven must be grounded and plug must not be altered. WARNING by providing an escape wire for the electric current if an electrical short occurs. This oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or ser- vicer if grounding instructions are not completely understood, or if doubt exists as to whether the oven is prop- erly grounded. Do not use an extension cord.If the product power cord is too short, have a qualified electrician install a three-slot receptacle. This oven should be plugged into a separate 60 hertz circuit with the electrical rating as shown in specifications table. When the oven is on a circuit with other equipment, an increase in cooking times may be required and fuses can be blown. Microwave operates on standard household current, 110-120V. SAVE THESE INSTRUCTIONS 3 SAVE THESE INSTRUCTIONS Recognize this symbol as a SAFETY message When using electrical microwave, basic safety precautions should be followed to reduce risk of burns, electric shock, fire, or injury to persons or exposure to excessive microwave energy. WARNING 1.READall instructions before using the appliance. 2.READ AND FOLLOWthe specific PRECAU- TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYin IMPOR- TANT SAFETY INSTRUCTIONS. 3. This appliance MUST BE GROUNDED.Connect only to properly grounded outlet. See GROUND- ING INSTRUCTIONSin Installation Instructions. 4. Install or locate this appliance ONLYin accor- dance with th…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M087 6660-B Dobbin Road Date: April 16, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJF156XJA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJF156XJA 2. Application Model no.: MF-1561JLS (RF Power Output – IEC705: 1000 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MF-1561JLS with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M087 Authorization and Standards Branch Date: April 16, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJF156XJA Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJF156XJA 2. Application Model no.: MF-1561JLS (RF Power Output – IEC705: 1000 W) 3. Magnetron: 2M246 (LG Electronics Inc.) 4. Applied model is for household use. We have performed all tests using model MF-1561JLS with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

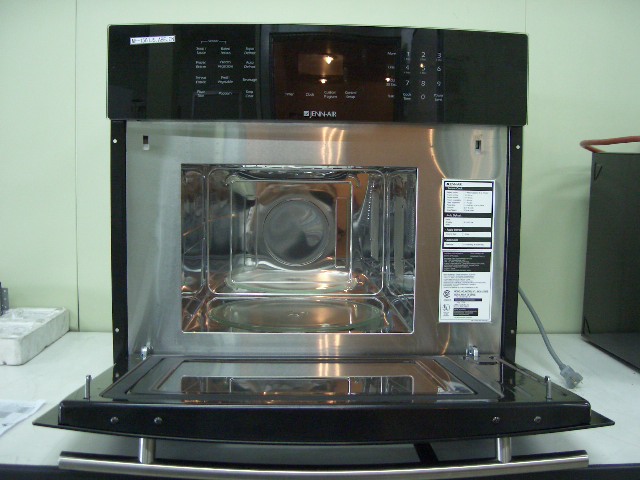

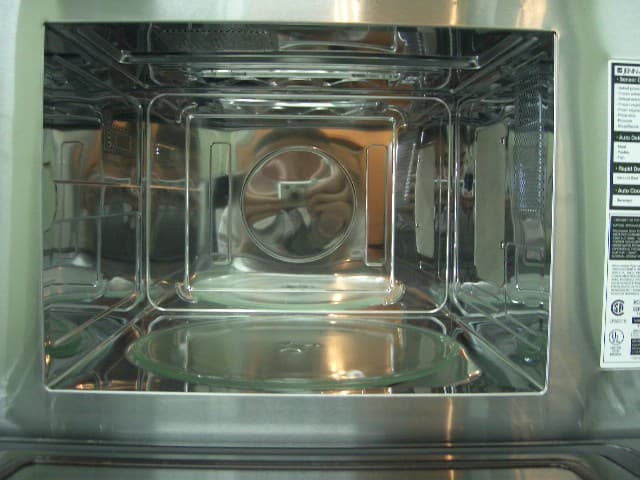

Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 22 / 26 LG Electronics Inc. FCC ID: BEJF156XJA APPENDIX E. EUT Photos Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 23 / 26 LG Electronics Inc. FCC ID: BEJF156XJA

Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 19 / 26 LG Electronics Inc. FCC ID: BEJF156XJA APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 13.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJF156XJA MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MF-1561JLS CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 24 / 26 LG Electronics Inc. FCC ID: BEJF156XJA Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 25 / 26 LG Electronics Inc. FCC ID: BEJF156XJA

Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 20 / 26 LG Electronics Inc. FCC ID: BEJF156XJA APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: April 16, 2005 Test Report No: 05-LAE-M087 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246 (LG Electronics Inc.) Brand Name(s): LG Model No.: MF-1561JLS FCC ID: BEJF156XJA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 1 / 26 LG Electronics Inc. FCC ID: BEJF156XJA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MF-1561JLS FCC ID: BEJF156XJA Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: April 13, 2005 – April 15, 2005 Date of Issue: April 16, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 2 / 26 LG Electronics Inc. FCC ID: BEJF156XJA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT ACCORDING TO MP5. .......................................................................... 10 7.3 RF P OWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705.................................................................. 11 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 12 7.5 P OWER D ENSITY S AFETY C HECK .................................................................................................................. 13 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION .…

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M087 FCC Part 18 (ISM) Test Date: April 16, 2005 Certification 21 / 26 LG Electronics Inc. FCC ID: BEJF156XJA APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
