BEJGEN5WIDEPDCar Navigation System

STANDARD UVO NAVIGATION Functions and services in this manual may differ from those in the actual vehicle. Product Name: Car Navigation System Model Name: GEN5 WIDE PD 시작하기General Name of each component 9 Name of each component Head unit Head unit functions may vary for each model. For more detail, refer to the supplied simple manual. 1 (POWER PUSH or PWR) button ↟ Power on: Press this button in power OFF status. ↟ Power off: Press and hold this button in power ON status. ↟ Press this button to turn AV on or off in power ON status. Volume control knob (VOL) Turn left/right to control volume. MAP button ↟ Press to display the map screen of the current location. ↟ Press to repeat the voice guidance on the map screen. (Voice guidance for road names and numbers is not supported in some countries.) NAV button Press to move to the [Navigation] menu screen. Reset hole (b) Press with a thin object to reset the unit when it does not operate normally. (Custom button) Press to move to the [Custom Button] menu. After setting a desired function, press to use the desired function. A SEEK/TRACK D (S/W) button When it is pressed for a short time. ↟ AM mode: Plays previous/next available frequency. ↟ DAB(If equipped)/FM mode: Plays previous/next available station existing within [List] menu. (If there is no or one station in [List] menu, the “Auto tuning” function is executed.) ↟ Media mode: Plays previous/next file. When it is pressed and held ↟ AM mode: Plays previous/next available frequency. ↟ DAB(If equipped)/FM mode: Plays previous/next available station existing within [List] menu. ↟ MEDIA mode (except for Bluetooth and Android Auto): Rewinds or fast forwards the file. Name of each component 10 RADIO button Press to move to the last played radio mode (DAB(If equipped)/FM, AM). MEDIA button If a playable media is connected, press the button to move to the corresponding screen. If you want to select another media connected, press the button again and select on the Media gate. SETUP button Press to go to the settings menu. FILE/TUNE button ↟ AM mode: Turn left/right to tune manually. ↟ DAB(If equipped)/FM mode: Turn left/right to search for a desired station and then press. ↟ MEDIA mode (except for-Bluetooth, Apple CarPlay and Android Auto): Turn left/right to search for the desired file and press. ↟ Navigation mode: Turn left/right to change the map scale on the map screen. ↟ It has been set to change map scale as default setting. You can change this button's function in [Advanced] menu. Name of each component 11 Steering wheel remote control Steering wheel remote control functions may vary for each model. For more detail, refer to the supplied simple manual. button ↟ Each time this button is pressed, the Radio or Media mode is changed. You can select the modes to toggle in settings. ↟ If the media is not connected, it is changed in the order DAB(If equipped)/FM > DAB(If equipped)/FM. ↟ When it is pressed and held, move to Advanced settings "Steering wheel MODE button". button Press to operate Bluetooth hands-free function. ↟ Press to accept a call. ↟ Press to make a call from last calls. ↟ Press and hold for redialing. W/S button When it is pressed for a short time ↟ Radio (DAB(If equipped)/FM, AM) mode: Plays previous/next favourites. ↟ MEDIA mode: Plays previous/next file. When it is pressed and held ↟ AM mode: Plays previous/next available frequency. ↟ DAB(If equipped)/FM mode: Plays previous/next stations. ↟ MEDIA mode (except for Bluetooth and Android Auto): Rewinds or fast forwards the file. Name of each component 12 + / - (Mute) button ↟ Increases or decreases the volume level. ↟ Press to mute the sound. (It will be paused in some media modes.) button Press to switch to voice recognition mode. To cancel it, press the button again. button ↟ Press to end the phone call during a call. ↟ Press to reject the call in the incoming call screen. ↟ Press to end Voice memo recording. Basic operation 13 Basic operation System ON/OFF Starting the system for the first time 1. Press the Engine Start button or set the ignition key to On or ACC On. Once the system is turned on, the booting process will start and the safety warning page is displayed. 2. Press [Confirm]. If you want to change the system language, press [Language]. , Note ↟ You cannot operate the system while it is booting up. It may take some time for all of the features to be ready. ↟ The safety warning page is displayed every time the ignition is turned on. The displayed warnings are related to safety, please closely read and comply with the safety warnings. ↟ If there is no operation for 10 seconds in the safety warning screen, the system automatically switches to the last played mode. Turning the system on Press 1 (POWER PUSH or PWR) on the head unit in system OFF status. , Note Pay attention to the volume setting when turning the system on. A sudden output of extreme volume upon turning the system on could lead to hearing impairment. Adjust the volume to a suitable levels before turning off the system or set the startup volume in sound [Settings] menu. Basic operation 14 Turning the system off Press and hold 1 (POWER PUSH or PWR) on the head unit in system ON status. AV OFF Press 1 (POWER PUSH or PWR) on the head unit to turn AV off in power ON status. AV ON Press 1 (POWER PUSH or PWR) on the head unit to turn AV on in AV OFF status. Adjusting the volume Turn the volume control knob (VOL) on the head unit to the left/right. ModeDescription Radio or mediaDuring the radio or media playback, turn to the left/right. Bluetooth callDuring a Bluetooth call, turn to the left/right. Bluetooth bellDuring an incoming call, turn to the left/right. , Note When you turn the system off, the current volume level is automatically memorised. Whenever you turn the system on, it operates at the memorised volume level if you do not set the startup volume in sound [Sound settings] menu. Resetting the system Head unit functions may vary for each model. For more…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name LG Electronics USA Address 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, 07632, USA Grantee Code BEJ FCC ID BEJGEN5WIDEPD Authorized Contact Name Kyung-Su Han Contact Email [email protected] Contact Phone 201-472-2623 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 12 June 2020 Print Name: Kyung-Su Han Title: Director *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: BEJGEN5WIDEPD To whom it may concern: I, t he undersigned, hereby authorize of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these mat ters. Any and all acts carried out by SGS Korea Co., Lt d. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; 12 June 2020 LG Electronics USA 1000 Sylvan Ave Englewood Cliffs, NJ 07632-0763 United States i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Kyung-Su Han Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 1000 Sylvan Ave Englewood Cliffs, NJ 07632-0763 United States

12 June 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: BEJGEN5WIDEPD Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Kyung-Su Han Director, NA Regulatory & Environmental Affairs LG Electronics USA LG Electronics USA 1000 Sylvan Ave Englewood Cliffs, NJ 07632-0763 United States

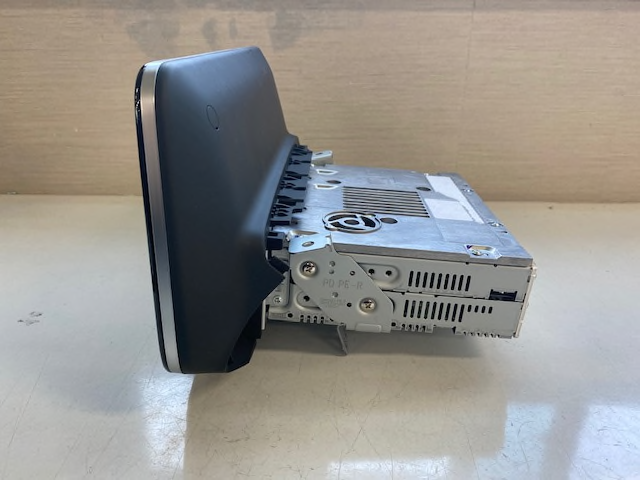

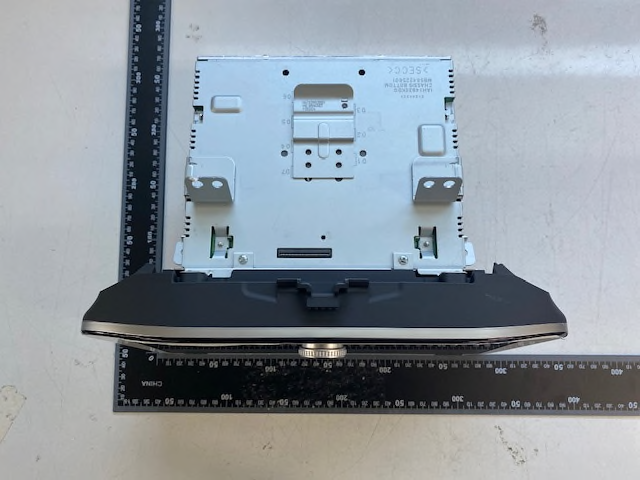

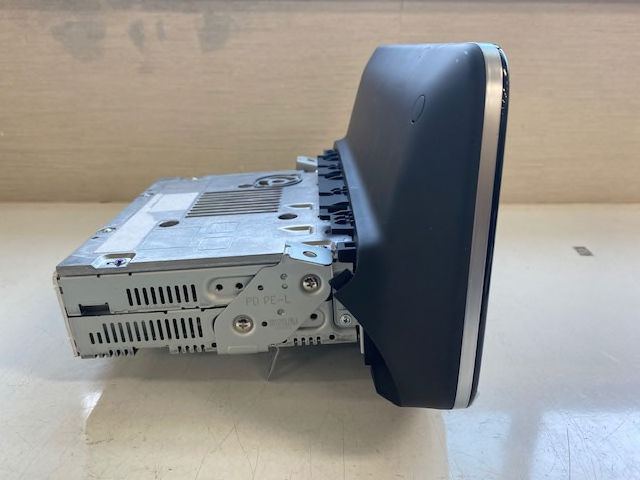

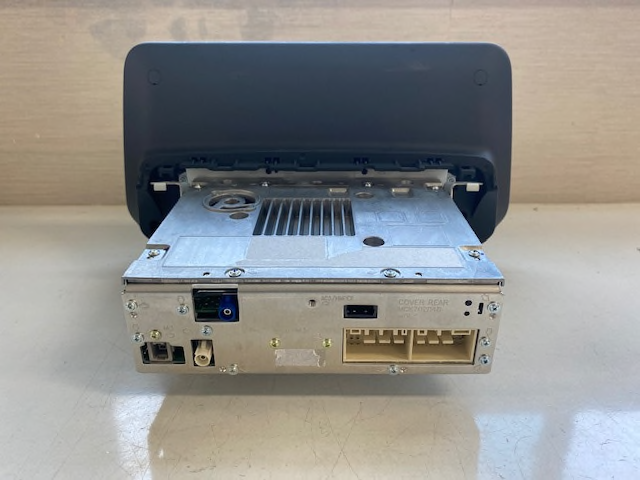

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Format and Location •Model: GEN5 WIDE PD <T op view of EUT> Label <1:1> CAR NAVIGATION SYSTEM MODEL : GEN5 WIDE PD PART No. : DC 12 V MADE IN KOREA FCC ID: BEJGEN5WIDEPD • FCC ID: BEJGEN5WIDEPD This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of Sub PCB3 Bottom view of Sub PCB3 Top view of Sub PCB4 Bottom view of Sub PCB4 View of Antenna ANT1 ANT2 View of Module BT/WIFI Module

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000759 Page:2of6 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000759 Page:3of6 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:LG Electronics USA Address:1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 Contact Person:Han, Kyung-su Phone No.:+1 201 472 2623 1.3. Details of Manufacturer Company:LG Electronics Inc. Address:10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000759 Page:4of6 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product Car Navigation System Model Name GEN5 WIDE PD Power Supply DC 12 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type PCB & Cable Assembly antenna Antenna Gain ANT 1 2 400㎒~ 2 483.5㎒: 2.30㏈i 5 725㎒~ 5 850㎒: 4.70㏈i ANT 2 2 400㎒~ 2 483.5㎒: 4.20㏈i 5 725㎒~ 5 850㎒: 3.80㏈i 1.5. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0007592020.06.10Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000759 Page:5of6 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1 500--f/3006 1 500-100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1 500--f/150030 1 500-100 000 -- 1.030 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000759 Page:6of6 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.4. Output Power into Antenna & RF Exposure Evaluation Distance Bluetooth - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 22.300.000 5351 WLAN (2.4G) - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 2 400 ~ 2 483.5 174.20 0.026 2261 WLAN (5G) - Maximum tune up tolerance Frequency Range (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) Limits (㎽/㎠) 5 725 ~ 5 850197.270.084 2811 Note; - The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit of 1㎽/㎠. - This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - This equipment should be installed and operated with minimum 20㎝between the radiator and your body. - The antenna gain of this transmitter is less than 6㏈i and must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC. - According to KDB 447498 D01 RF Exposure Guidance 4.1. Simultaneous transmission of RF Exposure test exclusion for worst case configuration. Bluetooth: the ratio is 0.000 535 / 1 WLAN: the ratio is 0.084 281 / 1 Confirm the sum result of individual MPEs ratio is ≤ 1.0; Bluetooth + WLAN: (0.000 535 / 1) + (0.084 281 / 1)= 0.084 816 ≤ 1.0 - End of the Test Report -

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000756 Page:2of56 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission -----9 3. 20㏈Bandwidth ------------------------------------------------------------------------------------ 29 4. Maximum Peak Conducted Output Power ----------------------------------------------------34 5. Carrier Frequency Separation --------------------------------------------------------------------36 6. Number of Hopping Frequencies ----------------------------------------------------------------39 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------43 8. Antenna Requirement ------------------------------------------------------------------------------56 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000756 Page:3of56 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:LG Electronics USA Address:1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 Contact Person:Han, Kyung-su Phone No.:+1 201 472 2623 1.3. Details of Manufacturer Company : LG Electronics Inc. Address : 10, Magokjungang 10-ro, Gangseo-gu, Seoul, Korea, 07796 1.4. Description of EUT Kind of Product Car Navigation System Model Name GEN5 WIDE PD Power Supply DC 12 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) Antenna Type PCB & Cable Assembly antenna Antenna Gain 2.30㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000756 Page:4of56 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMR40100272Jun. 07, 2019AnnualJun. 07, 2020 Signal GeneratorR&SSMBV100A255834Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30100768Mar. 04, 2020AnnualMar. 04, 2021 Spectrum AnalyzerAgilentN9030AUS51350132Nov. 15, 2019AnnualNov. 15, 2020 Bluetooth TesterTESCOMTC-3000C3000C000495Apr. 21, 2020AnnualApr. 21, 2021 Directional CouplerKRYTAR152613140972Jun. 12, 2019AnnualJun. 12, 2020 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS344May 18, 2020AnnualMay 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS11May 18, 2020AnnualMay 18, 2021 Low Pass FilterMini-CircuitsNLP-1200+V 9500401023-3Jun. 01, 2020AnnualJun. 01, 2021 Power SensorR&SNRP-Z81102779Dec. 04, 2019AnnualDec. 04, 2020 DC Power SupplyAgilentU8002AMY53150029Jun. 10, 2019AnnualJun. 10, 2020 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 12, 2019AnnualJun. 12, 2020 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 08, 2020AnnualMay 08, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22, 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2020AnnualFeb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Test ReceiverR&SESU26100109Feb. 18, 2020AnnualFeb. 18, 2021 Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableRFONEPL520-NMNM-4M (4 m)20200324001May 06, 2020 Semi- annual Nov. 06, 2020 Coaxial CableRFONE PL520-NMNM-10M (10 m) 20200324001May 06, 2020 Semi- annual Nov. 06, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 01/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 05/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 10/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000756 Page:5of56 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Declaration by the Manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. 1.7. Information about the FHSS characteristics: 1.7.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.7.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.7.3. Example of a 79 hopping sequence in data mode: 02, 05, 3…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the below orthogonal plane and measured. X-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓)
