BEJGS505Cellular/PCS GSM/EDGE and AWS WCDMA Phone with Bluetooth

GS505 User Guide Congratulations on your purchase of the advanced and compact GS505 phone by LG, designed to operate with the latest digital mobile communication technology. Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4 For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 10LG GS505 | User Guide Lock/ Unlock key Earpiece Handsfree or Stereo earphone connector Charger, Data cable (USB cable) TIP: Before connecting the USB cable, wait until the phone has powered up and has registered on the network. Call key Dials a phone number and answers incoming calls. Multi-tasking key End/ Power key • Rejects a call. • Press once to return to the home screen. • Turns the phone on/off. Volume keys • When the screen is idle: Touch tone or ring tone volume, press long the down key to Silent on/off. • During a call: earpiece volume. • When playing a track: controls the volume continuously. Camera key • Go to camera menu directly by pressing and holding the key. • Press twice to go to Sweet draw. You can edit the image and send it in this menu. Notice : This application (or function) may not be used for infringement upon the copyright of any third party. Getting to know your phone 11 WARNING: Putting a heavy object on the phone or sitting on it can damage its LCD and touch screen functionality. Do not cover the proximity sensor with a protective film or cover. It can cause the sensor to malfunction. Open view Battery cover Battery SIM card socket Camera lens Memory card socket 12LG GS505 | User Guide Installing the SIM and battery Remove the battery cover and the battery Slide down the battery cover and pull out the battery. WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone. Install the USIM card Slide the USIM card into the USIM card holder. Make sure the gold contact area on the card is facing downwards. To remove the USIM card, gently pull it outwards. 1 2 Install the battery Insert the top of the battery into the top edge of the battery compartment first. Ensure that the battery contacts align with the phone’s terminals. Press the bottom of the battery down until it clips into place. 3 13 Slide back the cover of the charger connector on the side of your GS505. Insert the charger and plug it into a mains electricity socket. Your GS505 must be charged until the “Battery full“ message appears on the screen. NOTE: The battery must be fully charged initially to improve battery lifetime. Disregard the first “Battery full” message and keep the phone on charge overnight (or for up to 14 hours). Charging your phone 14LG GS505 | User Guide Memory card Installing a memory card You can expand the available memory space on your phone by using a memory card. NOTE: A memory card is an optional accessory. Slide the memory card into the slot at the top, until it clicks into place. Make sure the gold contact area is facing downwards. WARNING: Slide into the memory card to the slot, otherwise, the card can be damaged. Formatting the memory card Your memory card may already be formatted. If it isn’t, you will need to format it before you can start to use it. NOTE: All files get deleted while formatting. From the home screen select and choose Phone settings from the SETTINGS tab. Scroll and touch Memory manager then scroll and select External memory. Touch F…

Text truncated - open the document above for the full version.

From: 한봉효 Sent: Friday, February 19, 2010 4:18 AM To: PCTEST TCB/CB Subject: Re : Questions Regarding FCC ID: BEJGS505 Importance: High Hello PCTEST TCB, Thank you for your e-mail. Please see the response and find the attachment. Thank you! Best regards Han. ----- Original Message ----- From: PCTEST TCB/CB To: LGE - Bong Hyo Han 한봉효 Sent: Friday, February 19, 2010 11:50 AM Subject: Questions Regarding FCC ID: BEJGS505 To: Mr. Bong-Hyo Han / LG Electronics Inc. From: Mr. Mark Czumak / PCTEST TCB RE: FCC ID: BEJGS505 Applicant: LG Electronics USA Correspondence Reference Number: BEJ100077 Confirmation Number: 1Y1001210077-79 Date of Original Email: February 18, 2010 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1.The GS505 Operational Description document lists EUT PCS WCDMA capability. Please confirm that the EUT does not implement it. → I confirm this EUT doesn't support WCDMA PCS capability. 2. The table in section 1.1 of the 15B report lists incorrect WCDMA transmit and receive frequencies. Please address. → Please find the attachment. Note: The EUT t ype on page 1 and 3 of the 15B report incorrectly lists Cellular/PCS WCDMA and omits mention of the WCDMA AWS band. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Mark Czumak Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notif y the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 29, 2010 Federal Communicatio ns Commission Authorization and Evaluation Division 7435 Oaklan d Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJGS505 Equipment Class: JBP: P art 15 Class B Computing Device Peripheral To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

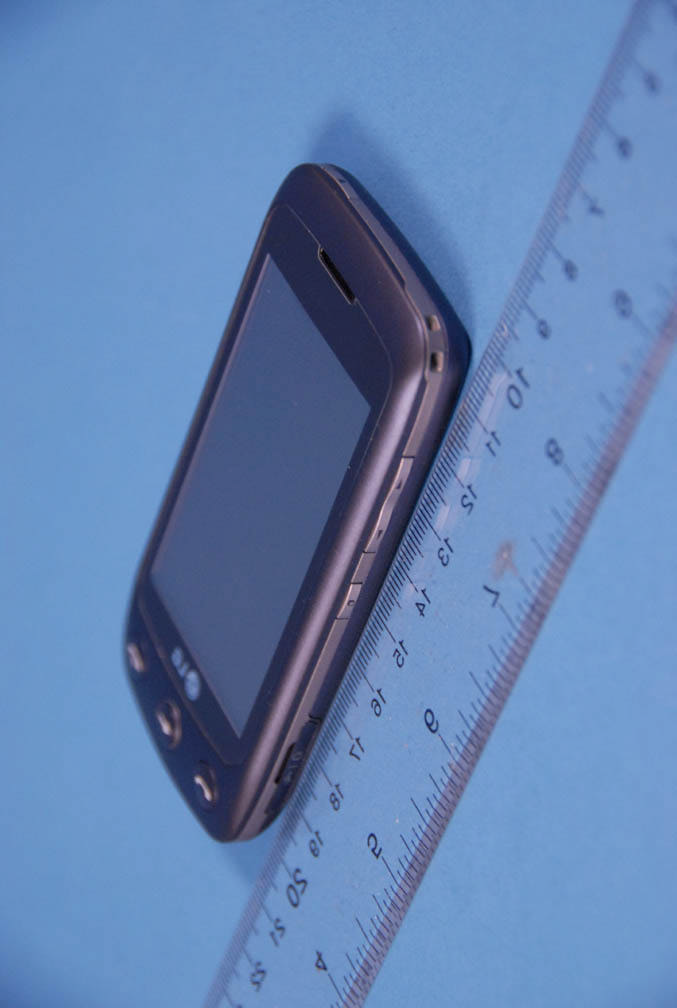

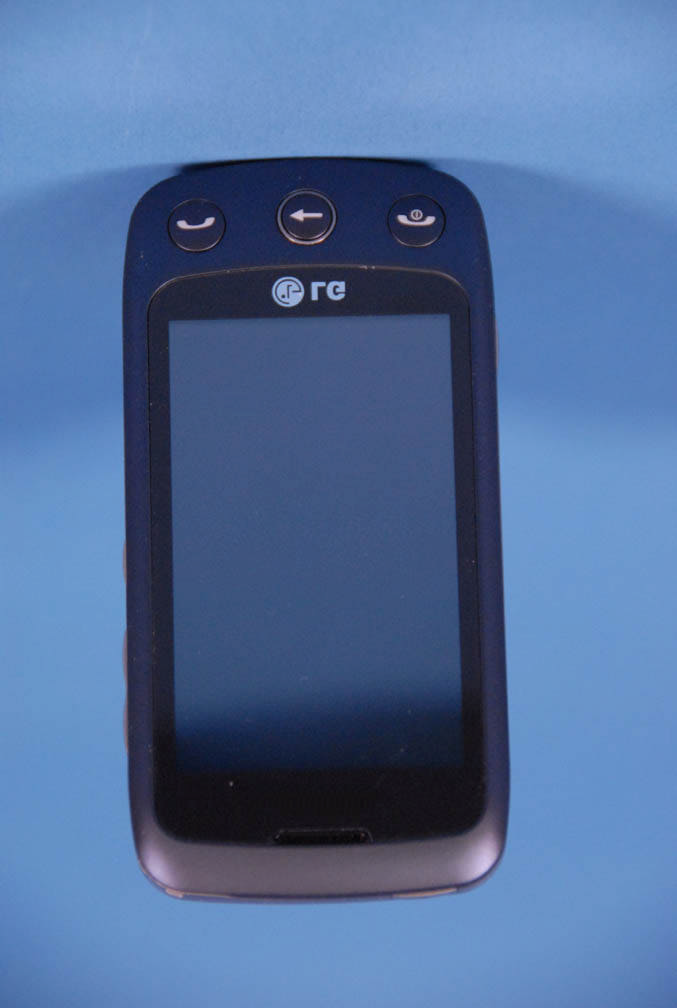

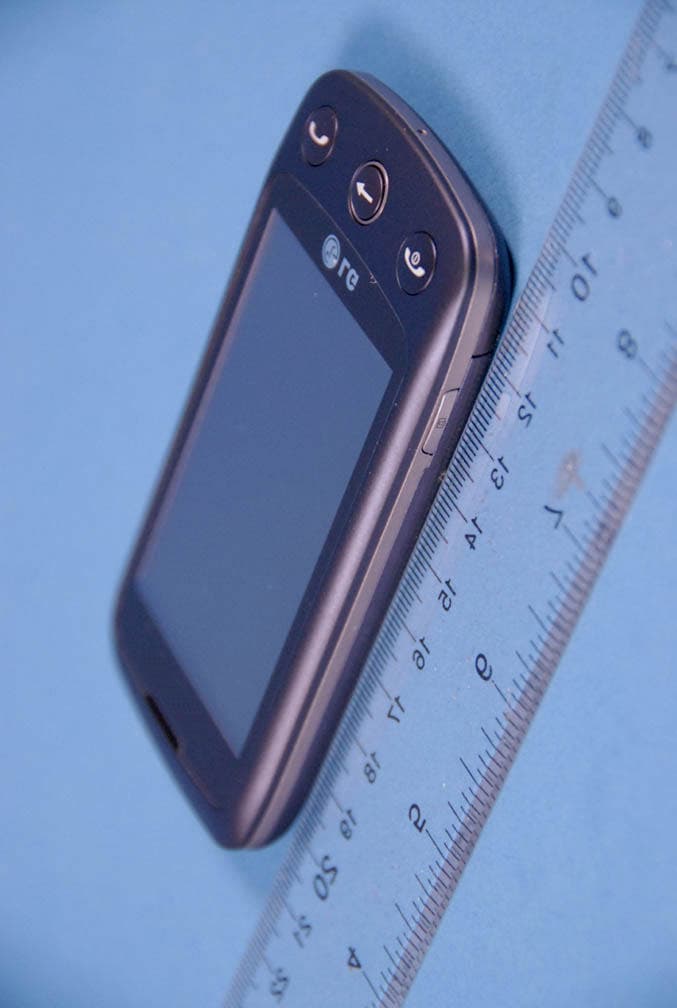

LG FCC ID: BEJGS505 Model: GS505 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG FCC ID: BEJGS505 Model: GS505 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Model No: GS505 FCC ID : BEJGS505 S/N : Made in Korea LG Electronics Inc. LGE

LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 1 of 14 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 2 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 3 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 4 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 5 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 6 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 7 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 8 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 9 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 10 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 11 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 12 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 13 of 14 © 2010 PCTEST Engineering Laboratory Inc. LG FCC ID: BEJGS505 Model: GS505 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with BT Page 14 of 14 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 17 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 5 1.5 Noise suppression parts on cable. (I/O cable) 5 1.6 Test methodology 6 1.7 Test facility 6 1.8 Frequency Range of Radiated Measurements 6 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of tested system 7 3. PRELIMINARY TEST 3.1 Conducted Emission test 8 3.2 Radiated Emission test 8 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 9 4.2 Radiated Emission test 14 5. FIELD STRENGTH CALCULATION 15 6. TEST EQUIPMENT 16 7. CONCLUSION 17 ATTACHMENT: TEST SETUP PHOTOGRAPHS FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 17 1. GENERAL INFORMATION 1.1 Product Description Equipment Under Test (E.U.T) is Cellular/PCS GSM/EDGE/WCDMA FDD VI Phone with Bluetooth, Model: GS505, GS505NV, GS505BR manufactured by LG Electronics Inc. Its basic purpose is used for communications. Model (s) GS505, GS505NV, GS505BR FCC ID BEJGS505 E.U.T Type Cellular/PCS GSM/EDGE/WCDMA FDD VI Phone with Bluetooth TX Frequency 824.20 ㎒ to 848.80 ㎒ (GSM 850) 1 850.20 ㎒ to 1 909.80 ㎒ (GSM 1 900) 1 711.25 ㎒ to 1 753.75 ㎒ (AWS 1 700) RX Frequency 869.20 ㎒ to 893.80 ㎒ (GSM 850) 1 930.20 ㎒ to 1 989.80 ㎒ (GSM 1 900) 2 111.25 ㎒ to 2 153.75 ㎒ (AWS 1 700) 1.2 Related Submittal(s) / Grant(s) Original submittal only. FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 17 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number/ Part Number FCC ID / DoC Connected To Cellular/PCS GSM/ EDGE/WCDMA FDD VI Phone with Bluetooth LG GS505 BEJGS505 Notebook PC Notebook PC HP Compaq6730b DoC E.U.T Notebook PC adaptor Hipro Electronics PPP014Y-S - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible DoC Notebook PC USB Cable - - - Notebook PC E.U.T Headset - - - E.U.T FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 17 1.4 Cable Description * The marked "(D)" means the data cable and "(P)" means the power cable. 1.5 Noise Suppression Parts on Cable. (I/O cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location Headset jack N - Y E.U.T End Cellular/PCS GSM/ EDGE/WCDMA FDD VI Phone with Bluetooth USB data N - Y Both End Notebook PC USB (Mouse) Y Notebook PC End Y Notebook PC End Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (M) Headset jack - N (D)1.0 Cellular/PCS GSM/ EDGE/WCDMA FDD VI Phone with Bluetooth USB data Y Y (P,D)1.2 Notebook PC USB (Mouse) - Y (D)1.8 FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 17 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test Facility The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1, Maekok-ri, Hobup-myun, Ichon-si, Kyoungki-do, 467-701, KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated June 10, 2009. (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 17 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of Test System Power Line Conducted test : E.U.T was connected to LISN via Notebook PC adaptor. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 3 m open area test site. [Configuration of Tested System] Power Line: 110VAC Non-Conductive Table Notebook PC adaptor Mouse Notebook PC E.U.T FCC ID: BEJGS505 Report No.: HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 8 of 17 3. PRELIMINARY TEST 3.1 Conducted Emission Test ■ Test E.U.T with Data Communication mode, after connecting all peripheral devices. During prelimin…

Text truncated - open the document above for the full version.

FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 1 of 7 ATTACHMENT - TEST SETUP PHOTOS - FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 2 of 7 1. CONDUCTED MEASUREMENT PHOTOS FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 3 of 7 FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 4 of 7 2. RADIATED MEASUREMENT PHOTOS [Data Communication Mode] FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 5 of 7 FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 6 of 7 [Headset Mode] FCC ID: BEJGS505 Report No. HCTE1004FE32 Date: April 30, 2010 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr Page 7 of 7
