BEJGVMRBGeneric Video Module

Car RSE User Manual Model Name : GVMRB Product Name : GVM(Generic Video Module) (2) Specifications *Product 1. Overview and Specifications (1) Overview 1) The GVM (Generic Video Module) operates as a controller to two or more touch-enabled displays in the rear seat, and/or in the front passenger seat for infotainment purposes. 2) Utilizing internal An-droid Operating system it allows users to stream media content from embedded apps, view vehicle information, and interact with HDMI ports in the front/rear consumer port inputs. 3) The GVM will drive touch display for entertainment, and supports audio streaming function for BT devices. (device : BT headphone, BT earphone, BT speaker) ItemCategories Specifications Specification Product NameGVM(Generic Video Module) ModelGVMRB DimensionsRefer to image Weight1.0kg Power SourceDC12V Operational Temperaturerange -40 °C ~ 85 °C Dimensions : 230.82mm x 122mm x 40.8mm < Basic Design Concept > [ Bluetooth ] *RF specifications ItemSpecificationsUnit Frequency2400 ~ 2483.5MHz Modulation TypeGFSK, π/4 DQPSK, 8 DPSK BT Power-2 (MIN.) / 1(TYP.) / 4 (MAX.)dBm Data rate1 ~ 3Mbps Channel spacing1MHz BT version BT5.0M Hz *Max output power: 4dBm (Maximum average power including tolerance) *Tolerance: +/- 3dBm 2. Component Active Area ItemDescriptions Display & Touch Display for viewing information and Touch screen for user operation 3. Operation < Touch Gesture > SymbolGestureDescription Tap (Press) Double tap Long tap / Long press (Press & Hold) Flick (Flicking) Drag & Drop Pinch & Spread (only in the browser) You touch a part of the screen with your finger and then take the finger off from the screen A Double Touch gesture consists two Touches in quick succession. A Long Press is performed by touching the screen and holding that touch location for some period of time. You move from one point to the other point quickly and then take the finger off from the screen (Factor: direction) You touch a part of the screen for 1 second or more while you move and then take the finger off from the screen Zoom out/in. Users place the two fingers a little distance apart on the screen and move them toward/spread each other without lifting them from the screen. < Home Screen > 1) Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while driving and always be fully aware of all driving conditions. Do not change settings or any functions. Pull over in a safe and legal manner before attempting such operations. To promote safety, certain functions are disabled unless the parking brake is on. 2) To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside. Refer servicing to qualified service personnel. 3) To reduce the risk of fire or electric shock, do not expose this product to dripping or splashing water, rain, or moisture. 4) When driving your vehicle, be sure to keep the volume of the unit low enough to allow you to hear sounds coming from the outside. 5) Do not drop it and avoid heavy impacts at anytime. 6) The driver should not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident. 4. Precautions Federal Communications Commission(FCC) Statement (FCC Part 15.21) You are cautioned that cha nges or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. FCC Part 15.105 This equipment has been tested and found to comply with the limits for a Class B d igital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and ca n radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - R eorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/TV technician for help. FCC Part 15.19 Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment 5. FCC/ISED Statements FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co- located or operating in conjunction with any other antenna or transmitter. End users must follow the specific operating instructions for satisfying RF exposure compliance. RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End users must follow the specific operating instructions for satisfying RF exposure compliance. Responsible Party Information(Supplier'sDeclaration of Conformity) LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs New Jersey, United States, 07632 Contact Number of Information 5 . F CC/ISED Statements Industry Canada Statement [English] Indus…

Text truncated - open the document above for the full version.

LG Electronics USA Attestation Letter (Section 2.911 (d)(5)(i)(ii) and 2.911(d)(7)) Date: 13-02-2023 FCC ID: BEJGVMRB To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA We, LG Electronics USA, as requested by FCC, are declaring that both requirements of Section 2.911 (d)(5)(i)(ii) and 2.911(d)(7) are being satisfied likes below to the FCC requirements to protect the nation`s networks and supply chains from equipment (“covered” equipment) according to FCC 22-84 and KDB 986446 D01. 1.Sectio n 2.911 (d)(5)(i)(ii)) 2.911 (d)(5)(i) We certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2.911 (d)(5)(ii) And, we certifies that one of following, ☒ 1.We are not identified on the Covered List and are not an affiliate or subsidiary of an entity identified on the Covered List. ☐ 2.We are identified on the Covered List as an entity producing “covered” equipment. But, we can be authorized since the reason as explained below. ☐ 3.We are an affiliate or subsidiary of an entity identified on the Covered List. But, we can be authorized since the reason as explained below. *Only one of paragraphs 1, 2 or 3 should be checked, if checked on paragraphs 2 or 3, the reason why it does not include the “covered” equipment. 2.Section 2.911(d)(7) We, as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID. We will maintain the agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. And we have t he responsibility to inform the FCC whenever the agent information changes. -. US Contact Name: Heejae Cho -. US Address: LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States -. Email: [email protected] Sincer ely yours, Name: Heejae Cho Title: Director, Regulatory and Environmental Affairs Company Name: LG Electronics USA * FRN: 0023476120

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM LG Electronics USA HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : March 23, 2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : BEJGVMRB We, the undersigned, hereby authorize HCT CO., LTD. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: (Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM LG Electronics USA HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : 3/23/2023 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT: Request for Confidentiality for FCC ID: BEJGVMRB We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Parts List 4 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sign ed by: (Name / Title) Heejae Cho / Director, Regulatory and Environmental Affairs (Email Address) [email protected] (Phone number) 201-470-2696 (Address) LG Electronics USA, 111 Sylvan Avenue, North Building, Englewood Cliffs, New Jersey 07632, United States

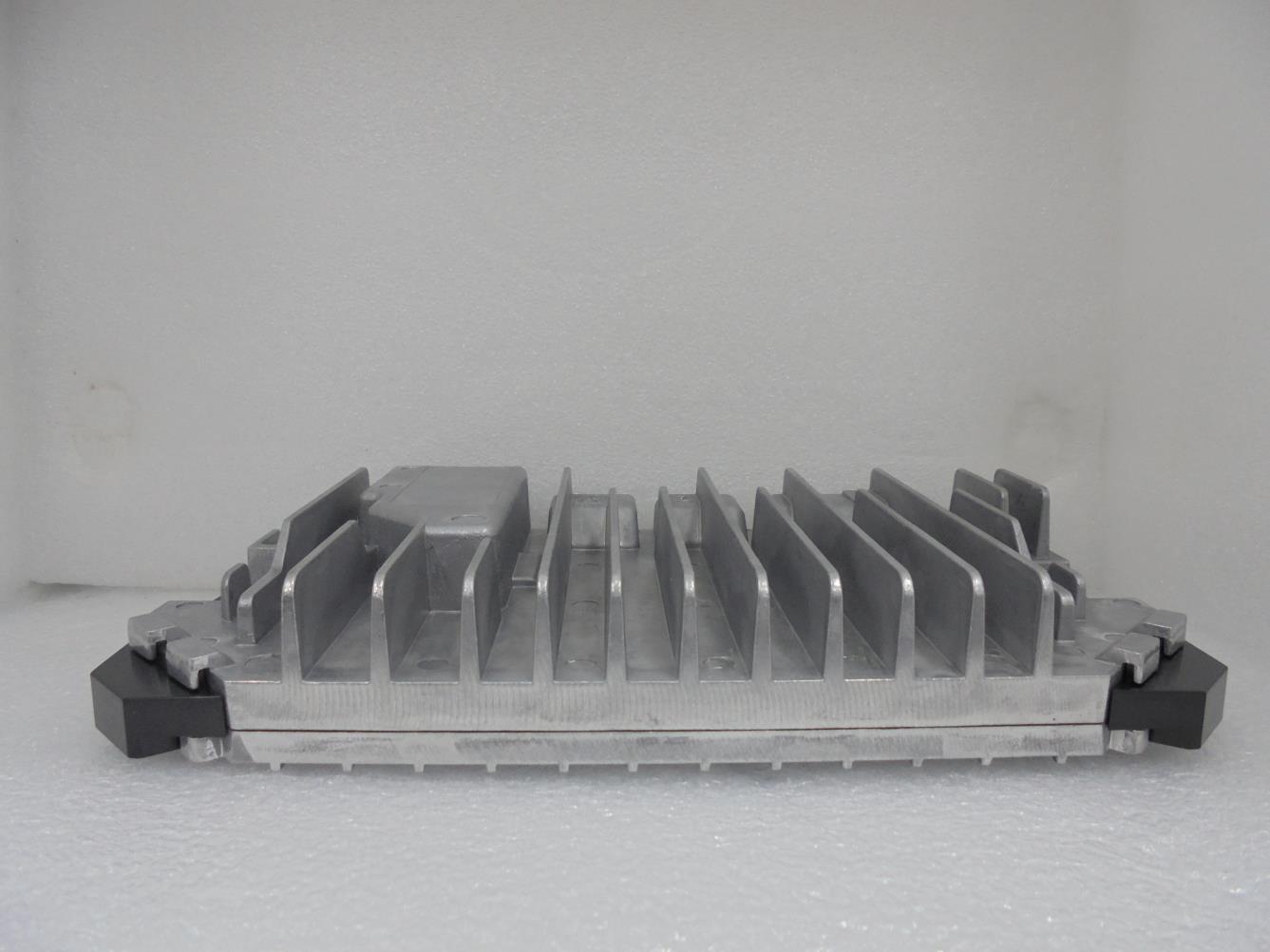

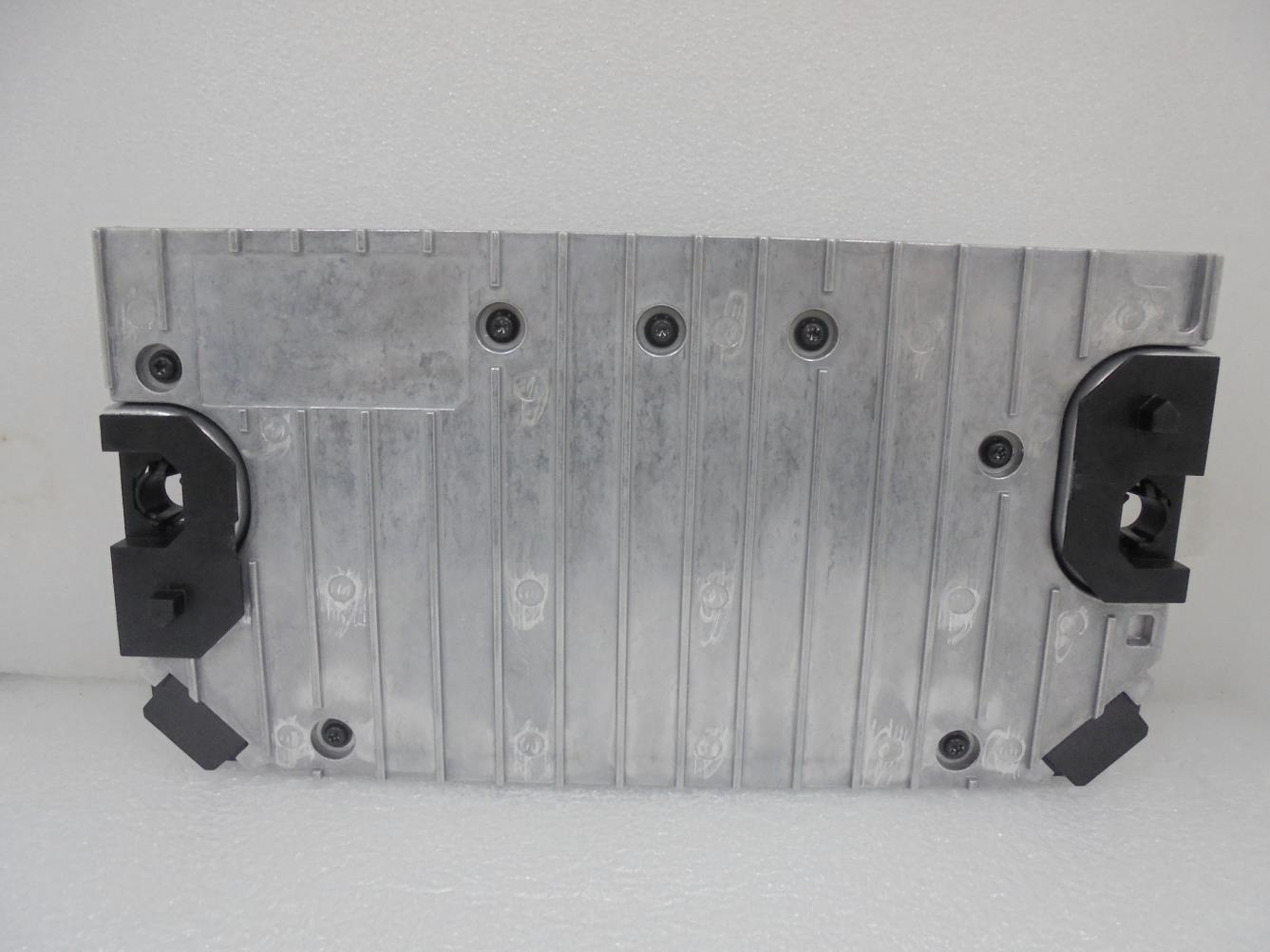

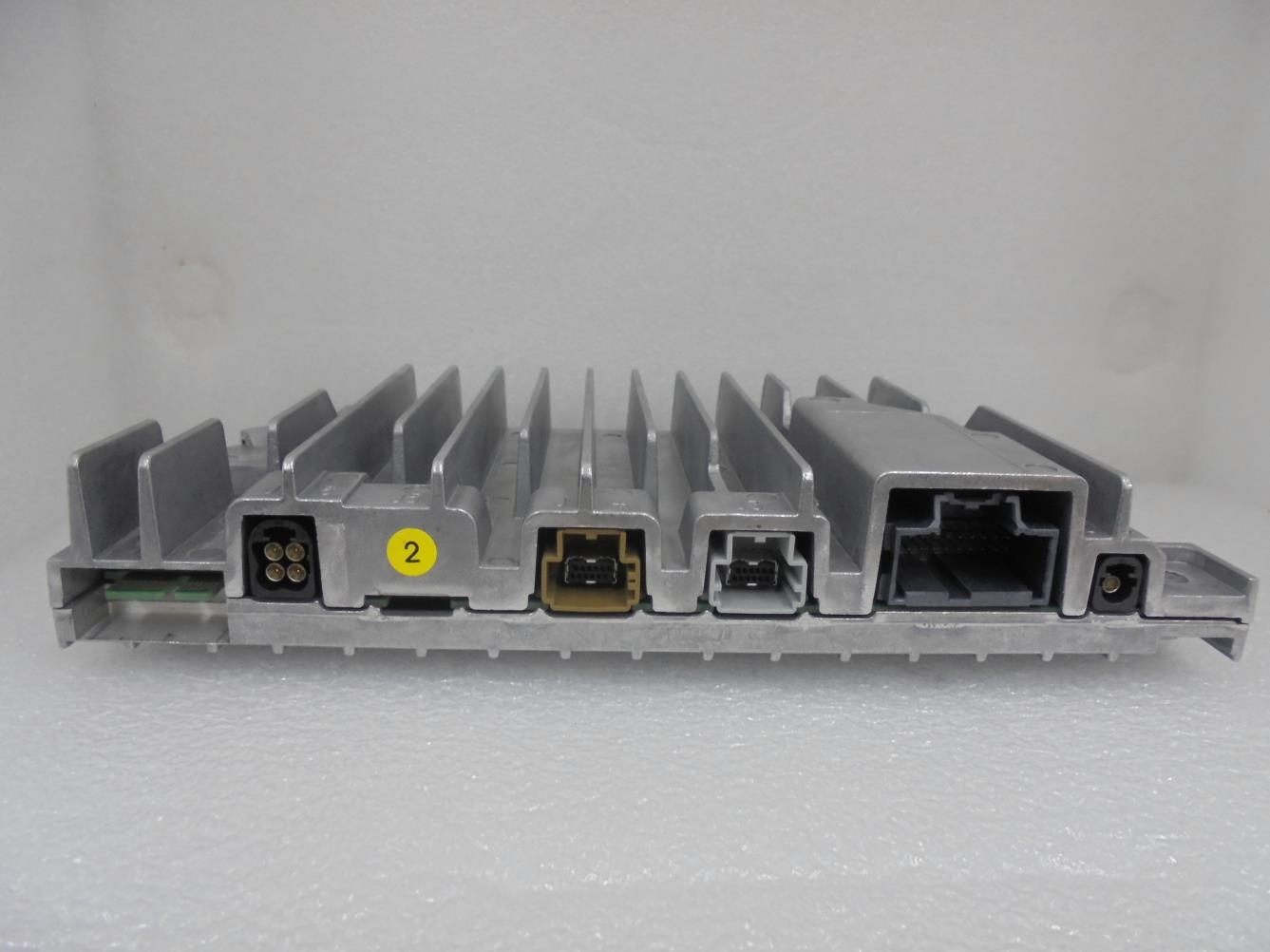

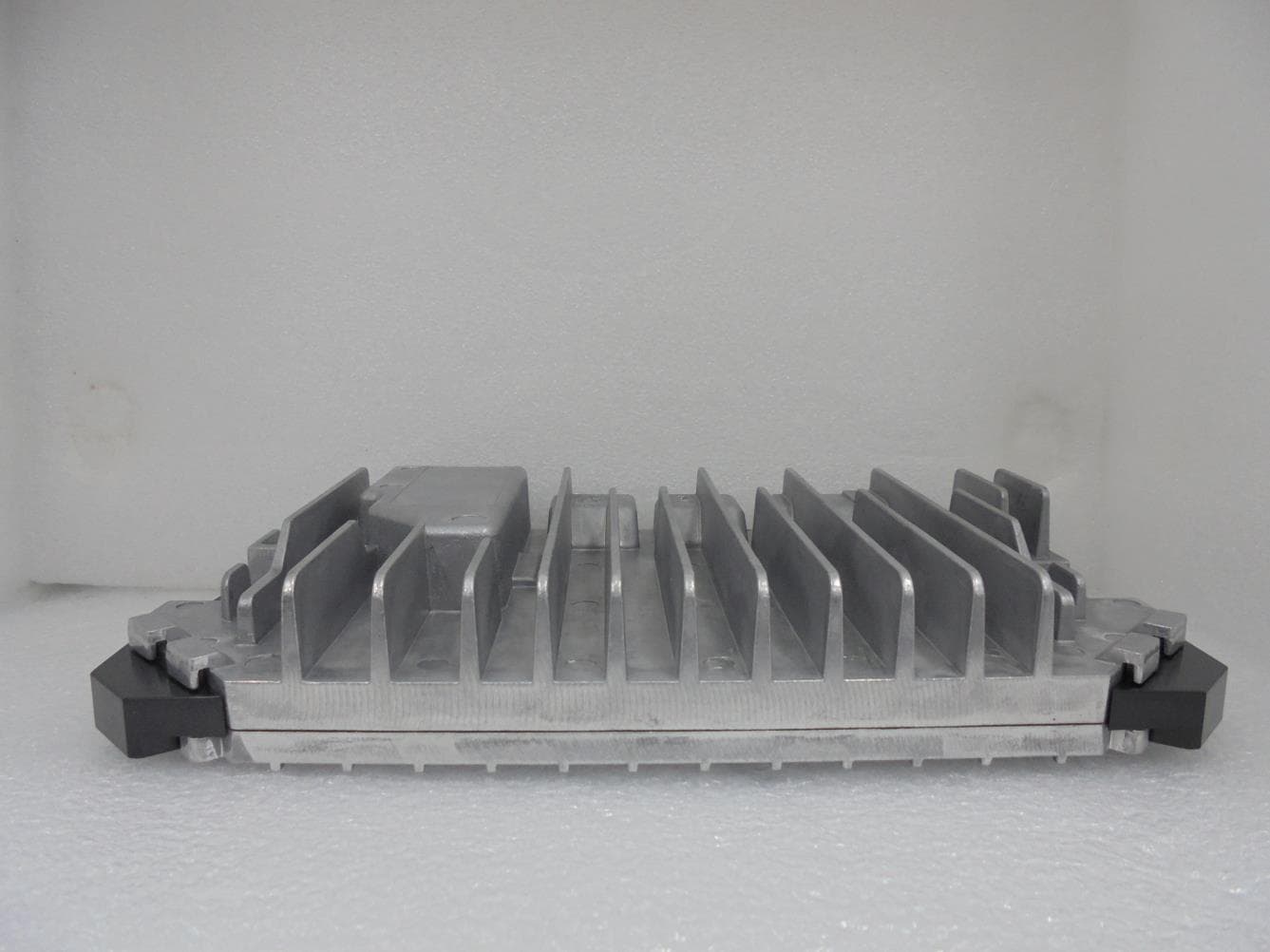

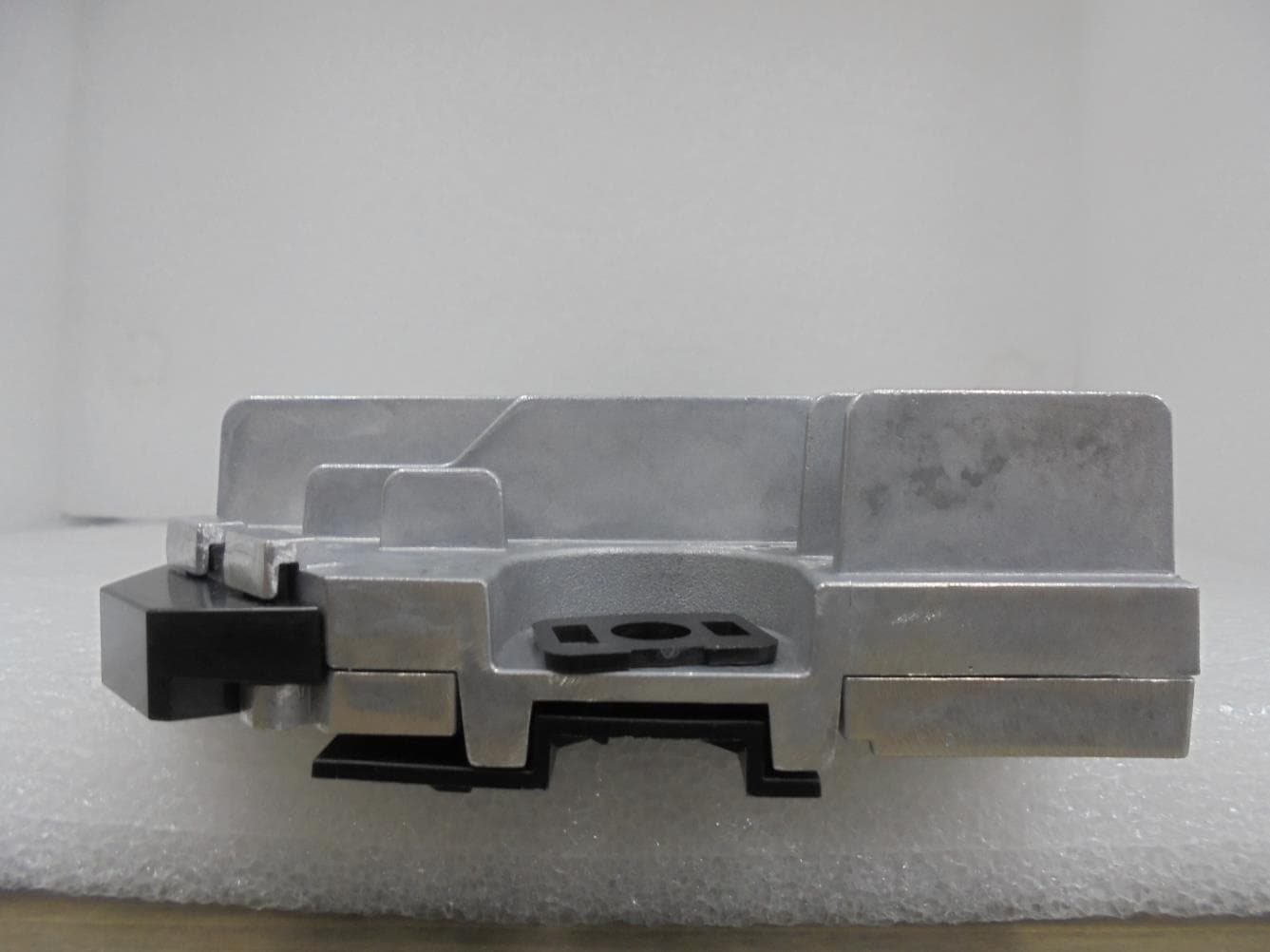

FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

[GVMRB : Label location] Main Label Location Sub Label Location 2703H-GVMRB BEJGVMRB

FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 INTERNAL PHOTOGRAPHS FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ INTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ INTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ INTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ INTERNAL PHOTO FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ INTERNAL PHOTO Port.2 (Port.1) Bottom layer Top layer FCC ID: BEJGVMRB, IC: 2703H-GVMRB HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 (Port.2) Bottom layer Top layer

On your side HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 F ax. +82 31 645 6401 F-TP22-03 (Rev. 04) The report shall not be reproduced except in full(only partly) without approval of the laboratory. Page 1 of 7 . TEST REPORT FCC / ISED SAR Exclusion Report for GVMRB Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-SR-2303-FI001 DATE OF ISSUE March 02, 2023 Technical Manager Yun Jeang Heo (signature) Accredited by KOLAS, Republic of KOREA F-TP22-03 (Rev. 04) Page 2 of 7 HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 TE S T R E P O R T FC C / I S E D Bl u e t o o t h T e s t f o r G V M R B REPORT NO. HCT-SR-2303-FI001 DATE OF ISSUE March 02, 2023 Applicant LG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Republic of Korea EUT Type Model Name Generic Video Module GVMRB FCC ID ISED ID BEJGVMRB 2703H-GVMRB FCC Classification Spread Spectrum Transmitter (DSS) FCC Rule Part(s) 47CFR §2.1093 ISED Rule Part(s) RSS-102 Issue 5; Health Canada Safety Code 6 The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-SR-2303-FI001 F-TP22-03 (Rev. 04) Page 3 of 7 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 02, 2023 Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. This laboratory is not accredited for the test results marked *. The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 AND KOLAS (Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (HCT Accreditation No.: KT197) If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-SR-2303-FI001 F-TP22-03 (Rev. 04) Page 4 of 7 CONTENTS 1. EUT DESCRIPTION 5 2. TEST METHODOLOGY 6 2.1 FCC 6 2.2 ISED 7 Report No. HCT-SR-2303-FI001 F-TP22-03 (Rev. 04) Page 5 of 7 1. EUT DESCRIPTION Model Name GVMRB EUT Type Generic Video Module Power Supply DC 12 V Frequency Range 2 402 ㎒ – 2 480 ㎒ Max. Aver. Output Power 4 dBm (3mW) (including tolerance) Max. Peak. Output Power Ant. 0: 5.526 dBm (3.57 mW) Ant. 1: 5.220 dBm (3.33 mW) Modulation Type GFSK(Normal), π/4DQPSK and 8DPSK(EDR) Number of Channels 79 Channels, Minimum 20 Channels (AFH) Antenna Specification Antenna type: PCB Trace Antenna Peak Gain: ANT0: 6.39 dBi, ANT1: 6.94 dBi PMN (Product Marketing Number) Generic Video Module HVIN (Hardware Version Identification Number) GVMRB FVIN (Firmware Version Identification Number) 1.0 HMN (Host Marketing Name) N/A EUT Serial Numbers Radiated: 211950362 Conducted: 211950348 Report No. HCT-SR-2303-FI001 F-TP22-03 (Rev. 04) Page 6 of 7 2. TEST METHODOLOGY 2.1 FCC Body SAR for Test Exclusions Applied _Bluetooth The module is a wireless device mounted near the vehicle's console box and has a minimum separation distance of 58.56 mm from the user in the vehicle. Please check the technical document for details. - Closest distances antenna molding to inside of center console (passenger side) :58.56mm Per FCC KDB 447498 D01 General RF Exposure Guidance v06 sec.4.3.1. Standalone SAR test exclusion considerations: These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. According to the FCC KDB 447498 D01 v06 section 4.3.1,b) for 100 ㎒ to 6 ㎓ and test separation distances > 50 mm a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]*[√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where s 3.0 and 7.5 are referred to as numeric thresholds in step b) below b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·(f(MHz)/150)]} mW, for 100 MHz to 1500 MHz 2) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·10]} mW, for > 1500 MHz and ≤ 6 GHz Calculation Result: Tx frequency range: 2 402 ㎒ ~ 2 480 ㎒ Body SAR Consideration Min. separation distance: 58.56 ㎜ Maximum Ave. Output Power: 3 ㎽ The Highest RF channel frequency: 2 480 ㎒ SAR test exclusion thresholds power for this module is 180.9 mW Based on the maximum output power of Bluetooth and antenna to use separation distance, Bluetooth SAR Test was not required. *Note: “The test exclusion conditions of the SAR test were satisfied by evaluating the exemption threshold power according to the FCC KDB 447498 D01v06, sec.4.3.1.” Report No. HCT-SR-2303-FI001 F-TP22-03 (Rev. 04) Page 7 of 7 2.2 ISED SAR Test Exclusions Applied _Bluetooth Per RSS102 Issue 5, 2.5.1 Exemption Limits for Routine Evaluation . Output power level shall be the higher of the maximum conducted or equivalent isotopically radiated power (e.i.r.p.) source-based, time-averaged output power. Tx frequency range: 2 402 ㎒ ~ 2 480…

Text truncated - open the document above for the full version.

[GVMRB Antenna Information (ManufacturerandTesting setup ] ItemInformation ManufacturerLSMtron Testinc.LSMtron Measurement Equipment 1)Network Analyzer :Model =Agilent E5071B/ Frequency range =300 KHz ~ 8.5GHz 2)Wireless Communications Test Set : Model= Agilent E5515C (8960 Series 10)/ Band= GSM, CDMA, WCDMA Testsetup [GVMRB Antenna#1 specification: Peak gain] ItemInformation Model nameGVMRB Applying ModuleATC6CPL001 (BT/WiFi Combomodule) Antenna TypePCB Trace Antenna Antenna#1 Feature 2.4GHz Peakgain Bottom layer Top layer [GVMRB Antenna#1 specification : 3D Radiation pattern] ItemInformation Model nameGVMRB Applying ModuleATC6CPL001 (BT/WiFi Combomodule) Antenna TypePCB Trace Antenna axis of Antenna#1 Chamber Coordinates 3DRadiation 2400MHz2445MHz2500MHz Z X Y ItemInformation Model nameGVMRB Appying ModuleATB2CUL003 (BTmodule) Antenna TypePCB Trace Antenna Antenna#2 Feature 2.4GHz Peakgain [GVMRB Antenna#2 specification: Peak gain] Bottom layer Top layer ItemInformation Model nameGVMRB Appying ModuleATB2CUL003 (BTmodule) Antenna TypePCB Trace Antenna axis of Antenna#2 Chamber Coordinates 3DRadiation 2400MHz2445MHz2500MHz [GVMRB Antenna#2 specification: 3D Radiation pattern] Z X Y Rotate in the direction of peak gain Rotate in the direction of peak gain Rotate in the direction of peak gain

TEST REPORT FCC/ISED BT Test for GVMRB Certification APPLICANT LG Electronics Inc. REPORT NO. HCT-RF-2302-FI005 DATE OF ISSUE February 23, 2023 Tested by Kyung Jun Woo Technical Manager Jong Seok Lee Accredited by KOLAS, Republic of KOREA F-TP22-03(Rev.04) HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 Fax. +82 31 645 6401 1 / 91 The report shall not be reproduced except in full(only partly) without approval of the laboratory. HCT CO.,LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 Fax. +82 31 645 6401 F-TP22-03 (Rev. 04) Page 2 of 88 TEST REPORT FCC/ISED BT Test for GVMRB REPORT NO. HCT-RF-2302-FI005 DATE OF ISSUE February 23, 2023 Additional Model - ApplicantLG Electronics Inc. 222, LG-ro, Jinwi-myeon, Pyeongtaek-si, Gyeonggi-do, 451-713, Republic of Korea Eut Type Model Name Generic Video Module GVMRB FCC IDBEJGVMRB IC2703H-GVMRB Max. RF Output PowerAnt. 1: 5.526 dBm (3.57 mW) Ant. 2: 5.220 dBm (3.33 mW) FCC Rule Part(s) Part 15 subpart C 15.247 ISED Rule Part(s) RSS-247 Issue 2 (February 2017) RSS-Gen Issue 5_Amendment 2 (February 2021) The result shown in this test report refer only to the sample(s) tested unless otherwise stated. This test results were applied only to the test methods required by the standard. Report No. HCT-RF-2302-FI005 F-TP22-03 (Rev. 04) Page 3 of 88 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 February 23, 2023 Initial Release Test Report Statement: KOLAS Statement: The above Test Report is the accredited test result by (KS Q) ISO/IEC 17025 and KOLAS(Korea Laboratory Accreditation Scheme), which signed the ILAC-MRA. (KOLAS Accreditation No. KT197) Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / ISED Rules under normal use and maintenance. If this report is required to confirmation of authenticity, please contact to www.hct.co.kr Report No. HCT-RF-2302-FI005 F-TP22-03 (Rev. 04) Page 4 of 88 CONTENTS 1. EUT DESCRIPTION 5 ANTENNA CONFIGURATIONS 6 2. Requirements for Bluetooth transmitter(15.247/ RSS-247) 7 3. TEST METHODOLOGY 8 EUT CONFIGURATION 8 EUT EXERCISE 8 GENERAL TEST PROCEDURES 8 DESCRIPTION OF TEST MODES 9 4. INSTRUMENT CALIBRATION 9 5. FACILITIES AND ACCREDITATIONS 9 FACILITIES 9 EQUIPMENT 9 6. ANTENNA REQUIREMENTS 10 7. MEASUREMENT UNCERTAINTY 11 8. DESCRIPTION OF TESTS 12 9. SUMMARY OF TEST RESULTS 33 10. TEST RESULT 34 10.1 PEAK POWER 34 10.2 BAND EDGES 39 10.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99 % BW) 44 10.4 NUMBER OF HOPPING FREQUENCY 54 10.5 TIME OF OCCUPANCY (DWELL TIME) 57 10.6 SPURIOUS EMISSIONS 65 10.6.1 CONDUCTED SPURIOUS EMISSIONS 65 10.6.2 RADIATED SPURIOUS EMISSIONS 72 10.6.3 RADIATED RESTRICTED BAND EDGES 80 10.7 RECEIVER SPURIOUS EMISSIONS 85 11. LIST OF TEST EQUIPMENT 86 12. ANNEX A_ TEST SETUP PHOTO 88 Report No. HCT-RF-2302-FI005 F-TP22-03 (Rev. 04) Page 5 of 88 1. EUT DESCRIPTION Model GVMRB EUT Type Generic Video Module Power Supply DC 12 V Frequency Range 2 402 MHz ˊ 2 480 MHz Max. RF Output Power Ant. 1: 5.526 dBm (3.57 mW) Ant. 2: 5.220 dBm (3.33 mW) BT Operating Mode Normal, EDR, AFH Modulation Type GFSK(Normal), π/4DQPSK and 8DPSK(EDR) Modulation Technique FHSS Number of Channels 79 Channels, Minimum 20 Channels(AFH) Date(s) of Tests January 02, 2023 ~ February 09, 2023 EUT serial numbers Radiated: 211950362 Conducted : 211950348 Antenna Type: PCB Trace Antenna Peak gain: Ant. 1: 6.39 dBi Ant. 2: 6.94 dBi PMN (Product Marketing Number) Generic Video Module HVIN (Hardware Version Identification Number) GVMRB FVIN (Firmware Version Identification Number) 1.0 HMN (Host Marketing Name) N/A Report No. HCT-RF-2302-FI005 F-TP22-03 (Rev. 04) Page 6 of 88 ANTENNA CONFIGURATIONS 1. Below are the possible configurations Configurations SISO Dual BT Ant. 1(core-0) Ant. 2(Core-1) Ant. 1 & Ant. 2 Bluetooth O O X Note: 1) O = Support, X = Not Support 2) SISO = Single Input Single Output 3) Dual BT = Single Output 1& 2 Report No. HCT-RF-2302-FI005 F-TP22-03 (Rev. 04) Page 7 of 88 2. Requirements for Bluetooth transmitter(15.247/ RSS-247) This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudo-randomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals. ▪ 15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream. ▪ 15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. ▪ RSS-247 5.1 (a): The system receivers shall have input bandwidths that match the hopping channel bandwidths of their c…

Text truncated - open the document above for the full version.
