ENGLISH GW520 USER GUIDE Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. Set up 11 GETTING TO KNOW YOUR PHONE 1. INNER CAMERA LENS 2. END/POWER KEY ° Ends or rejects a call. Turns the phone on/off. Press once to return to the standby screen. 3. CLEAR KEY 4. CALL KEY ° Dials a phone number and answers incoming calls. Placing a heavy object on the phone or sitting on it while it is in your pocket can damage the phone's LCD and touch screen functionality. 5. CHARGER, CABLE, HANDSFREE CONNECTOR To connect the USB cable, wait until the phone has powered up and has registered to the network. 6. SIDE KEYS ° When the screen is idle: volume of key tone. ° During a call: volume of the earpiece. 7. MICRO SD MEMORY CARD SOCKET 8. LOCK/ UNLOCK KEY 9. MULTITASKING KEY 10. CAMERA KEY Set up 12 INSTALLING THE USIM AND BATTERY 1. REMOVE THE BATTERY COVER Press and hold down the battery release button at the top of the phone and lift off the battery cover. 2. REMOVE THE BATTERY Hold the top edge of the battery and lift it from the battery compartment using the battery cover. Do not use your fingernail when removing the battery. Do not remove the battery when the phone is switched on, as this may damage the phone. 3. INSTALL THE USIM CARD Slide the USIM card into the USIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the USIM card, pull it gently in the opposite direction. Set up 13 4. INSTALL THE BATTERY Insert the top of the battery first into the top edge of the battery compartment. Ensure that the battery contacts align with the terminals on the phone. Press down the bottom of the battery until it clips into place. 5. REPLACE THE COVER Place the cover over the battery and slide up into position. 6. CHARGING YOUR PHONE Slide back the cover of the charger socket on the side of your GW520. Insert the charger and plug into a mains electricity socket. Your GW520 will need to be charged until a message reading "Battery full" appears on screen. Set up 14 MEMORY CARD INSTALLING A MEMORY CARD You can expand the memory space available on your phone using a memory card. 1. Remove the battery cover as shown on page 14. 2. Slide the memory card into the slot at the top, until it clicks into place. Make sure that the gold contact area is facing downwards. FORMATTING THE MEMORY CARD Your memory card may already be formatted. If your card isn't already formatted, you will need to do so before you can begin using it. 1. From the standby screen select , then touch Setting and choose Phone settings. 2. Touch Memory manager then chose External memory. 3. Touch Format and then confirm your choice. 4. Enter the password, if one is set, and your card will be formatted and ready to use. To change your default storage destination, open Memory manager from the Phone settings menu and select Primary storage settings. If your memory card has existing content on, it will automatically be filed in the correct folder, for example, videos will be stored in the My Videos folder. Set up 15 TRANSFERRING YOUR CONTACTS To transfer your contacts from your USIM to your phone: 1. From the Communicate tab, select Contacts and choose Settings. 2. Touch Copy. 3. Choose Handset to USIM and touch Done. 4. Choose Select all or …

Text truncated - open the document above for the full version.

From: SunHee Kim (HCT) Sent: Wednesday, April 29, 2009 4:49 AM To: PCTEST TCB/CB Subject: Re: Questions Regarding FCC ID: BEJGW520 Dear PCTEST, Please check the revised user manual. We added the statement that this device is not intended for sale in the USA on page 2. Thank you. Best Regards, SunHee Kim ----- Original Message ----- From: SunHee Kim (HCT) To: PCTEST TCB/CB Sent: Wednesday, April 29, 2009 11:48 AM Subject: Re: Questions Regarding FCC ID: BEJGW520 Hello Andrea, Many thanks for your prompt attention. This device doesn't support HSPA and WCDMA. Only the main chipset support this mode. Please give me the Grant. Should you have any questions, please let me know. Best Regards, SunHee Kim =========================================================== Ms. SunHee Kim Engineer, Product Compliance Division =========================================================== ----- Original Message ----- From: PCTEST TCB/CB To: HCT - SunHee Kim Sent: Wednesday, April 29, 2009 11:33 AM Subject: Questions Regarding FCC ID: BEJGW520 To: Ms. Sun-Hee Kim / HCT From: Ms. Andrea Zaworski/ PCTEST TCB/CB RE: FCC ID: BEJGW520 Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ90486 Confirmation Number: 904270486-88 Date of Original Email: April 28, 2009 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The Operational Description lists support for HSPA and WCDMA. Please address. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Andrea Zaworski Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

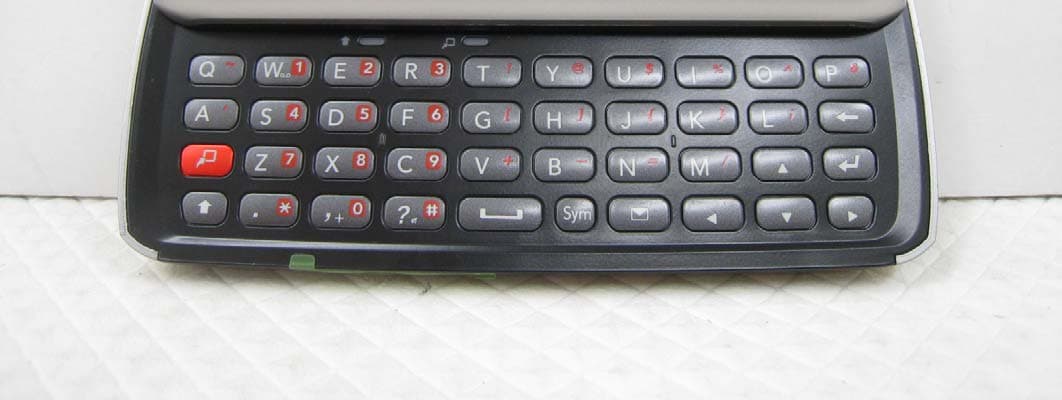

Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 8 EXTERNAL PHOTOGRAPHS Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 8 ■ EXTERNAL PHOTO Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 8 ■ EXTERNAL PHOTO Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 8 ■ EXTERNAL PHOTO Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 8 ■ EXTERNAL PHOTO Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 6 of 8 ■ EXTERNAL PHOTO Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 7 of 8 ■ EXTERNAL PHOTO Report No.: HCT-RF09-0419 FCC ID: BEJGW520 DATE: April 21, 2009 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 8 of 8 ■ EXTERNAL PHOTO

Model No: GW520 FCC ID : BEJGW520 S/N : Made in Korea LG Electronics Inc. LGE

Report No.: HCT-EF09-0415 FCC ID: BEJGW520 Data: April 27, 2009 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr 2 / 16 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 3 1.1 Product description.................................................................. 3 1.2 Related submittal(s)/Grant(s)....................................................... 3 1.3 Tested system details............................................................... 4 1.4 Cable description..................................................................... 4 1.5 Noise suppression parts on cable. (I/O cable) ............................... 4 1.6 Test methodology.................................................................... 5 1.7 Test facility........................................................................... 5 1.8 Frequency range of radiated measurements ...................................... 5 2. SYSTEM TEST CONFIGURATION..................................................... 6 2.1 Configuration of tested system................................................... 6 3. PRELIMINARY TEST..................................................................... 7 3.1 Conducted Emission test........................................................... 7 3.2 Radiated Emission test.............................................................. 7 4. CONDUCTED AND RADIATED EMISSION TEST SUMMARY.................. 8 4.1 Conducted Emission test........................................................... 9 4.2 Radiated Emission test.............................................................. 13 5. FIELD STRENGTH CALCULATION................................................... 14 6. TEST EQUIPMENT.................... ..................................................... 15 7. CONCLUSION.............................................................................. 16 ATTACHMENT: TEST SETUP PHOTOGRAPHS Report No.: HCT-EF09-0415 FCC ID: BEJGW520 Data: April 27, 2009 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr 3 / 16 1. GENERAL INFORMATION 1.1 Product description The LG Electronics Inc. Model: GW520, Cellular/PCS GSM/EDGE Phone with Bluetooth. Its basic purpose is used for communications. Its transmits from GSM 850 (824.20 ㎒ to 848.80 ㎒), GSM 1 900 (1 850.20 ㎒ to 1 909.80 ㎒), Bluetooth (2 402 ㎒ to 2 480 ㎒)) and receives from GSM 850 (869.20 ㎒ to 893.80 ㎒), GSM 1 900 (1 930.20 ㎒ to 1 989.80 ㎒), Bluetooth (2 402 ㎒ to 2 480 ㎒). Model GW520 FCC ID BEJGW520 E.U.T type Cellular/PCS GSM/ EDGE Phone with Bluetooth TX frequency 824.20 ㎒ to 848.80 ㎒ (GSM 850) 1 850.20 ㎒ to 1 909.80 ㎒ (GSM 1 900) 2 402 ㎒ to 2 480 ㎒ (Bluetooth) RX frequency 869.20 ㎒ to 893.80 ㎒ (GSM850) 1930.20 ㎒ to 1 989.80 ㎒ (GSM1900) 2 402 ㎒ to 2 480 ㎒ (Bluetooth) 1.2 Related submittal(s) / Grant(s) Original submittal only. Report No.: HCT-EF09-0415 FCC ID: BEJGW520 Data: April 27, 2009 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr 4 / 16 1.3 Tested system details All equipment descriptions used in the tested system (including inserted cards) are: 1.4 Cable description The marked "(D)" means the Data Cable and "(P)" means the Power Cable. 1.5 Noise suppression parts on cable. (I/O cable) Device type Manufacturer Model number/ Part number FCC ID / DoC Connected to Cellular/PCS GSM /EDGE Phone with Bluetooth LG GW520 BEJGW520 Notebook PC, TA Travel adaptor DONG-DO STA-U12ED - E.U.T Notebook PC TOSHIBA PSMA2K-01D002 DoC E.U.T, TA Notebook PC adaptor DELTA SADP-65KB B - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 DoC Notebook PC Ear phone - - - E.U.T USB cable KSD SGDY0014301 - E.U.T, Notebook PC Product name Port Power cord shielded (Y/N) I/O cable shielded (Y/N) Length (M) DC in Y - (P)1.2 Ear jack - N (D)1.1 Cellular/PCS GSM /EDGE Phone with Bluetooth USB data Y Y (P,D)1.2 Notebook PC USB (Mouse) - Y (D)1.8 Product name Port Ferrite bead (Y/N) Location Metal hood (Y/N) Location DC in N - Y E.U.T end Ear jack N - Y E.U.T end Cellular/PCS GSM /EDGE Phone with Bluetooth USB data N - Y Both end Notebook PC USB (Mouse) Y Notebook PC end Y Notebook PC end Report No.: HCT-EF09-0415 FCC ID: BEJGW520 Data: April 27, 2009 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr 5 / 16 1.6 Test methodology Both conducted and radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test facility The open area test site and conducted measurement facility used to collect the radiated data are located at the 254-1, Maekok-ri, Hobup-myun, Icheon-si, Kyoungki-do, 467-701, Korea. The site is constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. Detailed description of test facility was submitted to the commission and accepted dated July 6, 2006(Registration Number: 90661) 1.8 Frequency range of radiated measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a radiated emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower Report No.: HCT-EF09-0415 FCC ID: BEJGW520 Data: April 27, 2009 HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8539 FAX: +82 31 639 8535 www.hct.co.kr 6 /…
