BEJH094XMMicrowave Oven

ENGLISH ESPAÑOL Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com Models/Modelos 721.66092 MICROWAVE OVEN Use and Care Guide HORNO DE MICROONDAS Manual de Uso y Cuidado P/NO.: 3828W5A8254 2 ENGLISH TABLE OF CONTENTS WARRANTY FULL ONE-YEAR WARRANTY ON MICROWAVE OVEN For one year from the date of purchase, if this Kenmore microwave oven fails due to a defect in material or workmanship, Sears will repair it free of charge. For the second through the fifth year from the date of purchase,if the magnetron in this oven fails due to a defect in material or workmanship,Sears will supply a new magnetron,free of charge.Safety regulations,however,require the magnetron to be installed by Sears,and you must pay the labor cost of installation. This warranty applies only while this product is in use in the United States. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. WARRANTYSERVICE For warranty service, return the microwave to your nearest Sears Parts & Repair Center in the United States. For the location of your nearest Sears Parts & Repair Center, call 1-800-4-MY-HOME ® . This warranty is void if microwave is used for other than private household purposes. Sears, Roebuck and Co., D/817WA, Hoffman Estates, IL. 60179 U.S.A. W FOUR YEAR LIMITED WARRANTY ON MAGNETRON WARRANTY.........................................................2 SAFETY............................................................3-4 Precautions To Avoid Possible Exposure To Excessive Microwave Energy........................3 Grounding Instructions........................................3 Important Safety Instructions..............................4 UNDERSTANDING YOUR MICROWAVE OVEN.........................................5-8 Specifications...................................................... 5 Installation...........................................................5 Parts And Accessories........................................6 Control Panel......................................................6 Cookware Guide.................................................7 Tips For Microwave Cooking..............................8 Cleaning..............................................................8 USING YOUR MICROWAVE OVEN ............... 9-18 Clock................................................................... 9 9 Child Lock Quick Touch Cooking Auto Grill Cooking ....................................... ....................................... .................................... ................................... .................................... .................................... .................................... .................................... .................................... .................................... ............ ................. ................. ........................... ..................... ................................................................... ................ ...... .............................. Quick Touch Cooking Table Auto Grill Cooking Table 10 10 Add Minute......................................................... 9 11 11 19 Bread Defrost Melt Melt Table Soften Soften Table Auto Defrost Express Defrost 17 17 17 17 18 19 ....... Auto Defrost Table 19 .................................. Questions And Answers .............................. 20-21 Before Calling For Servi ce................................ 22 Master Protection Agreements ......................... 48 Service Numbers .................................Back cover ........................................................... TROUBLE SHOOTING 20-22 .................................... .................................... .................................. .................................. ................................................ ................... ... ............... Micro Cooking Grill Cooking Combi. Cooking ........................... Combi. Model Cooking Table Multi - Stage Cooking Microwave Power Levels 12 12 13 13 14 14 ................................................ Cooking Tips 15-16 ............................... Grill Cooking Model Table 13 ............................... Combi. Model Time Table 14 .. . ENGLISH 3 SAFETY • Do not attempt to operate this oven with the door open, since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlock. • Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: – door (bent) – hinges and latches (broken or loose) – door seals and sealing surfaces. • Do not place any object between the oven front face and the door, or allow soil or cleaner residue to accumulate on sealing surfaces. • The oven should not be adjusted or repaired by anyone except properly qualified service personnel. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ... GROUNDING INSTRUCTIONS This appliance must be grounded! If an electrical short circuit occurs, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. Put the plug into an outlet that is properly installed and grounded. WARNING If you use the grounding plug improperly, you risk electric shock. Ask a qualified electrician or the Sears Service Department if you do not understand the grounding instructions or if you wonder whether the appliance is properly grounded. This appliance has a short power supply cord to reduce the risk of anyone’s tripping over or becoming entangled in the cord. You may use an extension cord if you are careful. If you use an extension cord, be sure that: NOTE: This oven draws 13 amperes at 120 Volts, 60 Hz. • The extension cord has the same electrical rating as the appliance. • The marked rating of the extension cord shall be equal…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 PCTEST Engineering Laboratory Inc. Ref. No.: 05-LAE-M153 6660-B Dobbin Road Date: July 6, 2005 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJH094XM Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJH094XM 2. Application Model no.: MG-0945KG (RF Power Output – IEC705: 900 W) 3. Magnetron: 2M167B (PANASONIC) 4. Applied model is for household use. We have performed all tests using model MG-0945KG with Magnetron (2M167B, PANASONIC) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Kenny Kim at LG Electronics Q&R Center or Mr. Daniel Kim at LG Electronics Chicago office. Best regards, Kwan-Young Sung, Chief Research Engineer Kenny Kim, General Manager Digital Appliance Company, EMC Center Q&R Center, LG Electronics Inc. LG Electronics Inc. E-Mail: [email protected] TEL#: 82-2-2630-3090 LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-260-3968 FEDERAL COMMUNICATION COMMISSION Ref. No.: 05-LAE-M153 Authorization and Standards Branch Date: July 6, 2005 1919M St. North West Washington D.C. 20554-1330 Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJH094XM Gentleman, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJH094XM 2. Application Model no.: MG-0945KG (RF Power Output – IEC705: 900 W) 3. Magnetron: 2M167B (PANASONIC) 4. Applied model is for household use. We have performed all tests using model MG-0945KG with Magnetron (2M167B, PANASONIC) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Daniel Kim at LG Electronics Chicago Office or Mr. Kenny Kim at LG Electronics Q&R Center. Best regards, Kwan-Young Sung, Chief Research Engineer Daniel Kim, General Manager Digital Appliance Company, EMC Center Engineering Department LG Electronics Inc. LG Electronics Chicago Office LG Electronics Inc.

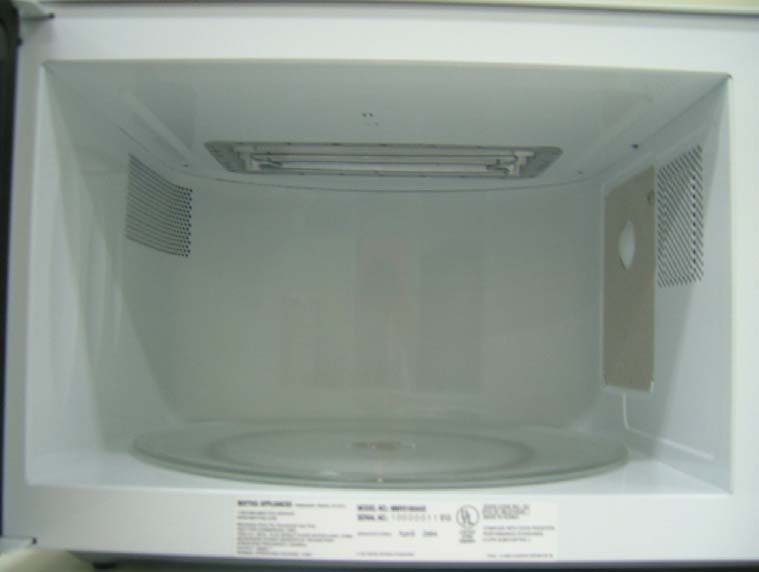

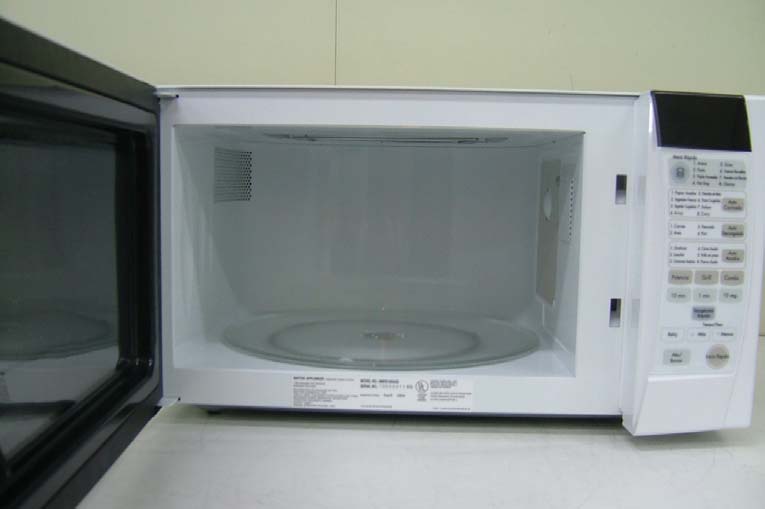

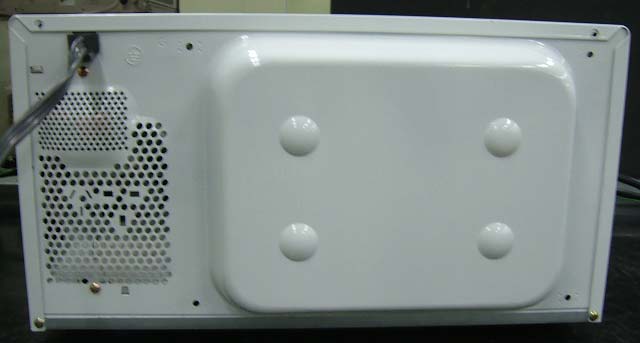

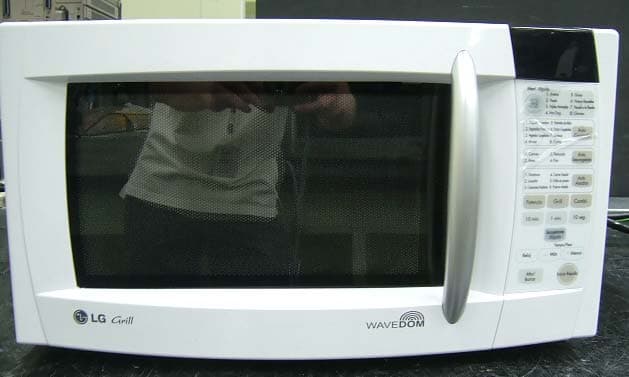

Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 22 / 26 LG Electronics Inc. FCC ID: BEJH094XM APPENDIX E. EUT Photos Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 23 / 26 LG Electronics Inc. FCC ID: BEJH094XM

Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 19 / 26 LG Electronics Inc. FCC ID: BEJH094XM APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> LG INPUT 120V 12.0 A SINGLE PHASE WITH GROUNDING 60Hz AC OUTPUT FREQUENCY 2450MHz COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21CFR SUBCHAPTER J. DHHS CODE NO.: GC FCC ID: BEJH094XM MADE IN KOREA LISTE D 57B5 U L R MICROWAVE OVEN (HOUSEHOLD) MODEL NO. MG-0945KG CATALOG NO. SERIAL NO: MANUFACTURED: Distributed by LG Electronics USA * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 24 / 26 LG Electronics Inc. FCC ID: BEJH094XM Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 25 / 26 LG Electronics Inc. FCC ID: BEJH094XM

Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 20 / 26 LG Electronics Inc. FCC ID: BEJH094XM APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Inc. Digital Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 260 3968 CERTIFICATION OF COMPLIANCE Date of Issue: July 6, 2005 Test Report No: 05-LAE-M153 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M167B (PANASONIC) Brand Name(s): LG or Sears Model No.: MG-0945KG FCC ID: BEJH094XM This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 1 / 26 LG Electronics Inc. FCC ID: BEJH094XM REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MG-0945KG FCC ID: BEJH094XM Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: May 28, 2005 – May 31, 2005 Date of Issue: July 6, 2005 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its en- tirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufac- turer’s responsibility to assure that additional production unit of this model are manufactured with identical elec- trical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kwang M. Son / Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Kwan Y. Sung / Chief Research Engineer Digital Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 2 / 26 LG Electronics Inc. FCC ID: BEJH094XM CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT) ............................................................................................................... 3 3. TEST SITE.......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 R ADIATED EMISSIONS MEASUREMENT............................................................................................................ 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA ..................................................................................................................................................... 10 7.1 I NPUT POWER............................................................................................................................................... 10 7.2 RF P OWER OUTPUT MEASUREMENT ACCORDING TO MP5. .......................................................................... 10 7.3 RF P OWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705.................................................................. 11 7.4 F REQUENCY MEASUREMENTS....................................................................................................................... 12 7.5 P OWER D ENSITY S AFETY C HECK .................................................................................................................. 13 7.6 C ONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 R ADIATED EMISSIONS (SECTION 18.305) ...................................................................................................... 14 APPENDIX A. TEST PLOT ............................................................................................................................... 15 APPENDIX B. LABELING REQUIREMENTS...............................................................................................19 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS .................................................................................... 20 APPENDIX D. TEST PHOTOS.......................................................................................................................... 21 APPENDIX E. EUT PHOTOS............................................................................................................................ 22 APPENDIX F. OWNER’S MANUAL WITH REGARD TO FCC INSTRUCTION .................…

Text truncated - open the document above for the full version.

Test Report No.: 05-LAE-M153 FCC Part 18 (ISM) Test Date: July 6, 2005 Certification 21 / 26 LG Electronics Inc. FCC ID: BEJH094XM APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications.
