BEJHBS500Bluetooth Stereo Headset

English Español Rev 1.0 US All rights reserved. LG Electronics Inc., 2015 Note: Please read all information carefully prior to using the HBS-500 in order to prevent damages to the product and to enjoy the best performance. WARNING : This product contains chemicals known to the State of California to cause cancer and birth defects or reproductive harm. Wash hands after handling. HBS-500 User Manual BLUETOOTH ® Stereo Headset 2 ENG Introduction 3 - Included in the Package 3 Description of Parts 4 How to Use 5 - Power On / Power Off 5 - Charging 5 - Low Battery 5 - Battery Status Alert 5 - Pairing 5 - Multi-connection 6 - Auto Reconnect 7 - Calling 7 • Answering a Call 7 • Transferring a Call 7 • Voice Dialing 8 • Last number Redial 8 • Ending a Call 8 • Call Waiting 8 • Rejecting a Call 8 • Mic Mute 8 - Volume Control 8 - Vibrate Control 8 - Audio Streaming 9 - Equalizer 9 - Tone & Talk TM 9 Summary of HBS-500 Functions 10 LED (or Vibrate) Indicator 11 Troubleshooting 11 Specifications 12 Precautions 12 Declaration of Confirmation 13 Additional Information 13 Limited Warranty 16 Important Safety Information 16 Table of Contents 3 ENG The LG TONE+ (HBS-500) is a lightweight wireless headset that uses Bluetooth technology. This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free Bluetooth Profile. Included in the Package Ear Gels (2 Sets)*USB Charging Cable User ManualWarranty Card * Actual product design may differ from images shown in manual. HBS-500 Introduction 4 Description of Parts ENG Headset Memory Flex Neck Strap LED Indicator VOLUME UP Button (FF, Next Song) VOLUME DOWN Button (REW, Previous Song) Earbud (R) Charging Port MFB (Multi-Function Button) : Power/Call/Play Button Microphone Earbud (L) 5 ENG Charging - When the charger is connected (with the power on or off) the headset will turn off. - While charging, the LED indicator will show a solid red light and then change to violet when charged 80% and above. - When charging is completed, the LED indicator will show a solid blue light. Low Battery - A low battery alert will play once every 2 minutes. - If the battery is not charged, the headset will turn off. Power On / Power Off - Power On : Press and hold the MFB for 2 seconds. - Power Off : Press and hold the MFB for 3 seconds. Pairing - Before using, HBS-500 must be paired/connected with a Bluetooth-enabled device. 1) Easy Pairing a) Press and hold the MFB for 2 seconds to turn on the HBS-500. b) If it is your first time pairing the device it will automatically enter pairing mode. If it has been paired but no paired device is in range it will enter pairing mode. • The LED indicator will be solid blue. Battery Status Alert - By pressing and holding the VOLUME DOWN button for 1 second, you can check the battery status of the HBS-500. Battery StatusHighMediumLow Voice PromptBattery HighBattery MediumBattery Low LED Indicator Blinking Blue Blinking Violet Blinking Red How to Use 6 ENG c) On the device you wish to pair, find the Bluetooth menu and search for or add new devices. d) Select LG HBS500 from the list of devices. e) If asked for a Pass/Pin Code enter 0000 (4 Zeros). f) Once the devices are paired, you will hear “Your headset paired.” • The HBS-500 will automatically turn off if not paired within 3 minutes. 2) Manual Pairing (pairing with another phone or re-pairing) a) With the power off, press the VOLUME DOWN button and press and hold the MFB for 2 seconds to enter Manual Pairing mode. b) When the headset enters Pairing Mode, the LED indicator will show a solid blue light. After the procedure repeat Easy Pairing steps c through f. How to Use Multi-connection Advanced Multipoint The HBS-500 is capable of having two devices connected to the headset at the same time. This will give you the freedom of using call waiting between calls on both of your connected phones. Connection - Pair the headset with one of your Bluetooth-enabled handsets (see the pairing instructions on pages 5 and 6). - Turn off the headset. - Power up as manual pairing mode. (With the power off, press the VOLUME DOWN button and press and hold the MFB for 2 seconds.) - Pair and connect the headset with your other Bluetooth-enabled handset. This will be your primary headset. - Once the handset is paired and connected, connect the originally paired handset to the headset. This will now be your secondary handset. * NOTE: When the HBS-500 is connected to two handsets at the same time (Multipoint), the headset calling functions will work with the primary handset. * NOTE: In case of failure to connect to the primary phone through Easy Pairing, HBS-500 will enter Pairing Mode. 7 ENG Auto Reconnect - The headset and handset will automatically reconnect when the HBS-500 is turned back on while in range. - The secondary handset will need to be connected manually. Select LG HBS500 from the list of devices in the Bluetooth menu and pair. Out of Range - If the paired devices are separated by a range of 33 feet (10 meters) or more, the headset and handset will disconnect and the HBS-500 will vibrate to alert you*. * HBS-500 will not vibrate if vibration function is on ‘off’. - If the headset and handset do not automatically reconnect when they are back within the required range, briefly press the MFB on the HBS-500 to reconnect manually. - While in multi-connection and streaming, the inactive paired device will be disconnected when out of range. The HBS-500 will alert you once with no attempt to reconnect. Calling Function - Voice Dialing and Last Number Redial features work with the primary handset (or handset which made the last outgoing call). Call Waiting - While on a call, press the MFB for 1 second to switch to an incoming call. - To switch between 2 active calls, press the MFB for 1 second. - To end both calls briefly press the MFB. - If both handsets are receiving an incoming call, the headset will default to the primary device. Calling Answering a Call - When there is…

Text truncated - open the document above for the full version.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: 05 Feb, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Inc. (CCS) Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae YOU (or Denny HAM) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these mat ters. Any and all acts carried out by Lab Manager of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely yours, Jongchul LEE / Director, NA Regulatory & Environmental Affairs. LG Electronics USA.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: 09 Feb. 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJHBS500 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely yours, Jongchul LEE / Director, NA Regulatory & Environmental Affairs. LG Electronics USA.

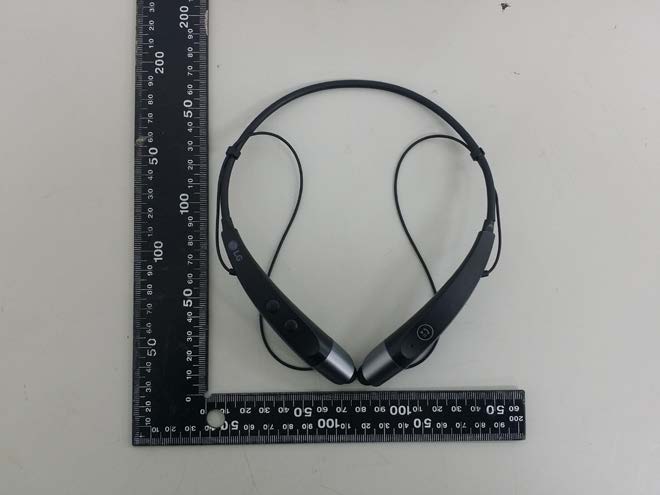

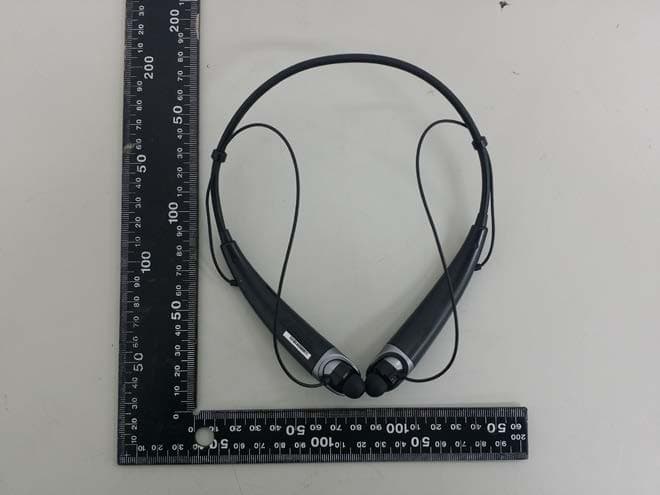

External photos of EUT Front view of EUT Rear view of EUT Side view of EUT

FCC, IC Label Model: HBS-500 LG STEREO HEADSET FCC ID: BEJHBS500 Made in China IC: 2703C-HBS500

Internal photos of EUT Internal view of EUT Top view of PCB1 Bottom view of PCB1 Top view of PCB2 Bottom view of PCB2 Bottom view of PCB2 without Battery View of Antenna PCB Pattern Antenna

FCC ID : BEJHBS500 According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480 ㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 3 9.525 Calculation value : 3 (㎽) / 5 (mm) x √ 2.480 = 0.945 So, Calculation value ≤ 3.0 Remark: -Max. conducted power (㎽) : maximum tolerance power of EUT (4 ㏈m) -Max. conducted power 2.51 (㎽) is closet 3 (㎽), so 3 (㎽)was calculated. 2. Conclusion : No SAR is required.

Report Number: F690501/RF-RTL008417-1 Page: 2 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth ------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 38 5. Carrier Frequency Separation -------------------------------------------------------------------- 40 6. Number of Hopping Frequencies ---------------------------------------------------------------- 43 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 47 8. Antenna Requirement ------------------------------------------------------------------------------ 61 Report Number: F690501/RF-RTL008417-1 Page: 3 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics USA. Address : 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Contact Person : Lee, Jong-Chul Phone No. : +2 01 816 2003 1.3. Description of EUT Kind of Product Bluetooth Stereo Headset Model Name HBS-500 Power Supply DC 3.7 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels Antenna Type Internal Type Antenna Gain 2.79 ㏈i H/W Version 1.0 S/W Version 1.0 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels Report Number: F690501/RF-RTL008417-1 Page: 4 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL008417-1 Page: 5 of 61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Jul. 18, 2014 Annual Jul. 18, 2015 Signal Generator R&S SMBV100A 259067 Jun. 25, 2014 Annual Jun. 25, 2015 Spectrum Analyzer Agilent N9020A MY53421758 Nov. 04, 2014 Annual Nov. 04, 2015 Spectru…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Orthogonal planes of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). 1. X- axis 2. Y-axis 3. Z-axis B. Photo of Radiated Spurious Emission Test (Below 1 ㎓) C. Photo of Radiated Spurious Emission Test (Above 1 ㎓) - DUT was tested in the X-axis
