BEJHBS850Bluetooth Stereo Headset

English Español Rev 1.0 US All rights reserved. LG Electronics Inc., 2015 Note: Please read all information carefully prior to using the HBS-850 in order to prevent product damage and to enjoy the best performance. WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or reproductive harm. Wash hands after handling. HBS-850 User Manual Bluetooth ® Stereo Headset 2 ENG ENG Introduction 3 - Included in the Package 3 Description of Parts 4 - Headset 4 - Stabilizer Tip Replacement 5 How to Use 6 - Power On/Power Off 6 - Charging 6 - Low Battery 6 - Battery Status Alert 6 - Retractable Earbuds 6 - Pairing 7 - Advanced Multipoint 7 - Auto Reconnect 8 - Calling 9 • Answering a Call 9 • Transferring a Call 9 • Voice Dialing 9 • Last Number Redial 9 • Ending a Call 9 • Call Waiting 9 • Rejecting a Call 9 • Microphone Mute 9 - Volume Control 10 - Vibration Control 10 - Audio Streaming 10 - Equalizer 10 - aptX ® 11 - Tone & Talk 11 Summary of Button Functions 13 LED Indicator 14 Troubleshooting 15 Specifications 16 Precautions 17 Declaration of Confirmation 18 Additional Information 19 Limited Warranty 22 Important Safety Information 23 Table of Contents 3 ENG ENG Introduction The LG TONE Active TM (HBS-850) is a lightweight wireless headset that uses Bluetooth technology. This product can be used as an audio accessory for devices supporting either the A2DP or hands-free Bluetooth profile. User ManualWarranty CardQuick Start Guide Included in the Package Extra Ear Gels (1 Set - Small) Extra Stabilizer Tips (1 Set - Small) *USB Charging Cable HBS-850 (Medium Ear Gels and Stabilizer Tips installed) *Actual product design may differ from images shown in this manual. 4 ENG ENG Headset Description of Parts ENG Charging Port LED Indicator Microphone Power Button MFB (Multi-Function Button) Volume Down Button / Next Song Volume Up Button / Previous Song Stabilizer Tips Earbud (R)Earbud (L) 5 ENG ENG Description of Parts ENG Stabilizer Tip Replacement - An extra set of Stabilizer Tips are included. Depending on your neck size, you may want to change the size of the Stabilizer Tips for comfort and fit. Stabilizer Tip Removal Stabilizer Tip Installation 6 ENG ENG How to Use Power On/Power Off - Power On: Press and hold the PWR button for 2 seconds. - Power Off: Press and hold the PWR button for 3 seconds. Charging - When the charger is connected (with the power on or off) the headset will power off. - While charging, the LED indicator will show a solid red light. When charged 80% or more, the indicator will show a violet light. - When the device is fully charged, the LED indicator will show a solid blue light. Low Battery - A low battery alert will play once every 2 minutes. - If the battery is not charged, the headset will power off. Battery Status Alert - Press and hold the Volume Down button for 3 seconds to check the battery status of the headset. Battery Status HighMediumLow Voice Prompt Battery High Battery Medium Battery Low LED Indicator Blinking Blue Blinking Violet Blinking Red NOTE: When paired, some mobile devices may display the headset's battery level at the top of the screen. Retractable Earbuds - Pull the earbuds to extend them to the desired length. - To retract the earbuds, pull the cords out slightly, and they will automatically retract into place. 7 ENG ENG How to Use Pairing - To use the headset, you must first pair it with your mobile device. Once the devices have been paired, the headset will automatically reconnect. 1) Easy Pairing a) Press and hold the PWR button for 2 seconds to power on the headset. b) If it is your first time pairing the device or it does not detect a previously paired device, it will enter Pairing mode. The LED indicator will be solid blue. c) On the device you wish to pair with, find the Bluetooth menu and search for or add new devices. d) Select LG HBS850 from the list of devices. e) If asked for a Pass/Pin Code, enter 0000 (4 zeros). f) Once the devices are paired, you will hear “Your headset paired.” NOTE: The HBS-850 will automatically power off if not paired within 3 minutes. 2) Manual Pairing (pairing with another phone or re-pairing) a) With the power off, press and hold the MFB and the PWR button at the same time for 2 seconds to enter Manual Pairing mode. b) When the headset enters Pairing mode, the LED indicator will show a solid blue light. Repeat Easy Pairing steps c through f. Advanced Multipoint The headset can be connected to two devices at the same time. This will give you the freedom to use call waiting between calls on both of your connected phones. Pairing with Two Devices - First, pair the headset with the Bluetooth-enabled mobile device you want to use as your secondary device (see Pairing instructions). - Once paired, power off the headset. - With the power off, press and hold the MFB and the PWR button at the same time for 2 seconds. This will activate Manual Pairing mode. - Pair and connect the headset with your other Bluetooth- enabled mobile device. This will be your primary device. 8 ENG ENG How to Use - Once the primary mobile device is paired and connected with the headset, reconnect the headset to the initially paired mobile device. NOTE: When the headset is connected to two mobile devices at the same time (Multipoint), the headset calling functions will work with the primary mobile device. NOTE: If the HBS-850 fails to connect to the primary phone through Easy Pairing, it will enter Pairing mode. Calling Function - Voice Dialing and Last Number Redial features work with the primary mobile device (or mobile device that made the last outgoing call). Call Waiting - While on a call, press and hold the MFB for 1 second to answer an incoming call. - To switch between two active calls, press and hold the MFB for 1 second. - To end both calls, briefly press the MFB. - If both paired mobile devices are receiving an incoming call, the headset will default to the primary device. Auto Recon…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States May 29, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae, You (or Logan, Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae, You (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Jongchul Lee Director, NA Regulatory & Environmental Affairs LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States May 29, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY for FCC ID: BEJHBS850 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Jongchul Lee Director, NA Regulatory & Environmental Affairs LG Electronics USA

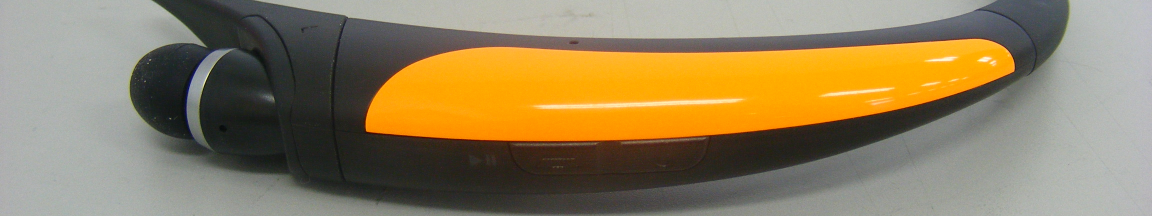

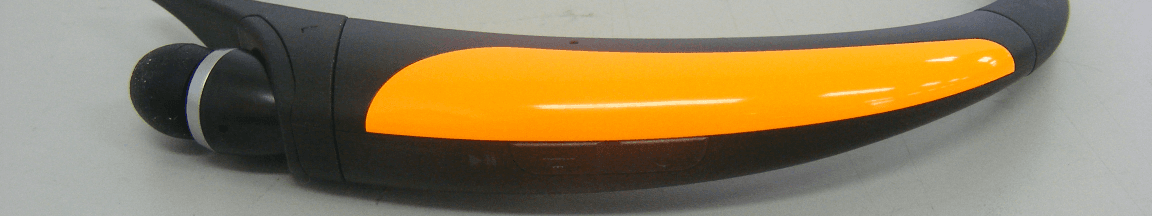

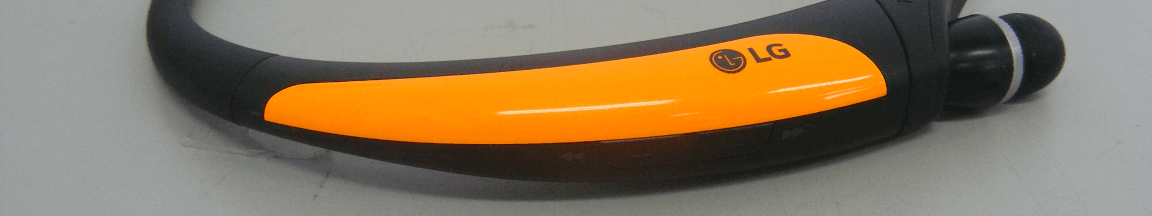

Model :HBS-850 External photos of EUT Model :HBS-850 Top view of EUT Bottom view of EUT Model :HBS-850 Side view of EUT Model :HBS-850 Side view of EUT

Label Info. MODEL: HBS-850 FCC ID: BEJHBS850 IC: 2703C-HBS850

Model :HBS-850 Internal photos of EUT Model :HBS-850 Internal view of EUT Model :HBS-850 Top view of Main PCB Bottom view of Main PCB (with battery) Model :HBS-850 Bottom view of Main PCB (without battery) Model :HBS-850 Top view of Sub PCB Bottom view of Sub PCB (with battery) Model :HBS-850 Bottom view of Sub PCB (without battery) View of Antenna PCB Antenna

FCC ID : BEJHBS850 According to KDB 447498 D01 General RF Exposure Guidance v05r02, section 4.3.1 At 100㎒to 6㎓and fortest separation distances≤50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance,㎽) / (min. test separation distance, mm)] x [√f (GHz) ]≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = 3 x 5 / (√ 2.480 ) = 9.525 ㎽ Max. tune-up tolerance(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 49.525 Calculation value : 4 (㎽) / 5 (mm) x √ 2.480 = 1.26 So, Calculation value≤ 3.0 Remark: -Max. conducted power (㎽) : maximum tolerance power of EUT (5.5㏈m) -Max. conducted power 3.55 (㎽) is closet 4 (㎽), so 4 (㎽)was calculated. 2. Conclusion : No SAR is required.

Report Number :F690501/RF-RTL008758Page:2of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Radiated Spurious Emissions and Conducted Spurious Emission ---------------------7 3. 20㏈Bandwidth ------------------------------------------------------------------------------------ 31 4. Output Power Measurement ---------------------------------------------------------------------38 5. Carrier Frequency Separation --------------------------------------------------------------------40 6. Number of Hopping Frequency ------------------------------------------------------------------43 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------47 8. Antenna Requirement ------------------------------------------------------------------------------60 Report Number :F690501/RF-RTL008758Page:3of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+ 82 31 688 0901 Fax No. :+ 82 31 688 0921 1.2. Details of Applicant Applicant:LG Electronics USA Address:1000 Sylvan Avenue, Englewood Cliffs, New Jersey 07632 United States Contact Person:Lee, Jong-Chul Phone No.:+2 01 408 9181 1.3. Description of EUT Kind of Product Bluetooth Stereo Headset Model Name HBS-850 Power Supply DC 3.7 V Frequency Range 2 402㎒~ 2 480㎒(BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (BT) Antenna Type Internal type Antenna Gain -0.07㏈i H/W Version 1.0 S/W Version 1.0 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. Report Number :F690501/RF-RTL008758Page:4of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted signals. 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number :F690501/RF-RTL008758Page:5of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorAgilentE8257DMY51501169Jul. 17, 2014AnnualJul. 17, 2015 Spectrum AnalyzerAgilentN9030AMY53120526Jul. 17, 2014AnnualJul. 17, 2015 High Pass FilterWainwrightWHK3.0/18G-6SS4Jul. 02, 2014AnnualJul. 02, 2015 High Pass FilterWainwrightWHK7.5/26…

Text truncated - open the document above for the full version.

Model:HBS-850 Test setup photos of EUT Model:HBS-850 Photo of Field Strength & Spurious Emission Test Below 30 MHz 30 MHz - 1 GHz Model:HBS-850 Above 1 GHz
