BEJHX300GJEDLP PROJECTOR

OWNER’S MANUAL DLP PROJECTOR HX300G HX301G Please read this manual carefully before operating your set and retain it for future reference. www.lge.com DLP PROJECTOR DLP PROJECTOR Warning This is a class B product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. This projector complies with EMC Directive and R&TTE Directive. DE DK ESFI FR GB GR HU IT NL NO PL PT SE Contents 3 Contents Disposal of your old appliance 1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2. All electrical and electronic products should be disposed of separately from the municipal waste stream through designated collection facilities appointed by your government or your local authorities. 3. The correct disposal of your old appliance will help prevent potential negative consequences for the envi- ronment and human health. 4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Safety Instructions ....................................................... 4 Names of parts Main Body ..........................................................................................7 Control Panel .....................................................................................7 Connecting Part .............................................................................. 8 Remote Control .............................................................................. 9 Installing Batteries ........................................................................... 9 Accessories ......................................................................................10 Optional Extras ..............................................................................10 Installing and Composition Installation Precautions .................................................................. 11 Basic Operation of the Projector ...............................................12 How to install the projector using the tripod ..........................13 Kensington Security System .......................................................13 Turning on the Projector ..............................................................14 Turning off the Projector ..............................................................14 Focus and Position of the Screen Image ................................14 Selecting input mode ...................................................................14 Connection Connecting to a Desktop PC ......................................................15 Connecting to a Video Source ...................................................15 Connecting to a DVD Player .......................................................16 Connecting to a D-TV Set-Top Box ..........................................16 Function PICTURE Menu Options Picture mode ................................................................................... 17 Adjusting Picture Mode ................................................................ 17 Advanced Control Function .........................................................18 Color Temperature Function ........................................................19 Picture Reset Function ..................................................................19 SCREEN Menu Options To Change PJT Mode ..................................................................20 Using Aspect Ratio Function .....................................................20 Using Keystone Function ............................................................20 Auto Configure Function ..............................................................21 RGB Config. Function ...................................................................21 Using the Still Function ................................................................21 AUDIO Menu Options What is FM Wireless Audio? (HX300G only) .......................22 Installing Instructions (HX300G only) .....................................23 What do I do if the FM receiving signal is not good? (HX300G only) ..............................................................................23 To listen through the FM receiver speaker (HX300G only) 24 Adjusting Volume ..........................................................................24 Function Audio ...............................................................................24 Adjusting Speaker Balance ........................................................25 Adjusting Treble .............................................................................25 TIME Menu Options Sleep time Function .....................................................................26 Auto Off Function .........................................................................26 OPTION Menu Options Selecting Language ..................................................................... 27 Using Blank Function ................................................................... 27 Selecting Blank image ................................................................. 27 Screen Capture Function ............................................................28 To adjust the brightness of the screen ...................................28 To make the power of the projector turn on automatically when power is in ............................................................................28 Demo Mode Function ..................................................................29 Initial Setting Function .................................................................29 INFORMATION Menu Options To See The Projector Information .............................................29 USB To use the USB device Connecting the USB device .......................................................30 Eject USB ...…

Text truncated - open the document above for the full version.

Function 28 1. Press the MENU button. Then, move to OPTION with the ġ, Ģ, ̆, ̊ buttons and press the OK button. 2. Press the ġ, Ģ buttons to move to Auto Power and press the OK button. 3. Press the ġ, Ģ buttons to move to On and press the OK button. • On: Connecting DC cable to the projector turns on the projector. • Off: Connecting DC cable to the projector makes the projector in standby state. • Press the BACK button to exit the menu screen. To make the power of the projector turn on automatically when power is in OPTION Menu Language : English Blank Image : Black Screen Capture LED Mode : Normal Auto Power : Off Demo Mode : Off Initial Setting : Home Use 1. Press the Q.MENU button on the remote control. 2. Press the ̆, ̊buttons to move to LED Mode. 3. Move to a desired item with the ̆, ̊ buttons. • LED Mode changes into Dimming mode automatically at specific temperatures (35°C or higher). Dimming mode gets about 90% brightness of original led mode. • LED Mode changes into Dimming mode automatically if use a optical battery. • You can use this function through the MENU button. • Press the BACK button to exit the menu screen. To adjust the brightness of the screen 爖Move 爣OK LED Mode Normal 1. Press the MENU button. Then, move to OPTION with the ġ, Ģ, ̆, ̊ buttons and press the OK button. 2. Press the ġ, Ģ buttons to move to Screen Capture and press the OK button. • It can only be elected when there is an input signal. • It takes up to 2 minutes when capturing screen. • Press the BACK button to exit the menu screen. Screen Capture Function OPTION Menu Language : English Blank Image : Black Screen Capture LED Mode : Normal Auto Power : Off Demo Mode : Off Initial Setting : Home Use 爖Move 爣OK Function 29 INFORMATION Menu Options 1. Press the MENU button. Then, move to INFORMATION with the ġ, Ģ, ̆, ̊ buttons and press the OK button. 2. You can see the current information of the projector. • Press the BACK button to exit the menu screen. To See The Projector Information 1. Press the MENU button. Then, move to OPTION with the ġ, Ģ, ̆, ̊ buttons and press the OK button. 2. Press the ġ, Ģ buttons to move to Demo Mode and press the OK button. 3. Press the ġ, Ģ buttons to move to On and press the OK button. • It can be selected when Initial Setting is set as Store Demo. • Press the BACK button to exit the menu screen. 1. Press the MENU button. Then, move to OPTION with the ġ, Ģ, ̆, ̊ buttons and press the OK button. 2. Press the ġ, Ģ buttons to move to Initial Setting and press the OK button. 3. Move to a desired item with the ġ, Ģbuttons and then press the OK button. • Set as Home Use when used in homes. • Press the BACK button to exit the menu screen. OPTION Menu Language : English Blank Image : Black Screen Capture LED Mode : Normal Auto Power : Off Demo Mode : Off Initial Setting : Store Demo OPTION Menu Language : English Blank Image : Black Screen Capture LED Mode : Normal Auto Power : Off Demo Mode : Off Initial Setting : Home Use INFORMATION Model Name : HX300G-JE Input : RGB Resolution : 1024 x 768 Fh/Fv : 48.36 Hhz/60 Hz 爖Move 爣OK 爖Move 爣OK Initial Setting Function Demo Mode Function USB 30 * When you connect a USB device, this screen is displayed, automatically. In USB device, you can not add a new folder or delete the existing folder. USB To use the USB device * Image shown may differ from your projector. Connecting the USB device 1. Connect the USB device to the USB jack on the back of the set. 2. It turns automatically to DivX Home Menu. * Select “Eject” in order to eject a USB device. Eject USB USB memory stick PHOTO LIST MUSIC LIST MOVIE LISTFILE VIEWER 1. Press the Q.MENU button on the remote control. 2. Press the ̆, ̊ buttons to move to USB Device. 3. Press the OK button on the remote control. • After Eject USB, USB memory cannot be read. Remove USB memory, and connect again. • Press the BACK button to exit the menu screen. USB Device Eject ᯙ USB 31 Precautions when using the USB device  Only a USB storage device is recognizable.  If the USB storage device is connected through a USB hub, the device is not recognizable.  A USB storage device using an automatic recognition programmed may not be recognized.  A USB storage device which uses its own driver may not be recognized.  The recognition speed of a USB storage device may depend on each device.  Please do not turn off the projector or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.  Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files, image files, movie files or text files.  Please use only a USB storage device which was formatted as a FAT16, FAT32 and NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility programmed which is not support- ed by Windows, it may not be recognized.  Please connect power to a USB storage device which requires an external power supply. If not, the device may not be rec- ognized.  Please connect a USB storage device with cable is offered by USB maker. If connected with cable is not offered by USB maker or an excessively long cable, the device may not be recognized.  Some USB storage devices may not be supported or operated smoothly. If the name of a folder or file is too long, it will not be displayed or recognized.  File alignment method of USB storage device is similar to Window XP and filename can recognize up to 100 English characters.  Please backup the important file because a data of USB device may be damaged. Data management is consumer's responsibility and in consequence the manufactures does not cover the product bearing data damage.  The recommended capacity is 1TB or less for a USB external h…

Text truncated - open the document above for the full version.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: January 04, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Harvey Sung Director REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: January 04, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA LETTER OF AUTHORIZATION We, the undersigned, hereby authorize Harvey Sung of DIGITAL EMC CO., LTD. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: BEJHX300GJE including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DIGITAL EMC CO., LTD. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from LG Electronics USA. Sincerely, Jae Cheon Lee General Manager

LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date: January 04, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: BEJHX300GJE To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description File name PERMANENT 1 Block Diagram Block Diagram_BEJHX300GJE.pdf 2 Operational Description Operational Description_BEJHX300GJE.pdf 3 Schematics Schematic_BEJHX300GJE.pdf 4 Part Lists Part List_BEJHX300GJE.pdf SHORT-TERM 5 External Photos Ext Photo_BEJHX300GJE.pdf 6 Internal Photos Int Photo_BEJHX300GJE.pdf 7 Test-Setup Photos Test Photo_BEJHX300GJE.pdf 8 Users Manual User Manual_BEJHX300GJE.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Jae Cheon Lee General Manager

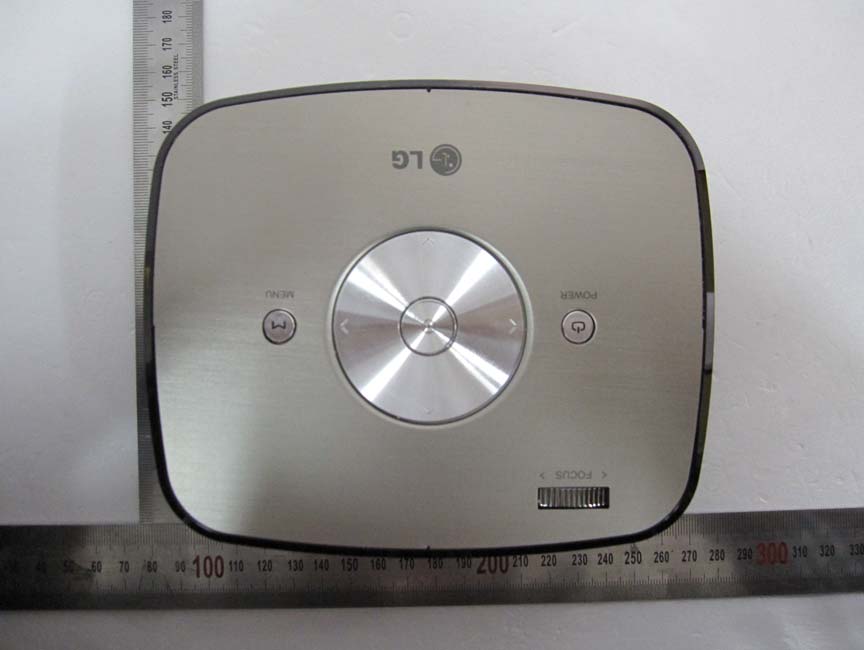

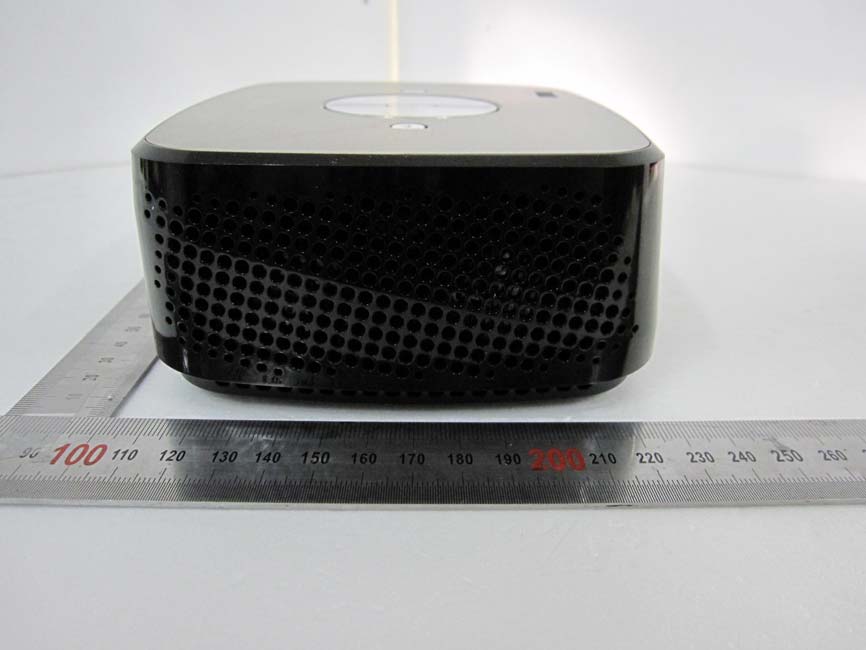

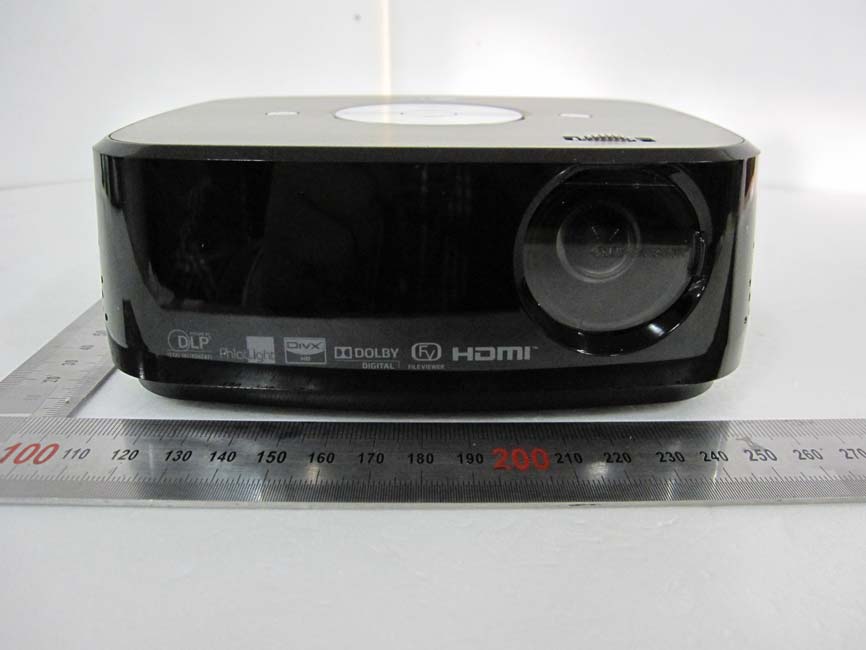

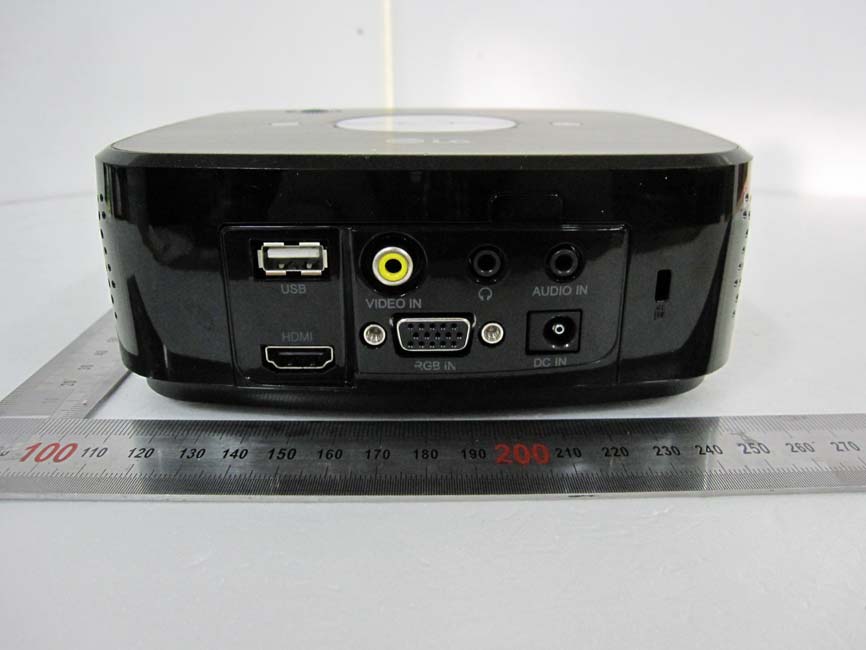

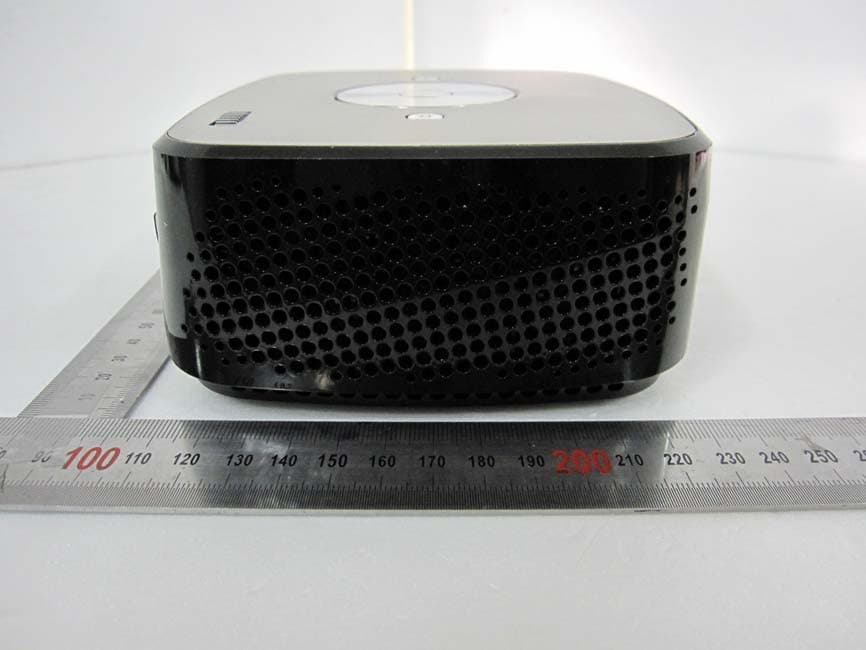

FCCID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 1 FCCID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 2 FCCID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 3

FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION

FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 1 FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 2 FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 3 FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 4 FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 5 FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 6 FCC ID: BEJHX300GJE Copyright Ⓒ 2010, DIGITAL EMC Co., Ltd. View 7

Main Part Location FMTX Part Location                       !"#$%    $&'& (   (    (  $ )  *+,-./                         !"#$%    $&'& (   (    ( *$!!0,-./  LED Part Location JACK Part Location DMD Part Location TEMP Part Location

DEMC#DR50111003E TRF-RF-205(00)100119 Page 1 of 38 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE LG Electronics USA. 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Dates of Tests: February 25 ~ March 03, 2010 Test Report S/N: DR50111003E Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT Purpose : Original Grant FCC Equipment Class : Low Power Communication Device Transmitter(DXX) Device name : DLP PROJECTOR Manufacturer : LG Electronics Inc. FCC ID : BEJHX300GJE Model name : HX300G-JE Test Device Serial number : Identical prototype FCC Rule Part(s) : FCC Part 15.239 Subpart C ANSI C-63.4-2003 Frequency Range : 88.5 ~ 95.5 MHz Data of issue : March 4, 2010 The Test results relate only to the tested sample. It is not allowed to copy this report even partly without the allowance of DIGITAL EMC CO., LTD. BEJHX300GJE LG Electronics USA. DEMC#DR50111003E TRF-RF-205(00)100119 Page 2 of 38 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. TABLE OF CONTENTS 1. GENERAL INFORMATION ---------------------------------------------------------------------------------- 2. EQUIPMENT INFORMATION ------------------------------------------------------------------------------- 2.1 EQUIPMENT DESCRIPTION ---------------------------------------------------------------------------- 2.2 ANCILLARY EQUIPMENT ------------------------------------------------------------------------------- 3. INFORMATION ABOUT TEST ITEMS --------------------------------------------------------------------- 3.1 TESTED FREQUENCY ------------------------------------------------------------------------------------ 3.2 TESTED ENVIRONMENT -------------------------------------------------------------------------------- 3.3 AXUILIARYEQUIPMENT -------------------------------------------------------------------------------- 3.4 EMI SUPPRESSION DEVICE(S)/MODIFICATION -------------------------------------------------- 4. TEST REPORT --------------------------------------------------------------------------------------------------- 4.1 SUMMARY OF TESTS -------------------------------------------------------------------------------------- 4.2 FIELD STRENGTH OF FUNDAMENTAL AND EMISSIONS WITHIN PERMITTED BAND --- 4.3 RADIATED EMISSIONS ----------------------------------------------------------------------------------- 4.4 OCCUPIED CHANNEL BANDWIDTH ------------------------------------------------------------------ 4.5 AC CONDUCTED EMISSIONS --------------------------------------------------------------------------- 4.6 ANTENNA REQUIREMENTS ----------------------------------------------------------------------------- APPENDIX TEST EQUIPMENT USED FOR TESTS --------------------------------------------------- 3 4 4 4 5 5 5 5 5 6 6 7 10 20 28 35 36 DEMC#DR50111003E TRF-RF-205(00)100119 Page 3 of 38 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. 1. General information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address: 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail: [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competent of calibration and testing laboratory”. Tested by: Manager March 4, 2010 Won-Jung, Lee Date Name Signature Reviewed by: Technical Director March 4, 2010 Harvey Sung Date Name Signature Applicant: Company name : LG Electronics USA. Address : 1000 Sylvan Avenue Englewood Cliffs, New Jersey, United States Date of order : January 31, 2010 DEMC#DR50111003E TRF-RF-205(00)100119 Page 4 of 38 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. 2. Equipment information BEJHX300GJE 2.1 Equipment description Equipment model no. HX300G-JE Equipment serial no. Identical prototype Type of equipment DLP PROJECTOR Frequency band 88.5MHz ~ 95.5MHz Channel spacing 200kHz Type of Modulation FM Power AC Adapter: 120V / 60Hz Type of antenna PCB Pattern Antenna 2.2 Ancillary equipment Equipment Model No. Serial No. Manufacturer Note AC/DC Adapter PA-1121-04 9Y00062503 DONGGUANG LITE PWER 2nd PLANT - - - - - - DEMC#DR50111003E TRF-RF-205(00)100119 Page 5 of 38 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. 3. Information about test items BEJHX300GJE 3.1 Tested frequency Frequency TX RX Lowest frequency 88.5MHz - Middle frequency 92.1MHz - Highest frequency 95.5MHz - 3.2 Tested environment Temperature : 20 ~ 24 ( o C) Relative humidity content : 34 ~ 41 % R.H Air pressure : 86 ~ 103 kPa Details of power supply : AC 120V 60Hz 3.3 Test mode Test Case 1 HDMI mode Test Case 2 Audio in mode Test Case 2 USB mode 3.3 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note HDMI Cable N/A N/A N/A 2.07m Audio Cable N/A N/A N/A 0.9m DSUB Cable N/A N/A N/A 1.5m USB memory XTICK N/A LG Electronics Inc. DoC NOTEBOOK R410-L.A241L 904QTQM019228LG Electronics Inc. DoC MOUSE MOCO5UO HOFOOJYN DELL DoC 3.4 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing → None DEMC#DR50111003E TRF-RF-205(00)100119 Page 6 of 38 Copyright ○ c 2010, DIGITAL EMC Co., Ltd. 4. Test Report 4.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status Note 1 I. Test Items 15.239 Field Strength of Fundamental and Emissions within permitted band < 250 uV/m @ 3m Radiated C 15.209 Radiated Emission < FCC 15.209 limits C 15.239 Occupied channel bandwidth < 200kHz C C 15.207 AC Conducted Emissions EN 55022 AC Line Conducted C 15.203 Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: The JBP(Computing device peripheral) portion was tested and approved by FCC DoC Procedure. The sample was tested according to the following specification: ANSI C-63.4-2003 DEMC#DR50111003E TRF-RF-205(00)100119 Pa…
