BEJIPS225PXLCD Monitor

www.lg.com OWNER’S MANUAL LCD MONITOR IPS225P IPS235P Please read this manual carefully before operating your set and retain it for future reference. LCD MONITOR MODEL ENGLISH Important Precautions NOTE THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY NOTE This epuipment has been tested and found to comply with the limits for a class B digital device,pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates,uses and can radiate radio frequency cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and the receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. energy and,if not installed and used in accordance with the instructions,may equipment does cause harmful interference to radio or television reception, TO OPERATE THE EQUIPMENT. -Consult the dealer or an experienced radio/TV technician for help. A3 2 ENG ENGLISH TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPARING 3 Unpacking 4 Parts and buttons 6 Setting up the Monitor set 6 - Attaching the Stand Base 6 - Detaching the Stand Base 7 - Mounting on a table 8 - Mounting on a wall 10 USING THE MONITOR SET 10 Connecting to a PC 10 - D-SUB connection 10 - DVI-D connection 10 - HDMI connection 12 CUSTOMIZING SETTINGS 12 Accessing The Main Menus 13 Customizing Settings 13 - Menu Settings 14 - PICTURE 15 - COLOR 16 - DISPLAY 16 - VOLUME 17 - OTHERS 18 MODE Setting 19 DUAL PACKAGE Setting 20 TROUBLESHOOTING 22 SPECIFICATIONS 22 IPS225P 23 IPS235P 24 Preset Modes (Resolution) 24 Indicator 3 ENG ENGLISH ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories. y Do not use any unapproved accessories to ensure the safety and product life span. y Any damages or injuries by using unapproved accessories are not covered by the warranty. y The accessories supplied with your product may vary depending on the model. y Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. y CAUTION NOTE Stand Base Power Cord CD(Owner's Manual) / Card D-SUB Cable (This signal cable may be attached to this product before shipping out.) DVI-D Cable (This cable is not included in all countries.) Display Quality Assurance Report User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite cores (core in the connector) to maintain standard compliance for the product 4 ENG ENGLISH ASSEMBLING AND PREPARING Parts and buttons Power Indicator Lighting On: Turned on Lighting Off: Turned off Button (See p.13) (Power Button) Connection panel (See p.10) y y 5 ENG ENGLISH ASSEMBLING AND PREPARING ButtonDescription MENUAccesses the main menus.(See p.13) OSD LOCKED/ UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear. You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear. MODEUse this button to enter USER, MOVIE,TEXT,PHOTO,sRGB menus.(See p.18) DUALUse this button to enter DUAL MONITOR and DUAL WEB menus.(See p.19) AUTOWhen adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode) The best display mode1920 x 1080 INPUT You can choose the input signal. • When two input signals are connected, you can select the input signal (D-SUB/DVI/ HDMI) you want. • When only one signal is connected, it is automatically detected. The default setting is D-SUB. EXITExit the OSD(On Screen Display). (Power Button) Turns the power on or off. Power IndicatorThe power indicator stays blue if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks blue. 6 ENG ENGLISH ASSEMBLING AND PREPARING Setting up the Monitor set Attaching the Stand Base 1 Place the Monitor set with the screen side down on a flat and cushioned surface. Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. y This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. y Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot. CAUTION CAUTION Detaching the Stand Base 1 Place the Monitor set with the screen side down on a flat and cushioned surface. 2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body. 2 Attach the Stand Base and then tighten the screw to the right with a Coin. Stand Base 1 Stand Base 7 ENG ENGLISH ASSEMBLING AND PREPARING Mounting on a table 1 Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm (minimum) space from the wall for proper ventilation. 2 Connect the Power Cord to a wall outlet. 3 Press (Power) button on the front switch panel to turn the power on. 10 cm 10 cm 10 cm 10 cm Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur. CAUTION Swivel Range : - 45 ̊(+/- 2°) Tilt from +15 to -5 degrees up or down to adjust the angle of the Moni…

Text truncated - open the document above for the full version.

IPS225PX Block Diagram RTD2483RD (REALTEK) RGB 24 R/G/B/H/V SERIALFlash SystemEEPROM LED PANEL LVDS RGB IIC LPB +5V Key1/Key2 LED V_LED F/B IIC Data/CLK Data/CLK DVI-D 24 DVI_TMDS DVI IIC Ready WLED_ENABLEPWM_DimA_DimSCTRL HDMI 24 HDMI_TMDS RGB IIC H/P HPL/R out Only for HDMI Key1/Key2 LED 14.318MHz

AHTHORIZATION LETTER LG Electronics USA FCC ID: BEJIPS225PX Date: Jun 27, 2011 To whom it may concern: We, the undersigned, hereby authorize Cerpass Technology (Suzhou) Co., Ltd. of China to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Cerpass Technology (Suzhou) Co., Ltd. within the scope of this authorization shall have the same effects as our own. This authorization shall expire 2 weeks from original data. If you have any questions regarding the authorization, please don’t hesitate to contact me. Thank you. Yours Sincerely, Christopher/ Sr. Manager LG Electronics USA

LG Electronics USA Date: Jun 27, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: BEJIPS225PX Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1 Schematics 2 Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Christopher/ Sr. Manager LG Electronics USA

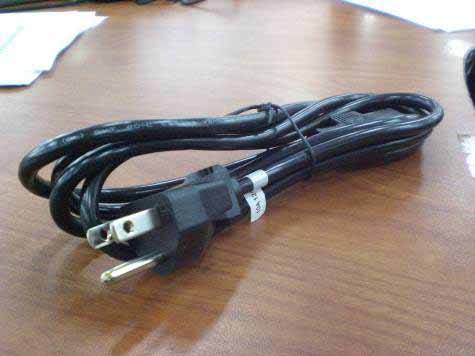

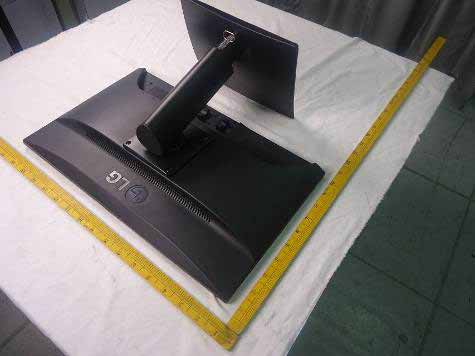

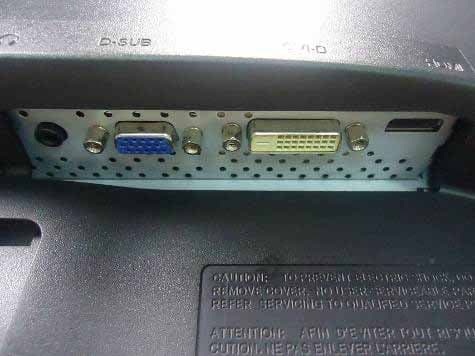

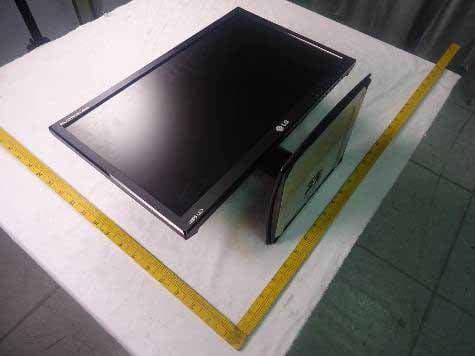

LCD Monitor (Model name: IPS225PX) Exterior Photograph: 1) EUT Photo 2) EUT Photo 3) EUT Photo 4) EUT Photo 5) EUT Photo 6) EUT Photo 7) EUT Photo 8) EUT Photo

LCD Monitor (Model name: IPS225PX) FCC ID Position: FCC ID

FLATRON IPS225P-BNX.SUFFIX AC 100-240V~ 50/60Hz 1.0A IPS225PX JUNE 2011 BEJIPS225PX MADE IN CHINA MEZ62142743(REV01) IPS225P-BN FLATRON IPS235P-BNX.SUFFIX AC 100-240V~ 50/60Hz 1.0A IPS235PX JUNE 2011 BEJIPS235PX MADE IN CHINA MEZ62142743(REV01) IPS235P-BN LT LT

LCD Monitor (Model name: IPS225PX) Inside photo: 1) EUT Photo 2) EUT Photo 3) EUT Photo 4) EUT Photo 5) EUT Photo 6) EUT Photo 7) EUT Photo 8) EUT Photo 9) EUT Photo 10) EUT Photo 11) EUT Photo 12) EUT Photo 13) EUT Photo

CERPASS TECHNOLOGY CORP. Report No.: SEFD1106067 Cerpass Technology Corp. Issued Date : Jun 23, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 1 of 20 FCC TEST REPORT According to 47 CFR, Part 2, Part 15 and CISPR PUB. 22 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs New Jersey United States Manufacturer : LG Electronics Nanjing Display Co., Ltd. Address : No.346,Yaoxin Road Economic & Technical Development Zone Nanjing China Equipment : LCD Monitor Model No. : IPS225PX FCC ID : BEJIPS225PX Trade Name : LG ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY CORP. Report No.: SEFD1106067 Cerpass Technology Corp. Issued Date : Jun 23, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 2 of 20 Contents 1. Summary of Test Procedure and Test Result ...........................................................................................5 2. Test Configuration of Equipment under Test............................................................................................6 2.1. Feature of Equipment under Test .................................................................................................... 6 2.2. Test Manner..................................................................................................................................... 6 2.3. Description of Support Unit ............................................................................................................. 7 2.4. General Information of Test ............................................................................................................. 8 2.5. Measurement Uncertainty ............................................................................................................... 8 3. Test of Conducted Emission ......................................................................................................................9 3.1. Test Limit ......................................................................................................................................... 9 3.2. Test Procedures............................................................................................................................... 9 3.3. Typical test Setup .......................................................................................................................... 10 3.4. Measurement equipment............................................................................................................... 10 3.5. Test Result and Data ......................................................................................................................11 4. Test of Radiated Emission ........................................................................................................................12 4.1. Test Limit ....................................................................................................................................... 12 4.2. Test Procedures............................................................................................................................. 13 4.3. Typical test Setup .......................................................................................................................... 13 4.4. Measurement equipment............................................................................................................... 14 4.5. Test Result and Data ..................................................................................................................... 15 CERPASS TECHNOLOGY CORP. Report No.: SEFD1106067 Cerpass Technology Corp. Issued Date : Jun 23, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 3 of 20 Document history Attachment No. Date Description SEFD1106067 Jun 23, 2011 First edition CERPASS TECHNOLOGY CORP. Report No.: SEFD1106067 Cerpass Technology Corp. Issued Date : Jun 23, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 4 of 20 FCC TEST REPORT According to 47 CFR, Part 2, Part 15 and CISPR PUB. 22 Applicant : LG Electronics USA Address : 1000 Sylvan Avenue Englewood Cliffs New Jersey United States Manufacturer : LG Electronics Nanjing Display Co., Ltd. Address : No.346,Yaoxin Road Economic & Technical Development Zone Nanjing China Equipment : LCD Monitor Model No. : IPS225PX FCC ID : BEJIPS225PX Trade Name : LG I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4 – 2003 and the energy emitted by this equipment was passed CISPR PUB. 22 and FCC Part 15 in both radiated and conducted emission class B limits. Testing was carried out on Jun 22, 2011 at Cerpass Technology Corp. Documented By: Approved By: Sophie Li/ Administration Clinton Kao/ Technical director CERPASS TECHNOLOGY CORP. Report No.: SEFD1106067 Cerpass Technology Corp. Issued Date : Jun 23, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 5 of 20 1. Summary of Test Procedure and Test Result Test Item Normative References Test Result Conducted Emission ANSI C63.4-2003 FCC Part 15 Subpart B PASS Radiated Emission ANSI C63.4-2003 FCC Part 15 Subpart B PASS CERPASS TECHNOLOGY CORP. Report No.: SEFD1106067 Cerpass Technology Corp. Issued Date : Jun 23, 2011 TEL: +86-512-6917-5888 FAX: +86-512-6917-5666 Page No. : 6 of 20 2. Test Configuration of Equipment under Test 2.1. Feature of Equipment under Test LCD Monitor Model No: IPS225PX VGA Cable Shielded, 1.5m DVI Cable Shielded, 1.5m Power Supply cable Non-Shielded, 1.5m 2.2. Test Manner Te s t S o f t w a r e a During testing, the interface cables and equipment positions were varied according to ANSI C63.4. b The complete test system …

Text truncated - open the document above for the full version.

LCD Monitor (Model name: IPS225PX) Test Photograph: Front View of Conducted Emission Test Back View of Conducted Emission Test Front View of Radiated Emission Test Back View of Radiated Emission Test
