www.lg.com OWNER’S MANUAL LCD MONITOR IPS225V IPS235V LCD MONITOR MODEL Please read this manual carefully before operating the your set and retain it for future reference. ENGLISH 2 ENG ENGLISH TABLE OF CONTENTS CONTENTS 3 ASSEMBLING AND PREPARING 3 Unpacking 4 Parts and buttons 6 Setting up the Monitor set 6 - Attaching the Stand Base 6 - Detaching the Stand Base 7 - Mounting on a table 8 - Mounting on a wall 10 USING THE MONITOR SET 10 Connecting to a PC 10 - D-SUB connection 10 - DVI-D connection 10 - HDMI connection 12 CUSTOMIZING SETTINGS 12 Accessing The Main Menus 13 Customizing Settings 13 - Menu Settings 14 - PICUURE 15 - 20 TROUBLESHOOTING 22 SPECIFICATIONS 22 24 P 24 Indicator COLOR 16 -DISPLAY 16 -VOLUME 17 -OTHERE 18 MODE Setting 19 DUAL PACKAGE Setting reset Modes (Resolution) IPS225V 23 IPS235V 3 ENG ENGLISH ASSEMBLING AND PREPARING Stand Base Power Cord CD(Owner's Manual) / Card D-SUB Cable (This signal cable may be attached to this product before shipping out.) DVI-D Cable (This cable is not included in all countries.) and accessories. ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product y Do not use any unapproved accessories to ensure the safety and product life span. y Any damages or injuries by using unapproved accessories are not covered by the warranty. y The accessories supplied with your product may vary depending on the model. y Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. y User should use shielded signal interface cables (RGB cable / DVI-D cable) with ferrite cores to maintain standard compliance for the product. CAUTION NOTE 4 ENG ENGLISH ASSEMBLING AND PREPARING Parts and buttons AC-IN/ Power Indicator � Lighting On: Turned on Lighting Off: Turned off Connection panel (See p.10) Button (See p.13) (Power Button) HDMID-SUBDVI-D 5 ENG ENGLISH ASSEMBLING AND PREPARING ButtonDescription MENUAccesses the main menus.(See p.13) OSD LOCKED/ UNLOCKED This function allows you to lock the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button for several seconds. The message "OSD LOCKED" should appear. You can unlock the OSD controls at any time by pushing the MENU button for several seconds. The message "OSD UNLOCKED" should appear. MODE DUAL AUTO When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode) The best display mode1920 x 1080 INPUT You can choose the input signal. � When two input signals are connected, you can select the input signal (D-SUB/DVI/ HDMI) you want. � When only one signal is connected, it is automatically detected. The default setting is D-SUB. EXITExit the OSD(On Screen Display). (Power Button) Turns the power on or off. Power IndicatorThe power indicator stays blue if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks blue. Use this button to enter USER , MOVE,TEXT, PHOTO,sRGB menus.(See p.18) Use this button to enter DUAL MONITOR and DUAL WEB menus.(See p.19) 6 ENG ENGLISH ASSEMBLING AND PREPARING Setting up the Monitor set Attaching the Stand Base 1 Place the Monitor set with the screen side down on a flat and cushioned surface. Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot. CAUTION CAUTION Detaching the Stand Base and Body 1 Place the Monitor set with the screen side down on a flat and cushioned surface. 2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body. Attach the Stand Base and then tighten the screw to the right with a Coin. 2 Stand Base Stand Base 7 ENG ENGLISH ASSEMBLING AND PREPARING Mounting on a table 1 Lift and tilt the Monitor set into its upright position on a table. Leave a 10 cm (minimum) space from the wall for proper ventilation. 2 Connect the Power Cord to a wall outlet. 3 Press (Power) button on the front switch panel to turn the power on. 10 cm 10 cm 10 cm 10 cm When you adjust the angle, do not hold the buttom of the Monitor set frame as shown on the following illustration, as may injure your fingers. Do not touch or press the screen when adjusting the angle of the monitor. WARNING Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur. Tilt from +15 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view. CAUTION NOTE FrontRear 5 -51 8 ENG ENGLISH ASSEMBLING AND PREPARING Mounting on a wall For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide. When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop. Please use VESA standard as below. y 784.8 mm (30.9 inch) and under * Wall Mount Pad Thickness : 2.6 mm * Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm y 787.4 mm (31.0 inch) and above * Please use VESA standard wall mount pad and screws. 10 cm 10 cm 10 cm 10 cm Using the Kensington security system The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com. Connect the Kensington security system cable between the Monitor set and a table. The Kensington security system is optional. You can obtain it from most electron…

Text truncated - open the document above for the full version.

Regulatory Information cont. FCC Compliance Statement This equipment has been tested and found to comply within the limits of a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by using one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's (or your) authority to operate the equipment. Only peripherals (digital input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this monitor. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Only shielded signal cables may be used with this System. Canadian DOC Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. TCO Displays 5.0 Congratulations, Your display is designed for both you and the planet! This display carries the TCO Certified label. This ensures that the display is designed for minimal impact on the climate and natural environment, while offering all the performance expected from top of the line electronic products. TCO Certified is a third party verified program, where every product model is tested by an accredited independent test laboratory. TCO Certified represents one of the toughest certifications for displays worldwide. Some of the Usability features of the TCO Displays 5.0 requirements: Visual Ergonomics Good visual ergonomics in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are: • Light levels without color tint, Uniform color and luminance, Wide color gamut • Calibrated color temperature and gamma curve • Wide luminance level, Dark black levels, Low motion blur Electrical Safety • Product fulfills rigorous safety standards 1 NOTICE The regulations are applied only to the products with the ID LABEL indicating specific requirements. NOTICE The regulations are applied only to the products with the ID LABEL indicating specific requirements. NOTICE The following information is for the models certified by TCO. If you want to know the specification of the purchased product, see the label attached on the back of the product. Regulatory Information cont. 2 Emissions • Low alternating electric and magnetic fields emissions • Low acoustic noise emissions Some of the environmental features of the TCO Displays 5.0 requirements: • The brand owner demonstrates corporate social responsibility and has a certified environmental management system (EMAS or ISO 14001) • Very low energy consumption both in on-and standby mode • Restrictions on chlorinated and brominated flame retardants, plasticizers and polymers • Restrictions on heavy metals such as cadmium, mercury and lead (RoHS compliance) • Both product and product packaging is prepared for recycling • The brand owner offers take-back options The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit: www.tcodevelopment.com Information for Environmental Preservation LGE. announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the concept of environment-friendly. We minimize the hazardous materials contained in our products. For example, there is no cadmium to be found in our monitors. Information for recycling This monitor may contain parts which could be hazardous to the environment. It is important that this monitor be recycled after use. LGE. handles all waste monitors through an environmentally acceptable recycling method. There are several take-back and recycling systems currently in operation worldwide. Many parts will be reused and recycled, while harmful substances and heavy metals are treated by an environmentally friendly method. If you want to find out more information about our recycling program, please contact your local LG vendor or a corporate representative of LG. We set our vision and policies on a cleaner world by selecting the issue of the global environment as a task for corporate improvement. Please visit our website for more information about our ‘green’ policies. http://www.lg.com/global/sustainability/environment/take-back- recycling.jsp English Informationen zur Erhaltung der…

Text truncated - open the document above for the full version.

D Block diagram for IPS5V (RTK) 5V RTD2483QD 1920*1080@60Hz 148.5MHz Crystal ： HLX-U-F; HC-49/S(alternate) Regulation ： 14.31818MHz+/- 30PPM LVDS ADC TMDS RX Scaler LVDS TX D-SUB Panel 5V EEPROM 1.2V RTD2483QD TMDS RX MCU OSD SSC DVI EEPROM DAC A udio out p ut Earph 3.3 V MCU SSC HDMI EEPROM DAC p hone Flash ROM EEPROM system 3.3V 33V Crystal 14.318MHz system 3 . 3V P 5V Key 0/1 Regulator 3.3 V 1.2V PSU 5V Regulator Power LEDWLED_ENA DimPWM Dim 1.2V PWM Dim SCTRL (ready)

LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 Tel: 02-3777-1114 Fax: 02-6719-7509 2011.05.03 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Audix Technology (Shanghai) Co., Ltd. and 3 F 34 Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China, Mr Byron Kwo, (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with LG Electronics U.S.A., Inc. and 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632 ( applicant name and address). Dated this 2011/05/03 Day of 20 Agency agreement expiration date: 12 Months B y: Christopher Johnson Signature Printed Title: Sr. Manager On behalf of : LG Electronics U.S.A., Inc. Telephone: 02-3777-1114

Statement FCC ID: BEJIPS235VX Data: May 03, 2011 We LG Electronics U.S.A., Inc. declare under our own responsibility that the product LCD Monitor to which this declaration refers conforms with all electrical and mechanical devices employed for spurious radiation suppression, including any modifications made during certification testing, must be incorporated in each unit marked. 2011.05.03 [Data] Christopher Johnson

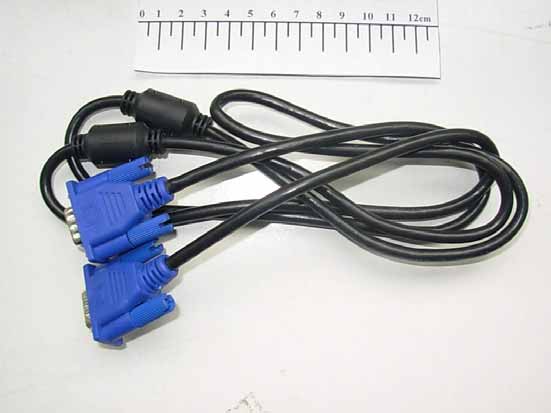

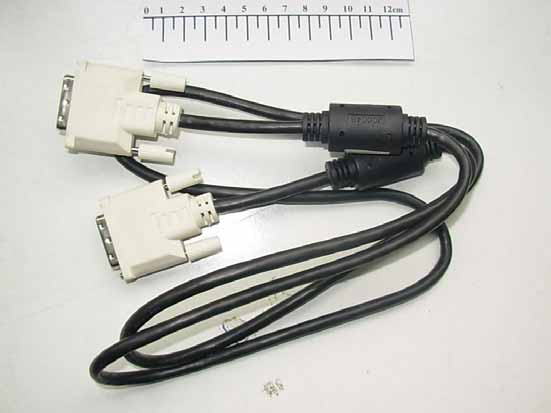

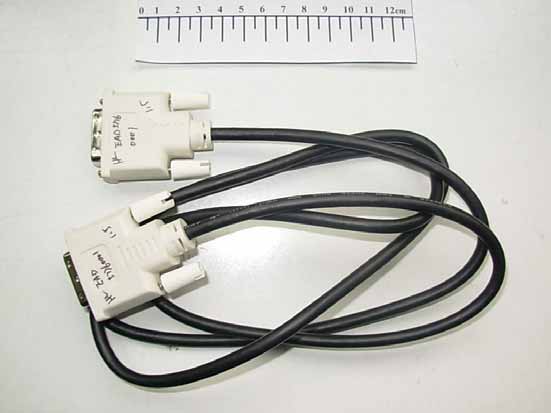

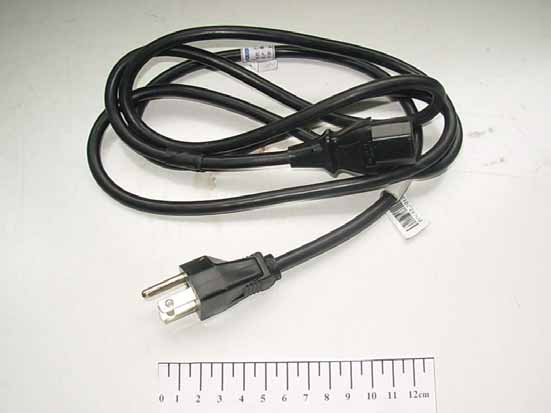

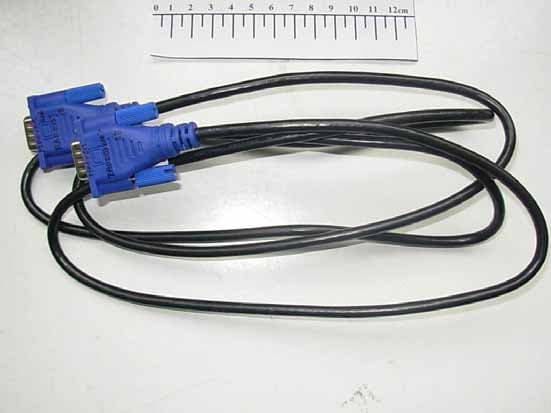

FIGURE 1 LCD MONITOR (M/N: IPS235VX) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 LCD MONITOR (M/N: IPS235VX) GENERAL APPEARANCE (BACK VIEW) FIGURE 3 LCD MONITOR (M/N: IPS235VX) SIGNAL PORTS F IGURE 4 LCD MONITOR (M/N: IPS235VX) AC PORT F IGURE 5 LCD MONITOR (M/N: IPS225VX) D-S UB CABLE #1 F IGURE 6 LCD MONITOR (M/N: IPS225VX) D-SUB CABLE #2 FIGURE 7 LCD MONITOR (M/N: IPS225VX) DVI CABLE #1 F IGURE 8 LCD MONITOR (M/N: IPS225VX) DVI CABLE #2 FIGURE 9 LCD MONITOR (M/N: IPS225VX) POWER CORD

Label Location Information Refer to the below red arrow: (For example)

FIGURE 1 LCD MONITOR (M/N: IPS235VX) COVER REMOVED FIGURE 2 LCD MONITOR (M/N: IPS235VX) LABEL ON LCD PANEL FIGURE 3 LCD MONITOR (M/N: IPS235VX) MAIN BOARD (COMPONENT SIDE) F IGURE 4 LCD MONITOR (M/N: IPS235VX) MAIN BOARD (COMPONENT SIDE) FIGURE 5 LCD MONITOR (M/N: IPS235VX) CHIP & CRYSTAL ON MAIN BOARD FIGURE 6 LCD MONITOR (M/N: IPS235VX) POWER BOARD (COMPONENT SIDE) F IGURE 7 LCD MONITOR (M/N: IPS235VX) POWER BOARD (SOLDERED SIDE) FIGURE 8 LCD MONITOR (M/N: IPS235VX) DISPLAY BOARD (COMPONENT SIDE) F IGURE 9 LCD MONITOR (M/N: IPS235VX) DISPLAY BOARD (SOLDERED SIDE) FIGURE 10 LCD MONITOR (M/N: IPS235VX) KEY BOARD (COMPONENT SIDE) F IGURE 11 LCD MONITOR (M/N: IPS235VX) KEY BOARD (SOLDERED SIDE) FIGURE 12 LCD MONITOR (M/N: IPS235VX) DEBUG #1 F IGURE 13 LCD MONITOR (M/N: IPS235VX) DEBUG #2 FIGURE 14 LCD MONITOR (M/N: IPS235VX) DEBUG #3

LG Electronics U.S.A., Inc. FCC ID: BEJIPS235VX 1 Equipment Description The Equipment Under Test (EUT) is the LG Electronics U.S.A., Inc. LCD Monitor. General Specification LG Electronics U.S.A., Inc. FCC ID: BEJIPS235VX 2 EUT Operating Conditions a. Setup the EUT and Peripherals as shown in Sec. 3.2 of the test report. b. Turn on the power of all equipment and the EUT. c. Set the contrast & brightness of EUT to maximum. d. PC system ran the self-test program "EMC Test" by windows XP and sent "H" characters to EUT through graphic card (we use white letters on a black background to represent all colors), the EUT's screen displayed and filled with "H" pattern by its resolution (Via D-Sub & DVI Input). e. In HDMI mode, the EUT connected to DVD through HDMI port. f. Repeat above procedure from c to e for difference test mode. g. The other peripherals devices were driven and operated during the test. h. The test modes are as follows: Test Mode D-Sub 640*480@60Hz D-Sub 1280*1024@75Hz D-Sub 1680*1050@60Hz D-Sub 1920*1080@60Hz DVI 640*480@60Hz DVI 1280*1024@75Hz DVI 1680*1050@60Hz DVI 1920*1080@60Hz HDMI 480i HDMI 720p HDMI 1080p HDMI 1920*1080@60Hz

PDF created with pdfFactory Pro trial version www.pdffactory.com PDF created with pdfFactory Pro trial version www.pdffactory.com

LG Electronics U.S.A., Inc. FCC ID: BEJIPS235VX Page 1 of 48 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11064 Prepared For : LG Electronics U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, United States Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F11064 Date of Test : Apr 18 – May 04, 2011 Date of Report : May 16, 2011 Application for FCC Certificate On Behalf of LG Electronics U.S.A., Inc. LCD Monitor Model No.: IPS235VX Serial No.: E1104224-01/01 FCC ID : BEJIPS235VX LG Electronics U.S.A., Inc. FCC ID: BEJIPS235VX Page 2 of 48 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11064 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results ......................................................................................... 4 2 GENERAL INFORMATION .......................................................................................................... 5 2.1 Description of Equipment Under Test ........................................................................................ 5 2.2 Peripherals .................................................................................................................................. 6 2.3 Description of Test Facility ........................................................................................................ 7 2.4 Measurement Uncertainty .......................................................................................................... 7 3 CONDUCTED EMISSION TEST .................................................................................................. 8 3.1 Test Equipment ........................................................................................................................... 8 3.2 Block Diagram of Test Setup ..................................................................................................... 8 3.3 Conducted Emission Limit [FCC Part 15 Subpart B 15.107(a)] ................................................ 9 3.4 Test Configuration ...................................................................................................................... 9 3.5 Operating Condition of EUT .................................................................................................... 10 3.6 Test Procedures ........................................................................................................................ 11 3.7 Test Results .............................................................................................................................. 11 4 RADIATED EMISSION TEST ..................................................................................................... 23 4.1 Test Equipment ......................................................................................................................... 23 4.2 Block Diagram of Test Setup ................................................................................................... 23 4.3 Radiated Emission Limit [FCC Part 15 Subpart B 15.109(a)] ................................................. 25 4.4 Test Configuration .................................................................................................................... 25 4.5 Operating Condition of EUT .................................................................................................... 26 4.6 Test Procedures ........................................................................................................................ 26 4.7 Test Results .............................................................................................................................. 27 5 DEVIATION TO TEST SPECIFICATIONS .............................................................................. 47 6 DEBUG DESCRIPTION ............................................................................................................... 48 LG Electronics U.S.A., Inc. FCC ID: BEJIPS235VX Page 3 of 48 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11064 TEST REPORT FOR FCC CERTIFICATE Applicant : LG Electronics U.S.A., Inc. Manufacturer : LG Electronics Nanjing Display Co., Ltd. EUT Description : LCD Monitor (A) Model No. : IPS235VX (B) Serial No. : E1104224-01/01 (C) Power Supply : 120V/60Hz Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART B CLASS B OCTOBER 2010 AND ANSI C63.4-2003 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B (Class B), Issue 4 February 2004 limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: IPS235VX; S/N: E1104224-01/01) which was tested in 3m anechoic chamber Apr 18 – May 04, 2011 is technically compliance with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Apr 18 – May 04, 2011 Date of Report : May 16, 2011 Producer : YENNY YU / Assistant Review : DIO YANG / Deputy Assistant Manager Signatory : SAMMY CHEN / Deputy Manager LG Electronics U.S.A., Inc. FCC ID: BEJIPS235VX Page 4 of 48 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F11064 1 SUMMARY O…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test F RONT VIEW BACK VIEW 2. Radiated Electromagnetic Emission Test FRONT VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) B ACK VIEW OF RADIATED EMISSION TEST (BELOW 1GHZ) F RONT VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ) B ACK VIEW OF RADIATED EMISSION TEST (ABOVE 1GHZ) S ETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (TEST MODE: DVI 1920*1080@60HZ) SETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (TEST MODE: DVI 1920*1080@60HZ)
