BEJKC550PCS GSM/ EDGE Phone with Bluetooth

Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. " Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. 3 (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following web address: www.lgeservice.com 8 For Your Safety Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions WARNING!To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat.Never store your phone in settings that may expose it to temperatures less than 32°F or greater than 104°F, such as outside during extreme weather conditions or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices.RF emissions from your mobile phone may affect nearby in adequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearing aides to determine if they are susceptible to interfe…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: April 2, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJKC550 Equipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Daniel Kim General Manager LG Electronics USA

From: SunHee Kim (HCT) Sent: Thursday, April 10, 2008 8:20 AM To: PCTEST TCB Subject: Re: Questions Regarding FCC ID: BEJKC550 Dear Gregory, Thank you for your cooperation on our project. We attached the revised documents and replies are embedded below your questions. If you have any further questions, please let me know. Best Regards, Sun-Hee Kim =========================================================== ----- Original Message ----- From: PCTEST TCB Sent: Wednesday, April 09, 2008 11:31 PM Subject: Questions Regarding FCC ID: BEJKC550 To: Ms. Sun-Hee Kim / HCT From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: BEJKC550 Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ80278 Confirmation Number: 804070278-80 Date of Original Email: April 9, 2008 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The EDGE EIRP level listed on p.1 of the Part 24 EMC report is incorrect. Please revise. ==> This is a type error and has been corrected in the final report page 1. <File Name: RF REPORT_Rev.1> 2. Please provide the FCC ID of the Notebook pc used in the Part 15B testing, or else indicate if it is approved under DoC. ==> This is approved under DoC. So we indicate this in the EMI report page 4. <File Name: KC550_EMI Test Report_Certification_Rev.1> 3. Please correct the following typo: pp.15-17 of the Part 24 EMC report, the dBc limit listed at the top of each page is wrong. ==> We revised the limit in the EMC report page 15-17. <File Name: RF REPORT_Rev.1> The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

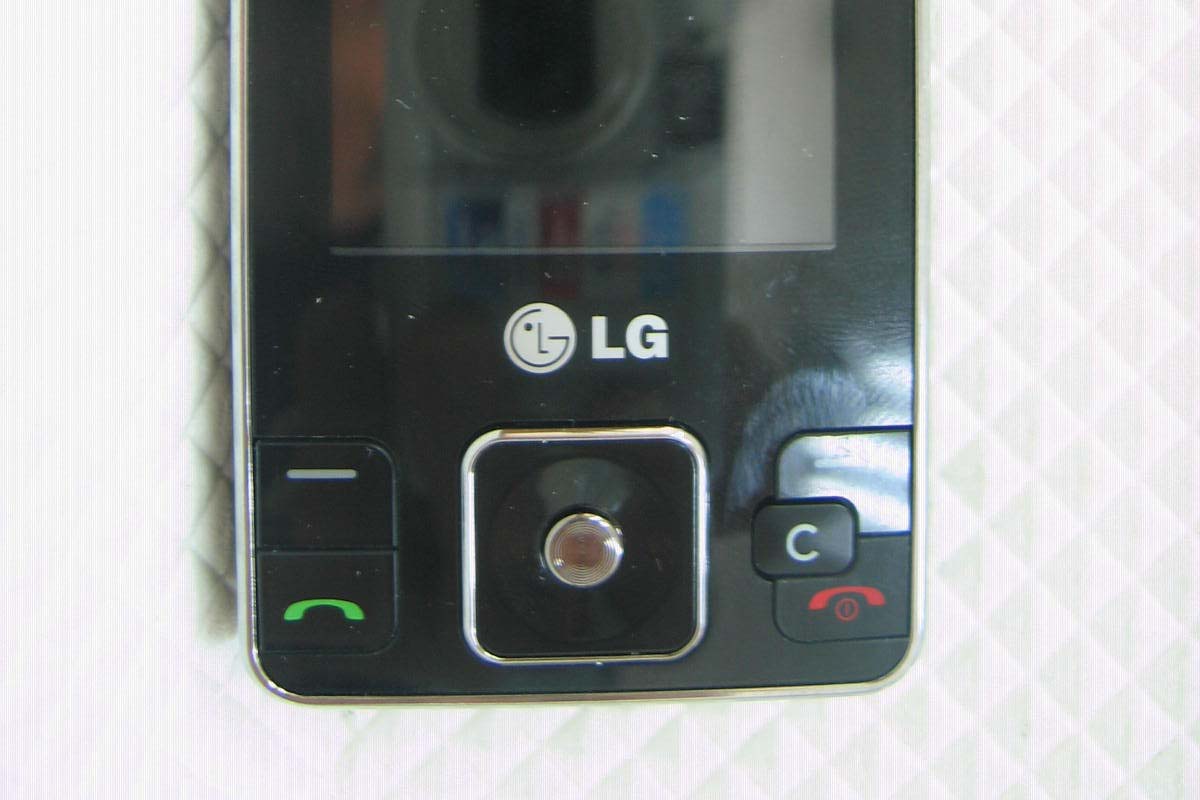

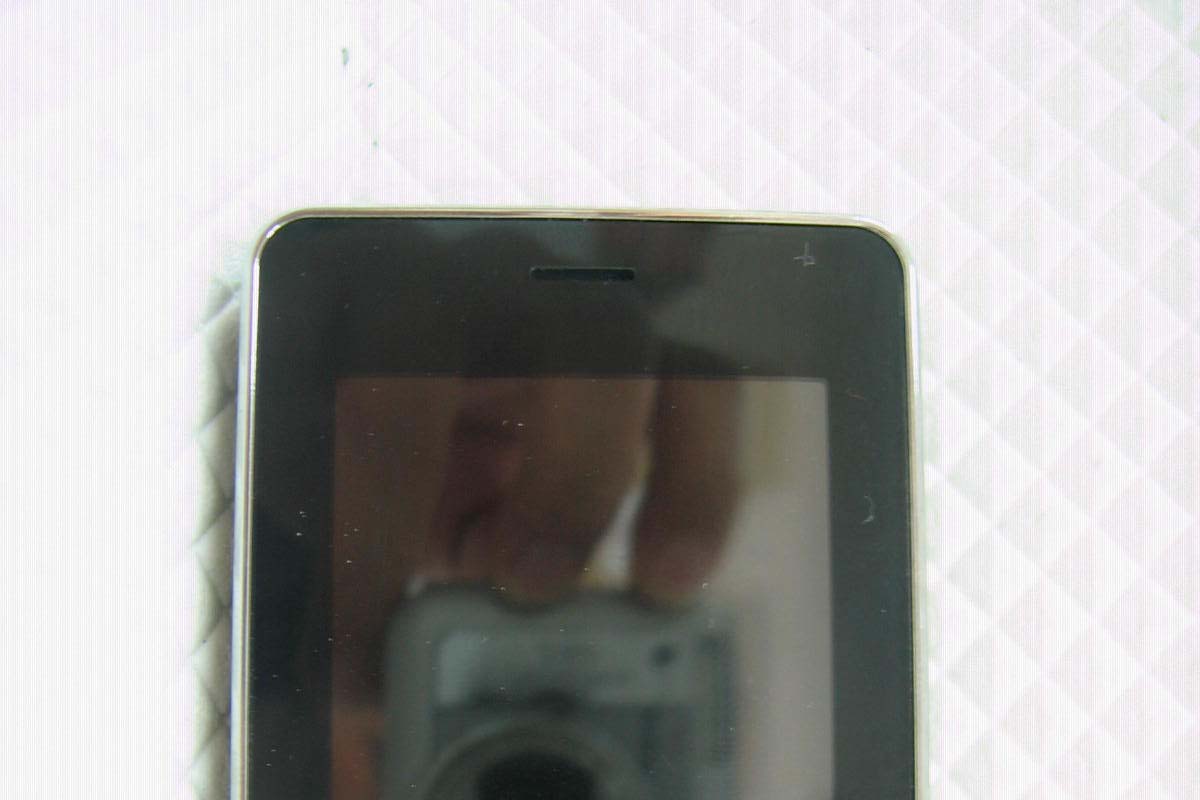

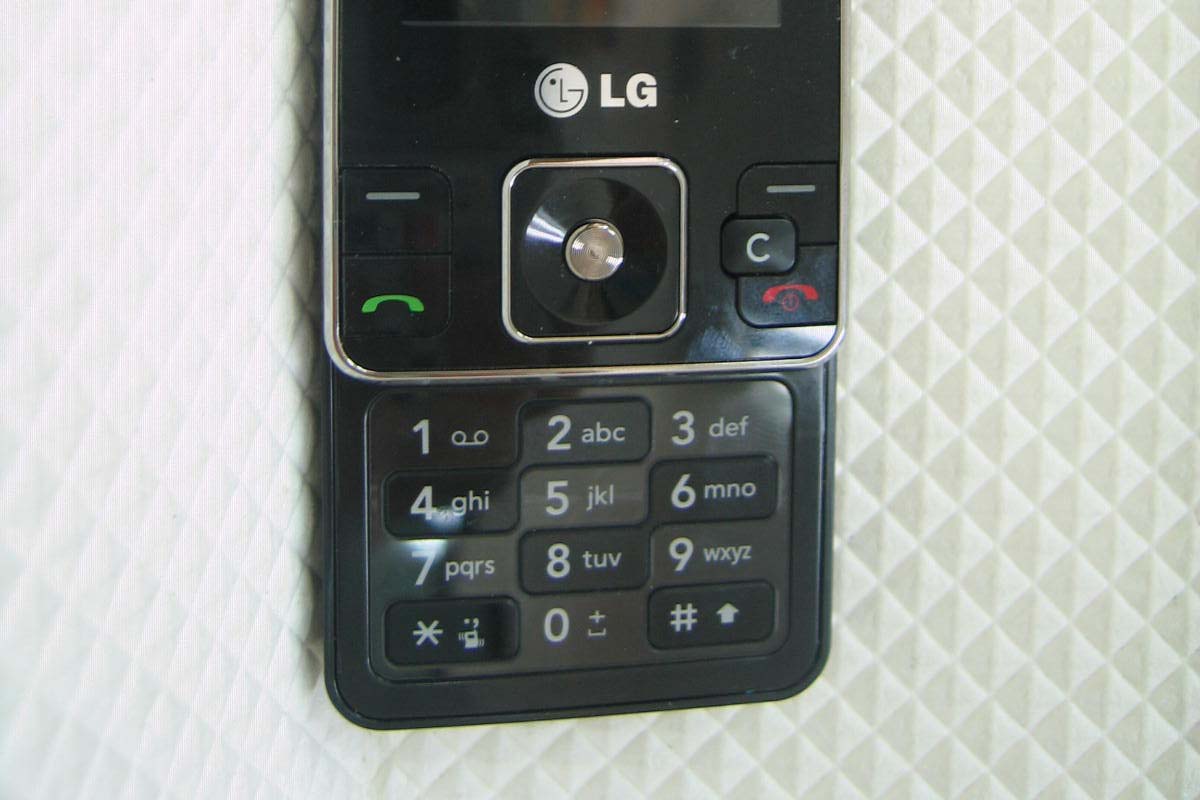

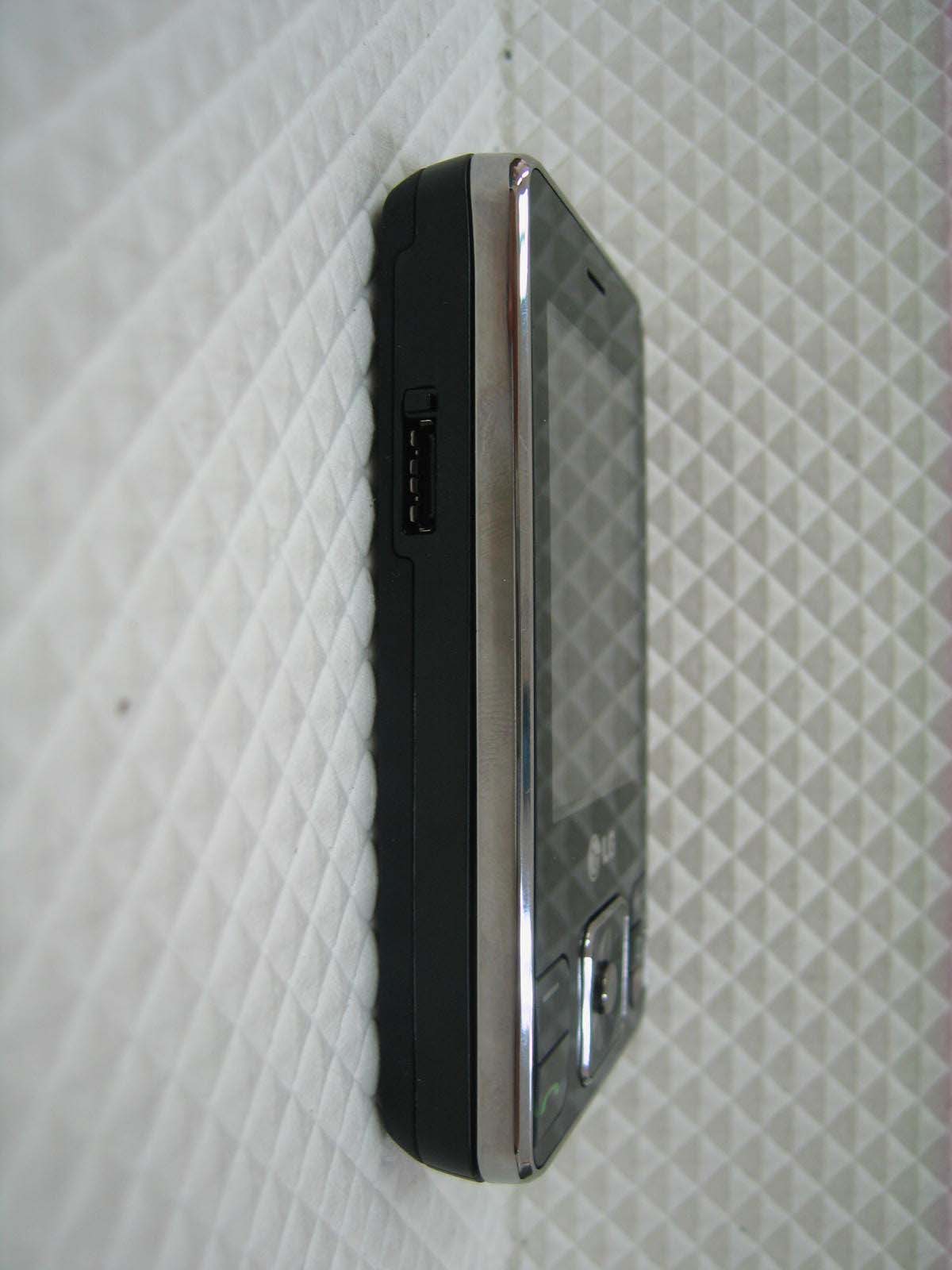

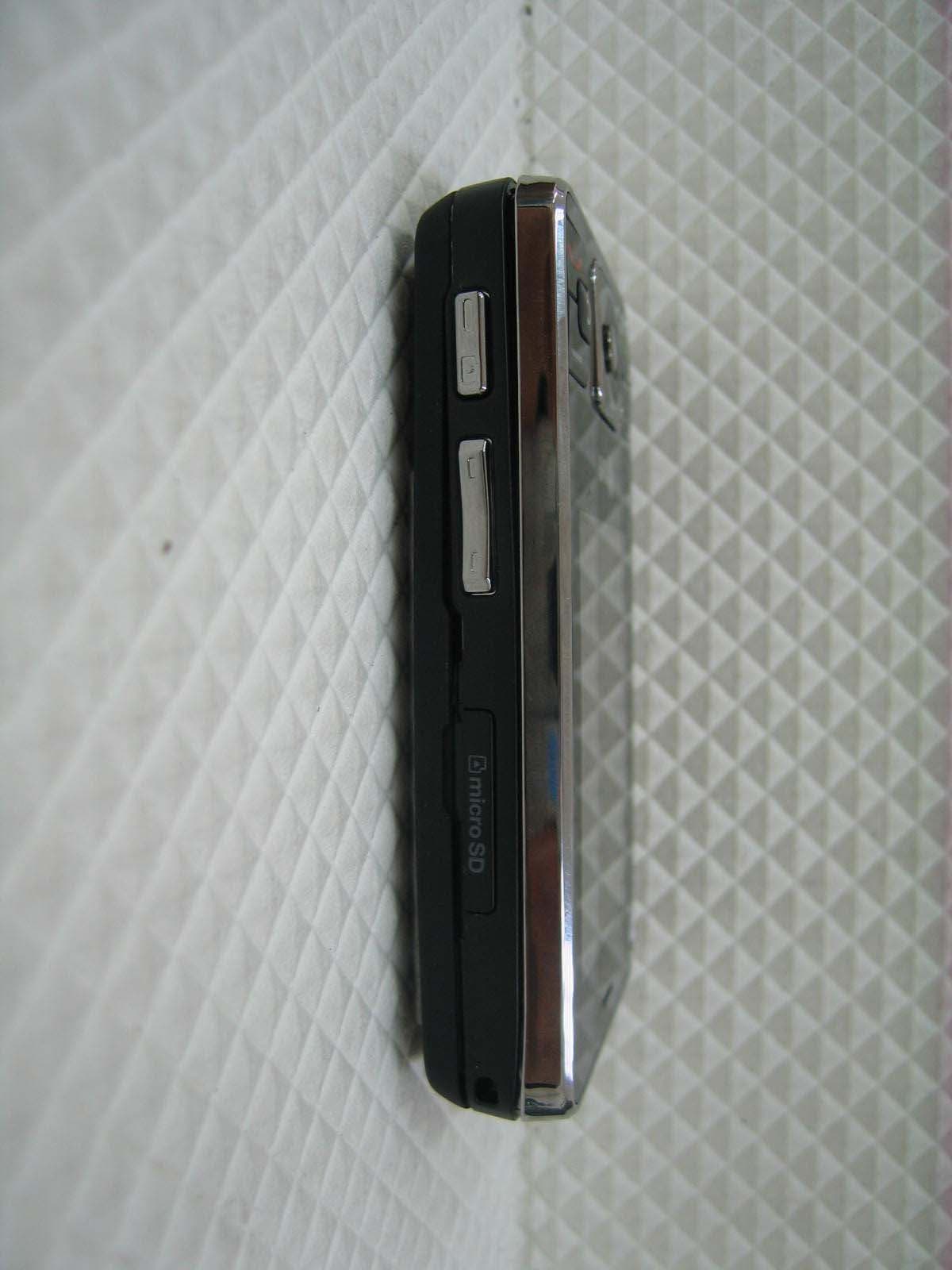

Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １ of 8 G. EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ３ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ４ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ５ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ６ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ７ of 8 ■ EXTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ８ of 8 ■ EXTERNAL PHOTO

LG Electronics Inc. LGE Model No: K C550 FCC ID : BEJ K C550 S/N :Made in Korea Note: The FCC ID label shown will be r eadily visible at the time of purchase. ※ FCC ID label form

Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １ of 22 INTERNAL PHOTOGRAPHS Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ３ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ４ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ５ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ６ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ７ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ８ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ９ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １０ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １１ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １２ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １３ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １４ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １５ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １６ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １７ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １８ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr １９ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２０ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２１ of 22 ■ INTERNAL PHOTO Report No.: HCT-SAR08-0316 FCC ID:BEJKC550 DATE: March 28, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr ２２ of 22 ■ INTERNAL PHOTO Challenge 123 사내한 [KC550]The distance between antennas Main antenna Bluetooth antenna 2.9 cm

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 1 of 62 MCCL SAR TEST REPORT Specific Absorption Rate Licensed Transmitter Held to Ear (PCE)FCC Classification : PASSTest Result : Certification §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type : FCC Rule Part(s) : LG Electronics, Inc.Applicant : LG Electronics, Inc.Manufacturer : KC550Model Name(s) : PCS GSM/ EDGE Phone with BluetoothEquipment Under Test (EUT) : Test Report No : MCCL-3-09-037Date of Issue : March 25, 2008 Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by S. K. Yoon /Vice Technical Manager MCCL Prepared by C. H. Jeong / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in European standard EN50360 : 2001 and had been tested in accordance with the measurement procedures specified in European standard EN50361:2001, IEEE 1528 – Dec. 2003, FCC/OET bulletin 65 Supplement C(2001) , Public notice 02-1438(2002), ANSI IEEE standard C95.1(2005) and C95.3(2002) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 2 of 62 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ··························································································· 3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom····················································································································9 4.4 Simulating Mixture Characterization·············· ······················· ·················· ·· ············10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. EN50360 RF EXPOSURE LIMITS··············································································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ····················································································· 22 12. MEASUREMENT RESULTS ····················································································· 23 13. TEST EQUIPMENT····································································································· 25 14. REFERENCES············································································································ 26 APPENDIX A: Validation Test Data ······································································ 27 APPENDIX B: SAR Test Data ··············································································· 29 APPENDIX C: Calibration Certificates ································································· 48 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 3 of 62 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty 19.2 (k=2, 95% CONFIDENCE LEVEL)Extended Standard Uncertainty 9.6 (k=1) Combine Standard Uncertainty 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Eui-Soon ParkResponsible Test Engineer : March 25, 2008 Date of Issue : GSM1900: 29.5 dBmTransmit Output Power : 1930.20 ~ 1989.80 MHz (PCS1900) Rx Frequency : PCS GSM/ EDGE Phone with BluetoothEUT Type : 60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-801, Korea.Address of Test Site : 1850.20 ~…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 41 of 62 MCCL LG Electronics Inc. DUT: KC550 ;Type: PCS GSM/ EDGE Phone with Bluetooth; Serial:#1 Communication System: PCS 1900; Frequency: 1880.00 MHz;Duty Cycle: 1:8.3 Medium: Head 1880.00 MHz;(σ= 1.4 mho/m; ε r = 39.6; ρ= 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03/24/2008;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ET3DV6 - SN1715; ConvF(5.14, 5.14, 5.14); Calibrated: 2007-09-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn534; Calibrated: 2007-09-24 Phantom: SAM 1800; Type: SAM 4.0; Serial:TP-1244 Measurement SW: DASY4, V4.7 Build 55; Post processing SW: SEMCAD, V1.8 Build 171 Left Head Tilt, Ch.661, Slider Down, Fixed Ant., Standard Battery Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.343mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.5V/m; Power Drift = -0.292dB Peak SAR (extrapolated) = 0.445W/kg SAR(1 g) = 0.286mW/g; SAR(10 g) = 0.167mW/g Maximum value of SAR (measured) = 0.305mW/g 0 dB = 0.305mW/g MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 42 of 62 MCCL LG Electronics Inc. DUT: KC550 ;Type: PCS GSM/ EDGE Phone with Bluetooth; Serial:#1 Communication System: EGPRS 1900; Frequency: 1880.00 MHz;Duty Cycle: 1:2.075 Medium: Head 1880.00 MHz;(σ= 1.49 mho/m; ε r = 53.8; ρ= 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 03/24/2008;Ambient Temp: 22. 9°C;Tissue Temp: 21.8°C Probe: ET3DV6 - SN1715; ConvF(4.72, 4.72, 4.72); Calibrated: 2007-09-26 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn534; Calibrated: 2007-09-24 Phantom: SAM 1800; Type: SAM 4.0; Serial:TP-1244 Measurement SW: DASY4, V4.7 Build 55; Post processing SW: SEMCAD, V1.8 Build 171 Flat Touch, Ch.661, Rear, Slider Up, Fixed Ant., Standard Battery Area Scan (61x61x1):Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.359mW/g Zoom Scan (5x5x7)/Cube 0:Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.19V/m; Power Drift = 0.006dB Peak SAR (extrapolated) = 0.523W/kg SAR(1 g) = 0.324mW/g; SAR(10 g) = 0.187mW/g Maximum value of SAR (measured) = 0.352mW/g 0 dB = 0.352mW/g MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 43 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 44 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 45 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 46 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 47 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 48 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 49 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 50 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 51 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 52 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 53 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 54 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 55 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 56 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222 Test Report No: MCCL-3-09-037 Page 57 of 62 MCCL

HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE RF RPOERT EUT Type: PCS GSM/ EDGE Phone with Bluetooth GPRS Class 12 and GPRS mode class B (GPRS and GSM, but not simultaneously) Tx Frequency: 1 850.20 – 1 909.80 MHz (GSM1900) 2 402 – 2 480 MHz (Bluetooth) Rx Frequency: 1 930.20 – 1 989.80 MHz (GSM1900) 2 402 – 2 480 MHz (Bluetooth) Max. RF Output Power: 0.406W EIRP GSM1900 (26.09 dBm) / 0.133 W EIRP EDGE1900 (21.25 dBm) Trade Name/Model(s): LG Electronics, Inc / KC550 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §24(E), §2 Antenna Specifications: Manufacturer: E.M.W Antenna Co., Ltd. Part NO.: HIR-02819-0000AA Gain : - 5.987 dBi (Length= 41.08 mm) Emission Designator(s): 248KGXW (GSM1900) / 248KG7W (EDGE1900) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in 2.947. ∮ I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. LG Electronics, Inc. 60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-801, Korea Date of Issue: Mar. 28, 2008 Test Report No.: HCT-SAR08-0316 Test Site: HCT CO., LTD. FCC ID : APPLICANT : BEJKC550 LG Electronics, Inc. Report No.: HCT-SAR08-0316 FCC ID: BEJKC550 DAT…

Text truncated - open the document above for the full version.
