BEJKT770PCS GSM/ EDGE Phone with WLAN and Bluetooth

Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 13 01 02 03 04 05 06 07 08 Set up KT770 Features Earpiece Confirm key Selects menu options and confirms actions Send key • Dials a phone number and answers a call. • In standby mode: Shows a history of calls made, received, and missed. Clear key Clears a character with each press. Hold the key down to clear all input. Use this key to go back to a previous screen. LCD screen Icons showing signal strength, battery level and various other functions. Soft key indications. Parts of the phone Open view End/Power key End or reject a call. Closes the task window and goes back to standby mode. Alpha numeric keys • In stand�y modeIn stand�y mode : Input numbers to dial. Hold down - to access Bookmarks application. - to access Bookmarks application. to - for speed dials. • In editing mode�In editing mode � Enter numbers & characters. 1 LG KT770 | User Guide Camera Key Headset/Charger/ Ca�le connector Note • Please ensure phone is powered on and in standby mode before connecting the USB cable. Side keys Note • To protect your hearing, maximum volume level is 10. Micro SD memory card slot Left side view Right side view KT770 Features 15 01 02 03 04 05 06 07 08 Set up Rear view External camera lens Battery terminals SIM card terminals SIM card socket Battery 16 LG KT770 | User Guide Set up Getting started Installing the SIM card and �attery 1 Installing the SIM card. Your SIM card contains your phone number, service details and contacts and must be inserted into your handset. Always disconnect the charger and other accessories from your handset before inserting and removing your SIM card. Slide the SIM card into the SIM card holder. Make sure that the SIM card is properly inserted and the gold contact area on the card is facing downwards. To remove the SIM card, press down lightly and pull it in the reverse direction. Note • The metal contact of the SIM card can easily be damaged by scratches. Pay special attention to the SIM card while handling. Follow the instructions supplied with the SIM card. 2 Install the �attery. Slide the battery upwards until it snaps back into place. 3 To remove the �attery. Turn the power off. (If the power is left on, there is a chance you could lose the stored telephone numbers and messages.) Press and hold down the battery release button and slide the battery down. To insert the SIM card To remove the SIM card 17 01 02 03 04 05 06 07 08 Set up Charging the �attery Before connecting the travel adapter to the phone you must first install the battery. 1 With the arrow facing you as shown With the arrow facing you as shown in the diagram push the plug on the battery adapter into the socket on the left side of the phone until it clicks into place. 2 Connect the other end of the travel Connect the other end of the travel adapter to the mains socket. Note • Only use the charger included in the box. 3 The moving bars on the battery icon will The moving bars on the battery icon will stop after charging is complete. 4 Ensure the battery is fully charged Ensure the battery is fully charged before using the phone for the first time. Caution • Do not force the connector as this may damage the phone and/or the travel adapter. • If you use the battery pack charger when abroad, use an attachment plug adaptor for the proper configuration. • Do not remove your battery or the SIM card while charging. Warning • Unplug the power cord and charger during lightning storms to avoid electric shock or fire. • Make sure that no sharp-edged items such as animal teeth or nails, come into contact with the battery. This may cause a fire. 18 LG KT770 | User Guide Set up Disconnecting the charger Disconnect the charger from the phone as shown in the diagram below. How to use a memory card <Memory card> <How to insert memory card> 1 Turn the phone off. Inserting or removing the memory card when the phone is on may damage the files stored in the memory card. 2 Lift the plastic cover which protects the slot. 3 Insert the memory card into the slot. The gold contacts behind…

Text truncated - open the document above for the full version.

28 LG KT770 | User Guide The basics Contacts New contact You can create a contact address. You can enter the first name, last name, mobile number, telephone number, E-mail address, a number for video call, pager number, company name and job title of a new contact. You can add, rename or delete contact card fields, using Add detail, Edit la�el or Delete detail options. After filling in the fields, press the right soft key [Done]. Contacts list You can view a contact card by pressing the . To make a voice or video call to a contact, press . Using the left soft key [Options], the followings are available: Open, Call, Create message, Edit, Delete, Duplicate, Mark/Unmark, Copy to SIM directory, SIM contacts, Send �usiness card, Contacts info, Synchronisation → Start, Synchronisation → Settings, Settings, Help, Exit To remove a contact from the directory, press the . Groups Press the right navigation key in Contact list. You can create contact groups to send messages to a number of people at the same time, for example. Using the left soft key [Options], the followings are available: Open, Create message, New group, Delete, Rename, Ringtone, Contacts info, Settings, Help, Exit. To delete a contact group, press the . The individual contacts cards of group members remain in the Contacts directory. 29 01 02 03 04 05 06 07 08 The basics Messaging New message You can create a text message, multimedia message, audio message or E-mail. Press the left soft key [Options]. You can access the followings. Create message You can create Text message/ Multimedia message/ Audio message/ E-mail. Text message 1 In the In the To field, press to select recipients from Contacts or key in a recipient mobile phone number. 2 Move to the message field by pressing Move to the message field by pressing the down navigation key. 3 Enter your message in the message field. Enter your message in the message field. Option menus in message field: Add recipient, Insert, Sending options, Message details, Writing language. 4 Press Press to send the message. The messages will automatically be saved in the Sent message folder. If the message has not been sent, it will remain in the Outbox with a failed status. Note To save the message without sending it, press the right soft key [Close] and select Save to Drafts. Multimedia message Multimedia messages may contain text, images and sound and video clips. To send and receive multimedia messages, you need to register with a multimedia messaging service and define multimedia settings in your phone. 1 In the In the To field, press to select recipients from Contacts or key in a recipient mobile phone number or an e-mail address. Tip - If you key in more than one number, separate the numbers with a semicolon. To insert a semicolon, press and select ; using the navigation keys. - To add @ in letter mode, press and hold and press . 2 Enter a subject in the Enter a subject in the Su�ject field. 3 Enter your message in the message field. Enter your message in the message field. Option menus in message field (Note: Available options may vary.): Send, Add recipient, Create presentation, Insert o�ject, Insert new, Place text first/ Place text last, Address fields, Preview, O�jects, Check contacts, Sending options, Message details, Writing language, Help, Exit. 30 LG KT770 | User Guide The basics Messaging 4 Press Press to send the message. Audio message 1 Press Press to record your message. 2 When you hear a sound, please start When you hear a sound, please start recording. (You can record up to 2 minutes and 30 seconds.) 3 To save the sound clip, press the left soft To save the sound clip, press the left soft key [Options] and select Save sound clip. Note - You can check what you recorded using Play sound clip option. - To replace the sound clip, select Replace sound clip → New sound clip. - To send a sound clip in your phone or memory card, select Replace sound clip → From My stuff. Scroll to the desired music track or sound clip and press . - To delete the audio clip, press . 4 Scroll to the Scroll to the To field. Press to select recipients from Contacts or key in a recipient mobile phone number. Tip If you key in more than one number, separate the numbers with a semicolon. To insert a semicolon, press and select ; using the navigation keys. 5 Press Press to send the message. Audio messages are transferred in the multimedia messaging service. E-mail To send/receive an email, you should set up the email account. 1 In the In the To field, press to select recipients from Contacts or key in an e-mail address. Tip If you key in several addresses, separate them with a semicolon. To insert a semicolon, press and select ; using the navigation keys. Insert the primary recipients in the To field and those who only need the e-mail for reference in the Cc field. 2 Enter a subject in the Su�ject field. 3 Enter your message in the message field. Enter your message in the message field. Option menus in message field (Note: Available options may vary.): Add recipient, Insert, 31 01 02 03 04 05 06 07 08 The basics Address fields, Attachments, Sending options, Writing language, Help, Exit. 4 Press Press to send the message. Note To save the message without sending it, press the right soft key [Close] and select Save to Drafts. Entering text You can enter alphanumeric characters using the keypad. For example, storing names in Contacts, writing a message, creating a personal greeting or scheduling events in the calendar all require entering text. The following text input methods are available with the handset. T9 Mode A�c a�c This mode lets you enter words with only one keystroke per letter. Each key on the keypad has more than one letter. The T9 mode automatically compares your keystrokes with an internal dictionary to determine the correct word, thus requiring far fewer keystrokes than the traditional ABC mode. This is sometimes known as predictive text. Mode A�c a�c This mode lets you enter letters by pressi…

Text truncated - open the document above for the full version.

5 01 02 03 04 05 06 07 08 Get organised Organiser Calendar You can edit and keep track of your schedule. Using the left soft key [Options], the followings are available. Open, New entry, Week view, To-do view, Delete entry, Go to date, Settings. Tip You can also add appointments by starting to write with the number keys. The Meeting editor opens automatically. Clock Time You can view the time, day of the week and date, or set and edit alarms or modify date and time settings. 1 To set date and time, press the left soft To set date and time, press the left soft key [Options] and select Settings. 2 Scroll to the following settings and Scroll to the following settings and press: Time, Time zone, Date, Date format, Date separator, Time format, Time separator, Clock type, Alarm clock tone, Workdays , Network operator time. Note This service may not be available in all networks. 3 Press the right soft key [Back] to save Press the right soft key [Back] to save your settings. To quickly set a one -time alarm, press any number key and key in the alarm time. To change the time of a set alarm, press the left soft key [Options] and select Reset alarm. Alarm 1 In the In the Clock window, press the right navigation key. 2 Press the left soft key [Options] and Press the left soft key [Options] and select New alarm. 3 Fill in the following fields. Fill in the following fields. Alarm time, Description, Repeat. 4 Press the left soft key [Done]. Press the left soft key [Done]. Tip To quickly set a one-time alarm, you can also press any number key and key in the alarm time. To deactivate or delete an alarm, scroll to it and press . World 1 In the In the Clock window, press the right navigation key twice. 2 Press the left soft key [Options]: Press the left soft key [Options]: Add location, Set as the current city, Settings. 6 LG KT770 | User Guide Get organised 3 To delete a city, scroll to it and press To delete a city, scroll to it and press . Converter You can convert Currency, Area, Energy, Length, Mass, Power, Pressure, Temperature, Time, Velocity and Volume from one unit (for example, gallons) to another (litres). Notes You can view or write notes. 1 To write a note, press any number key. To write a note, press any number key. The note editor opens automatically. Tip - To add a space between words, press . - To insert special characters, press . 2 To save your note, press the right soft key [Done]. 3 Using the left soft key [Options], the Using the left soft key [Options], the followings are available: Open, Send, New note, Delete, Mark/Unmark, Synchronisation. Calculator To use the calculator� 1 Key in the first number of the Key in the first number of the calculation. 2 To select a function on the right-hand To select a function on the right-hand side of the display, scroll to it and press the . 3 Key in the next number of the Key in the next number of the calculation. 4 Select any remaining operations and key Select any remaining operations and key in numbers. 5 To execute the calculation, scroll to��� To execute the calculation, scroll to ��� and press . 6 The result of the calculation remains in The result of the calculation remains in the editor field and can be used as the first number of a new calculation. File mgr. You can browse and manage folders and files. 1 To view the contents of a folder or file, To view the contents of a folder or file, scroll to it and press . 2 To send a file to compatible devices, To send a file to compatible devices, scroll to it and press . 3 Using the left soft key [Options], the Using the left soft key [Options], the followings are available: Move to folder, Copy to folder, New folder, Mark/ Unmark, Rename, Find, View details, Memory details. Organiser 7 01 02 03 04 05 06 07 08 Get organised Note Default folders such as Sound clips in My stuff cannot be moved or deleted. 4 To delete a folder or file, scroll to it and To delete a folder or file, scroll to it and press . Note To browse and manage folders and files on your memory card, press the right navigation key. 8 LG KT770 | User Guide Get organised Tools Installations Applications are installed automatically with your phone start. Call mail�ox You can use the network service of voice mail that works as an answering machine for your phone. A call mailbox is a network service that works as an answering machine where people who are unable to reach you can leave messages. Tip With the call diverting network service, you can direct incoming calls to your call mailbox. [Menu → Settings → Phone → Call divert → Voice calls] If your phone prompts you for the call mailbox number that you cannot recall, press the left soft key [Find] to search for it in Contacts. Tip To quickly call your call mailbox in standby mode, press and . Using the left soft key [Options], you can access the followings. Define num�er, Call voice mail�ox, Change num�er. Speed dial You can assign speed dialling keys (from to ) to phone numbers in your contacts directory. Some number keys may be assigned as speed dials to special phone numbers. For example, number is reserved for your call mailbox. To assign speed dialling keys: 1 Scroll to an available speed dialling Scroll to an available speed dialling number and press . 2 Select Select Assign. 3 Select the contact to whom you want to Select the contact to whom you want to assign the speed dial. Select the phone number. You can call a phone number linked to a speed dialling key in standby mode by pressing the speed dial and then . Note To call a number linked to a speed dialling key just by pressing and holding the speed dial in standby mode, open Settings → Phone → Call → Speed dialing and select On. To assign a speed dialling key to a different phone number: 9 01 02 03 04 05 06 07 08 Get organised 1 Scroll to the speed dialling number and Scroll to the speed dialling number and press the left soft key [Options]. 2 Select Select Change. 3 Select the new contact and number. Select the new cont…

Text truncated - open the document above for the full version.

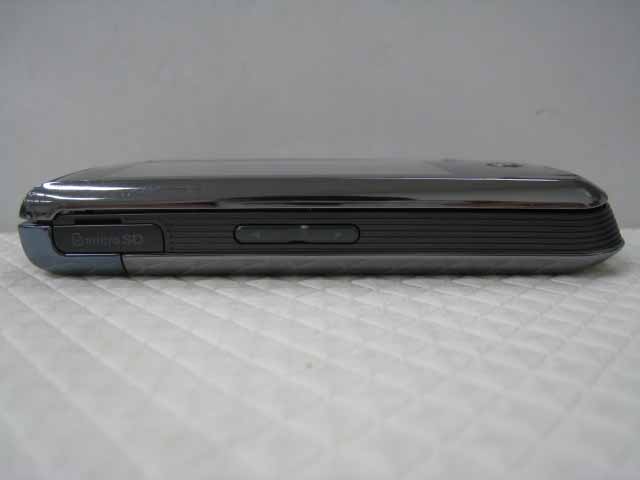

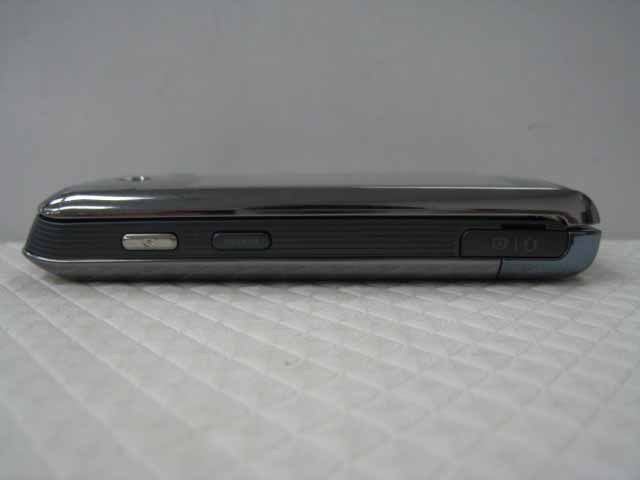

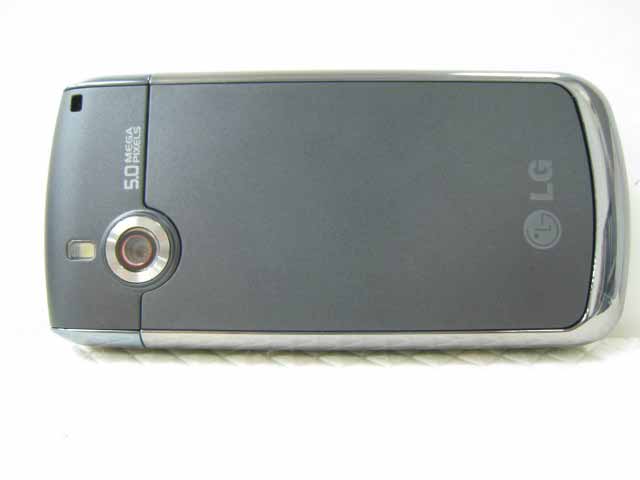

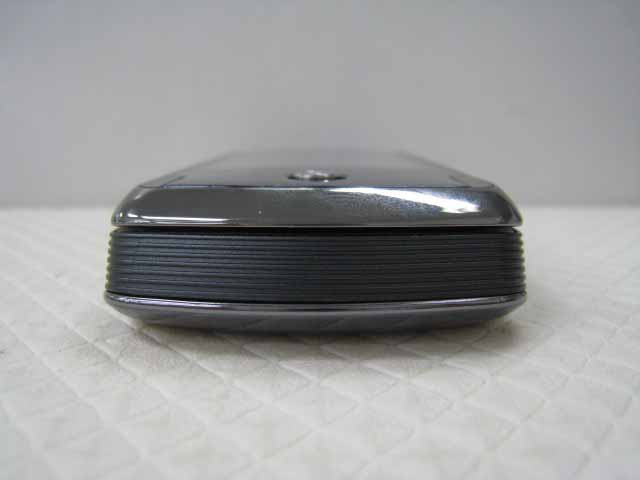

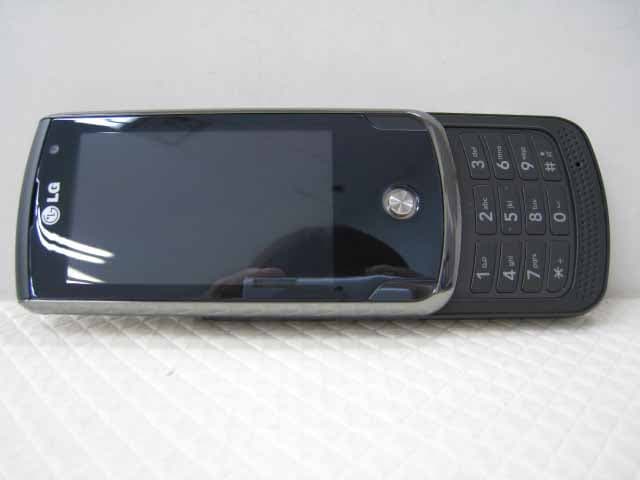

eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 8 EXTERNAL PHOTOGRAPHS eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 8 EXTERNAL PHOTO eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 8 EXTERNAL PHOTO eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 8 EXTERNAL PHOTO eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 8 EXTERNAL PHOTO eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 6 of 8 EXTERNAL PHOTO eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 7 of 8 EXTERNAL PHOTO eport No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 8 of 8 EXTERNAL PHOTO

Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 1 of 17 INTERNAL PHOTOGRAPHS Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 2 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 3 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 4 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 5 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 6 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 7 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 8 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 9 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 10 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 11 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 12 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 13 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 14 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 15 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 16 of 17 INTERNAL PHOTO Report No.: HCT-RF08-1207 FCC ID: BEJKT770 DATE: December 17, 2008 HCT CO., LTD SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : + 82 31 639 8518 FAX : + 82 31 639 8525 www.hct.co.kr 17 of 17 INTERNAL PHOTO The distance between antennas: KT770 Main antenna GPS antenna BT(WLAN) antenna 90mm 87.1mm BT(WLAN) antenna GPS antenna Main antenna 70mm 82mm - Pattern distance between antennas - - Feeding distance between antennas -

HCT PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF08-1210 Date of Issue: December 17, 2008 EUT Type: PCS GSM/EDGE Phone with Bluetooth/ WLAN FCC ID: BEJKT770 Page １ of 55 HCT CO., LTD. Product Compliance Division TEL : +82 31 639 8518 FAX : +82 31 639 8525 CERTIFICATE OF COMPLIANCE FCC PART 15.247 Certification Applicant Name: LG Electronics Inc. Address: 60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-023, Korea Date of Issue: December 17, 2008 Test Site/Location: HCT.CO., LTD., San 136-1 Ami-ri, Bubal-eup, Icheon-si, Kyungki-do, Korea Test Report No.: HCT-RF08-1210 HCT FRN: 0005866421 FCC ID: BEJKT770 APPLICANT: LG Electronics Inc. FCC Rule Part(s): Part 15.247 Application Type: Certification EUT Type: PCS GSM/EDGE Phone with Bluetooth/ WLAN Model(s): KT770 Tx Frequency: 2412-2462 MHz(DSSS/OFDM) Rx Frequency: 2412-2462 MHz(DSSS/OFDM) Max. RF Output Power: Wi-Fi 802.11b(25.09 dBm) / Wi-Fi 802.11g (21.62 dBm) Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT.CO., LTD. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.853(a) HCT PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF08-1210 Date of Issue: December 17, 2008 EUT Type: PCS GSM/EDGE Phone with Bluetooth/ WLAN FCC ID: BEJKT770 Page ２ of 55 Table of Contents 1. GENERAL INFORMATION..............................................................................................................３ 2. EUT DESCRIPTION...........................................................................................................................３ 3. TEST METHODOLOGY.....................................................................................................................４ 3.1 EUT CONFIGURATION.......................................................................................................................４ 3.2 EUT EXERCISE ...................................................................................................................................４ 3.3 GENERAL TEST PROCEDURES .......................................................................................................４ 3.4 DESCRIPTION OF TEST MODES ......................................................................................................４ 4. INSTRUMENT CALIBRATION..........................................................................................................５ 5. FACILITIES AND ACCREDITATIONS..............................................................................................５ 5.1 FACILITIES..........................................................................................................................................５ 5.2 EQUIPMENT ........................................................................................................................................５ 6. ANTENNA REQUIREMENTS............................................................................................................６ 7. TEST RESULT ..................................................................................................................................７ 7.1 6dB Bandwidth Measurement (802.11b/g).......................................................................................７ 7.2 Output Power Measurement (802.11b/g) .....................................................................................１１ 7.3 Power Spectral Density (802.11b/g) .............................................................................................３１ 7.4 Out of Band Emissions at the Band Edge/ Conducted Spurious Emissions ..........................３５ 7.5 Radiated Measurement..................................................................................................................４１ 7.5.1 Radiated Spurious Emissions. ..................................................................................................４１ 7.5.2 Radiated Restricted Band Edge Measurements ......................................................................４９ 7.7 POWERLINE CONDUCTED EMISSIONS ......................................................................................５０ 8. LIST OF TEST EQUIPMENT...................................... ...................................................................５５ HCT PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF08-1210 Date of Issue: December 17, 2008 EUT Type: PCS GSM/EDGE Phone with Bluetooth/ WLAN FCC ID: BEJKT770 Page ３ of 55 1. GENERAL INFORMATION Applicant: LG Electronics Inc. Address: 60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-023, Korea FCC ID: BEJKT770 EUT: PCS GSM/EDGE Phone with Bluetooth/ WLAN Model: KT770 Date of Test: November 30, 2008 ~ December 15, 2008 Contact person: Name: Bong Hyo, Han Phone #: +82-2-2033-1108 Fax #: +82-2-2033-1222 2. EUT DESCRIPTION Product PCS GSM/EDGE Phone with Bluetooth/ WLAN Model Name KT770 Power Supply DC 3.7 V Battery type Standard Frequency Range TX: 2412 ~ 2462 MHz RX: 2412 ~ 2462 MHz Max. RF Output Power Wi-Fi 802.11b(25.09 dBm) / Wi-Fi 802.11g (21.62 dBm) Modulation Type DSSS/CCK(802.11b), OFDM(802.11g) Antenna Specification Manufacturer: Laird Technologies Antenna type: PIFA Antenna Peak Gain : 1.09 dBi HCT PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCT-RF08-1210 Date of Issue: December 17, 2008 EUT Type: PCS GSM/EDGE Phone with Bluetooth/ WLAN FCC ID: BEJKT770 Page ４ of 55 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Methods of Measurement of Radio-Noise Emission fro…

Text truncated - open the document above for the full version.
