BEJL03CPCS GSM Phone

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: July 27, 2010 Fed eral Communications Commission Author ization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE : Request of Confidentiality for FCC ID: BEJL03C Eq uipment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pu rsua nt to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

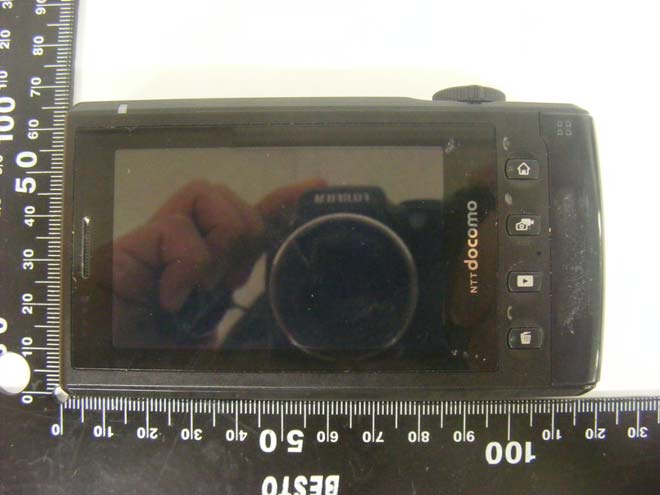

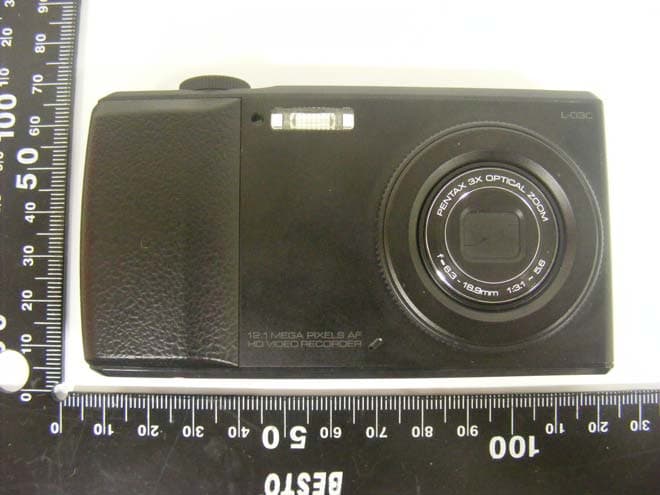

Model : L-03C External photos of EUT Model : L-03C Front view of EUT Rear view of EUT Model : L-03C Side view of EUT

Model No: L-03C FCC ID : BEJL03C S /N : Made in Korea LG Electronics Inc. LGE

Model : L-03C Internal photos of EUT Model : L-03C Top view of main board Bottom view of main board Model : L-03C Top view of Sub PCB1 Bottom view of Sub PCB1 Model : L-03C Top view of Sub PCB2 Bottom view of Sub PCB2 Model : L-03C Top view of Camera Lenz Bottom view of Camera Lenz

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 1 of 62 MCCL SAR TEST REPORT Specific Absorption Rate Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by H. S. Shim /Vice Technical Manager MCCL Prepared by H. S. Shim / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL Test Report No : MCCL-3-10-121 Product :PCS GSM with Bluetooth Model Name(s) :L-03C Manufacturer :LG Electronics, Inc. Applicant : Application Type : LG Electronics, Inc. Certification Device Category :Licensed Portable Transmitter Held to Ear (PCE) Standards : §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Date of Sample Receipt :June 28, 2010 Date of Issue : Test Device Serial No. : July 20, 2010 Pre-Production Sample [S/N: #1] Test Result :PASS SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI / IEEE C95.1(2005) and had been tested in accordance with the measurement procedures specified in FCC/OET bulletin 65 Supplement C (2001) , ANSI / IEEE 1528 – Dec. 2003 and in applicable Industry Canada Radio Standards specifications (RSS) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 2 of 62 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ········································································································3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom···················································································································· 9 4.4 Brain & Muscle Simulating Mixture Characterization ···········································10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. ANSI/IEEE C95.1–2005 RF EXPOSURE LIMITS ····················································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ···································································································································· 22 12. RF CONDUCTED POWER ····················································································· 23 13. MEASUREMENT RESULTS ································································································· 24 14. TEST EQUIPMENT ············································································································ 26 15. REFERENCES············································································································ 27 APPENDIX A: Validation Test Data······································································ 28 APPENDIX B: SAR Test Data··············································································· 31 APPENDIX C: Calibration Certificates································································· 43 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 3 of 62 MCCL 1.TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram Model Name(s) : L-03C Date of Test : July 08, 2010 Date of Issue : July 20, 2010 Address of Test Site :60-39, Kasan-Dong, Kumchon-Gu, Seoul 153-801, Korea. Responsible Test Engineer :Eui-Soon Park Test E…

Text truncated - open the document above for the full version.

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 41 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 42 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 43 of 62 MCCL APPENDIX C: Calibration Certificates MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 44 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 45 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 46 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 47 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 48 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 49 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 50 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 51 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 52 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 53 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 54 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 55 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 56 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 57 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 58 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 59 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 60 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 61 of 62 MCCL MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-121 Page 62 of 62 MCCL

Report Number: F690501/RF-RTL003993 Page: 2 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission -------------------------------- 7 3. Conducted Output Power ----------------------------------------------------------------------- 12 4. Occupied Bandwidth 99 % --------------------------------------------------------------------- 14 5. Spurious Emissions At Antenna Terminal--------------------------------------------------- 17 6. Band Edge ------------------------------------------------------------------------------------------ 20 7. Frequency Stability ------------------------------------------------------------------------------ 22 Report Number: F690501/RF-RTL003993 Page: 3 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General information 1.1. Testing laboratory SGS Testing Korea Co., Ltd. - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant :LG Electronics Inc. Address :60-39, Gasan-dong, Gumchon-gu, Seoul, 153-023, Korea Contact Person : Kim Hyeon kyun Phone No. : +82 +2 2033 1113 1.3. Description of EUT Kind of Product PCS GSM Phone Model Name L-03C Serial Number N/A Power Supply DC 3.7 V (Li-poly Battery) Rated Power GSM1900 : 30.00㏈m Frequency Range GSM1900 : 1 850.2 ㎒ ~ 1 909.8 ㎒ Number of Channels GSM1900 : 300 Class of GPRS Class 12 Report Number: F690501/RF-RTL003993 Page: 4 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.4. Description of test mode GPRS Data GPRS GPRS GPRS GPRS Voice GSM 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot Band Frequency (MHz) (dBm) (dBm) (dBm) (dBm) (dBm) 1850.2 29.79 29.80 29.78 29.77 29.78 1880.0 29.75 29.78 29.75 29.74 29.75 GSM 1900 1909.8 29.73 29.75 29.78 29.73 29.70 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM1900 GPRS 1 TX Slot (worst case) as a representative. Report Number: F690501/RF-RTL003993 Page: 5 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test equipment list Equipment Manufacturer Model Cal Due. Signal Generator Agilent E4438C Mar. 31, 2011 Signal Generator Rohde & Schwarz SMR40 Sep. 25, 2010 Spectrum Analyzer Rohde & Schwarz FSV30 Mar. 31, 2011 Mobile Test Unit Agilent E5515C Mar. 31, 2011 Directional Coupler Narda 4226-20 Jan. 07, 2011 High Pass Filter Wainwright WHK3.0/18G-10SS Sep. 29, 2010 DC power Supply Agilent U8002A Jan. 06, 2011 Preamplifier H.P. 8447F Jul. 05, 2011 Preamplifier Empower RF Systems,Inc2002-BBS2C4AEL Mar. 31, 2011 Test Receiver R & S ESU26 Apr. 08, 2011 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 Jul. 22, 2010 Horn Antenna Rohde & Schwarz HF 906 Oct. 08, 2011 Horn Antenna SCHWARZBECK BBH 9120D Nov. 09, 2011 Dipole Antenna VHAP/UHAP 975/958 Oct. 10, 2011 Antenna Master EMCO 1050 N.C.R Turn Table Daeil EMC DI-1500 N.C.R Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) Jan. 27, 2011 Report Number: F690501/RF-RTL003993 Page: 6 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.6. Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARD : FCC Part 24 Section in FCC part Test Item Result §2.1046 §24.232(b) RF Radiated Output Power Complied §2.1053 §24.238(a) Spurious Radiated Emission Complied §2.1046(a) Conducted Output Power Complied §2.1049(h) (i) Occupied Bandwidth Complied §2.1051 §24.238(a) Spurious Emission at Antenna Terminal Complied §2.1055 §24.235 Frequency Stability Complied §24.238(a) Band Edge Complied 1.7. Test report revision Revision Report number Description 0 F690501/RF-RTL003993 Initial Report Number: F690501/RF-RTL003993 Page: 7 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 2. RF radiated output power & spurious radiated emission 2.1. Test setup The diagram below shows the test setup tha…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Radiated output power & Spurious Emission Test B. Photos of conducted power line test

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 1 of 10 MCCL FCC ID: BEJL03C SAR Test Setup Photographs Figure 1 Right Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 2 of 10 MCCL Figure 2 Right Head SAR Test Setup - Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 3 of 10 MCCL Figure 3 Left Head SAR Test Setup - Cheek Touch Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 4 of 10 MCCL Figure 4 Left Head SAR Test Setup - Ear Tilt Position MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 5 of 10 MCCL Figure 5 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 6 of 10 MCCL Figure 6 Body SAR Test Setup – w/o Holster MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 7 of 10 MCCL Figure 8 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 8 of 10 MCCL Figure 7 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 9 of 10 MCCL Figure 9 DUT Photo MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1113, Fax:+82 2 2033 1222, Page 10 of 10 MCCL Figure 10 DUT Photo
