BEJL09CCellular WCDMA Wireless Router with WiFi

'10.12 (1.1 Edition) MFL67040003 ’ 10.12 L-09C ‘11.XX L-09C Data Communication Device Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help. This Device is not intended for the sale in U.S.A FCC Part 15 Class B Compliance This device and its accessories comply with part 15 of FCC rules and ICES-003 Class B digital apparatus requirements for Industry Canada. Operation is subject to the following two conditions:(1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device was tested for typical body-worn operations with the Wireless Router kept 0.39 inches(1.0cm) between the user’s body and the Wireless Router. To comply with FCC RF exposure requirements, a minimum separation distance of 0.39 inches(1.0cm) must be maintained between the user’s body and the Wireless Router. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.39 inches(1cm) separation distance between the user’s body and the Wireless Router, and have not been tested for typical body- Worn operations may not comply with FCC RF exposure Limits and should be avoided. 20 a b c d e f g h 21 a b c d e f g h i abccde f ghi 22 • a a • • • • 23 • • • • • 24 • a ab c • 25 b a b • c a b a a b c • • • 26 b a bc 28 • • • • 29 • • • • • • • • • a a b b 30 c a b • a a b b c a b • •

Date: March 21, 2011 Fe deral Communica tions Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJL09C Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Model No: L-09C FCC ID : BEJL09C S/N : Made in Korea LG Electronics Inc. LGE

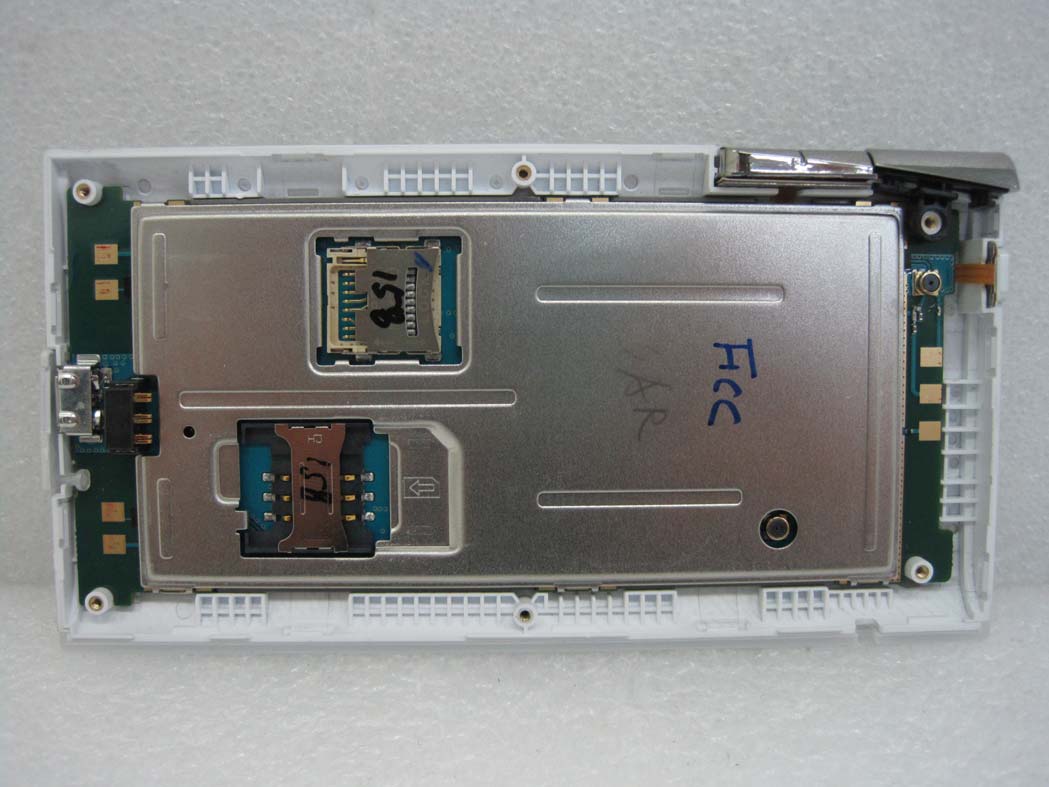

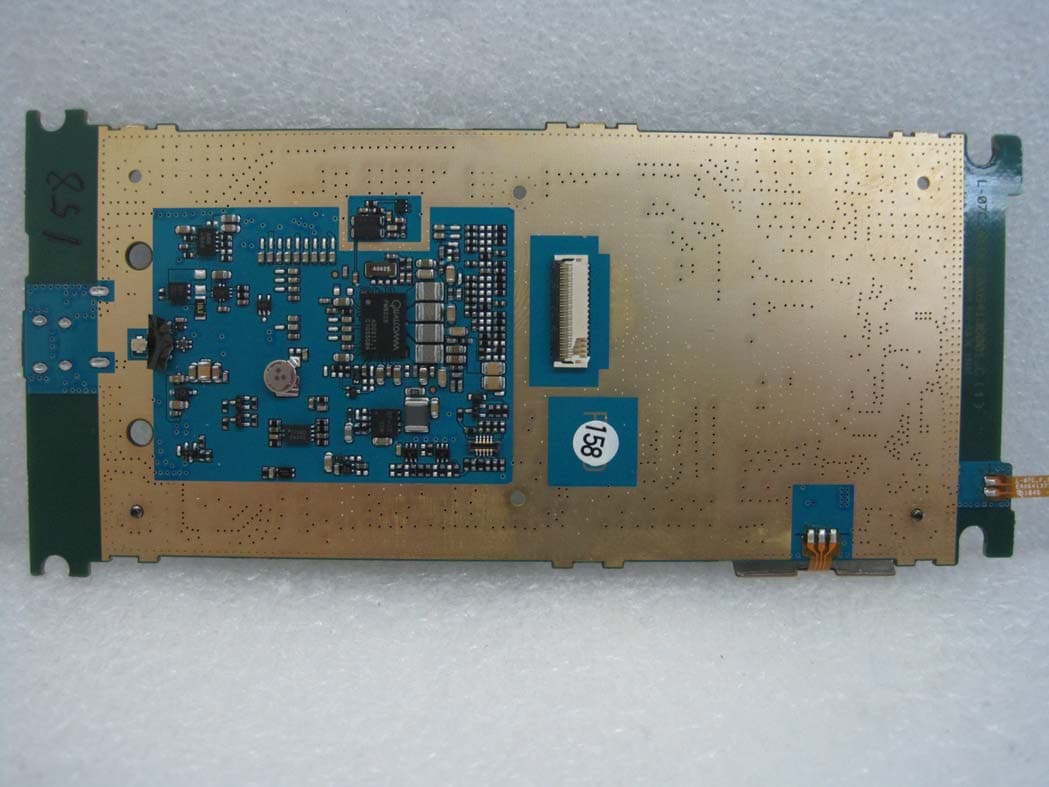

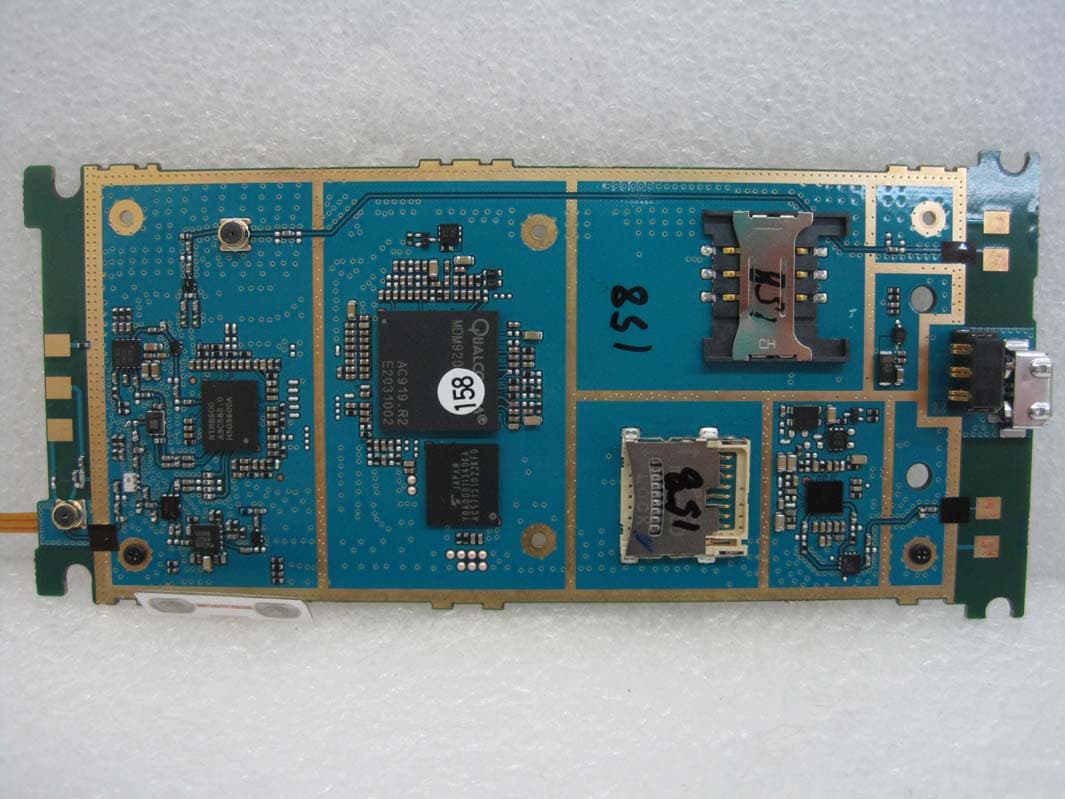

FCC ID: BEJL09C HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 6 INTERNAL PHOTOGRAPHS FCC ID: BEJL09C HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 6 ■ INTERNAL PHOTO FCC ID: BEJL09C HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 6 ■ INTERNAL PHOTO FCC ID: BEJL09C HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 6 ■ INTERNAL PHOTO FCC ID: BEJL09C HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 6 ■ INTERNAL PHOTO FCC ID: BEJL09C HCT CO., LTD 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 6 ■ INTERNAL PHOTO

SAR TEST REPORT HCT CO., LTD EUT Type: Cellular HSUPA Portable Wi-Fi Wireless Router FCC ID: BEJL09C Model: L-09C Trade Name LG Date of Issue: Feb.14, 2011 Test report No.: HCTA1102FS04 Test Laboratory: HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL: +82 31 639 8565 FAX: +82 31 639 8525 Applicant : LG Electronics, Inc. 60-39, Gasan-Dong, Gumchon-Gu, Seoul 153-023, Korea Tel: +82-2-2033-1113 Fax: +82-2-2033-1222 Testing has been carried out in accordance with: 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1102FS04 FCC ID: BEJL09C Date of Issue: Feb.14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 2 of 82 Table of Contents 1. INTRODUCTION ..................................................................................................................................３ 2. DESCRIPTION OF DEVICE .................................................................................................................４ 3. DESCRIPTION OF TEST EQUIPMENT ...............................................................................................５ 4. SAR MEASUREMENT PROCEDURE ..............................................................................................１２ 5. MEASUREMENT UNCERTAINTY ....................................................................................................１３ 6. ANSI/ IEEE C95.1 - 2005 RF EXPOSURE LIMITS...........................................................................１４ 7. SYSTEM VERIFICATION..................................................................................................................１５ 7.1 Tissue Verification .................................................................................................................１５ 7.2 System Validation .................................................................................................................１５ 8. TEST CONFIGURATIONS ................................................................................................................１６ 9. RF CONDUCTED POWER .........................................................................................................１７ 9.1 Procedures Used to Establish RF Signal for SAR ...................................................................１７ 9.2 SAR Measurement Conditions for UMTS ...............................................................................１７ 10. Mobile Hotspot Side for SAR Testing ................................................................................................ 2 0 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ................２１ 12. SAR TEST DATA SUMMARY..........................................................................................................２３ 12.1 Measurement Results (WCDMA850 Body SAR) ...................................................................２３ 12.2 Measurement Results (802.11b Body SAR) ..............................................................................２４ 13. CONCLUSION.................................................................................................................................２５ 14. REFERENCES ................................................................................................................................２６ Attachment 1. – SAR Test Plots ............................................................................................................２７ Attachment 2. – Dipole Validation Plots ................................................................................................４５ Attachment 3. – Probe Calibration Data................................................................................................５０ Attachment 4. – Dipole Calibration Data ...............................................................................................６４ Report No.: HCTA1102FS04 FCC ID: BEJL09C Date of Issue: Feb.14, 2011 HCT CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8565 FAX : +82 31 639 8525 www.hct.co.kr 3 of 82 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 NCRP, 1986, Bethesda, MD 20814. SAR is a measure of the rate of energy absorption due to exposure …
