BEJL1100Single-Band PCS GSM Phone

ENGLISH GPRS Phone USER’S MANUAL MODEL: L1100 Please read this manual carefully before operating your mobile phone. Retain it for future reference. This user’s guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user’s guide could void your warranty for this equipment. Introduction Congratulations on your purchase of the advanced and compact L1100 mobile phone, designed to operate with the latest digital mobile communication technology. 3 Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual. Exposure to radio frequency energy Radio wave exposure and Specific Absorption Rate (SAR) information This mobile phone model L1100 has been designed to comply with applicable safety requirement for exposure to radio waves. This requirement is based on scientific guidelines that include safety margins designed to assure this safety of all persons, regardless of age and health. • The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardized method with the phone transmitting at its highest certified power level in all used frequency bands. • While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. • The SAR limit recommended by the international Commission on Non-Ionizing Radiation Protection (ICNIRP), which is 2W/kg averaged over ten (10) gram of tissue. • The highest SAR value for this model phone tested by DASY4 for use at the ear is 0.712 W/kg (10g). • SAR data information for residents in countries/regions that have adopted the SAR limit recommended by the Institute of Electrical and Electronics Engineers (IEEE), which is 1.6 W/kg averaged over one (1) gram of tissue (for example USA, Canada, Australia and Taiwan). Guidelines for safe and efficient use 4 Product care and maintenance Warning: Use only batteries, charger and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous. • Do not disassemble this unit. Take it to a qualified service technician when repair work is required. • Keep away from electrical appliance such as a TV, radio or personal computer. • The unit should be kept away from heat sources such as radiators or cookers. • Do not drop. • Do not subject this unit to mechanical vibration or shock. • The coating of the phone may be damaged if covered with wrap or vinyl wrapper. • Use dry cloth to clean the exterior of the unit. (Do not use solvent such as benzene, thinner or alcohol.) • Do not subject this unit to excessive smoke or dust. • Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips. • Do not tap the screen with a sharp object; otherwise, it may damage the phone. • Do not expose the phone to liquid or moisture. • Use the accessories like an earphone cautiously. Do not touch the antenna unnecessarily. Guidelines for safe and efficient use Efficient phone operation To enjoy optimum performance with minimum power consumption please: • Hold the phone as you speak to any other telephone. While speaking directly into the microphone, angle the antenna in a direction up and over your shoulder. If the antenna is extendable/ retractable, it should be extended during a call. • Do not hold the antenna when the phone is in use. If you hold it, it can affect call quality, it also may cause the phone to operate as a higher power level that needed and shorten talk and standby times. • If your mobile phone supports infrared, never direct the infrared ray at anyone’s eye. Electronics devices All mobile phones may get interference, which could affect performance. • Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over the pacemaker, i.e. in your breast pocket. • Some hearing aids might be disturbed by mobile phones. • Minor interference may affect TVs, radios, PCs, etc. 5 Road safety Check the laws and regulations on the use of mobile phones in the areas when you drive. • Do not use a hand-held phone while driving. • Give full attention to driving. • Use a hands-free kit, if available. • Pull off the road and park before making or answering a call if driving conditions so require. • RF energy may affect some electronic systems in your motor vehicle such as car stereo, safety equipment. • When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause serious injury due to improper performance. Blasting area Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. Potentially explosive atmospheres • Do not use the phone at a refueling point. Don’t use near fuel or chemicals. • Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle, which contains your mobile phone and accessories. In aircraft Wireless devices can cause interference in aircraft. • Turn off your mobile phone before boarding any aircraft. • Do not use it on the ground without crew permission. 6 Guidelines for safe and efficient use Children Keep the phone in a safe place out of children’s reach. It includes small parts which if detached may cause a choking hazard. Emergency calls Emergency calls may not be available under all cellular networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider. Battery information and care • You do not need to completely discharge the battery before recharging. Unlik…

Text truncated - open the document above for the full version.

LG Electronics Inc. LG Info Comm U.S.A. Inc. 55 Madison Ave., Suite 180 Morristown, NJ 07960 U.S.A. Tel. : +1-973-401-9109 Feb10, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To Whom it may concern: We, The undersigned, Hereby authorize PCTEST Engineering Laboratory Inc. to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents Relating to the matters. Any and all acts carried out by PCTEST Engineering Laboratory Inc. On our behalf shall have the same effect as acts of our own. We also hereby certify that No party to the application is to a denial of benefits, Including FCC benefits, pursuant to Section 5301 of the Anti-Drug ACT of 1988, 21 U.S.C 8539a). Sincerely, Bruce Choi General Manager of New York Office LG Electronics Inc. LG Electronics Inc. LG Electronics Inc. UMTS R&D Lab. Emerald BD, 1042 Hogye-Dong, Dongan-Gu, Anyang-City Kyoungki-Do, 431-080, Korea Tel. : +82-31-389-7143 Fax.: +82-31-389-7101 Subject : LG Electronics Inc. FCC ID :BEJL1100 User’s Manual RF Exposure Warning statement Gentleman: LG Electronics Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Engineering Laboratory Inc. Or me at(410)290-6652. Sincerely, Feb 10, 2004 Federal Communication Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Kevin Lee Senior Approval Engineer UMTS R&D Lab. LG Electronics Inc.

March 9, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJL1100 Part 24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 24 Certification of the Single-Band PCS GSM phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

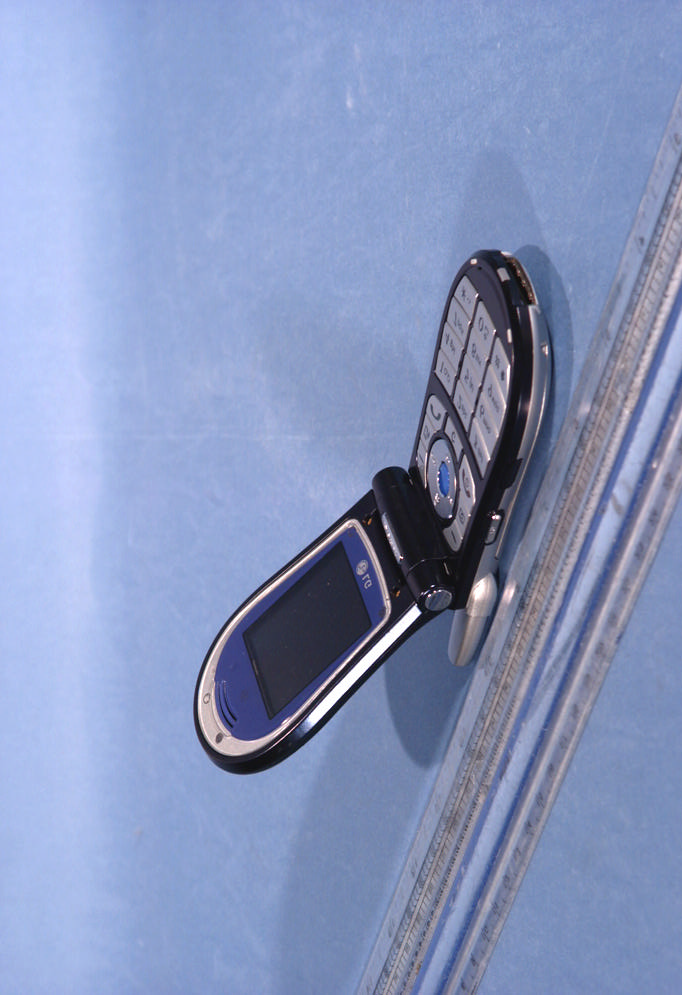

LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. Model : L1100 FCC ID : BEJL1100 IMEI S/N LG Electronics Inc. Model : L1100 FCC ID : BEJL1100 IMEI S/N LG Electronics Inc. Model : G7200 FCC ID : BEJL1100 IMEI S/N

LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240209104.BEJ Test Dates: February 20-21, 2004 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 1 of 25 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: February 20-21, 2004 2000 Milbrook Drive Test Report S/N: SAR.240209104.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJL1100 APPLICANT: LG ELECTRONICS INC. EUT Type: Single-Band PCS GSM Phone Tx Frequency: 1850.20 – 1909.80 MHz (GSM1900) Rx Frequency Range: 1930.20 – 1989.80 MHz (GSM1900) Max. RF Output Power: 1.286 W EIRP PCS GSM (31.081 dBm) Max. SAR Measurement: 0.712 W/kg PCS GSM Head SAR; 0.236 W/kg PCS GSM Body SAR Trade Name/Model(s): L1100 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #81] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating configurations for satisfying RF exposure compliance. Belt-clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240209104.BEJ Test Dates: February 20-21, 2004 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 2 of 25 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. PROBE CALIBRATION PROCESS.......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. DEFINITION OF REFERENCE POINTS..............................................................................10 9. TEST CONFIGURATION POSITIONS...............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................14 11. MEASUREMENT UNCERTAINTIES...................................................................................15 12. SYSTEM VERIFICATION..................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17 14. SAR DATA SUMMARY...............................................................................................18-22 15. SAR TEST EQUIPMENT...................................................................................................23 16. CONCLUSION...............................................................................................................24 17. REFERENCES..................................................................................................................25 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240209104.BEJ Test Dates: February 20-21, 2004 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 3 of 25 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These crit…

Text truncated - open the document above for the full version.

LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100 LGE FCC ID: BEJL1100 EUT Photographs © 2004 PCTEST Lab. Single-Band PCS GSM Phone Model: L1100

PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240209103.BEJ Test Dates: February 20-21, 2003 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 1 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 Certification LG ELECTRONICS, INC. Dates of Tests: February 20-21, 2003 2000 Milbrook Drive Test Report S/N: 24.240209103.BEJ Lincolnshire, IL 60069 Test Site: PCTEST Lab, Columbia MD FCC ID BEJL1100 APPLICANT LG ELECTRONICS, INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §2 EUT Type: Single-Band PCS GSM Phone Model(s): L1100 Tx Frequency Range: 1850.20MHz – 1909.80MHz (PCS GSM) Rx Frequency Range: 1930.20MHz – 1989.80MHz (PCS GSM) Max. RF Output Power: 1.286 W EIRP PCS GSM (31.081 dBm) Max. SAR Measurement: 0.712 W/kg PCS GSM Head SAR; 0.236 W/kg PCS GSM Body SAR Emission Designator(s): 250KGXW Test Device Serial No. Identical Prototype [S/N: #81] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant conditions: Power output listed is EIRP. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240209103.BEJ Test Dates: February 20-21, 2003 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 2 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-7 5.1 EQUIVALENT ISOTROPIC RADIATED POWER 8 6.1 RADIATED MEASUREMENTS 9-11 7.1 FREQUENCY STABILITY 12-13 8.1 PLOTS OF EMISSIONS 14 9.1 LIST OF TEST EQUIPMENT 15 10.1 SAMPLE CALCULATIONS 16 11.1 CONCLUSION 17 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: OPERATIONAL / CIRCUIT DESCRIPTION ATTACHMENT L: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS ATTACHMENT Q: DIPOLE VALIDATION ATTACHMENT R: PROBE CALIBRATION PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240209103.BEJ Test Dates: February 20-21, 2003 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 3 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information Applicant Name: LG ELECTRONICS INC. Address: 2000 Milbrook Drive Lincolnshire, IL 60069 • FCC ID: BEJL1100 • Quantity: Quantity production is planned • Emission Designators: 250KGXW • Tx Freq. Range: 1850.20 – 1909.80 MHz (PCS GSM) • Rx Freq. Range: 1930.20 – 1989.80 MHz (PCS GSM) • Max. Power Rating: 1.286 W EIRP PCS GSM (31.081 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Mode PCS GSM Phone • Modulation(s): GSM • Frequency Tolerance: ± 0.00025% (2.5 ppm) • FCC Rule Part(s): § 24(E), §2 • Dates of Tests: February 20-21, 2003 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 24.240209103.BEJ PCTEST PT. 24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 24.240209103.BEJ Test Dates: February 20-21, 2003 Phone Type: Single-Band PCS GSM FCC ID: BEJL1100 Page 4 of 17 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under test is placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was s…
