BEJL1750UNLCD MONITOR

Make sure to read the Important Precautionsbefore using the product. Keep the User's Guide(CD) in an accessible place for furture reference. See the label attached on the back cover and quote this information to your dealer when you require service. L1750U User’s Guide Announcement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter ference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPER ATE THE EQUIPMENT. A1 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Do not Open the Display. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly. To Avoid Personal Injury : Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. To Prevent Fire or Hazards: Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet. Important Precautions A2 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source. Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently. Do not press the LCD screen with your finger for a long time as this may cause some afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance. If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel. On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. On Disposal The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. Connecting the Display A3 Important This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Once you connect the stand base, tr…

Text truncated - open the document above for the full version.

D-SUB Scaler LVDS A-port H-Sync V-Sync Micom MTV312PMV A/D converter Out - CLK DE ,H/V Sync out R,G,B odd Out - CLK DE ,H/V Sync out R,G,B Even LCD Module R,G,B differential * * LVDS: LVDS: Low Voltage Differential Signaling Low Voltage Differential Signaling Inverter Adapter 5V 3.3V Reg. 1.8V 12V H-Sync ADC CLK R,G,B 5V 12V TSU16AL-LF LVDS B-port R,G,B 8bits 3.3VD H-Sync 1.8V AC-input H-Sync Module CTL Inverter CTL V-Sync 3.3V-PL Power CTL SDASCL EEPROM CAT24W C08J 90-264Vac DimmingOn/off LampLamp Ac to lamp 1.8V Reg. 3.3VD 3.3V-PL input Control L1750UN BLOCK DIAGRAM INPUT: 120V 60Hz FUNDAMENTAL OPERATION FRE QUENCY IS 0.030-0.083 MHz .

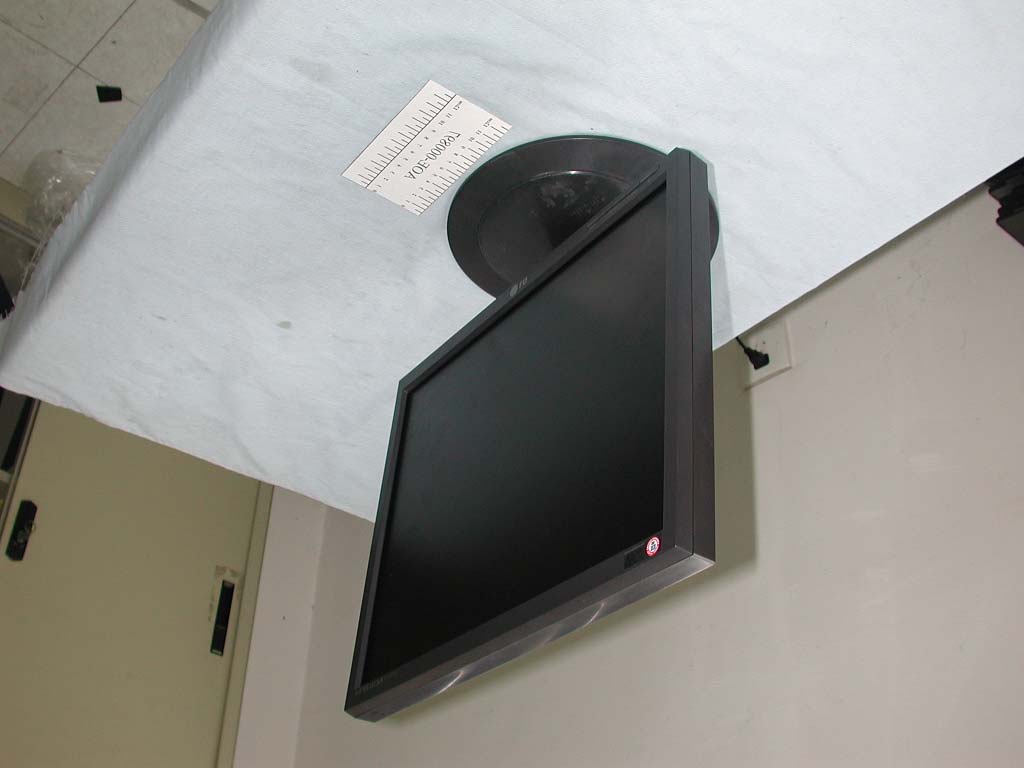

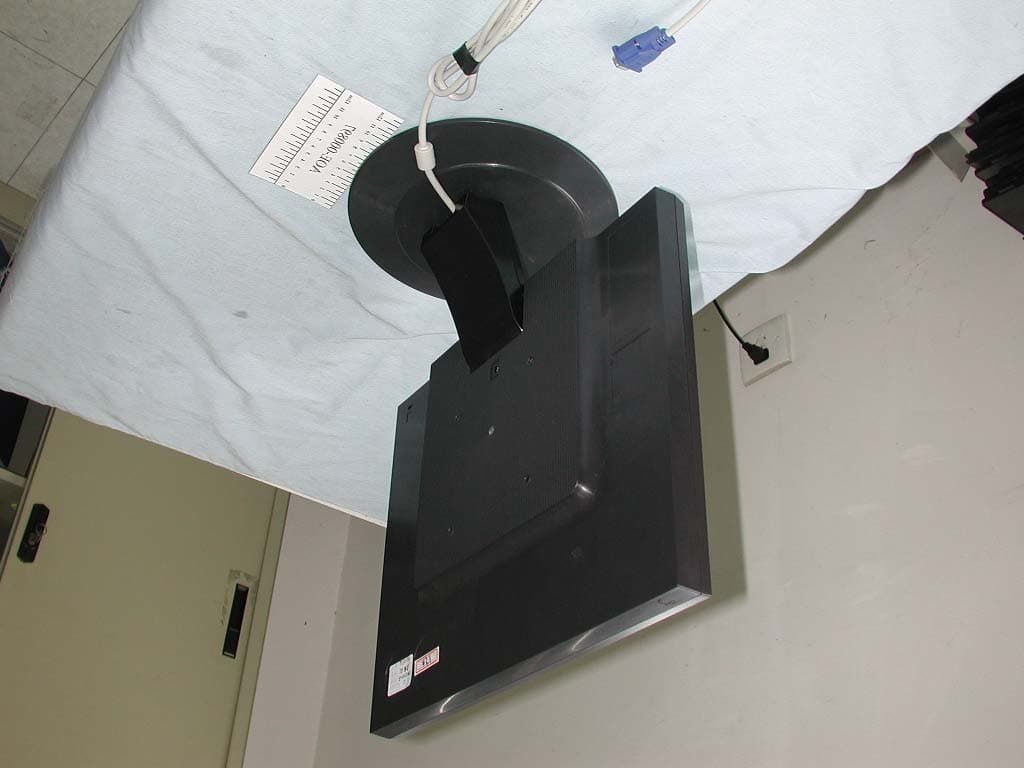

F IGURE 1 LCD M ONITOR (M/N: L1750UN) G ENERAL A PPEARANCE (F RONT V IEW ) F IGURE 2 LCD M ONITOR (M/N: L1750UN) G ENERAL A PPEARANCE (R EAR V IEW )

Label Location Information Refer to the below red arrow: (For example)

F IGURE 1 LCD M ONITOR (M/N: L1750UN) C OVER R EMOVED 1 F IGURE 2 LCD M ONITOR (M/N: L1750UN) C OVER R EMOVED 2 F IGURE 3 LCD M ONITOR (M/N: L1750UN) M AIN B OARD (C OMPONENT S IDE ) F IGURE 4 LCD M ONITOR (M/N: L1750UN) M AIN B OARD (S OLDERED S IDE ) F IGURE 5 LCD M ONITOR (M/N: L1750UN) M AIN C RYSTAL F IGURE 6 LCD M ONITOR (M/N: L1750UN) M AIN C HIP F IGURE 7 LCD M ONITOR (M/N: L1750UN) I NVERT B OARD (F RONT V IEW ) F IGURE 8 LCD M ONITOR (M/N: L1750UN) I NVERT B OARD (B ACK V IEW ) F IGURE 9 LCD M ONITOR (M/N: L1750UN) O PERATION B OARD (F RONT V IEW ) F IGURE 10 LCD M ONITOR (M/N: L1750UN) C ONTROL P ANEL B OARD (B ACK V IEW ) F IGURE 11 LCD M ONITOR (M/N: L1750UN) P ANEL (F RONT V IEW ) F IGURE 12 LCD M ONITOR (M/N: L1750UN) P ANEL (B ACK V IEW ) F IGURE 13 LCD M ONITOR (M/N: L1750UN) P ANEL L ABEL 1 F IGURE 14 LCD M ONITOR (M/N: L1750UN) P ANEL L ABEL 2 F IGURE 15 LCD M ONITOR (M/N: L1750UN) A DAPTOR (F RONT V IEW ) F IGURE 16 LCD M ONITOR (M/N: L1750UN) A DAPTOR (B ACK V IEW ) F IGURE 17 LCD M ONITOR (M/N: L1750UN) A DAPTOR (L ABEL ) F IGURE 18 LCD M ONITOR (M/N: L1750UN) A DAPTOR (C OVER R EMOVED ) F IGURE 19 LCD M ONITOR (M/N: L1750UN) A DAPTOR (C OMPONENT S IDE ) F IGURE 20 LCD M ONITOR (M/N: L1750UN) A DAPTOR (S OLDERED S IDE 1) F IGURE 21 LCD M ONITOR (M/N: L1750UN) A DAPTOR (S OLDERED S IDE 2)

LG Electronics U.S.A Inc. FCC ID: BEJL1750UN Page 1 of 18 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F05032 Prepared For :LG Electronics U.S.A Inc. 2000 Millbrook Dr.Lincolnshire, IL 60069 United States Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F 34Bldg 680 Guiping Rd, Caohejing Hi-Tech Park, Shanghai, China 200233 Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. :ACI-F05032 Date of Test :May 31-June 01, 2005 Date of Report :June 04, 2005 Application for FCC Certificate On Behalf of LG Electronics U.S.A Inc. LCD Monitor Model No.: L1750UN Serial No.: 41TAE22031232 FCC ID : BEJL1750UN LG Electronics U.S.A Inc. FCC ID: BEJL1750UN Page 2 of 18 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F05032 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results......................................................................................... 4 2 GENERAL INFORMATION.......................................................................................................... 5 2.1 Description of Equipment Under Test........................................................................................5 2.2 Supported Simulators ................................................................................................................. 5 2.3 Description of Test Facility ........................................................................................................ 6 2.4 Measurement Uncertainty .......................................................................................................... 6 3 CONDUCTED EMISSION TEST .................................................................................................. 7 3.1 Test Equipment........................................................................................................................... 7 3.2 Block Diagram of Test Setup ..................................................................................................... 7 3.3 Conducted Emission Limit ......................................................................................................... 8 3.4 Test Configuration...................................................................................................................... 8 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 9 3.7 Test Results ................................................................................................................................ 9 4 RADIATED EMISSION TEST..................................................................................................... 13 4.1 Test Equipment......................................................................................................................... 13 4.2 Block Diagram of Test Setup ................................................................................................... 13 4.3 Radiated Emission Limit .......................................................................................................... 14 4.4 Test Configuration.................................................................................................................... 14 4.5 Operating Condition of EUT .................................................................................................... 14 4.6 Test Procedures ........................................................................................................................ 14 4.7 Test Results .............................................................................................................................. 15 LG Electronics U.S.A Inc. FCC ID: BEJL1750UN Page 3 of 18 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F05032 TEST REPORT FOR FCC CERTIFICATE Applicant : LG Electronics U.S.A Inc. Manufacturer : Nanjing LG-Tontru Color Display System Co., Ltd. EUT Description : LCD Monitor (A) Model No. : L1750UN (B) Serial No. : 41TAE22031232 Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART B CLASS B OCTOBER 2004 AND ANSI C63.4-2001 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart B (Class B) limits both radiated and conducted emissions. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: L1750UN; S/N: 41TAE22031232) which was tested in 3m anechoic chamber on May 31-June 01, 2005 to be technically compliant with the FCC official limits also. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report contains data that are not covered by the NVLAP accreditation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : May 31-June 01, 2005 Prepared By: KATHY WANG / Assistant Reviewer: SAMMY CHEN / Supervisor Approved Signatory: BYRON KWO / Deputy Manager LG Electronics U.S.A Inc. FCC ID: BEJL1750UN Page 4 of 18 Audix Technology (Shanghai) Co., Ltd. Report No.ACI-F05032 1 SUMMARY OF STANDARDS AND RESULTS 1.1 Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below: Description / Test Item Test Standard Results Meets Limit EMISSION Conducted Disturbance At main terminal FCC RULES AND REGULATIONS PART 15 SUBPART B OCTOBER 2004 AND ANSI C63.4-2001 Pas…

Text truncated - open the document above for the full version.

Test Set-Up Photos 1. Conducted Emission Test F RONT VIEW SIDE VIEW 2. Radiated Electromagnetic Emission Test F RONT VIEW OF RADIATED EMISSION TEST B ACK VIEW OF RADIATED EMISSION TEST S ETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (1280*1024 75HZ) S ETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (1280*1024 75HZ)
