APPENDIX G : FCC ID : BEJL1811SG USER’S MANUAL A1 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential e shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Do not Open the Display. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly. To Avoid Personal Injury : Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. To Prevent Fire or Hazards: Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet. Important Precautions A2 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source. Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently. Do not press the LCD screen with your finger for a long time as this may cause some afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance. If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel. On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. A3 Connecting the Display Using the Computer 1.Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. 2.Connect the power cord into a proper power outlet that is easily accessible and close to the display. Mac adapter For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-sub VGA connector on the supplied cable to a 15 pin 2 row connector. Wall-outlet type * NOTE This is a simplified representation of the rear view. This rear view represents a general model; your display may differ from the view as shown. PC-outlet type* PC MAC Power Cord Signal Cable Analog signal D-sub * * Varies according to model. A4 Control Panel Functions Front Panel Controls Buttons Use these buttons to choose or adjust items in the On Screen Display. MENU Button Use this button to enter or exit the On Screen Display. Use this button to turn the display on or off. This Indicator lights up green when the display operates normally. If the display is in DPM (Energy Saving) mode, this indicator color changes to amber. Power Button Power (DPMS) Indicator Use this button to enter a selection in the On Screen Display. SELECT Button ControlFunction A5 Control Panel Functions ControlDirect Access Function Bring up Contrast and Brightness adjustment. 100 100 PROCESSING AUTO CONFIGURATION When adjusting your display settings, always press the AUTO button before entering the On Screen Display(OSD). This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1280x1024. AUTO adjustment function CONTROLS LOCKED CONTROLS UNLOCKED This function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button and button for 3 seconds: the message “CONTROLS LOCKED”appears. You can unlock the OSD controls at any time by pushing the MENU button and button …

Text truncated - open the document above for the full version.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION Dear Sir: We, the undersigned, hereby authorize MET laboratories Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Kyeom Soon Kim January 24, 2003 LG Electronics Inc. /General Manager LG Electronics Inc.

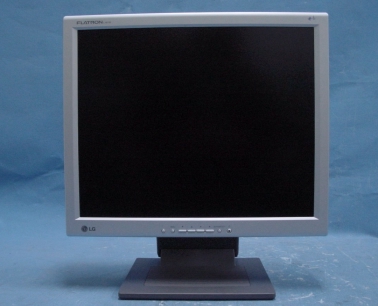

FCC ID : BEJL1811SG 1. External View [ Front ] [ Back ]

APPENDIX B : FCC ID : BEJL1811SG Labelling Requirements ID Label Location

FCC ID : BEJL1811SG APPENDIX H : Specification FCC ID : BEJL1811SG 1280 X 1024Best Screen Resolution8 17.19 lbWeight10 15.98 X 16.97 X 8.78 (inches)Dimension (W X H X D)9 < 53 WPower Consumption7 AC 100-240 V, 50/60 Hz, 1.0 ARating6 BEJ L1811SGFCC ID5 L1811SGModel Number4 LGTrade Name3 18 inch LCD MonitorEquipment Name2 FCC Part 15, Class BEquipment Class1

1/12 Report No.: 00431-4521-F3009 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel: + 82 2 2630 3077~9, Fax: +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue: January 24, 2003 Test Report No: 00431-4521-F3009 Applicant: LG Electronics Inc. Regulation: FCC Part 15 Class B / Canada Standard ICES-003 Class B Test procedure: ANSI C63.4-1992 / Canada Standard ICES-003 Equipment Class: Unintentional Radiators – Digital device EUT Type: 18” LCD Monitor Trade Name(s): Model No.: LG L1811SG This device has been verified to comply with the applicable requirements in the FCC Part 15 / Canada Standard ICES-003 and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992 / Canada Standard ICES-003. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center LG Electronics Inc. 2/12 Report No.: 00431-4521-F3009 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 REPORT FOR A DIGITAL DEVICE Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. U.S. Responsible Party: Address: LG Electronics USA Inc. 6133 North River Road, Suite 1100 (Riverway Plasza) Rosemont, IL 60018, USA Contact Person: P. H. Byun, General Manager Telephone No.: (847) 692-4630 EXT.329 Manufacturer: LG Electronics Inc. DID Division Address: 642 Jinpyoung-dong Kumi-City Kyoungsangbuk-do, 730-360, Korea FCC ID No.: BEJL1811SG EUT Class: Unintentional Radiators - Digital device EUT Type: 18” LCD Monitor Trade Name: LG Model No.: L1811SG Rule Part: FCC Part 15 Class B / Canada Standard ICES-003 Class B Test Procedure: ANSI C63.4-1992 / Canada Standard ICES-003 Date of Test: January 23, 2003 Date of Receipt of EUT: January 22, 2003 Date of Issue: January 24, 2003 Test Report No.: 00431-4521-F3009 Test Result: Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code: 200040-0. Tested by: Reviewed by : S. H. Ji / Senior Research Engineer Quality and Reliability Center LG Electronics Inc. D. H. Lee / Research Engineer Quality and Reliability Center LG Electronics Inc. 3/12 Report No.: 00431-4521-F3009 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 CONTENTS Page 1. GENERAL INFORMATION ..................................................................................................................... 4G 1.1 D ESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT)................................................................................... 4G 1.2 R EGULATIONS APPLIED TO EUT ............................................................................................................... 4G 1.3 M EASUREMENT PROCEDURE.................................................................................................................... 4G 1.4 M EASUREMENT PLACE............................................................................................................................. 4G 2. GENERAL TEST CONDITIONS .............................................................................................................. 5G 2.1 O PERATING CONDITIONS OF EUT ............................................................................................................. 5G 2.2 S TABILIZATION OF EUT OPERATING......................................................................................................... 5G 2.3 T EMPERATURE AND HUMIDITY................................................................................................................. 5G 3. TEST SITE ................................................................................................................................................... 5G 3.1 S EMI-ANECHOIC CHAMBER....................................................................................................................... 5G 3.2 A SHIELDED ENCLOSURE.......................................................................................................................... 5G 4. CALIBRATIONS OF MEASURING INSTRUMENTS .......................................................................... 5G 5. DESCRIPTION OF TEST CONDITION .................................................................................................. 6G 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS............................................................................... 6G 5.2 R ADIATED EMISSIONS MEASUREMENTS.................................................................................................... 7G 6. MEASURING INSTRUMENTS AND SET-UP ...............................................…

Text truncated - open the document above for the full version.

FCC ID : BEJL1811SG APPENDIX A : Test Graph 1. Radiated Emission 2. Conducted Emissions FCC ID : BEJL1811SG 1. Radiated Emissions FCC ID : BEJL1811SG 2. Conducted Emissions

FCC ID : BEJL1811SG APPENDIX E : 1. Radiated Emission 2. Conducted Emission Test Set-up Photographs FCC ID : BEJL1811SG 1. Radiated Emission FCC ID : BEJL1811SG 2. Conducted Emission
