BEJL1982UQ19" LCD MONITOR

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX H : USER’S MANUAL Make sure to read the Important Precautionsbefore using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the future and give the information to your dealer when you ask for service. L1982U User’s Guide A1 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Do not Open the Display. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly. To Avoid Personal Injury : Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. To Prevent Fire or Hazards: Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet. Important Precautions A2 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source. Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently. Do not press the LCD screen with your finger for a long time as this may cause some afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance. If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel. On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. On Disposal The fluorescent lamp used in this monitor contains a small amount of mercury. Do not dispose of this monitor with general household waste. Disposal of this monitor must be carried out in accordance to the regulations of your local authority. Connecting the Display A3 4.Place the monitor upright and adjust the stand base angle as desired. Adjust the stand base angle holding the monitor head part with both hands. This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture. Do not touch or apply force to the monitor screen while expanding or folding the stand base. Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Set up the stand unfolded for the Desktop use or set up the stand folded for the wall-mound use. Unfolding the stand base 1. Place the monitor with its front facing downward on a soft cloth. 2.Hold the Stand base following the order in the picture and unfold smoothly as if you are pulling it. 3Be cautious to not to pull the Stand base more than a right angle to avoid monitor breakage. Do not hold the stand base as shown in the picture. A4 Connecting the Display 1.Face the front of the monitor and push the monitor backwards, following the sequence shown in the picture. Folding the stand base Height range Height Range : maximum 2.36 inch (60 mm) 60 mm A5 DC-IND-SUBDVI-D 1 2 PC PC 3 Connecting the Display Connecting with the PC 1.Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached dev…

Text truncated - open the document above for the full version.

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT August 22, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Woo-Hyun Oh, Group Leader LG Electronics Inc. TV Plant

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM Main Board Block Diagram D-SUB TSUMO56WHJ including (ADC/LVDS/SCALER /INPUT SWITCHING /TMDS/MICOM/ODC ) M25P10 (flash memory) LCD Module LVDS(Low Voltage Differential Signaling) 5V 1.8V Reg. LD1117S18 DVI-D R,G,B, H/V Sync Digital Signal 1.8V 3.3V 1.8V 3.3V 3.3V Reg. 78D33 5V 3.3V MP1583DN 12V 5V Power Inverter Inverter Adapter 12 V Inverter Control 3.3V (L1982U-BFQ) X101: 14.318MHz LVDS CLK : 67.5MHz DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part.This part amplifies the level of video signal for the digital conversion and converts from the analog video signalto the digital video signal using a pixel clock.The pixel clock for each mode is generated by the PLL.The range of the pixel clock is from 25MHz to 135MHz.This part consists of the Scaler, ADC and TMDS receiver .The Scaler gets the video signal converted analog to digital, interpolates input to 1280 X 1024 resolution signaland outputs 8-bit R, G, B signal to transmitter.2. Power Part.This part consists of the 3.3V regulator to convert power which is provided 12V,5V in Power board and Micom5V is provided for LCD panel.Also, 5V is converted 3.3V by regulator and 3.3V is converted 1.8V by regulator. Converted power is provided for IC in the main board.3. MICOM Part.This part consists of EEPROM IC which stores control data and the Micom.The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.The controlled data of each modes is stored in EEPROM. Power Board Block Diagram Power BLOCK DIAGRAM EMI COMPONENTS LINE 100 ~ 240V INPUT RECTIFIER AND FILTER SWITCHING TRANSFORMER OUTPUT RECTIFIER AND FILTER 12V GND SIGNAL COLLENT- ION PHOTO- COUPLER ISOLATION PWM CONTROL CIRCUIT HVDC 100KHz PRIMARY SECONDARY 50 ~ 60Hz INVERTER CIRCUIT High Voltage 12V OPERATION DESCRIPTION OF POWER 1. EMI components. This part contains of EMI component s to comply with global marketing EMI standard s like FCC,VCCI CISPR, the circuit included a line-filter, across line capa citor and of course the primary protection fuse. 2. Input rectifier and filter. This part function is for tran sfer the input AC voltage to a DC voltage through a bridge re ctifier and a bulk capacitor. 3. Energy Transfer. This part function is for transf er the primary energy to second ary through a po wer transformer. 4. Output rectif ier and filter. This part function is to make a pulse width modulation control and to provid e the driver signal to power switch,to adjust the duty cycle during different AC input and output load ing condition to achieve the dc output stabilized, and also the over power protection is also monitor by this part. 5. Photo-Coupler isolation. This part function is to feed back the dc output changing status th rough a photo transistor to primary controller to achieve the stabilized dc output voltage. 6. Signal collection. This part function is to collect th e any change from the dc output and feed back to t he primary through photo transistor

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification „ Test Mode: 1280* 1024/ 75Hz(Analog) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification „ Test Mode: 1280*1024 /75Hz(Digital) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification „ Test Mode:1024 *768 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification „ Test Mode: 640*480 / 60Hz (Analog) < Hot line > < Neutral line >

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Page 2 of 22 Test Report No.: GETEC-E3-06-056 FCC Class B Certification CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. PRODUCT INFORMATION ......................................................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT / CABLES USED.....................................................................................................................6 3.3 MODIFICATION ITEM(S) ...........................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 TEST CONDITION......................................................................................................................................................7 4.2 CONDUCTED EMISSION............................................................................................................................................8 4.3 RADIATED EMISSION................................................................................................................................................9 5. CONDUCTED EMISSION........................................................................................................................................10 5.1 OPERATING ENVIRONMENT...................................................................................................................................10 5.2 TEST SET-UP............................................................................................................................................................10 5.3 MEASUREMENT UNCERTAINTY..............................................................................................................................10 5.4 LIMIT...................................................................................................................................................................... 11 5.5 TEST EQUIPMENT USED.......................................................................................................................................... 11 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................12 6. RADIATED EMISSION ............................................................................................................................................16 6.1 OPERATING ENVIRONMENT...................................................................................................................................16 6.2 TEST SET-UP............................................................................................................................................................16 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................16 6.4 LIMIT......................................................................................................................................................................17 6.5 TEST EQUIPMENT USED..........................................................................................................................................17 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................18 7. SAMPLE CALCULATIONS.....................................................................................................................................21 7.1 EXAMPLE 1 : ...........................................................................................................................................................21 7.2 EXAMPLE 2 : ...........................................................................................................................................................21 8. RECOMMENDATION & CONCLUSION..............................................................................................................22 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Page 3 of 22 Test Report No.: GETEC-E3-06-056 FCC Class B Certification Scope: Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission. 1. General Information z FCC ID BEJL1982UQ z EUT Type 19” LCD Monitor z Model No. L1982UQ z Tra de Na me LG z Serial No. Proto type z Rule Part(s) FCC Part 15 Subpart B z Type of Authority Certification z Test Procedure(s) ANSI C63.4 (2003) / Canadian standard ICES-003 z Dates of Test July 21, 2006 z Place of Test Gumi College EMC Center ( FCC Registration No.: 100749) 407, Bugok-Dong, Gumi-si, Gyeongsangbuk-Do, Korea z Test Report No. GETEC-E3-06-056 z Dates of Issue July 25, 2006 Applicant: LG Electronics Inc. Applicant Address: 642, Jinpyung-Dong, Gumi-Si, Gyeongsangbuk-do, Korea Manufacturer: LG Electronics Inc. Manufacturer Address: 642, Jinpyung-Don…

Text truncated - open the document above for the full version.

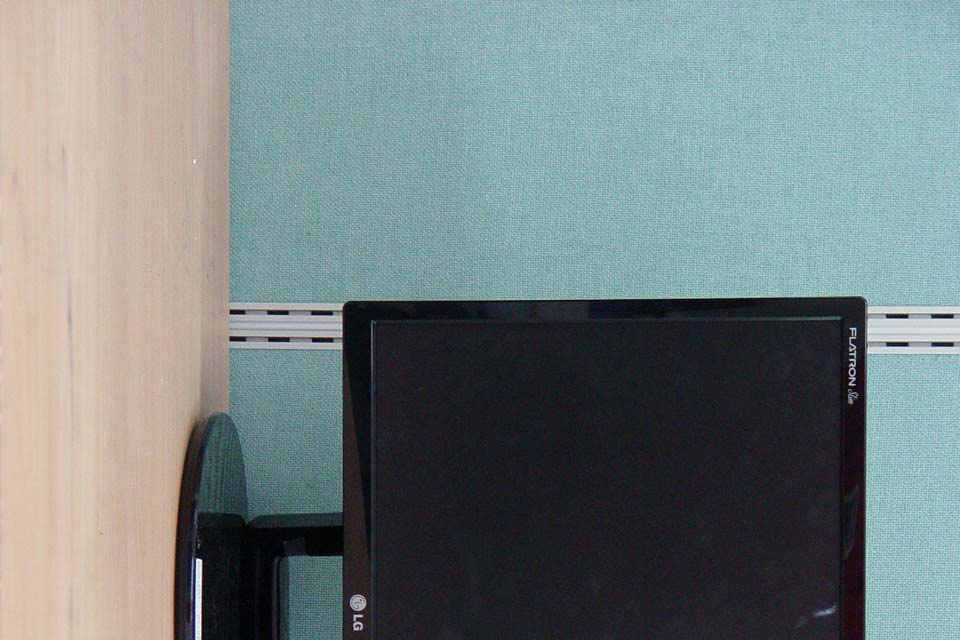

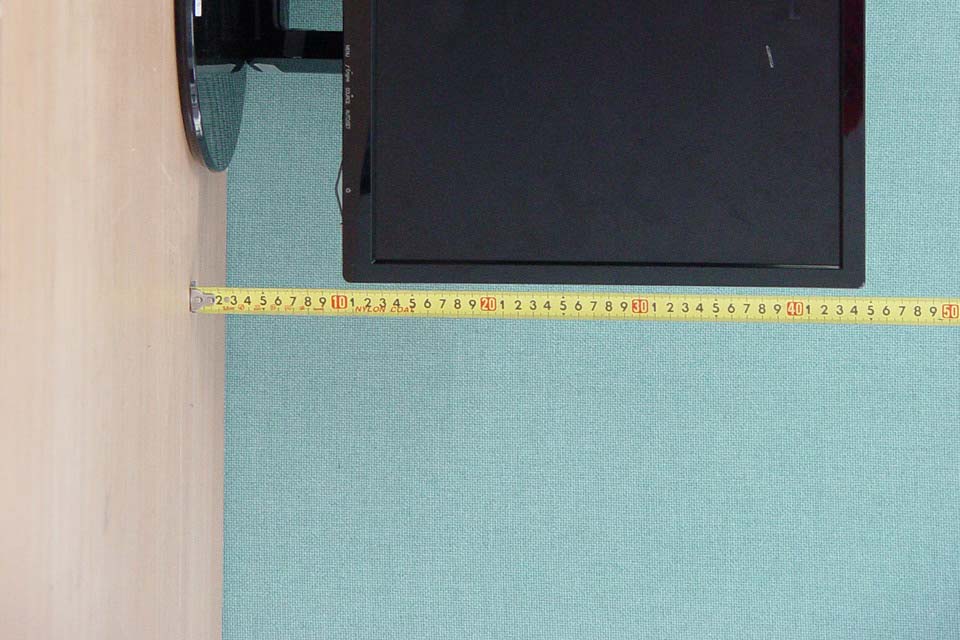

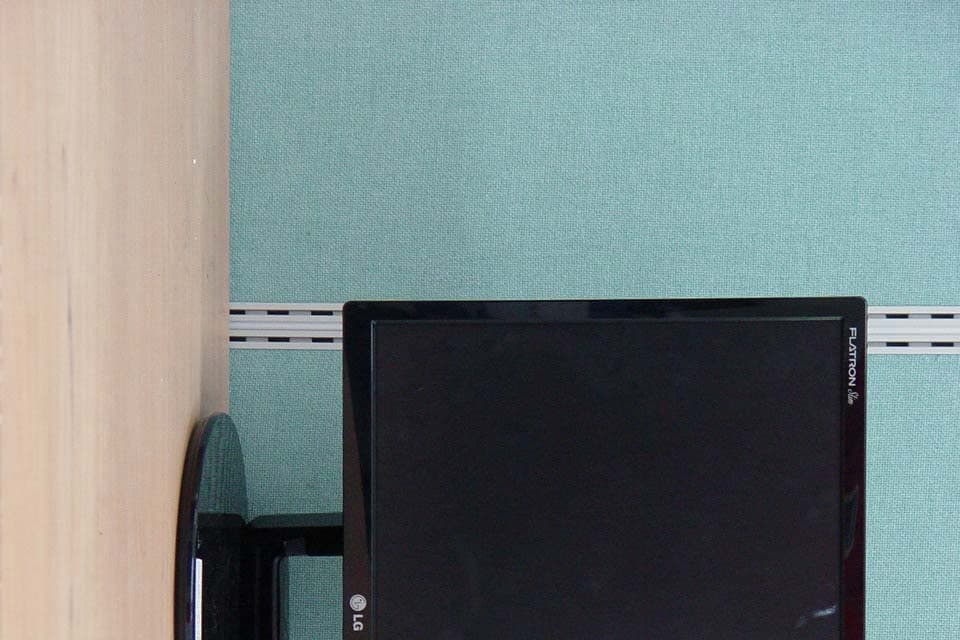

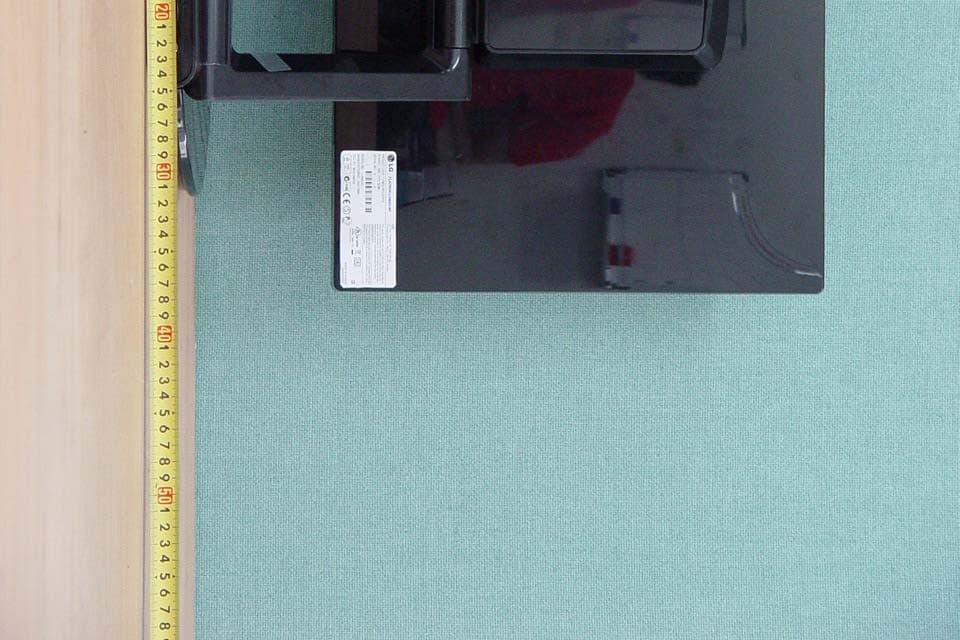

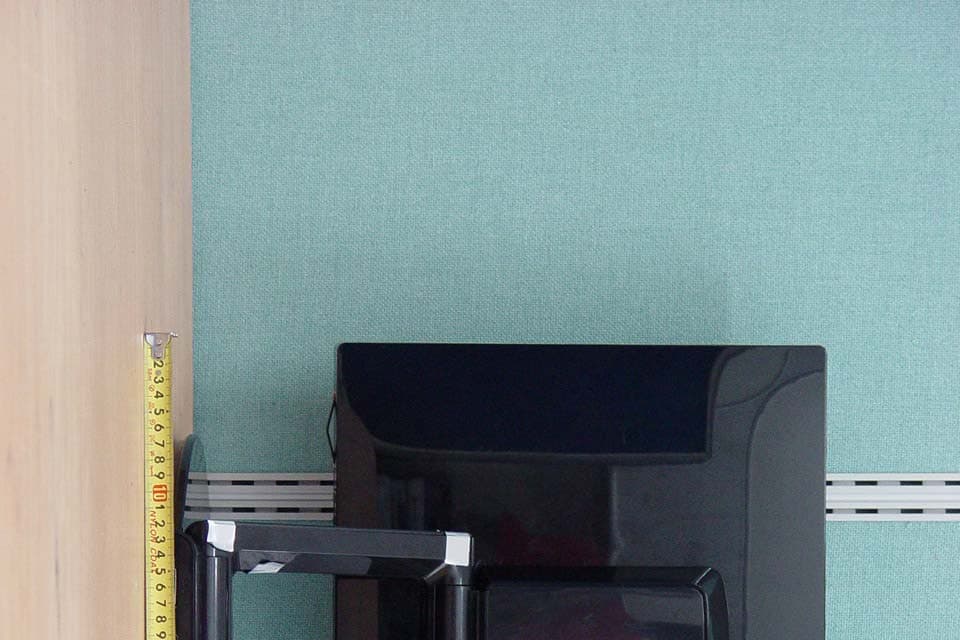

EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 19” LCD Monitor FCC ID: BEJL1982UQ Test Report No.: GETEC-E3-06-056 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
