BEJL200WJQ20" LCD MONITOR

LG Electronics USA, Inc.
20" LCD MONITOR - FCC ID BEJL200WJQ - LG Electronics USA, Inc.
Click to zoom

Application Details

Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Date of Grant
Feb 15, 2007
Application Purpose
Original Equipment
Date of Application
Feb 15, 2007
Equipment Note
20" LCD MONITOR
Company
LG Electronics USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Block Diagram

β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX H : USER’S MANUAL Make sure to read the Important Precautionsbefore using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and quote this information to your dealer when you require service. User’s Guide L200WJ A1 This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. On Safety Use only the power cord supplied with the unit. In case you use another power cord, make sure that it is certified by the applicable national standards if not being provided by the supplier. If the power cable is faulty in any way, please contact the manufacturer or the nearest authorized repair service provider for a replacement. The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily accessible after installation. Operate the display only from a power source indicated in the specifications of this manual or listed on the display. If you are not sure what type of power supply you have in your home, consult with your dealer. Overloaded AC outlets and extension cords are dangerous. So are frayed power cords and broken plugs. They may result in a shock or fire hazard. Call your service technician for replacement. Do not Open the Display. There are no user serviceable components inside. There are Dangerous High Voltages inside, even when the power is OFF. Contact your dealer if the display is not operating properly. To Avoid Personal Injury : Do not place the display on a sloping shelf unless properly secured. Use only a stand recommended by the manufacturer. To Prevent Fire or Hazards: Always turn the display OFF if you leave the room for more than a short period of time. Never leave the display ON when leaving the house. Keep children from dropping or pushing objects into the display's cabinet openings. Some internal parts carry hazardous voltages. Do not add accessories that have not been designed for this display. During a lightning storm or when the display is to be left unattended for an extended period of time, unplug it from the wall outlet. Important Precautions A2 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation. If these openings are blocked, built-up heat can cause failures which may result in a fire hazard. Therefore, NEVER: Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc. Place the display in a built-in enclosure unless proper ventilation is provided. Cover the openings with cloth or other material. Place the display near or over a radiator or heat source. Do not rub or strike the Active Matrix LCD with anything hard as this may scratch, mar, or damage the Active Matrix LCD permanently. Do not press the LCD screen with your finger for a long time as this may cause some afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance. If possible, use the recommended resolution to obtain the best image quality for your LCD display. If used under any mode except the recommended resolution, some scaled or processed images may appear on the screen. However, this is characteristic of the fixed-resolution LCD panel. On Cleaning Unplug the display before cleaning the face of the display screen. Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display screen because over-spraying may cause electrical shock. On Repacking Do not throw away the carton and packing materials. They make an ideal container in which to transport the unit. When shipping the unit to another location, repack it in its original material. On Disposal The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste. Disposal of this product must be carried out in accordance to the regulations of your local authority. A3 Connect with a computer. Using the Computer 1.Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Connecting with DVI-Analog signal input cable Connecting with DVI-Digital signal input cable 2.Use after connecting power cable to AC-DC power adapter and inserting it into outlet (Voltage is automatically controlled.) When connecting to a wall concent When connecting to a PC 3 4 1 2 AC/DC adapter A B 1 2 3 4 A B Product color represented here may differ from actual product color that customer purchased. Tip A4 Connecting the Display 3.Touch button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function'is executed automatically. (Only Analog Mode) NOTE β€˜ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. Press Adjust Forte Manager Program --> Picture --> Tracking --> Auto Setup if screen adjustment is needed while using the product or if you want to operate this function manually, or, run Options of Forte Manager Program -->PresetProvided When Delivered. Otherwise, you may execute the β€˜Factory Default Preset’option on the OSD adjustment menu. However, be a…

Text truncated - open the document above for the full version.

Attestation Statements

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX A : ATTESTATION STATEMENT September 5, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize GUMI College EMC Center to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relation to these matters. Any and all acts carried out by GUMI College EMC Center on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject of a denial of benefits, including FCC benefits, pursuant 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Sang-Wook Lee, Chief research engineer LG Electronics Inc.

Block Diagram

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM MC74HC406ADR2G ADC TMDS Rx Buffer Scaler MCU GM ACELVDS TxOSDSSC GM5822H SDRAM Memory 16MbitΓ—2 146MHz Crystal 14.3MHz X501 L200WJ-BFQ Block diagram DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part.This part amplifies the level of video signal for the digital conversion and converts from the analog video signalto the digital video signal using a pixel clock.The pixel clock for each mode is generated by the PLL.The range of the pixel clock is 146MHz In L200WJ This part consists of the Scaler, ADC convertor, TMDS receiver and LVDS transmitter.The Scaler gets the video signal converted analog to digital, interpolates input to 1680X1050(L200WJ) resolution signal and outputs 8-bit R, G, B signal to transmitter.2. Power Part.This part consists of the one 3.3V, and one 1.8V regulators to convert power which is provided 12V in Adaptor. 5V is converted 3.3V and 1.8V by regulator. Converted power is provided for IC in the main board. The inverter converts from DC 12V to AC 820Vrms and operates back-light lamps of module in L226WTQ. 3. MICOM Part.This part is include video controller part. And this part consists of EEPROM IC which stores FRC(OD) memory, control data, Rese t IC and the Micom. The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable.The controlled data of each modes is stored in EEPROM.

External Photos

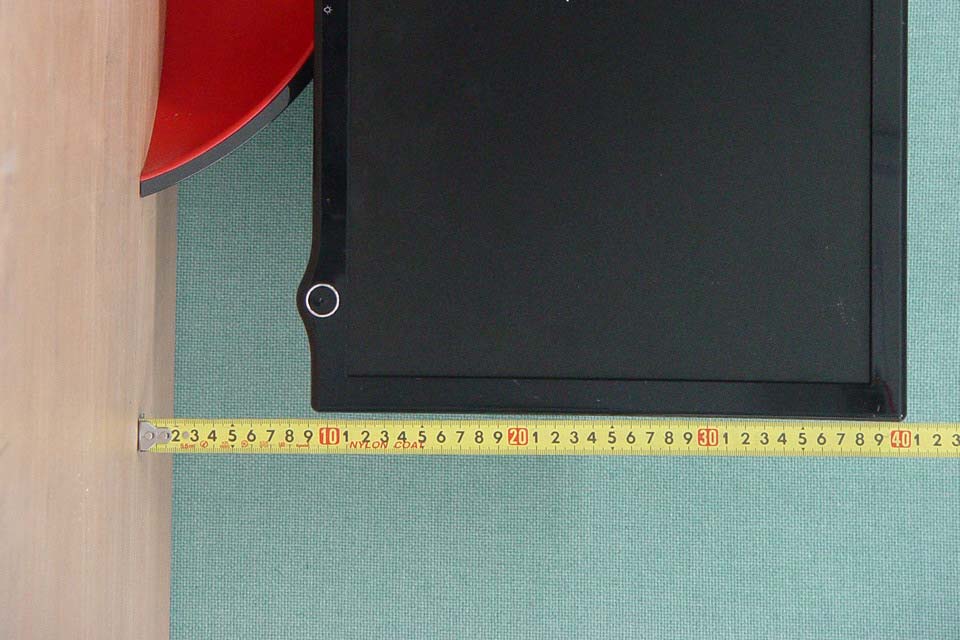

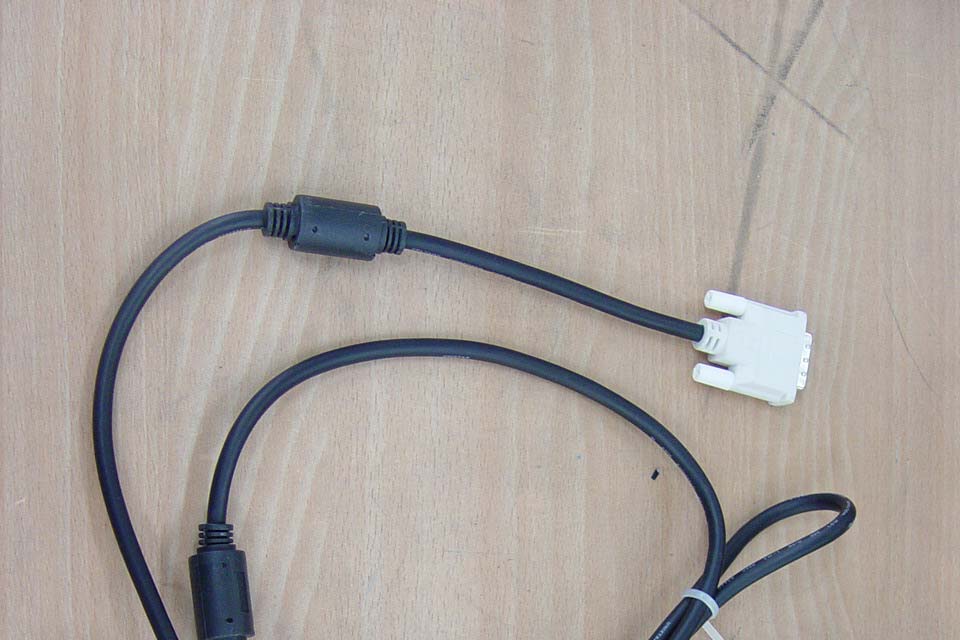

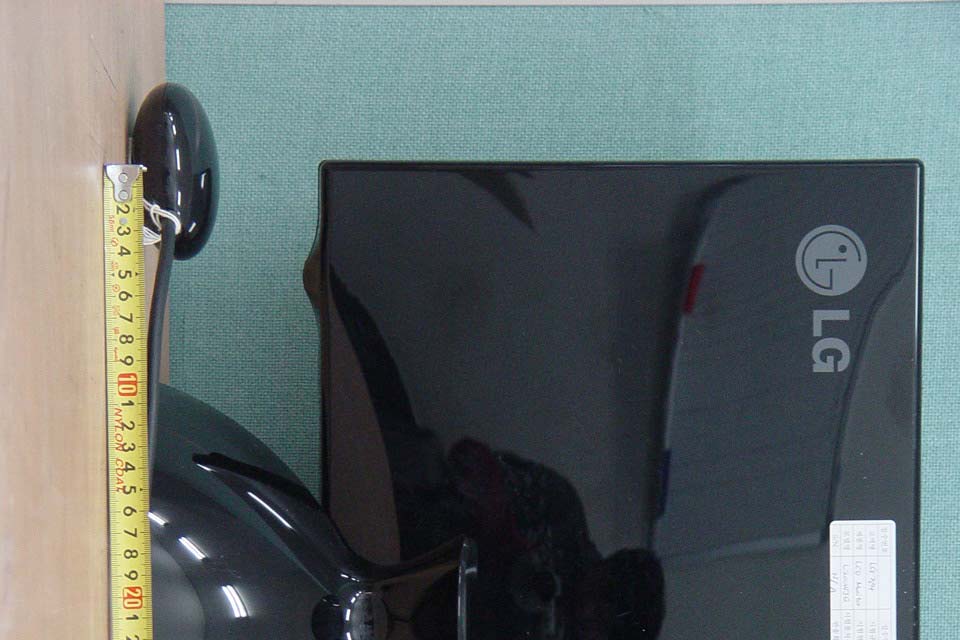

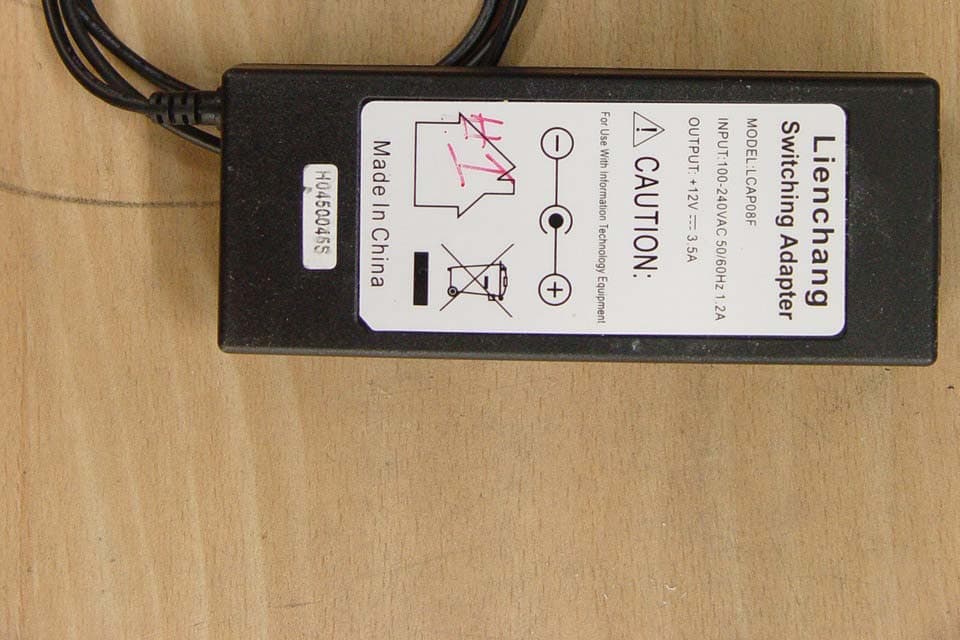

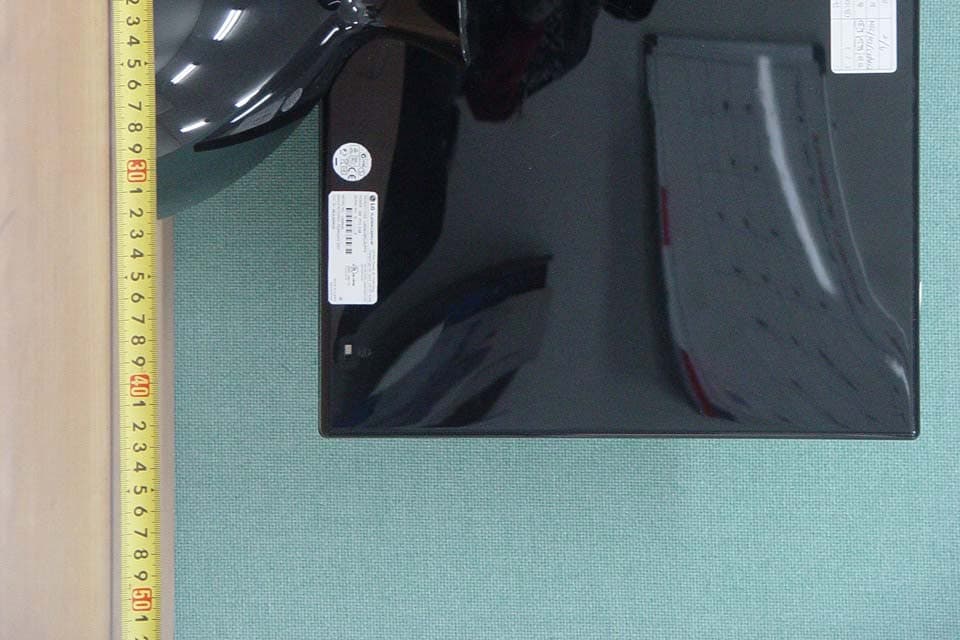

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification

ID Label/Location Info

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Β„ ID Label EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification Β„ ID Label Location of EUT ID Label Two-Part Warning statement

Internal Photos

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification

Test Report

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification Β„ Test Mode: 1680* 1050/ 60Hz(Analog) < Hot line > < Neutral line > EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification Β„ Test Mode: 1680* 1050/ 60Hz (Digital) < Hot line > < Neutral line > EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification Β„ Test Mode:1024 *768 / 75Hz (Analog) < Hot line > < Neutral line > EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification Β„ Test Mode: 640*480 / 60Hz (Analog) < Hot line > < Neutral line >

Test Report

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Page 2 of 22 Test Report No.: GETEC-E3-07-009 FCC Class B Certification CONTENTS 1. GENERAL INFORMATION ......................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. PRODUCT INFORMATION ......................................................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT / CABLES USED.....................................................................................................................6 3.3 MODIFICATION ITEM(S) ...........................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 TEST CONDITION......................................................................................................................................................7 4.2 CONDUCTED EMISSION............................................................................................................................................8 4.3 RADIATED EMISSION................................................................................................................................................9 5. CONDUCTED EMISSION........................................................................................................................................10 5.1 OPERATING ENVIRONMENT...................................................................................................................................10 5.2 TEST SET-UP............................................................................................................................................................10 5.3 MEASUREMENT UNCERTAINTY..............................................................................................................................10 5.4 LIMIT...................................................................................................................................................................... 11 5.5 TEST EQUIPMENT USED.......................................................................................................................................... 11 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................12 6. RADIATED EMISSION ............................................................................................................................................16 6.1 OPERATING ENVIRONMENT...................................................................................................................................16 6.2 TEST SET-UP............................................................................................................................................................16 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................16 6.4 LIMIT......................................................................................................................................................................17 6.5 TEST EQUIPMENT USED..........................................................................................................................................17 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................18 7. SAMPLE CALCULATIONS.....................................................................................................................................21 7.1 EXAMPLE 1 : ...........................................................................................................................................................21 7.2 EXAMPLE 2 : ...........................................................................................................................................................21 8. RECOMMENDATION & CONCLUSION..............................................................................................................22 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Page 3 of 22 Test Report No.: GETEC-E3-07-009 FCC Class B Certification Scope: Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission. 1. General Information z FCC ID BEJL200WJQ z EUT Type 20.1” LCD Monitor z Model No. L200WJQ z Tra de Na me LG z Serial No. Proto type z Rule Part(s) FCC Part 15 Subpart B z Type of Authority Certification z Test Procedure(s) ANSI C63.4 (2003) / Canadian standard ICES-003 z Dates of Test February 9, 2007 z Place of Test Gumi College EMC Center ( FCC Registration No.: 100749) 407, Bugok-Dong, Gumi-si, Gyeongsangbuk-Do, Korea z Test Report No. GETEC-E3-07-009 z Dates of Issue February 13, 2007 Applicant: LG Electronics Inc. Applicant Address: 642, Jinpyung-Dong, Gumi-Si, Gyeongsangbuk-do, Korea Manufacturer: LG Electronics Inc. Manufacturer Address: 642,…

Text truncated - open the document above for the full version.

Test Setup Photos

EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. Β„ Conducted Test Picture (Front) Β„ Conducted Test Picture (Rear) EUT Type: 20.1” LCD Monitor FCC ID: BEJL200WJQ Test Report No.: GETEC-E3-07-009 FCC Class B Certification Β„ Radiated Test Picture (Front) Β„ Radiated Test Picture (Rear)

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)
[email protected]201-470-2696Fax: 201-816-2003

Test Firm

GUMI UNIVERSITY EMC CENTERTea-Sig Park
[email protected]82-54-440-1194Fax: 82-54-440-1199

Technical Specifications

#Rule PartsFrequency RangePower Output
115B--
