BEJLG325GCellular/PCS GSM Phone

LG 325GQuick Start Guide • Depending on the software installed or your service provider or country, some of the descriptions in this guide may not match your phone exactly. • Depending on your country, your phone and accessories may appear different from the picture in this guide. P/N: MHK63465601(1.0) H Printed in China Installing the SIM and battery Install the SIM card Slide the SIM card into the SIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the SIM card, pull it gently in the reverse direction. WARNING:Do not replace or remove the SIM card while your phone is being used or turned on. Installing the Battery 1. To install the battery, align the battery contacts (1) with those in the battery compartment. Press the battery down until it clicks into place (2). 2. With the battery in position in the phone, replace the battery cover on the back of your phone." Removing the Battery 1. With your phone turned off, push forward from the bottom of the battery cover (1) on the back of your phone, slide the battery cover up and lift off (2). 2. Lift the battery up (1) and away (2) from the phone, as shown. WARNING:Donot remove the battery when the phone is switched on, as this may damage the phone. Charging your phone Pull out the cover of the charger socket on the left side of your LG320G. Plug in the charger and plug the other end into a wall socket. Your LG320G will need to be charged until a message reading “Battery full” appears on screen. Phone layout and key functions Phone features include: • Easy-to-read, LCD with status icons. • Messaging, voice mail, and caller ID. • 17-key keypad. • Speakerphone feature. •Menu-driven interface with prompts for easy operation and configuration. • Any Key answer, Auto Redial, One-Touch dial and Speed Dial (with 9 locations). •Bilingual (English and Spanish) capabilities. • Internal Antenna. Idle mode is when you are not on a call or using a menu. You must be in Idle mode to enter a phone number to dial. Display Status icons Main display area Soft key options Your phone displays the following status indicators on the top of the screen: Indicates the strength of the network signal. Indicates that GPRS service is available. Indicates the status of the battery charge. Indicates a call is in progress. Indicates the alarm has been set and is on. Indicates a Calendar event for the day. Indicates the receipt of a message. Indicates the receipt of a voicemail message. Indicates Ring has been set as the Ringtone volume. Indicates Silent has been set as the Ringtone volume. Indicates Vibration has been set as the Ringtone volume. Indicates the TTY has been set and is on. I I c c o o n n D D e e s s c c r r i i p p t t i i o o n n Turning the Phone On or Off 1. To turn on, install a charged battery. 2. Then press until the LCD screen lights up. 3.To turn off, press and hold until the display turns off. Changing the display language Allows you to use the bilingual feature according to your preference. Choose between English and Spanish. 1. In Idle mode, press the Left soft key Menu. 2. Select gg. 3. Use to select Automatic, English orEspañol, then press . Making Calls 1. Make sure the phone is turned on. 2. Enter the phone number (include the area code if needed). 3. Press to dial. 4. Press to end the call. Recent Calls The Recent Calls Menu is a list of the last phone numbers or Contacts entries for calls missed, received, or dialed. It is continually updated as new numbers are added to the beginning of the list and the oldest entries are removed from the bott om of the list. Note:To view a quick list of all your recent calls, press Key while in standby mode. 1. Call Logs : Allows you to view the list of the most recent missed, received and dialed calls. Press Left Soft Key , , 2. Missed Calls : Allows you to view a list of the most recent missed calls. Press Left Soft Key , , gUse to highlight an entry. 3. Received Calls : Allows you to view a list of the most recent received calls. Press Left Soft Key , , gUse to highlight an entry. 4. Dialed Numbers : Allows you to view a list of the most recent dialed calls. Press Left Soft Key , , gUse to highlight an entry. 5. Call duration : Allows you to view the duration of the calls, by type. Press Left Soft Key , , gUse to highlight one of the call types (below). Last Call/ Dialled Calls/Received Calls/ All Calls Profiles Options to customize your phone's sounds: 1. Press the Left Soft Key , . 2. Use to highlight the profile type. 3. Press the Left Soft Key Options. Selectto set the ringtone to your phone. Editto set Voice ringtone, Ring volume, Message tone, Message v olume, Message alert, Vibrate alert, Key tone, Key tone volume, Confirmation tone, Start-up sound, Select start-up sound, or Select shut down sound. Viewto check the customized settings. Using the menus Selecting or Modifying a Menu or Feature : 1. Press the Left soft key Menu to access Main menu. 2. Use the Navigation keysto reach a desired menu and then press the Right soft keyOK. 3. If the menu contains any submenus, locate the one you want by using the Navigation keys . Press the Right soft key OKto enter the submenu. If the selected menu contains additional submenus, repeat this step. *Many of the features and services described are network dependent and may require additional subscription and/or usage charges. Not all features are available for purchase or use in all areas. Other conditions and restrictions may apply. See carrier for more information. © 2010 LG Electronics, Inc. Earpiece Display screen Lock/Unlock key Send key Alphanumeric keys Left soft key Microphone Right soft key PWR/END key Vibrate Mode key Navigation key Entering text In a text input field, press the key to toggle between capitalization and 123mode s. To switch between T9w ord modeand ABC mode, press and hold the key. To access Symbols, press and select Symbols. Using T9Word mode 1. Press 2to 9to start entering a word. Press eac…

Text truncated - open the document above for the full version.

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: June 15, 2011 Federal Communicatio ns Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJLG325G Equipment Class: JBP: Part 15 Class B C omputing Device Peripheral To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram PERMANENT 2 Operational Descriptions 3 External Photos 4 Internal Photos 5 Test-Setup Photos SHORT-TERM 6 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, &KULVWRSKHUJRKQVRQ 6HQLRUManager L G Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

From: 한봉효 Sent: Monday, June 20, 2011 8:46 AM To: PCTEST TCB/CB Subject: Re: Qu estions Regarding FCC ID: BEJLG325G Hello PCTEST TCB, Thank you for your e-mail. Please see below and find the attachment. Thank you! Best regards Han. ----- Original Message ----- From: PCTEST TCB/CB To: 'LGE - Bong Hyo Han ???' Sent: Friday, June 17, 2011 6:32 AM Subject: Questions Regarding FCC ID: BEJLG325G     To: Mr. Bong Hyo Han / LG Electronics Inc.  From: Mr. Mark Czumak / PCTEST TCB RE: FCC ID: BEJLG325G Applicant: LG Electronics Inc. Correspondence Reference Number: BEJ110650 Confirmation Number: 1Y1105240650 Date of Original Email: June 16, 2011 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. The operational description document provides information on EUT GPRS Class 12 capability but no GPRS data is provided in the SAR test report. Please address. → I confirm this model doesn't support GPRS capability. 2. The PCS1900 conducted power levels provided in the SAR test report are higher than the conducted target power range in the Tune-up procedure document. Please address. → In Tune-up procedure, I indicated the tolerance. I think it can cover this power variation. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Mark Czumak Certification Engineer PCTEST TCB/CB Tel. 1.410.290.6652 Fax. 1.410.290.6654 [email protected] www.pctesttcb.com Please consider the environment before printing this e- mail . This communication and its attachments contain information from PCTEST TCB/CB and are intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

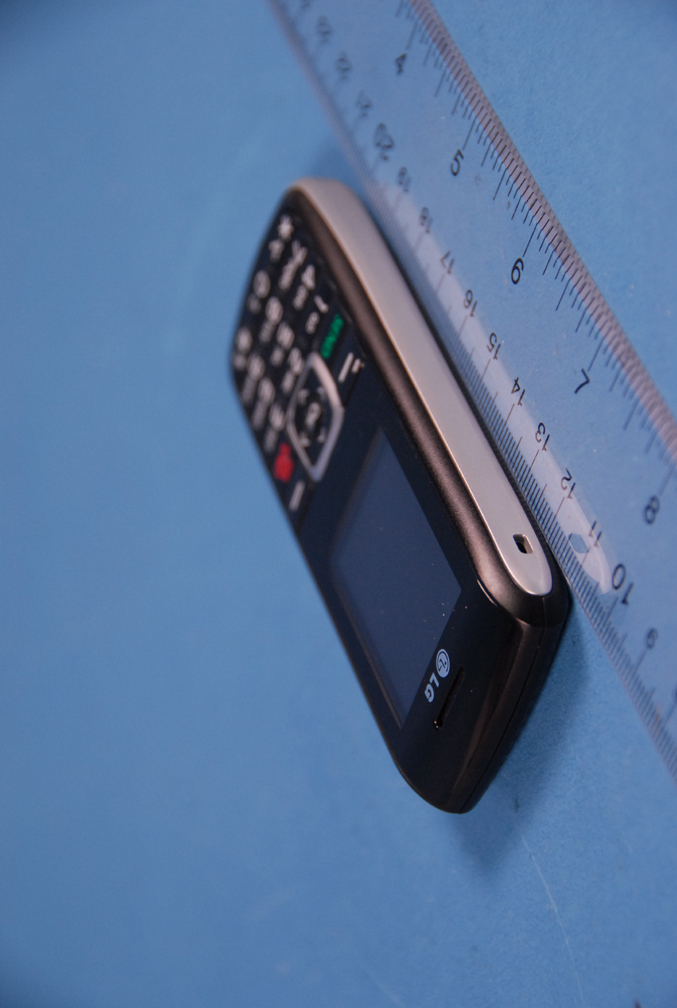

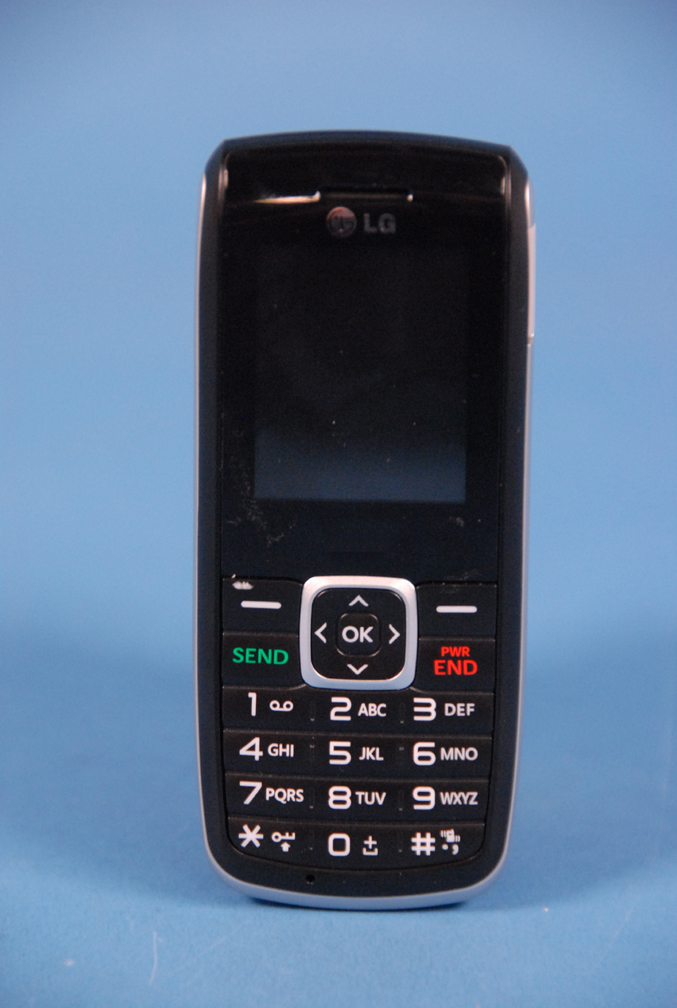

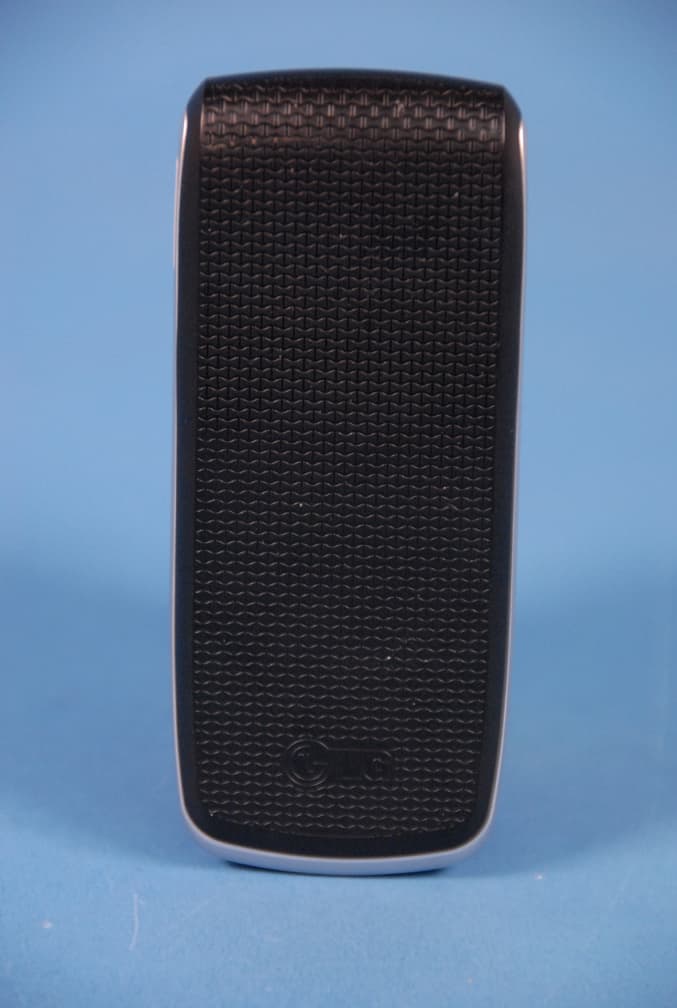

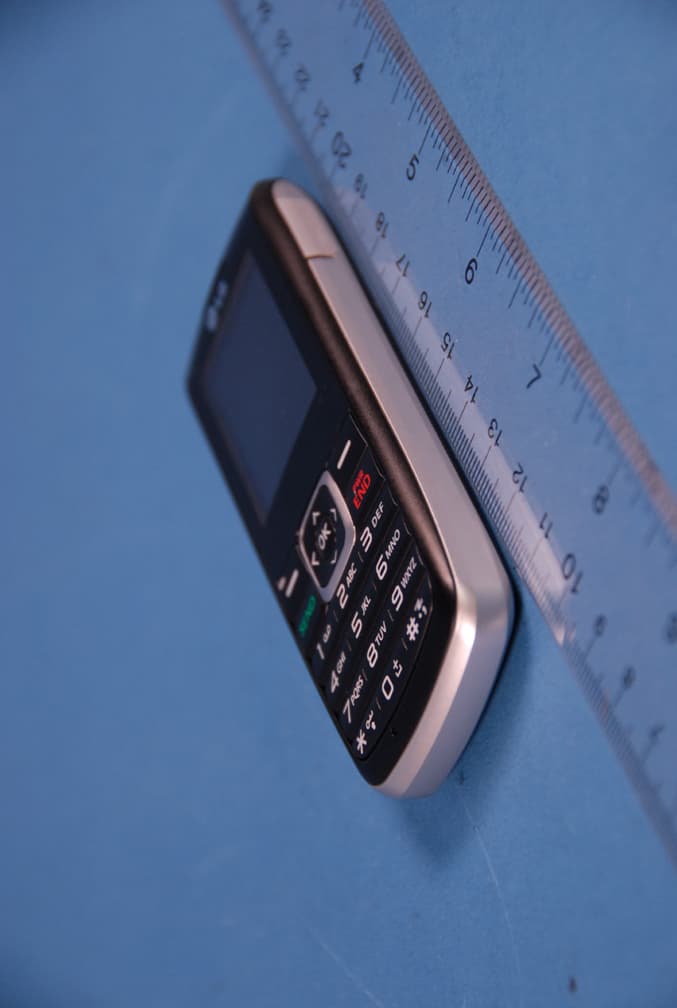

LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G External Photos EUT Type: 850/1900 GSM Phone Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G External Photos EUT Type: 850/1900 GSM Phone Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G External Photos EUT Type: 850/1900 GSM Phone Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G External Photos EUT Type: 850/1900 GSM Phone Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

Model No: LG325G FCC ID : BEJLG325G S/N : Made in Korea LG Electronics Inc. LGE

LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 1 of 9 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 2 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 3 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 4 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 5 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 6 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 7 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 8 of 9 © 2011 PCTEST Engineering Laboratory Inc. LG ELECTRONICS USA FCC ID: BEJLG325G Model: LG325G Internal Photos EUT Type: 850/1900 GSM Phone Page 9 of 9 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 2 of 16 TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION 1.1 Product description 3 1.2 Related submittal(s)/Grant(s) 3 1.3 Tested system details 4 1.4 Cable description 4 1.5 Noise suppression parts on cable. (I/O cable) 4 1.6 Test methodology 5 1.7 Test facility 5 1.8 Frequency Range of Radiated Measurements 5 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of tested system 6 3. PRELIMINARY TEST 3.1 Conducted Emission test 7 3.2 Radiated Emission test 7 4. CONDUCTED AND RADIATED EMISSION TESTS SUMMARY 4.1 Conducted Emission test 8 4.2 Radiated Emission test 13 5. FIELD STRENGTH CALCULATION 14 6. TEST EQUIPMENT 15 7. CONCLUSION 16 ATTACHMENT: TEST SETUP PHOTOGRAPHS FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 3 of 16 1. GENERAL INFORMATION 1.1 Product Description Equipment Under Test (E.U.T) is Cellular/PCS GSM Phone, Model: LG325G manufactured by LG Electronics Inc. Its basic purpose is used for communications. Model (s) LG325G FCC ID BEJLG325G E.U.T Type Cellular/PCS GSM Phone TX Frequency 824.20 ㎒ to 848.80 ㎒ (GSM 850) 1 850.20 ㎒ to 1 909.80 ㎒ (GSM 1 900) RX Frequency 869.20 ㎒ to 893.80 ㎒ (GSM 850) 1 930.20 ㎒ to 1 989.80 ㎒ (GSM 1 900) 1.2 Related Submittal(s) / Grant(s) Original submittal only. FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 4 of 16 1.3 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Manufacturer Model Number FCC ID / DoC Connected To Cellular/PCS GSM Phone LG LG325G BEJLG325G Notebook PC Notebook PC LG X140-02 DoC E.U.T Notebook PC adaptor Notebook PC adaptor DELTA (JIANG SU) ADP-40PH AD - Notebook PC Mouse Microsoft Intellimouse optical USB and PS/2 compatible DoC Notebook PC USB cable KSD SGDY0018501 - E.U.T Notebook PC 1.4 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) Cellular/PCS GSM Phone USB data Y Y (P,D)1.2 Notebook PC USB (Mouse) - Y (D)1.8 * The marked "(D)" means the data cable and "(P)" means the power cable. 1.5 Noise Suppression Parts on Cable. (I/O cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location Cellular/PCS GSM Phone USB data N - Y Both End Notebook PC USB (Mouse) Y Notebook PC End Y Notebook PC End FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 5 of 16 1.6 Test Methodology Both Conducted and Radiated testing was performed according to the procedures in ANSI C63.4/2003. Radiated testing was performed at an antenna to E.U.T distance of 3 m 1.7 Test Facility The 10 m semi anechoic chamber used to collect the Conducted and Radiated data is located at the 105-1, Jangam-Ri, Majang-Myeon, Icheon-Si, Kyoungki-Do, Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4. Detailed description of test facilities was submitted to the Commission and accepted dated Sep. 03, 2010 (Registration Number: 90661) 1.8 Frequency Range of Radiated Measurements An unintentional radiator, including a digital device, the spectrum shall be investigated from the lowest radio frequency signal generated or used in the device, without going below the lowest frequency for which a Radiated Emission limit is specified, up to the frequency shown in the following table Highest frequency generated or used in the device or on which the device operates or tunes (㎒) Upper frequency of measurement range (㎒) Below 1.705 30 1.705 to 108 1 000 108 to 500 2 000 500 to 1 000 5 000 Above 1 000 5 th harmonic of the highest frequency or 40 ㎓, whichever is lower FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 6 of 16 2. SYSTEM TEST CONFIGURATION 2.1 Configuration of Test System Power Line Conducted test : E.U.T was connected to LISN via Notebook PC adaptor. Preliminary Power Line Conducted Emission tests were performed by using the procedure in ANSI C63.4/2003 7.2.3 to determine the worst operating conditions. Radiated Emission test : Preliminary Radiated Emission tests were performed by using the procedure in ANSI C63.4/2003 8.3.1.1 to determine the worst operating condition. Final Radiated Emission tests were performed at 10 m semi-anechoic chamber. [Configuration of Tested System] Power Line: 110VAC Non-Conductive Table Notebook PC adaptor Mouse Notebook PC E.U.T FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 7 of 16 3. PRELIMINARY TEST 3.1 Conducted Emission Test ■ It was tested Data Communication mode, after connecting all peripheral devices. Operation Mode The Worst Operating Condition Data Communication ○ 3. 2 Radiated Emission Test ■ It was tested Data Communication mode, after connecting all peripheral devices. Operation Mode The Worst Operating Condition Data Communication ○ FCC ID: BEJLG325G Report No.: HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 8 of 16 4. CONDUCTED AND RADIATED EMISSION TEST SUMMARY 4.1 Conducted Emission Test The following table shows the highest levels of conducted emissions on both polarization of hot and…

Text truncated - open the document above for the full version.

FCC ID: BEJLG325G Report No. HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 1 of 5 ATTACHMENT - TEST SETUP PHOTOS - FCC ID: BEJLG325G Report No. HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 2 of 5 1. CONDUCTED MEASUREMENT PHOTOS FCC ID: BEJLG325G Report No. HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 3 of 5 FCC ID: BEJLG325G Report No. HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 4 of 5 2. RADIATED MEASUREMENT PHOTOS FCC ID: BEJLG325G Report No. HCTE1106FE05 Date: June 03, 2011 HCT CO., LTD. 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYOUNGKI-DO, KOREA TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr Page 5 of 5
