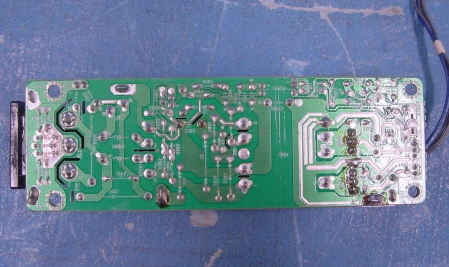

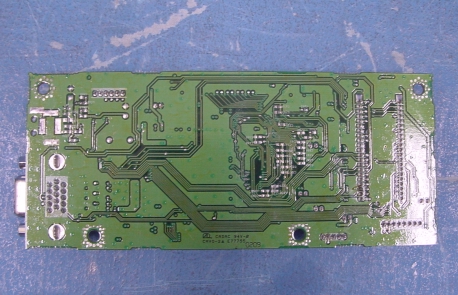

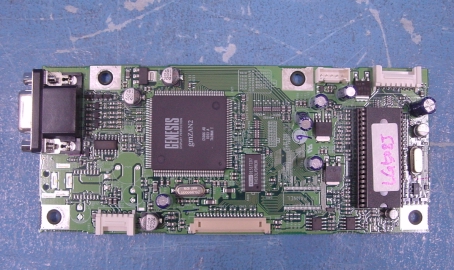

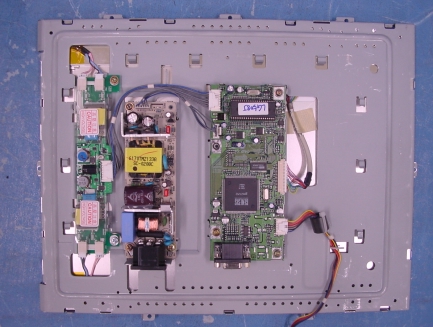

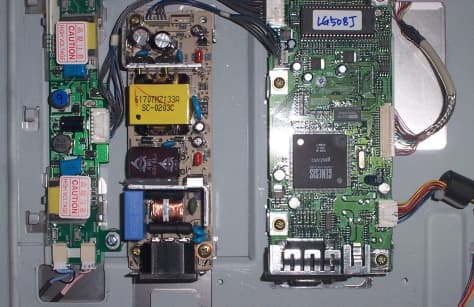

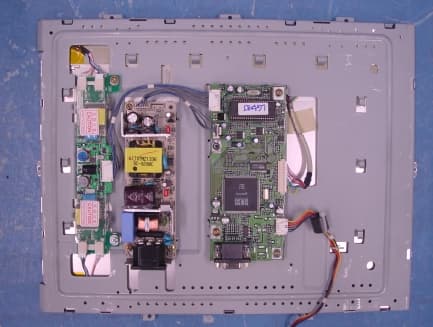

APPENDIX G : FCC ID : BEJLG508J USER’S MANUAL FPD 1530 monitor user's guide P/NO.3828TUO197D(REV00-0204) Printed in Korea i Contents Using Your FPD 1530 Monitor.......................................1 Connectingthe monitor ............................................... 2 Starting themonitor .................................................. 5 Adjustingmonitorsettings ............................................. 6 Externalcontrols ................................................. 6 OSDoptions .................................................... 7 Softwarecontrols ............................................... 10 Video modes ................................................... 14 Powermanagement ................................................ 15 ENERGYSTAR ................................................ 15 Energydeclaration .............................................. 15 Maintenance ...................................................... 16 Troubleshooting .................................................... 17 Nopower ...................................................... 17 Nopicture ..................................................... 17 Displaycolorsarewrong ......................................... 18 Picturehasshadowsor“ghosts” ................................... 18 Colorisnot uniform ............................................. 18 Imageisnotsizedorcenteredproperly .............................. 18 Specifications ...................................................... 19 Safety, Regulatory, and Legal Information......................... 21 ii 1 www.gateway.com Using Your FPD 1530 Monitor The FPD 1530 monitor is a high-resolution color LCD with:
1024 × 768 maximum resolution
Over 16 million colors
Excellent contrast and legibility
Space-saving and lightweight design
Reduced power usage 2 Using Your FPD 1530 Monitor www.gateway.com Connecting the monitor To connect the monitor: 1Position the computer and the monitor so you can easily reach the back panel of each. 2Set the monitor upright, then feed the power cable and the attached video cable through the hole in the stand. 3Lay the monitor on its back. 3 Connectingthe monitor www.gateway.com 4Connect the power cord to the power connector on the underside of the monitor. 5Return the monitor to its upright position. 6Make sure your computer is turned off, then connect the end of the attached video cable to the matching video port on the back of your computer. 4 Using Your FPD 1530 Monitor www.gateway.com 7Plug the other end of the power cord into a properly grounded electrical outlet. 5 Startingthe monitor www.gateway.com Starting the monitor To start the monitor: 1Press the power button on the monitor. The LED on the button turns on. 2Turn on the computer. 3After the computer is running, the LED on the monitor power button should be green. Allow about 10 seconds for the display image to appear. If the power LED is not green or you do not see a display image, check the connections. For more troubleshooting information, see “Troubleshooting” on page 17. 4Adjust the tilt of the monitor for the best viewing angle. 5Adjust the controls to get the best picture. After you see the Windows desktop, press the AUTO/SET button to automatically adjust your display image to the ideal settings. Adjust other monitor settings by using the on-screen display (OSD). For more information, see “Adjusting monitor settings” on page 6. ImportantWhen adjusting your monitor settings,alwayspress the AUTO/SETbutton before entering the OSD. This will automatically adjust your display image to the ideal settings for the current screen resolution. The best screen resolution is 1024 × 768. Power button andLED 6 Using Your FPD 1530 Monitor www.gateway.com Adjusting monitor settings You can adjust your display image by using external controls (located on the monitor itself) and software controls (accessible in Windows). For more information about software controls, see “Software controls” on page 10. External controls This monitor features an on-screen display (OSD) that lets you adjust and save contrast, brightness, and other settings for the monitor. The monitor saves changes you make to the settings, even if you turn off the monitor.
OSD. Press to view the OSD. Press again to exit.
Arrows. OSD active: Press to select or adjust OSD options. OSD inactive: Press and to adjust the contrast. Press and to adjust the brightness.
Auto/Set. OSD active: Press to enter a selection in the OSD. OSD inactive: Press the AUTO/SET button to automatically optimize your monitor’s position, clock, and phase. Menu selection arrows OSD button AUTO/SET button 7 Adjusting monitor settings www.gateway.com OSD options To adjust the OSD settings: 1Press the OSD button. The OSD menu opens. 2Use the and buttons to highlight a control, then press the AUTO/SET button. 3Use the buttons to adjust the control to the desired level. 4When you have finished making all adjustments, press the OSD button to exit the OSD. OSD menus You can access any of these menus in the OSD: OSD AdjustDescription Brightness.Press theand buttons to adjust the brightness of the screen. Maximize the life of your monitor by using the lowest brightness setting you are comfortable with. You may need to readjust brightness after the monitor has warmed up. Contrast.Press theand buttons to adjust the contrast of the screen. 8 Using Your FPD 1530 Monitor www.gateway.com Preset.Press theand buttons to adjust the color temperature. 9300Kis bluish white. 6500Kis reddish white(default). Red, Green, Blue.Press the andbuttons to customize your color levels. Vertical position.Press the andbuttons to movethe image up and down. Horizontal position.Press the andbuttons to movethe image left and right. TheAutofunctionconfiguresthe vertical and horizontal position for you.For more information on the Auto function,see “External controls” on page 6. OSD AdjustDescription 9 Adjusting monitor settings www.gateway.com Clock.Press thea…
