BEJLG56AM15-inch LCD Monitor

© 2001 PCTEST Lab ATTACHMENT K – USERS MANUAL i Contents 1 Using Your Flat Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Connecting the flat panel display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Starting the flat panel display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Adjusting display settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 External controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 OSD options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Software controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 No power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Image is not sized or centered properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Image cannot be adjusted full screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 A Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . 21 8508376.book Page i Thursday, October 18, 2001 9:20 AM ii 8508376.book Page ii Thursday, October 18, 2001 9:20 AM 1 1 www.gateway.com Using Your Flat Panel Display The FPD 1520 Flat Panel Display is a high-resolution color LCD with:
1024 × 768 maximum resolution
Over 16 million colors
Excellent contrast and legibility
Space-saving and lightweight design
Reduced power usage 8508376.book Page 1 Thursday, October 18, 2001 9:20 AM 2 Chapter 1: Using Your Flat Panel Display www.gateway.com Connecting the flat panel display To connect the flat panel display: 1Position the computer and monitor so you can easily reach the back panel of each. 2Set the monitor upright, then feed the power and video cables through the hole in the stand. 3Lay the monitor down on its back. 8508376.book Page 2 Thursday, October 18, 2001 9:20 AM 3 Connecting the flat panel display www.gateway.com 4Connect one end of the video cable to the matching video port on the underside of the monitor. If your computer has both a digital video port and an analog video port, we recommend using the digital video connection. 5Connect the DC power cord to the DC power connector on the underside of the monitor. 8508376.book Page 3 Thursday, October 18, 2001 9:20 AM 4 Chapter 1: Using Your Flat Panel Display www.gateway.com 6Return the display to its upright position. 7Make sure your computer is turned off, then connect the other end of the video cable to the matching video port on the back of your computer. 8Plug the small end of the AC power cord into the power adapter, then plug the other end of the AC power cord into a properly grounded electrical outlet. 8508376.book Page 4 Thursday, October 18, 2001 9:20 AM 5 Starting the flat panel display www.gateway.com Starting the flat panel display To start the monitor: 1Press the power button once. The LED on the button turns on. 2Turn on the computer. 3After the computer is running, the LED on the power button should be green. Allow about 10 seconds for the display image to appear. If the power LED is not green or you do not see an display image, check the connections. For more troubleshooting information, see “Troubleshooting” on page 17. 4Adjust the tilt of the display for the best viewing angle. 5Adjust the controls to get the best picture. Press the button to automatically adjust your display image to the ideal settings. Adjust other display settings by using the On-Screen Display (OSD). For more information, see “Adjusting display settings” on page 6. ImportantWhen adjusting your display settings, always press the button before entering the OSD. This will automatically adjust your display image to the ideal settings for the current screen resolution size (display mode). The best display mode is 1024×768. Power button and LED 8508376.book Page 5 Thursday, October 18, 2001 9:20 AM 6 Chapter 1: Using Your Flat Panel Display www.gateway.com Adjusting display settings You can adjust your display image by using external controls (located on the display itself) and software controls (accessible in Windows). External controls This flat panel display features an On-Screen Display (OSD) that lets you adjust and save contrast, brightness, and other settings for the display. The flat panel display saves changes you make to the settings, even if you turn the display off.
OSD. Press to view the OSD. Press again to exit.
Arrows. OSD active: Press to select or adjust OSD options. OSD i…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) @ LG Electronics Inc.& January 10, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, General Manager of New York Office LG Electronics Inc.

© 2001 PCTEST Lab ATTACHMENT F – BLOCK DIAGRAM(S)

© 2001 PCTEST Lab ATTACHMENT A – COVER LETTER(S) October 23, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG ELECTRONICS INC. FCC ID: BEJLG56AM Gentlemen: Transmitted herewith, on behalf of LG Electronics Inc. is an application for certification of the following 15–inch color LCD monitor: FCC ID:BEJLG56AM MODEL:FPD1520 TRADE NAMES:GATEWAY EUT TYPE:15-inch LCD Monitor Attached are the applicant’s authorization letter, measurement report (test data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, schematics and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Yeong Hur, EMC Engineer LG Electronics Inc.

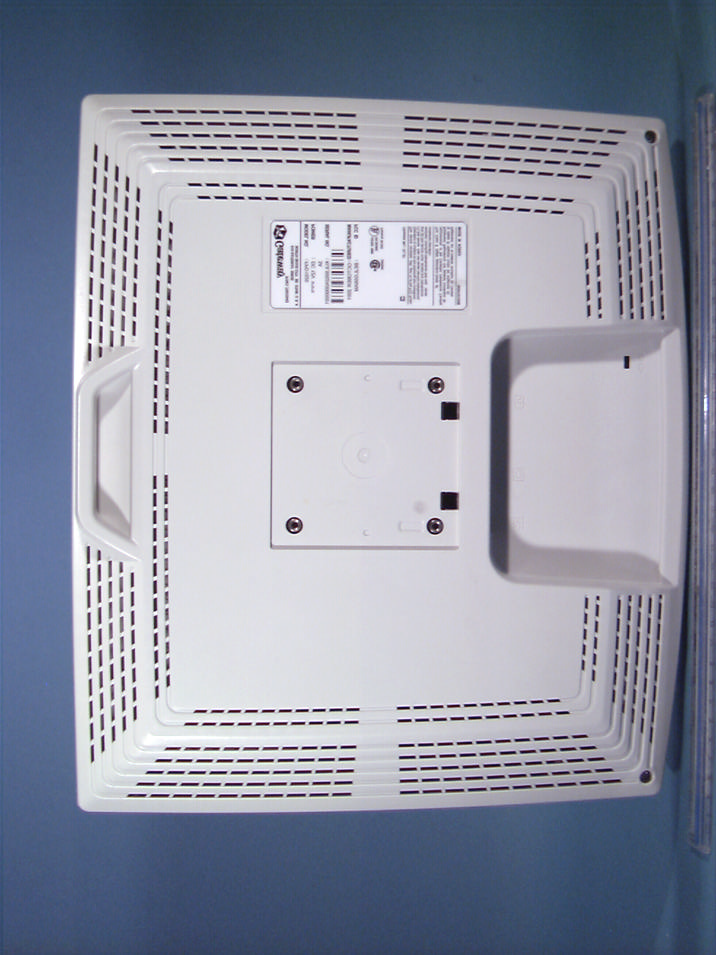

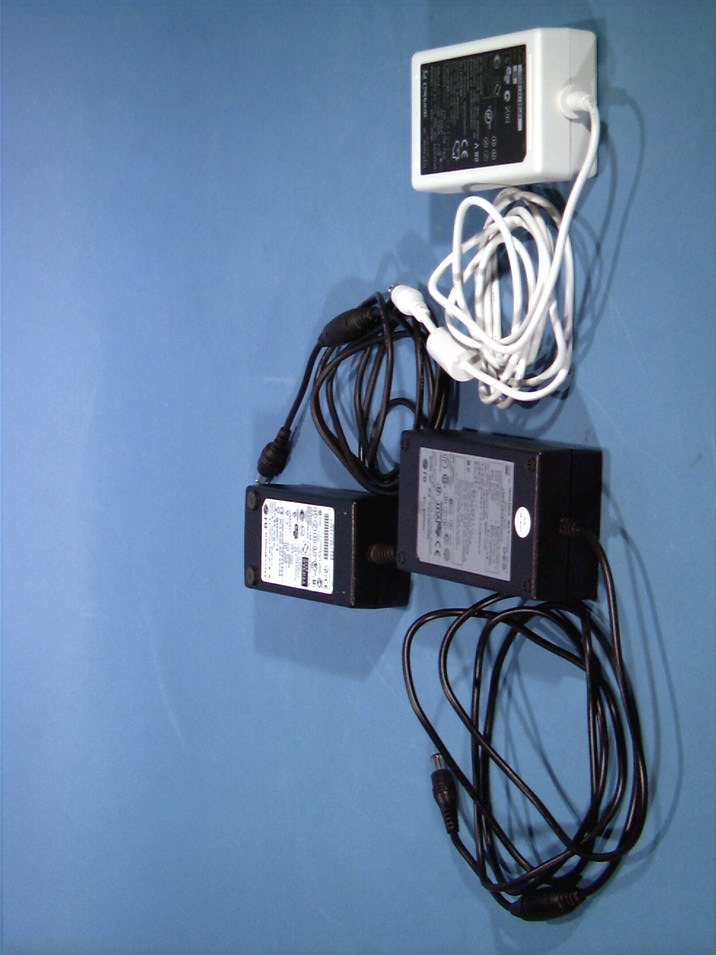

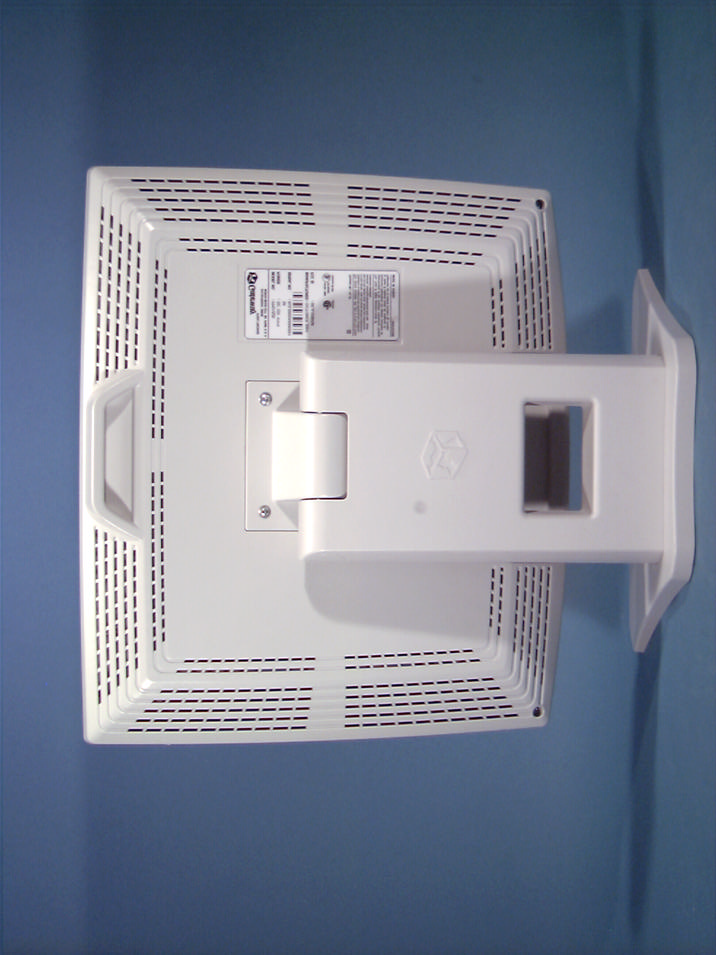

© 2001 PCTEST Lab ATTACHMENT I – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL & LOCATION © 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab ATTACHMENT J – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM

© 2001 PCTEST Lab ATTACHMENT G – SCHEMATIC DIAGRAM(S)

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE LG Electronics Inc. – DID DIVISIONDates of Tests: October 22-23, 2001 642, Jinpyung-dong, Kumi-city,Test Report S/N: B.211017602.BEJ Kyoungsangbuk-do, 730-360 KOREATest Site: PCTEST Lab., MD U.S.A. Attn: Mr. Yeong Hur, EMC Engineer FCC ID BEJLG56AM APPLICANT LG ELECTRONICS INC. Rule Part(s):FCC Part 15 Subpart B Equipment Class:Class B Peripheral Device (JBP) Standard(s):EN55022: 1998 (CISPR 22) EUT Type:15-inch LCD Monitor Max. Resolution(s):1024 x 768 Non-interlaced @60KHz/ 75Hz Trade Name(s): GATEWAY Model(s): FPD1520 This equipment has been shown to be in compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. (Note Codes: # 19, # 28) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Lab Code 100431-0 © 2001 PCTEST Engineering Laboratory, Inc. FCC Class B TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1SCOPE 1 2.1INTRODUCTION (SITE DESCRIPTION) 2 3.1PRODUCTION INFORMATION 3 4.1DESCRIPTION OF TESTS (CONDUCTED) 4 4.3DESCRIPTION OF TESTS (RADIATED) 5 5.1LIST OF SUPPORT EQUIPMENT 6 6.1TEST DATA (CONDUCTED) 7 7.1TEST DATA (RADIATED)8 8.1SAMPLE CALCULATIONS 9 9.1ACCURACY OF MEASUREMENT 10 10.1LIST OF TEST EQUIPMENT 11 11.1TEST SOFTWARE USED 12 12.1CONCLUSION 13 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) ATTACHMENT G: SCHEMATIC DIAGRAM(S) ATTACHMENT H: TEST SETUP PHOTOGRAPHS ATTACHMENT I: EXTERNAL PHOTOGRAPHS ATTACHMENT J: INTERNAL PHOTOGRAPHS ATTACHMENT K: USER’S MANUAL Test Report S/N: B.211017602.BEJFCC Class B Dates of Tests: October 22-23, 2001Certification © 2001 PCTEST Lab15” LCD Monitor LG Electronics Inc. FCC ID: BEJLG56AM 1 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Applicant Name:LG ELECTRONICS INC. Address:642, Jinpyung-dong, Kumi-city, Kyoungsangbuk-do, 730-360 KOREA Contact Person:Yeong Hur, EMC Engineer Product Engineering Dept., Safety & EMC Team • FCC ID:BEJLG56AM • Equipment Class:B Digital Device / Peripheral (JBP) • EUT Type:15-inch LCD Monitor • Trade Name(s):GATEWAY • Model(s):FPD1520 • Max. Resolution:1024 x 768 Non-interlaced @ 60kHz/75Hz • Cable(s):Shielded D-Sub Cable (with ferrite on both ends) • Power Cord:Unshielded • Horizontal Frequency:31kHz- 61kHz • Vertical Frequency:56Hz- 85Hz • Power:DC 12V 3A3A • Rule Part(s):FCC Part 15 Subpart B • Test Procedure(s):ANSI C63.4 (1992) • Dates of Tests:October 22-23, 2001 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:B.211017602.BEJ Test Report S/N: B.211017602.BEJFCC Class B Dates of Tests: October 22-23, 2001Certification © 2001 PCTEST Lab15” LCD Monitor LG Electronics Inc. FCC ID: BEJLG56AM 2 2.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from LG Electronics Inc. 15- inch LCD Monitor FCC ID: BEJLG56AM. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 2.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure 1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: B.211017602.BEJFCC Class B Dates of Tests: October 22-23, 2001Certification © 2001 PCTEST Lab15” LCD Monitor LG Electronics Inc. FCC ID: BEJLG56AM 3 3.1 Product Information 3.2 Equipment Description The Equipment Under Test (EUT) is the LG Electronics Inc. (GATEWAY Model: FPD1520) 15-inch LCD Monitor FCC ID: BEJLG56AM. Maximum Resolution(s):1024 x 768 Non-interlaced @ 60kHz/ 75Hz Power Cord:Unshielded AC power cord Port(s)/Input Connector(s):15-pin D-Sub type VGA signal connector Cable(s):Shielded D-Sub (with ferrite on both ends) Horizontal Frequency:31kHz- 61kHz Vertical Frequency:56Hz- 85Hz Power:DC 12V 3A Dimensions (W x H x D):38.74 x 39.05 x 20.32cm EMI Suppression Devi…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT D – TEST PLOT(S)

© 2001 PCTEST Lab ATTACHMENT H – TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM © 2001 PCTEST Lab 15” LCD Monitor NVLAP Lab Code: 100431-0 LG Electronics Inc. FCC ID: BEJLG56AM
