BEJLG708GLCD Monitor

APPENDIX G : FCC ID : BEJLG708G USER’S MANUAL i Contents 1 Using Your Flat Panel Display................................... 1 Connectingthe flatpaneldisplay ....................................... 2 Starting the flat panel display . . . . . . . . . ................................. 5 Adjustingdisplaysettings ............................................. 6 Externalcontrols ................................................. 6 OSDoptions .................................................... 7 Softwarecontrols ............................................... 10 Video modes ................................................... 14 Powermanagement ................................................ 15 ENERGYSTAR ................................................ 15 Energydeclaration .............................................. 15 Maintenance ...................................................... 16 Troubleshooting .................................................... 17 Nopower ...................................................... 17 Nopicture ..................................................... 17 Displaycolorsarewrong ......................................... 18 Picturehasshadowsor“ghosts” ................................... 18 Colorisnot uniform ............................................. 18 Imageisnotsizedorcenteredproperly .............................. 18 Specifications ...................................................... 19 A Safety, Regulatory, and Legal Information....................... 1 ii 1 1 www.gateway.com Using Your Flat Panel Display The FPD 1730 Flat Panel Display is a high-resolution color LCD with:
1280 × 1024 maximum resolution
Over 16 million colors
Excellent contrast and legibility
Space-saving and lightweight design
Reduced power usage 2 Chapter 1: Using Your Flat Panel Display www.gateway.com Connecting the flat panel display To connect the flat panel display: 1Position the computer and the flat panel display so you can easily reach the back panel of each. 2Set the display upright, then feed the power and video cables through the hole in the stand. 3Lay the display down on its back. 3 Connecting the flat panel display www.gateway.com 4Connect one end of the video cable to the matching video port on the underside of the display. 5Connect the power cord to the power connector on the underside of the display. 6Return the display to its upright position. 4 Chapter 1: Using Your Flat Panel Display www.gateway.com 7Make sure your computer is turned off, then connect the other end of the video cable to the matching video port on the back of your computer. 8Plug the other end of the power cord into a properly grounded electrical outlet. 5 Starting theflat paneldisplay www.gateway.com Starting the flat panel display To start the flat panel display: 1Press the power button on the display. The LED on the button turns on. 2Turn on the computer. 3After the computer is running, the LED on the display power button should be green. Allow about 10 seconds for the display image to appear. If the power LED is not green or you do not see an display image, check the connections. For more troubleshooting information, see “Troubleshooting” on page 17. 4Adjust the tilt of the display for the best viewing angle. 5Adjust the controls to get the best picture. After you see the Windows desktop, press the AUTO/SET button to automatically adjust your display image to the ideal settings. Adjust other display settings by using the On-Screen Display (OSD). For more information, see “Adjusting display settings” on page 6. ImportantWhen adjusting your display settings,alwayspress the AUTO/SETbutton before entering the OSD. This will automatically adjust your display image to the ideal settings for the current screen resolution size(display mode). The best display mode is 1280 × 1024. Power button andLED 6 Chapter 1: Using Your Flat Panel Display www.gateway.com Adjusting display settings You can adjust your display image by using external controls (located on the display itself) and software controls (accessible in Windows). External controls This flat panel display features an On-Screen Display (OSD) that lets you adjust and save contrast, brightness, and other settings for the display. The flat panel display saves changes you make to the settings, even if you turn the display off.
OSD. Press to view the OSD. Press again to exit.
Arrows. OSD active: Press to select or adjust OSD options. OSD inactive: Press and to adjust the contrast. Press and to adjust the brightness.
Auto/Set. OSD active: Press to enter a selection in the OSD. OSD inactive: Press the AUTO/SET button to automatically optimize your display’s position, clock, and phase. Menu selection arrows OSD button AUTO/SET button 7 Adjusting display settings www.gateway.com OSD options To adjust the OSD settings: 1Press the OSD button. The OSD menu opens. 2Use the and buttons to highlight a control, then press the AUTO/SET button. 3Use the buttons to adjust the control to the desired level. 4When you have finished making all adjustments, press the OSD button to exit the OSD. OSD menus You can access any of these menus in the OSD: OSD AdjustDescription Brightness.Press theand buttons to adjust the brightness of the screen. Maximize the life of your display by using the lowest brightness setting you are comfortable with. You may need to readjust brightness once the display is warmed up. Contrast.Press theand buttons to adjust the contrast of the screen. 8 Chapter 1: Using Your Flat Panel Display www.gateway.com Preset.Press theand buttons to adjust the color temperature. 9300Kis bluish white. 6500Kis reddish white(default). Red, Green, Blue.Press the andbuttons to customize your color levels. Vertical position.Press the andbuttons to movethe image up and down. Horizontal position.Press the andbuttons to movethe image left and right. TheAutofunctionconfiguresthe vertical and horizontal position for you.For more information on the Auto function,se…

Text truncated - open the document above for the full version.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION Dear Sir: We, the undersigned, hereby authorize MET laboratories Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely, Kyeom Soon Kim April 11, 2002 LG Electronics Inc. /General Manager LG Electronics Inc.

Attn.: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR 17” LCD Monitor FCC ID: BEJLG708G MODEL #: FPD1730 Gentlemen This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams, block diagrams required to be submitted with this application be withheld from public review. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Kyeom Soon Kim April 11, 2002 LG Electronics Inc./General Manager LG Electronics Inc.

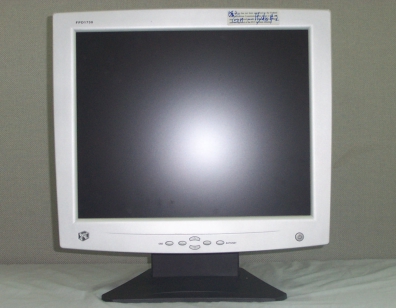

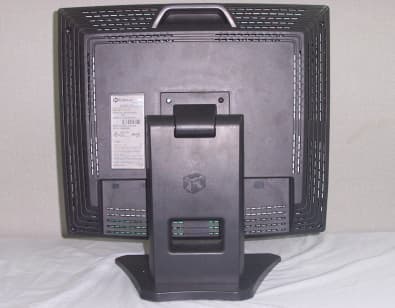

FCC ID : BEJLG708G 1. External View [ Front ] [ Back ]

APPENDIX B : FCC ID : BEJLG708G Labelling Requirements MODEL NO. : FPD1730 POWER : AC 100~240V 50/60Hz 1.0A SERIAL NO. : KUL7002F0000001 MANUFACTURED: APRIL 2002 FCC ID : BEJLG708G This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Cet appareil numérique de Ia classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Chassis No.: CL-36 MADE IN KOREA 3850TIZ510H 610 GATEWAY DRIVE NORTH SIOUX CITY SD 57049 U. S. A P/NO.7004036 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. LISTED 59B9 ITE E82982 Factory ID:GG ID Label Location

FCC ID : BEJLG708G 2. Internal View FCC ID : BEJLG708G 2. Internal View FCC ID : BEJLG708G 3-1. LCD Panel (L170E3-5, AU Optronics) FCC ID : BEJLG708G 3-2. LCD Panel (HT17E11-300, Hyundai Display Technology, Inc.) FCC ID : BEJLG708G 3-3. Main Board FCC ID : BEJLG708G 3-4. Control Board FCC ID : BEJLG708G 3-5. Power Board FCC ID : BEJLG708G 3-6. Inverter Board

1/12 Report No.: 00431-4521-F2048 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077~9, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue: April 11, 2002 Test Report No: 00431-4521-F2048 Applicant: LG Electronics Inc. Regulation: FCC Part 15 Class B Test procedure: ANSI C63.4-1992 Equipment Class: Unintentional Radiators – Digital device EUT Type: 17” LCD Monitor Trade Name(s): Model No.: Gateway FPD1730 This device has been verified to comply with the applicable requirements in the FCC Part 15 and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center LG Electronics Inc. 2/12 Report No.: 00431-4521-F2048 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 REPORT FOR A DIGITAL DEVICE Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. U.S. Responsible Party: Address: LG Electronics USA Inc. 6133 North River Road,Suite 1100 (Riverway Plasza) Rosemont, IL 60018, USA Contact Person: P.H.Byun, General Manager Telephone No.: (847) 692-4630 EXT.329 Manufacturer: LG Electronics Inc. DID Division Address: 642 Jinpyoung-dong Kumi-City Kyoungsangbuk-do, 730-360, Korea FCC ID No.: BEJLG708G EUT Class: Unintentional Radiators - Digital device EUT Type: 17” LCD Monitor Trade Name: Gateway Model No.: FPD1730 Rule Part: FCC Part 15 Class B Test Procedure: ANSI C63.4-1992 Date of Test: April 8~9, 2002 Date of Receipt of EUT: April 8, 2002 Date of Issue: April 11, 2002 Test Report No.: 00431-4521-F2048 Test Result: Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code: 200040-0. Tested by: Reviewed by : S. H. Ji / Senior Research Engineer Quality and Reliability Center LG Electronics Inc. D. H. Lee / Research Engineer Quality and Reliability Center LG Electronics Inc. 3/12 Report No.: 00431-4521-F2048 LG Electronics Inc. Q & R Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077~9, Fax:+82-2-2635-5543 CONTENTS Page 1. GENERAL INFORMATION ..................................................................................................................... 4 1.1 D ESCRIPTIONS OF EQUIPMENT UNDER TEST (EUT)................................................................................... 4 1.2 R EGULATIONS APPLIED TO EUT ............................................................................................................... 4 1.3 M EASUREMENT PROCEDURE.................................................................................................................... 4 1.4 M EASUREMENT PLACE............................................................................................................................. 4 2. GENERAL TEST CONDITIONS .............................................................................................................. 5 2.1 O PERATING CONDITIONS OF EUT ............................................................................................................. 5 2.2 S TABILIZATION OF EUT OPERATING......................................................................................................... 5 2.3 T EMPERATURE AND HUMIDITY................................................................................................................. 5 3. TEST SITE ................................................................................................................................................... 5 3.1 S EMI-ANECHOIC CHAMBER....................................................................................................................... 5 3.2 A SHIELDED ENCLOSURE.......................................................................................................................... 5 4. CALIBRATIONS OF MEASURING INSTRUMENTS .......................................................................... 5 5. DESCRIPTION OF TEST CONDITION .................................................................................................. 6 5.1 P OWER LINE CONDUCTED EMISSION MEASUREMENTS............................................................................... 6 5.2 R ADIATED EMISSIONS MEASUREMENTS.................................................................................................... 7 6. MEASURING INSTRUMENTS AND SET-UP ........................................................................................ 8 6.1 P OWER LINE CONDUCTED EMISSIONS........................................................................................................ 8 6.2 R AD…

Text truncated - open the document above for the full version.

FCC ID : BEJLG708G APPENDIX A : Test Graph 1. Radiated Emission 1-1. LCD Panel: L170E3-5 (AU Optronics) 1-1-1. 30 ~ 300 MHz (Hor.) 1-1-2. 30 ~ 300 MHz (Ver.) 1-1-3. 300 ~ 1000 MHz (Hor.) 1-1-4. 300 ~ 1000 MHz (Ver.) 1-2. LCD Panel: HT17E11-300 (Hyundai Display Technology, Inc.) 1-2-1. 30 ~ 300 MHz (Hor.)1-2-2. 30 ~ 300 MHz (Ver.) 1-2-3. 300 ~ 1000 MHz (Hor.)1-2-4. 300 ~ 1000 MHz (Ver.) 2. Conducted Emissions 2 -1. LCD Panel: L170E3-5 (AU Optronics) 2-1-1. Live Line2-1-2. Neutral Line 2-2. LCD Panel: HT17E11-300 (Hyundai Display Technology, Inc.) 2-2-1. Live Line2-2-2. Neutral Line FCC ID : BEJLG708G 1. Radiated Emissions 1-1. LCD Panel: L170E3-5 (AU Optronics) 1-1-1. 30 ~ 300 MHz (Hor.) 1-1-2. 30 ~ 300 MHz (Ver.) FCC ID : BEJLG708G 1-1-3. 300 ~ 1000 MHz (Hor.) 1-1-4. 300 ~ 1000 MHz (Ver.) FCC ID : BEJLG708G 1-2. LCD Panel: HT17E11-300 (Hyundai Display Technology, Inc.) 1-2-1. 30 ~ 300 MHz (Hor.) 1-2-2. 30 ~ 300 MHz (Ver.) FCC ID : BEJLG708G 1-2-3. 300 ~ 1000 MHz (Hor.) 1-2-4. 300 ~ 1000 MHz (Ver.) FCC ID : BEJLG708G 2. Conducted Emissions 2-1. LCD Panel: L170E3-5 (AU Optronics) 2-1-1. Live Line 2-1-2. Neutral Line FCC ID : BEJLG708G 2-2. LCD Panel: HT17E11-300 (Hyundai Display Technology, Inc.) 2-2-1. Live Line 2-2-2. Neutral Line
